Tri-proof batten for 2 60cm LED tubes - IP65
Tri-proof batten for 2 60cm LED tubes - IP65
Tri-proof batten for 2 60cm LED tubes - IP65
Tri-proof batten for 2 60cm LED tubes - IP65

Tri-proof batten for 2 60cm LED tubes - IP65

SKU:B8480-2-60
Has superado el límite de unidades
In stock 310 units
Data sheet

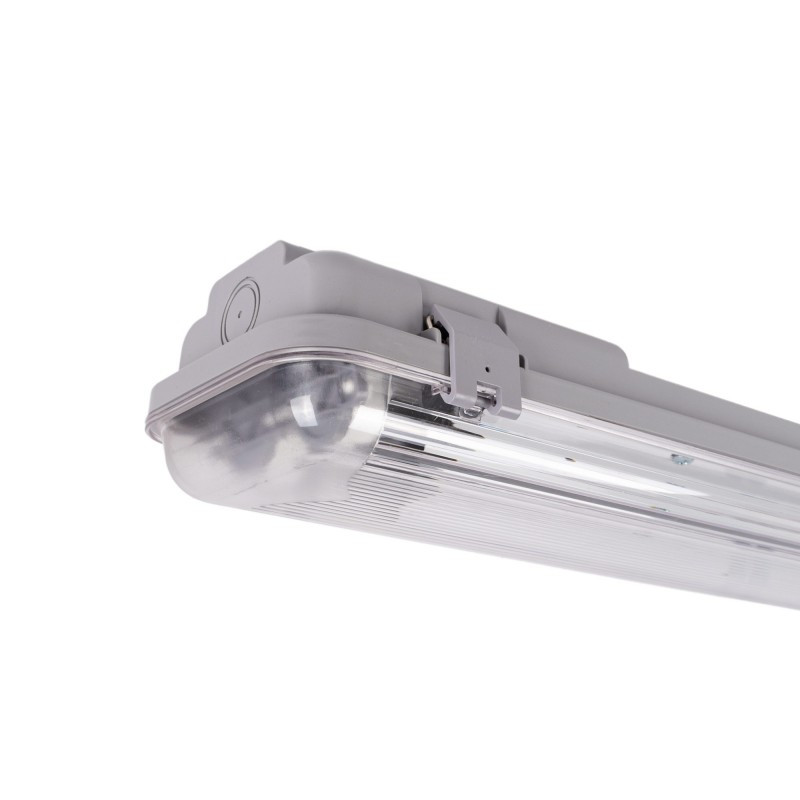

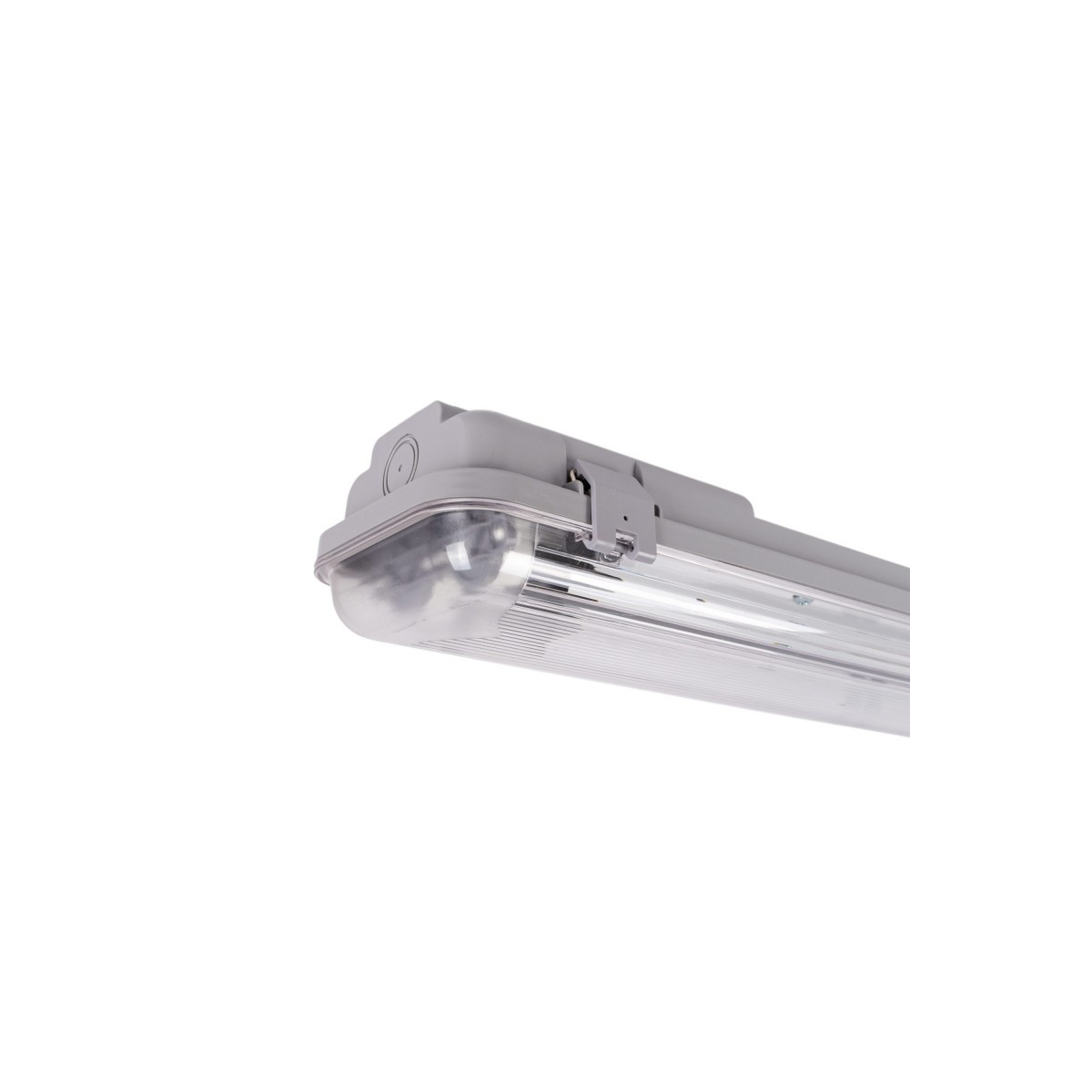

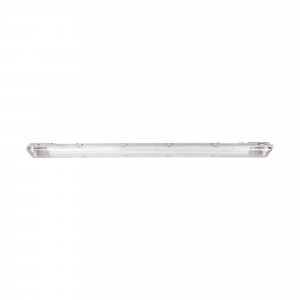

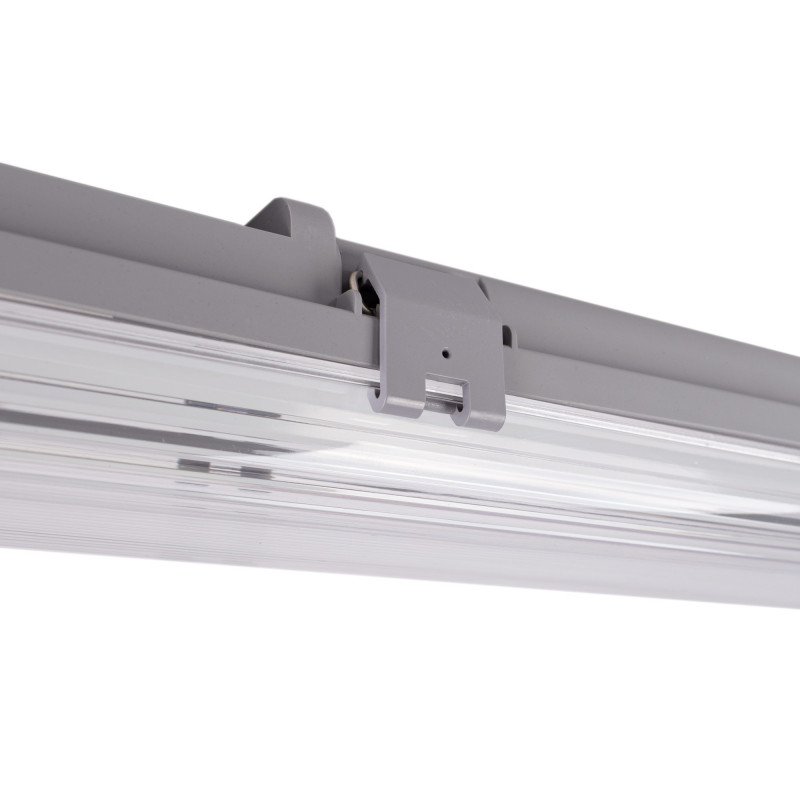

Tri-proof batten for two 60cm LED tubes, made of highly resistant polycarbonate.

It provides an effective protection against dust and humidity, allowing its installation in humid and outdoor environments.

** Does not include LED tubes**

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

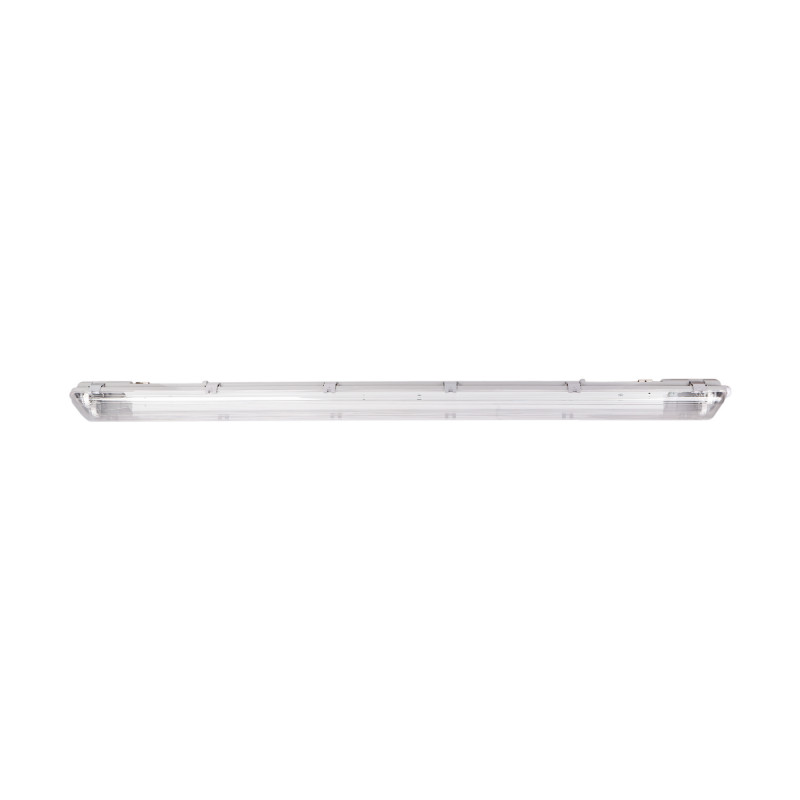

Empty tri-proof batten designed to accommodate two 60cm LED tubes.

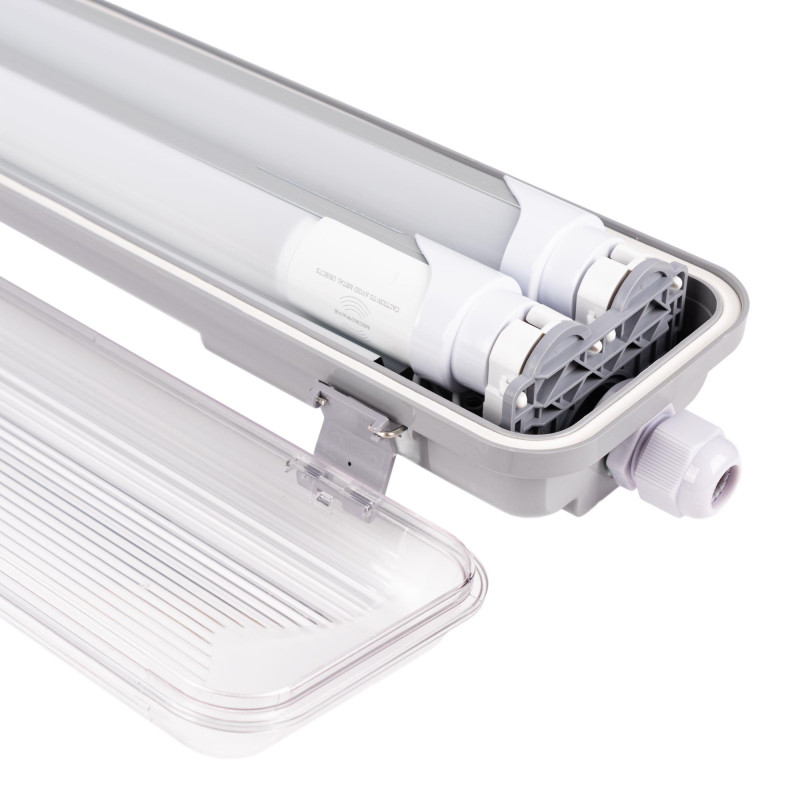

It's made of high-strength polycarbonate and its semi-transparent screen allows the light to pass through optimally.

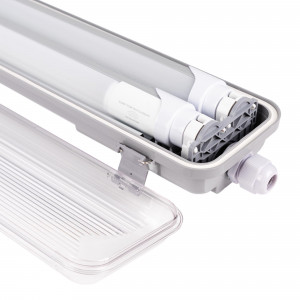

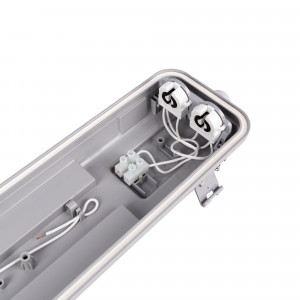

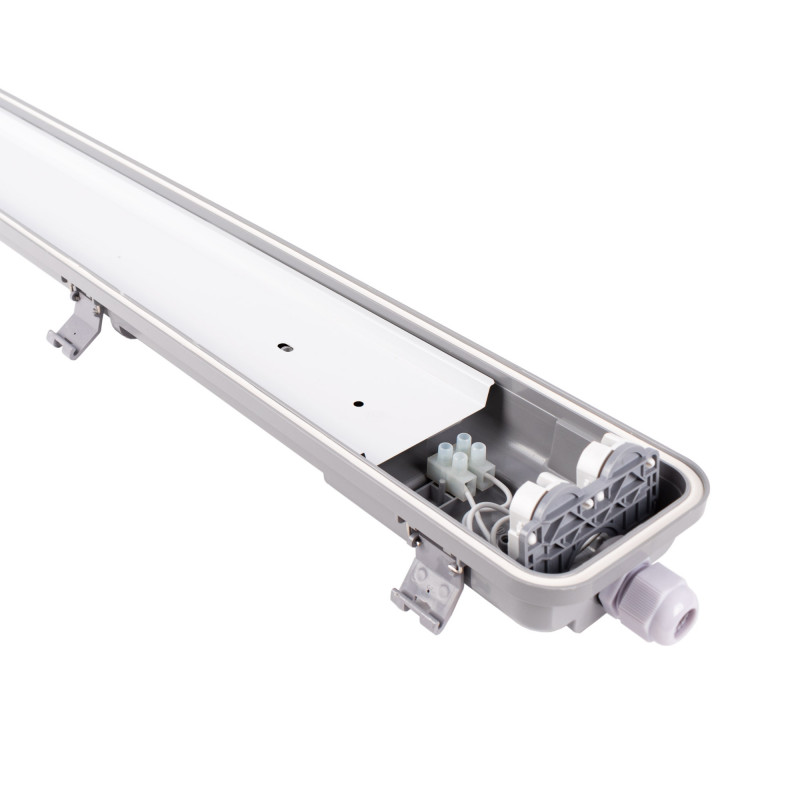

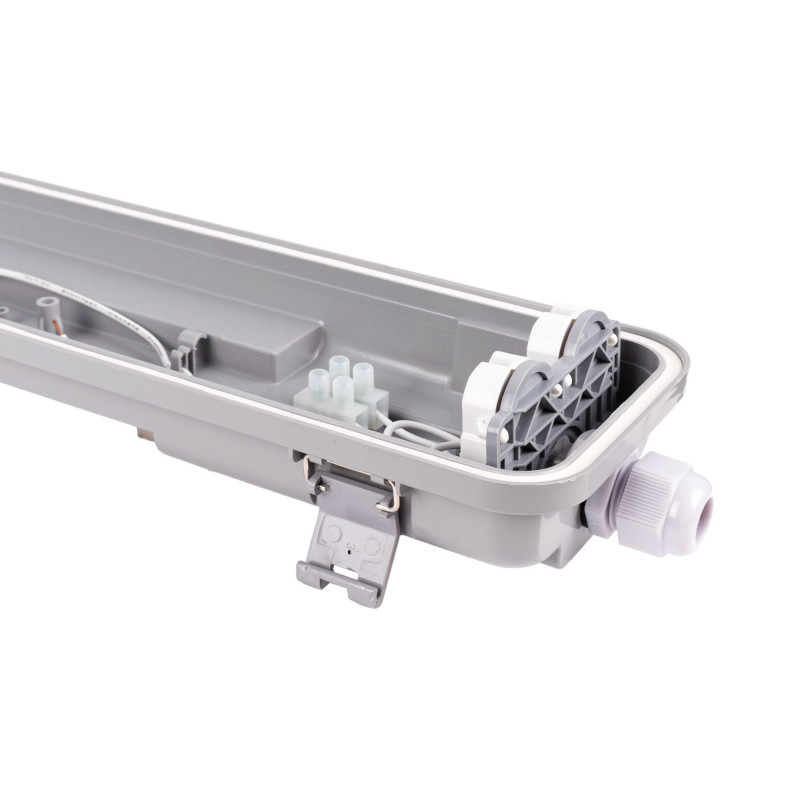

It incorporates four G13 sockets, two having the wiring ready to make the electrical connection and the other two having the cable ready and disconnected, in case it's necessary to install tubes with connections on both sides.

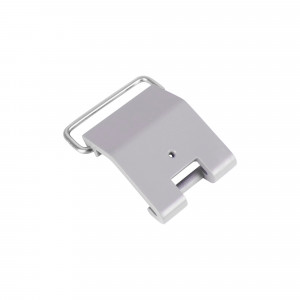

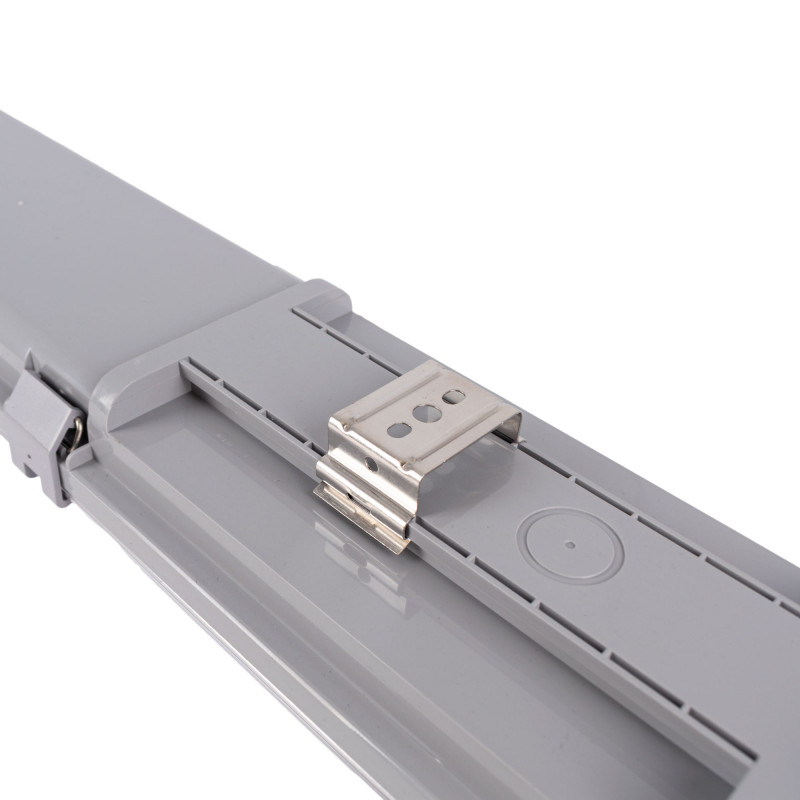

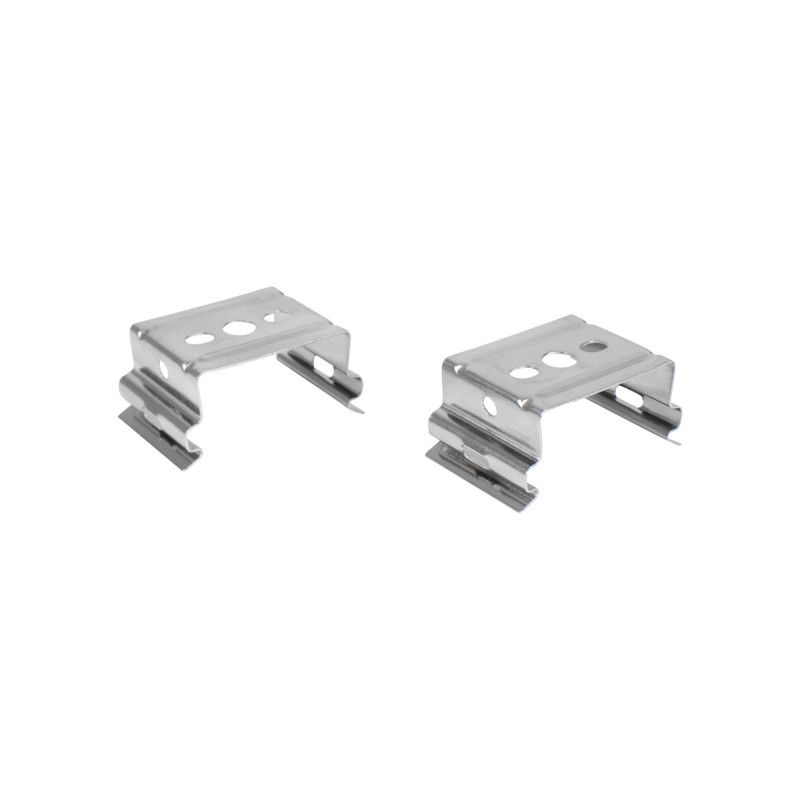

It includes all the necessary accessories for mounting and fixing, both outdoors and indoors. They're made of stainless steel, guaranteeing their durability outdoors.

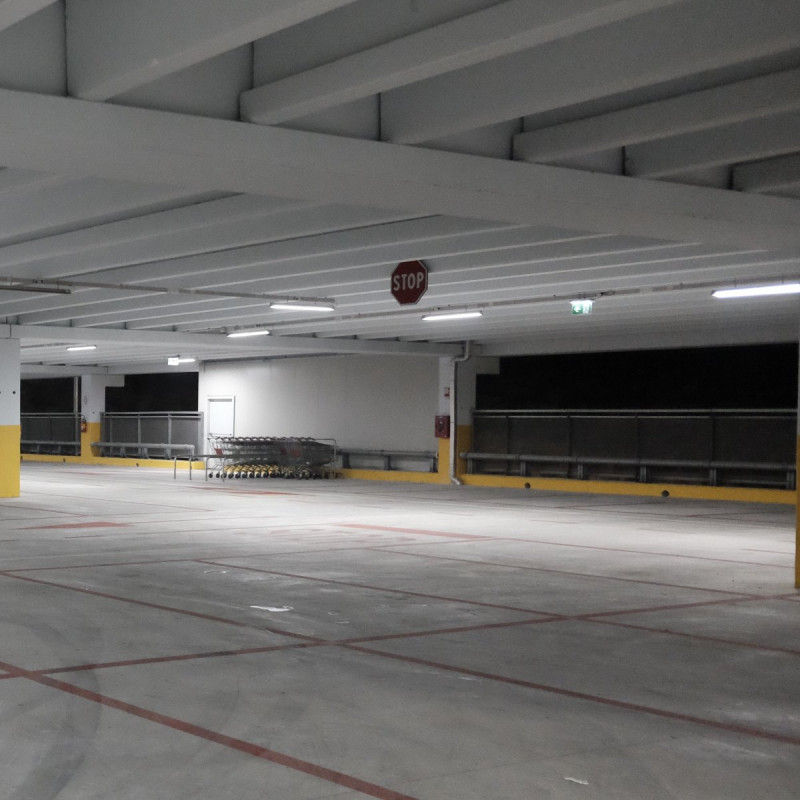

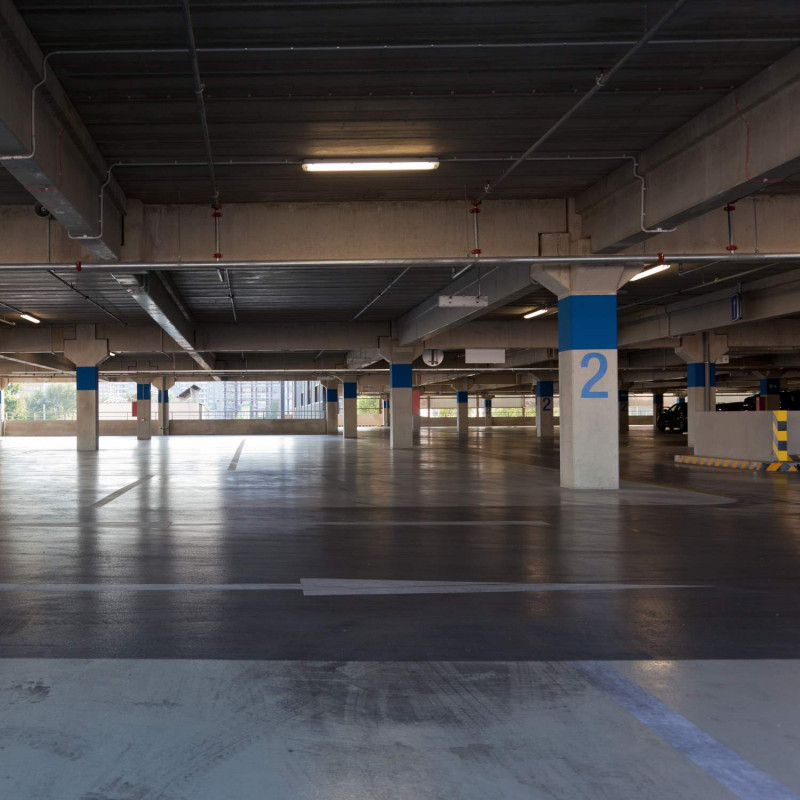

This product is extremely versatile and can be installed in environments as diverse as facades, residences, parking lots, warehouses, garages, corridors, commercial spaces, etc.

Nominal Voltage (V)
230
Socket
G13
IP
IP65

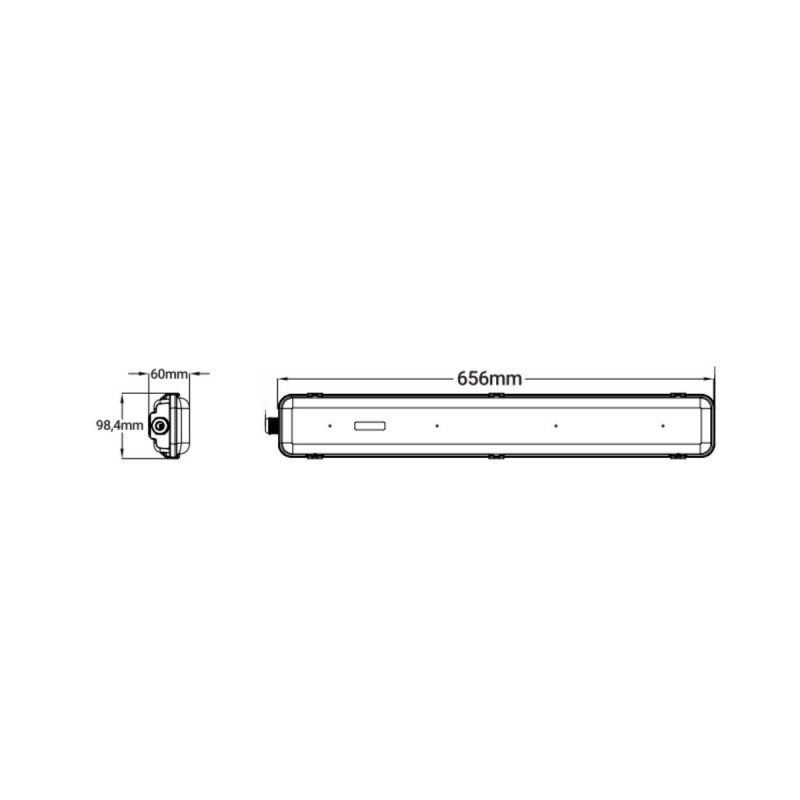

Dimensions (mm) Lxlxh
656 x 98.4 x 60
Tube type
T8
Material
Polycarbonate
Diffuser material
Semitransparent polycarbonate
Use Outdoor
Yes
Temperature range
-20°C ~ +40°C
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Barcelona LED

Questions

P: Question: Can this same screen be used to make a linear connection, i.e. it has 2 connections?
R: Answer: It comes with the wiring for the tubes, the connection strip, and the side hole with its cable gland to pass the cable. The other side is marked to make a new hole and put a cable gland (not included), you will also have to put the cable to connect the strips between the screens.
P: Question: are served with tubes or are they separate a greeting thanks
R: Answer: The waterproof screen does not have the tubes included, the tubes are separate to choose the desired color temperature as cool white, neutral, warm or special power supply.
