Under cabinet LED light fixture - T5 14W - 120cm - Connectable - Opal
SKU:B1780-5-120OPBF
€9.95
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com
T5 14W LED light fixture - 120cm - Versatility and Efficiency
- Efficient Design: The opal cover ensures a soft and extensive light diffusion, at a wide beam angle of 130°, ideal for general lighting. With side switch for easy operation.
- Optimal and versatile lighting: Incorporates SMD2835 LED chips that offer high quality lighting, with a high color rendering index (CRI>80), allowing to visualize colors with great fidelity, similar to natural light.
Available in neutral white (3000K) and cool white (6500K) tones, it adapts to different lighting needs. - Versatility of Use: It can be installed both in the home and in commercial and industrial environments.
Allows series connection with other fixtures without the need for additional accessories!
- Simplified Mounting: It connects directly to the mains without complications. Comes with a set of metal clamps for easy installation in any desired space.
- Lightweight Construction: The aluminum bracket is not only lightweight but also aids in better heat dissipation.
Applications

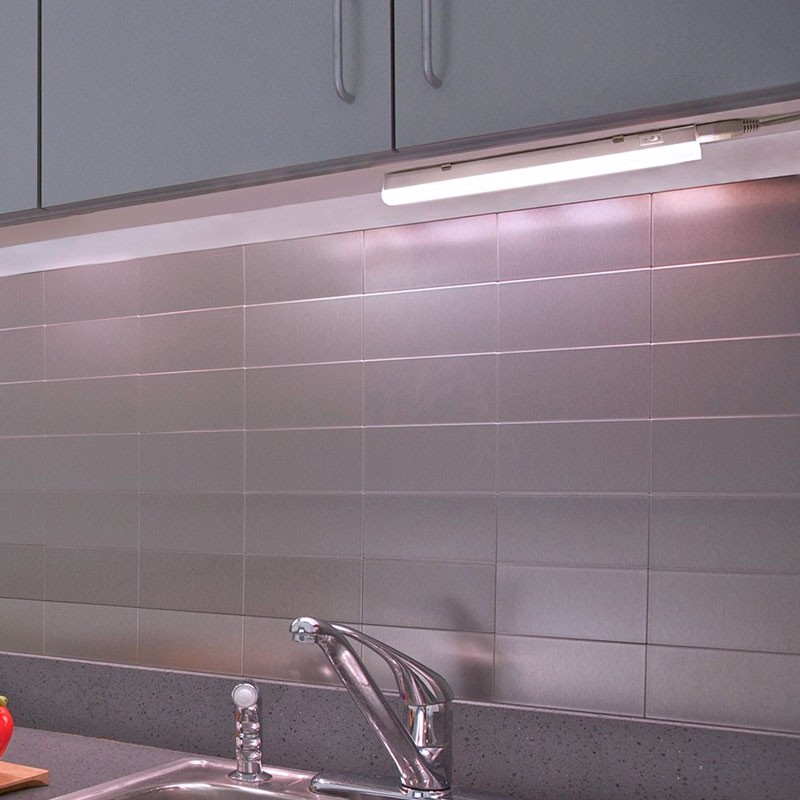

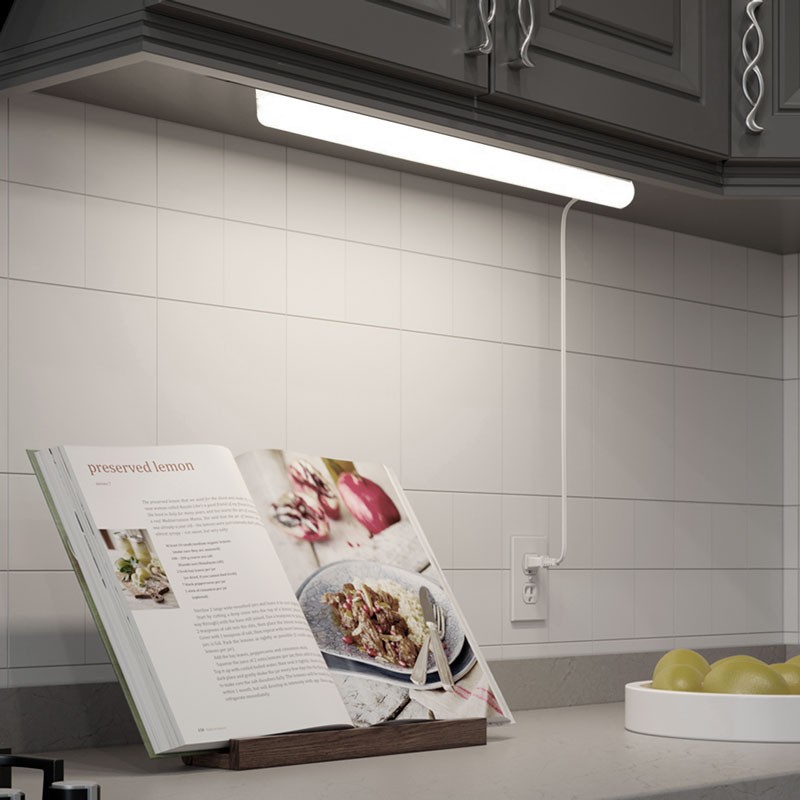

✔️ Kitchens and under cabinets: Provides bright, shadow-free lighting under cabinets.

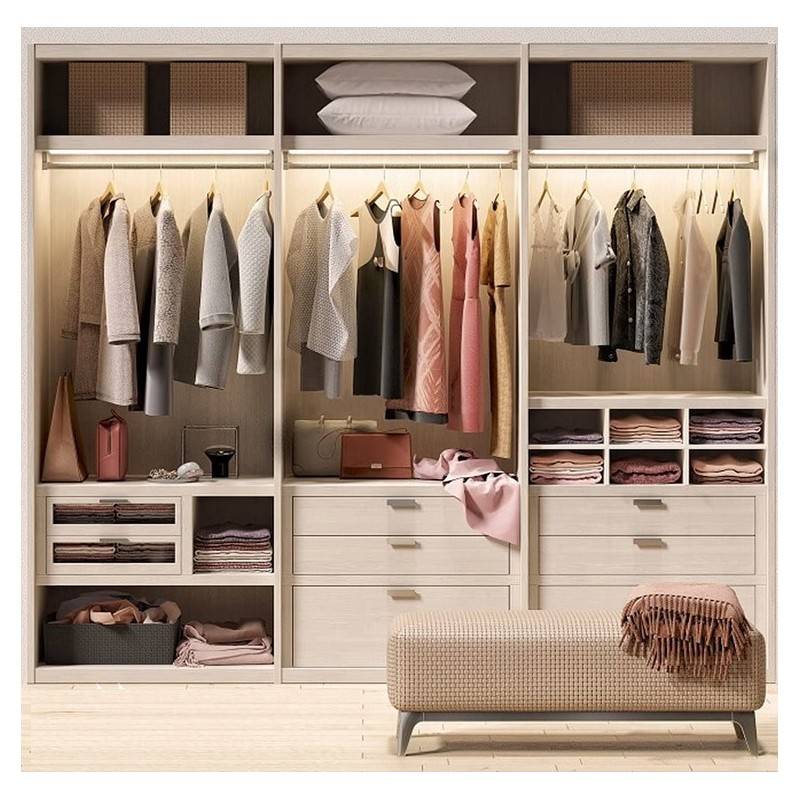

✔️ Closets and storage: Ideal for improving visibility in storage spaces.
✔️ Work and reading spaces: Excellent as additional light on desks or as a reading lamp.
✔️ Parking lots, warehouses, industrial buildings: Provides powerful and versatile lighting for industrial environments.
Optimize your lighting with our LED T5 light fixture, designed to combine functionality and style in your home or workplace.
Nominal Voltage (V)
220 - 240 V/AC
Power (W)
14
Lumens (Lm)
1330
Kelvin (K)
4000
6500
6500
Beam angle (º)
130
Lifetime (h)
25000
IP
IP20
Dimensions (mm) Lxlxh
1184 x 22 x 30
Frequency (Hz)
50 - 60
Hue
Cool white
Neutral white
Neutral white
Sensor
No
CRI
80-85
LED Type
SMD 2835
Dimmable
No
Driver
Internal
Orientable
No
Material
Plastic
Diffuser material
Glass
Use Outdoor
No
Temperature range
-20°C ~ +40°C
Frequency of use
Intensive
Energy efficiency class
E
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Questions
| P: Question: | When 2 power strips are in series, if you turn off the switch of the power strip closest to the electrical input, does the other one work independently, or does it depend on the other light? |
|---|
| R: Answer: | The switches are independent. |
|---|
| P: Question: | How long is the cable |
|---|
| R: Answer: | The power cable of the T5 led strip is 1.50 meters long. |
|---|
| P: Question: |
Is it possible to eliminate the switch on the power strip? I mean, I want the switch to be the one I have on the wall and the power strip to be connected directly to the mains, is it possible? I also want to know if it is possible to make a T with the power strips. Thank you. |
|---|
| R: Answer: | The switch cannot be removed without disassembling the luminaire, if it is always on, it can be used from the external switch. We do not have T-fittings only intermediate joints. |
|---|
| P: Question: |
Good morning, Do you have an 80cm lighting strip? Thank you. |
|---|
| P: Question: | Can the 120 cm strip and the 30 cm strip of the same T5 model be joined to obtain a total strip of 150 cm? |
|---|
| R: Answer: | If they are compatible, the power strips are prepared for that purpose. |
|---|
| P: Question: |
Can I connect the 120cm to the 30cm in series? |
|---|
| R: Answer: | Yes, you can connect the 3 sizes in series, 120cm, 60cm and 30cm. |
|---|
| P: Question: |
In case of needing shorter, 900mm, do you have something similar, or could it be cut? |
|---|
| R: Answer: | No, the complete sets of luminaires already come with fixed measures, since it is related to the electronic driver that is installed. To measure in cuts would have to make use of led strip with some aluminum profile and a power supply in relation to the power of the measure of the cut of the strip. |
|---|
| P: Question: |
Good morning, to connect in series 5 units of the LED Strip T5 120cm 14W opal are plugged one after the other or have a cable to separate them about 10 or 15 cm? In an installation of shelves that made me I have put them in series but the connection between one and another is by a cable of about 15 cm. and I have to put now I would like to put them the same to be centered in each body of shelf. Another question, I'm looking at the LED bulb E40 100W 10,000lm 230V industrial use, I want to change the halide I have put in the ship eliminating the transformer of the bell, that result? do you have any better? To change them I have to bring an elevator and I would not like that in four days I melt or give me problems. |
|---|
| R: Answer: | The T5 led strip comes to connect between them in a linear way and being completely in series, in case you want to connect the T5 led strip at a distance you should use the connecting cable for strips with reference B1780-1-2, you can access it by clicking here. https://www.barcelonaled.com/componentes-y-accesorios-led/conexion-para-regleta-t5-cambio-direccion.html The 100w e40 LED bulb gives an excellent result, its operation is direct to 230v, you only have to cancel the previous transformer and remove the screen that covers the bell so that it does not overheat. This bulb is the best on the market giving an excellent result. In the remote case of failure it has 2 years warranty. |
|---|
| P: Question: |
Good afternoon, I would like to know if you have connectors to connect the Rulers with integrated LED tube T5 120 cm 14W opaline, and what the lengths of these connectors are Thank you |
|---|
| R: Answer: | The tube is already integrated into the strip, the accessories it comes with are just for fixing it to the wall. All you need to do is plug the cable into the tube and connect it to the mains. |
|---|
| P: Question: | Good morning, does this power strip have a power switch? |
|---|
| R: Answer: | Yes, the led strip has a switch |
|---|
