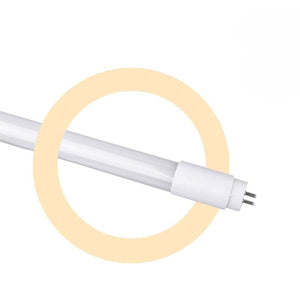

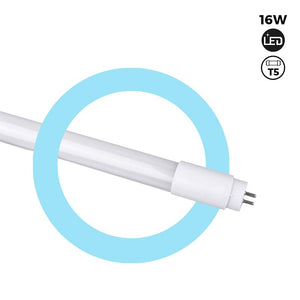

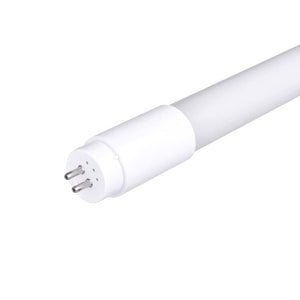

LED Tube 120cm T5 - 16W - 115lm/W
SKU:B4029-120BN
€14.29
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com
Efficient and glare-free lighting
The 16W opal glass T5 opal LED tube 16W is designed to provide efficient and high quality lighting.
Main features:
- Opal coverage and low UGR: Ensures glare-free illumination.
- High quality illumination: With a high color rendering index (CRI>80), it ensures faithful color rendering.
- Protection mechanisms: Overheating and short-circuit protection.
- Aperture angle: Wide 300º, perfect for general illumination.
- Instant on: No flickering, ideal for work areas.
- Size: 120cm (1165mm).
Common applications:
- Stores
- Offices
- Kitchens
- Commercial galleries
Technical installation:
- Turn off the light at the electrical main switchboard and check that there is no electric current.
- Remove the old tube.
- Disconnect the wires of the electronic ballast (no need to remove it, just disconnect it electrically).
- Connect the phase to one side of the connection and the neutral to the other.
For installations with capacitor banks, consult a specialized technician.
2018-08-16
Nominal Voltage (V)
230V-AC
Lumens (Lm)
1954
Kelvin (K)
4000
6000
6000
Beam angle (º)
300
Lifetime (h)
25000
IP
IP20
Dimensions (mm) Lxlxh
Øx1165
Frequency (Hz)
50 - 60
Hue
Cool white
Neutral white
Neutral white
Sensor
No
Efficiency (Lm/w)
122
CRI
80-85
LED Type
SMD 2835
Dimmable
No
Power factor (cosφ)
0.95
Tube type
T5
Orientable
No
Material
Plastic
Diffuser material
Glass
Use Outdoor
No
Frequency of use
Intensive
Energy efficiency class
E
Certificates
CE
ROHS
ROHS
Warranty
3 years
Questions
| P: Question: | Does it include led starter? |
|---|
| R: Answer: | LED tubes do not use a starter (the starter is for use in fluorescent tubes). The Model T5 LED tube is connected directly to the 220vac mains, Line on one side and Neutral on the other. |
|---|
| P: Question: |
T5 16W LED tube 120cm (1165mm) opal glass Reference: B4029-120BF Good morning, Please can you clarify if the tube has bilateral fitting (male and female) to be able to connect, several in series, with connector? |
|---|
| R: Answer: | Hello, yes, it fits on both sides. The T5 Glass LED Tube has two G5 side connections for easy installation, emits powerful lighting and low consumption, has 16W that provide us with lighting equivalent to conventional fluorescent lamps. |
|---|
| P: Question: | Good evening: the phase and neutral connection is normally at one end of the tube. As I see in the drawing of the tube, in this model, the phase goes to one end of the tube and the neutral to the other. I just wanted to get confirmation or if not, please correct me. Thank you very much |
|---|
| R: Answer: | The models of T5 tubes as the one shown here, the line is connected on one side and neutral on the other. The T8 models are those of unilateral connection. |
|---|
| P: Question: |
The bushings for installation are the same as the conventional ones or they change |
|---|
| R: Answer: | The sockets should be for "smaller" T5 tubes, not to be confused with T8 tubes which may be more commonly used in installations, e.g. ref. B4010-4-120BN. |
|---|
