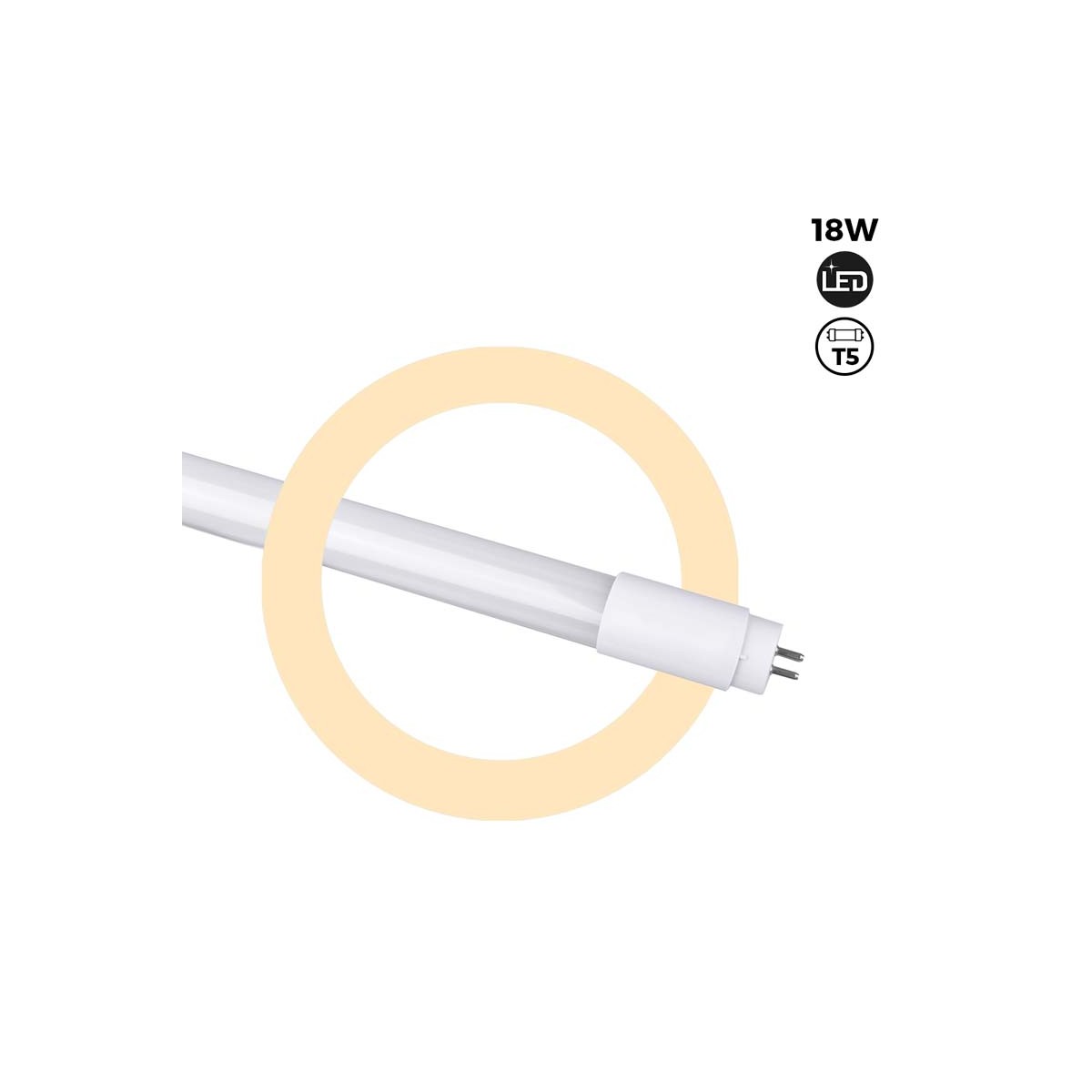

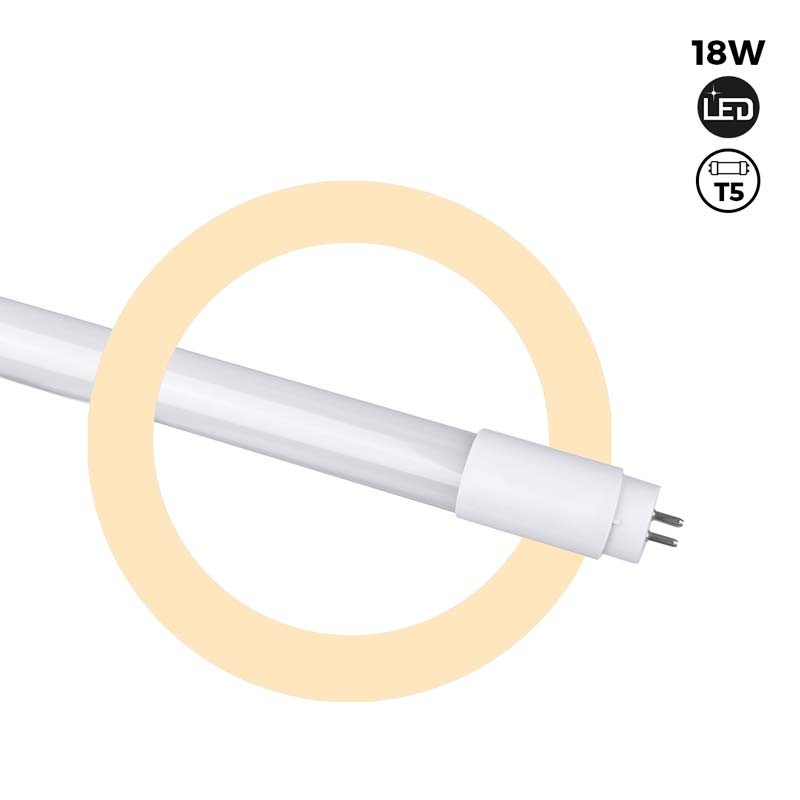

LED Tube 150cm T5 - 18W - 127lm/W
SKU:B4030-150BN
€9.95
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com
Efficient and glare-free lighting
The 18W opal glass LED T5 opal 18W LED tube is designed to provide efficient and high quality lighting.
Main features:
- Opal coverage and low UGR: Ensures glare-free illumination.
- High quality illumination: With a high color rendering index (CRI>80), it ensures faithful color rendering.
- Protection mechanisms: Overheating and short-circuit protection.
- Aperture angle: Wide 300º, perfect for general illumination.
- Instant on: No flickering, ideal for work areas.
- Size: 150cm (1465mm).
Common applications:
- Stores
- Offices
- Kitchens
- Commercial galleries
Technical installation:
- Turn off the light at the electrical main switchboard and check that there is no electric current.
- Remove the old tube.
- Disconnect the wires of the electronic ballast (no need to remove it, just disconnect it electrically).
- Connect the phase to one side of the connection and the neutral to the other.
For installations with capacitor banks, consult a specialized technician.
2018-07-06
Nominal Voltage (V)
230V-AC
Lumens (Lm)
2279
Kelvin (K)
4000
6000
6000
Beam angle (º)
300
Lifetime (h)
25000
IP
IP20
Dimensions (mm) Lxlxh
Ø 18.8 x 1465
Frequency (Hz)
50 - 60
Hue
Cool white
Neutral white
Neutral white
Sensor
No
Efficiency (Lm/w)
127
CRI
80-85
LED Type
SMD 2835
Dimmable
No
Power factor (cosφ)
0.92
Tube type
T5
Material
Plastic
Diffuser material
Glass
Use Outdoor
No
Frequency of use
Intensive
Energy efficiency class
E
Certificates
CE
ROHS
ROHS
Warranty
3 years
Questions
| P: Question: |
I bought 5 LED tubes of 1500cm and I don't have brackets for it, are there any? where can I find them? |
|---|
| R: Answer: | We do not have supports for T5 model tubes. |
|---|
| P: Question: |
Good morning. I have a design lamp that has a fluorescent tube of smaller diameter than normal, the connector is tiny and also measures 146 cm. Would the tube that you have LED T5 Opal 18W 150cm (1465mm) Reference: B4030-150BN fit me? Thanks |
|---|
| R: Answer: | The T5 LED tube is 1460mm is normally the standard size. It is connected directly to the 230vac mains. Line on one side and neutral on the other. It should not carry previous fluorescent installation components. |
|---|
| P: Question: |
QUIERO SUSTITUIR LOS TUBOS QUE TENGO PHILIPS TL5 HE 35W - 840 POR LED |
|---|
| R: Answer: | T5 LED tubes are directly connected to the mains without ballasts or fluorescent circuit components. |
|---|
| P: Question: | What to do, to replace a normal t5 tube by a led tube, what maneuvers to do in the power strip for this replacement? |
|---|
| R: Answer: | The T5 LED tubes are connected directly to the 230vac mains. Line on one side and neutral on the other. In the web you can see the steps. |
|---|
