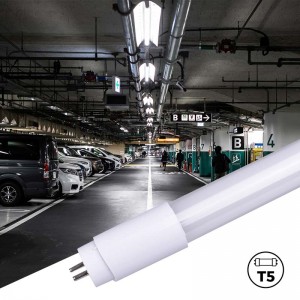

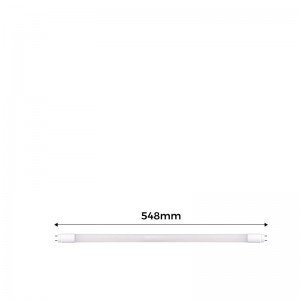

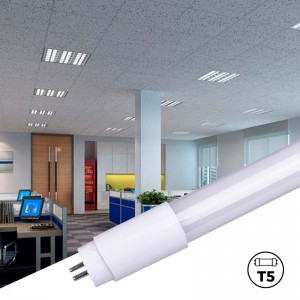

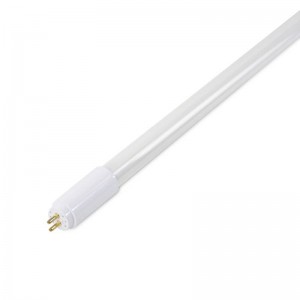

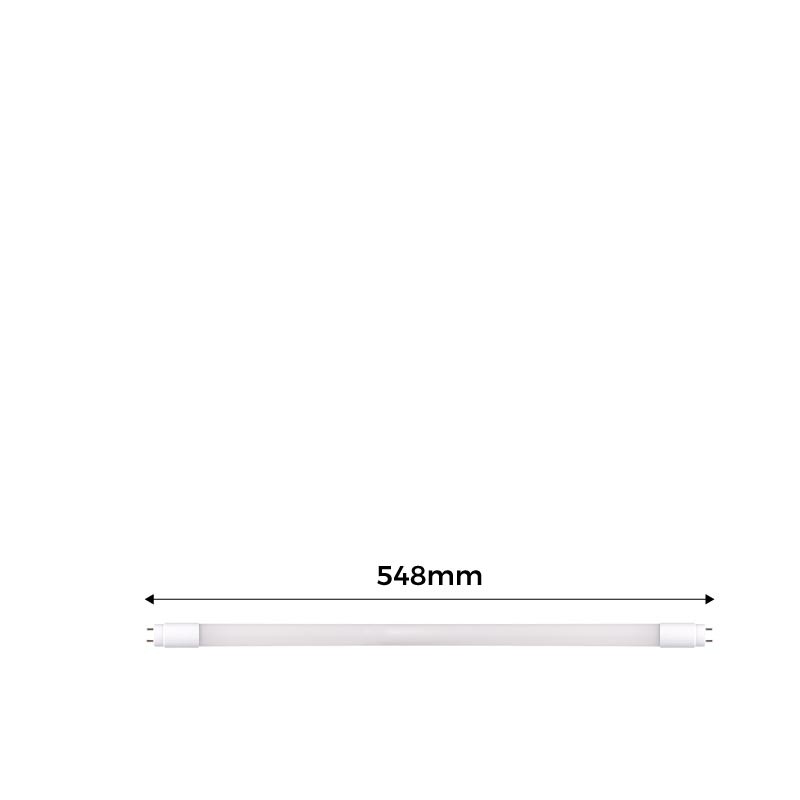

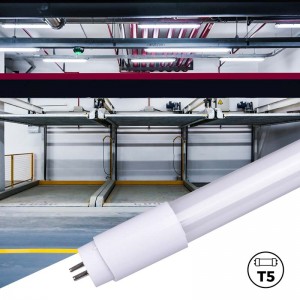

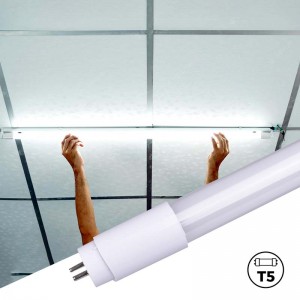

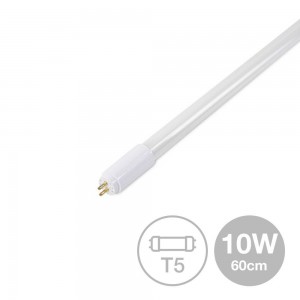

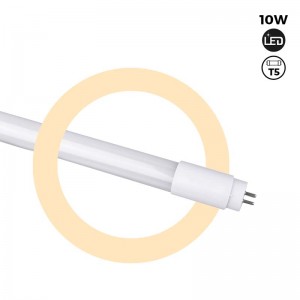

LED tube T5 10W 60cm (548mm) opal glass
SKU:B4026-60BF
€7.95
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com

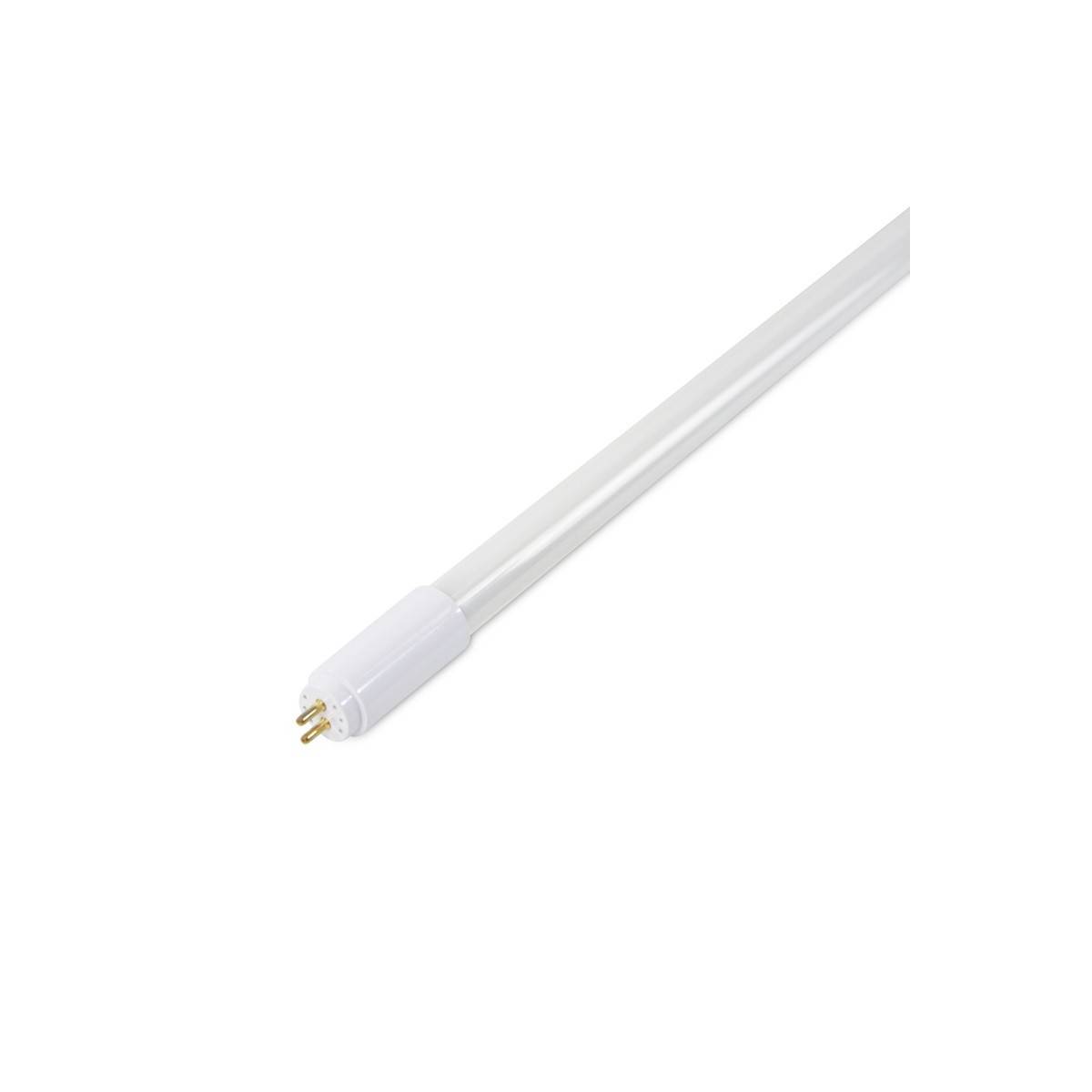

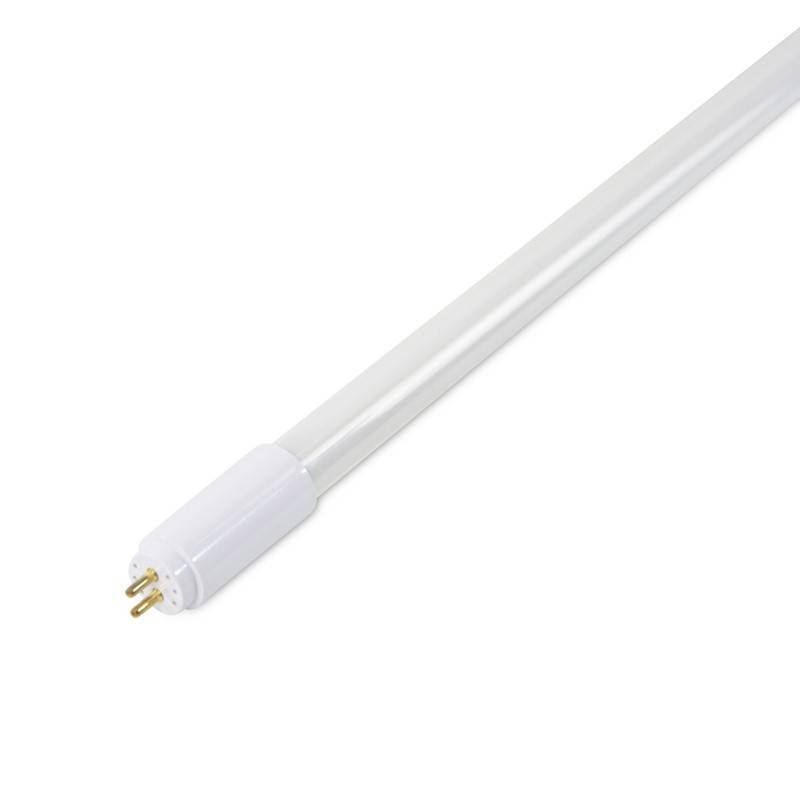

LED T5 Opal Glass Tube 60cm (565mm)
Replace conventional fluorescent tubes with LED T5 tubes!
The T5 Crystal LED Tube T5 has two G5 side connections for easy installation, emits powerful illumination and low power consumption, contains 10W which provides illumination equivalent to conventional fluorescent tubes.
The 600mm T5 LED tube is made of opal glass with class A+ energy efficiency. In addition, it emits a light opening angle of 300°, which is ideal for illuminating large spaces.
Features of Opal T5 LED Tube Light
- Opal Coverage: No glare emission.
- Overheating and short-circuit protection
- 300º opening angle
- Instant on
- No flickering
Technical installation
STEP 1: Turn off the light at the main switchboard and verify that no electric current is coming.
STEP 2: Remove the old tube (in this case there is no starter, as it is incorporated inside the electronic ballast).
STEP 3: Disconnect the cables that enter the electronic ballast (no need to remove it, just disconnect it electrically).
STEP 4: Connect phase to one side of the connection and connect neutral to the mains on the other side.
- IF THE INSTALLATION CONTAINS A CAPACITOR BANK, CONSULT WITH YOUR SPECIALIZED TECHNICIAN.

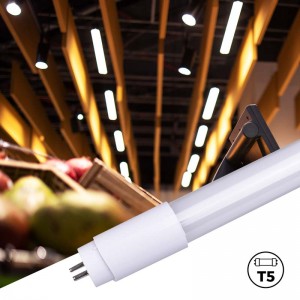

Applications of Opal T5 LED tube:
- Stores
- Offices
- Kitchens
- Commercial galleries
You may also be interested in...
We have a wide range of LED tubes, among which you can find different sizes, the T5 LED tubes of 120cm or LED tubes of 150cm.
Questions
| P: Question: | Do you have 55cm LED T5 tubes that connect on one side only? |
|---|
| R: Answer: | No, T5 tube models are connected on both sides. |
|---|
| P: Question: |
I have to replace a Philips TL 13w-840 fluorescent. Is this the right model, especially because of the length? Thanks |
|---|
| R: Answer: | The dimensions of this tube are 54.9mm, adding the connection tips its length is 56.5mm. |
|---|
| P: Question: |
good, I have generated a doubt with respect to a previous question by a customer. I have a question about the distance between connection pins (of the tube) you say it is 13 mm. I think it is 5mm or at least that is what I am looking for. thank you. |
|---|

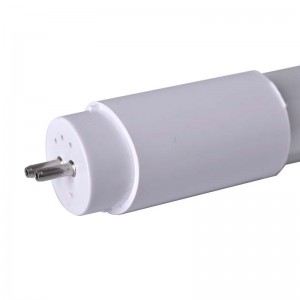

| R: Answer: | This model of T5 LED tube is for 5mm G5 socket between pins. |
|---|
| P: Question: |
The tube from your catalog: LED tube T5 10W 60 cm (565 mm) / opal glass / Ref.: B4026-60BF can I connect it directly to the 220V mains? I want to replace the 2 T5 fluorescent tubes of a ceiling whose electronic ballast has failed and I have been told that there are LED T5 tubes that connect directly to the 220 V mains. |
|---|
| R: Answer: | The led tubes go directly to the 220V network. In the case of T5 tubes, the line is connected on one side of the tube and the neutral on the other side. It is necessary to remove equipment from previous systems in this case the electronic ballast must be eliminated. |
|---|
| P: Question: |
how thick would it be at its longest part? the length is 56.5 from tip to tip thank you |
|---|

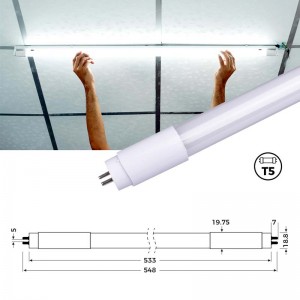

| R: Answer: | The tube length from socket to socket is 54.9mm, adding the connection tips its length is 56.5mm from tip to tip of the tube. The illuminated part is 46mm long. The thickness of the glass tube (illuminated part) is 14.90mm and the socket part is 21.80mm. |
|---|
| P: Question: |
Good evening, I would like to know the distance between the connection pins and if the ballast is needed or they go directly to the socket. Thank you very much, best regards |
|---|
| R: Answer: | The distance between pins of the T5 LED tubes is 5 mm. For the installation of the T5 led tubes you must follow the following steps: STEP 1: Turn off the light of the main electric panel and verify that no electric current is coming. STEP 2: Remove the old tube (in this case there is no starter, since it is incorporated inside the electronic ballast). STEP 3: Disconnect the cables that enter the electronic ballast (no need to remove it, just disconnect it electrically). STEP 4: Connect Phase to one side of the connection and on the other side connect neutral to the mains. |
|---|
| P: Question: |
Can you tell me the diameter of the tube? Thank you |
|---|
| R: Answer: | The diameter of the T5 LED tube is 16mm.
Barcelona LED: Marc| 01/12/2019 |
|---|
