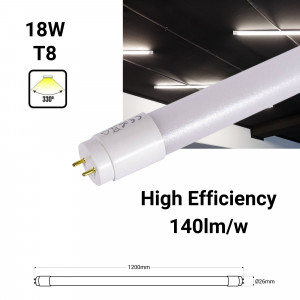

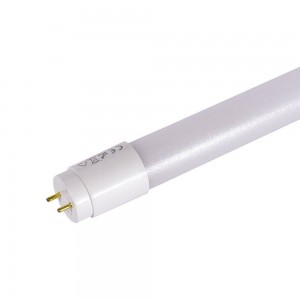

T8 LED tube - 120cm - 18W - 140lm/W
SKU:B4013BN
€2.62
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com

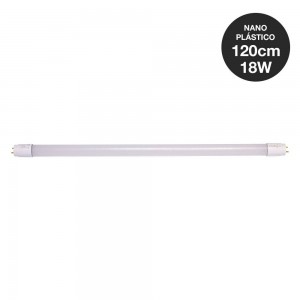

T8 LED Tube - 18W - 120cm
LED tube made of nano plastic and ABS with excellent light transmittance, offers instant and flicker-free start-up and turn-on.
It incorporates high performance San'an LED chips, with a total power of 18W. It can replace old 36W fluorescent tubes, reducing energy costs by half.
Its connection is made directly to 230V, so it doesn't need any electronic or ferromagnetic ballast, thus reducing consumption, heat and noise of such transformers.
It has a wide beam angle of 330º, so it's possible to install the nano plastic LED tube in any luminaire.

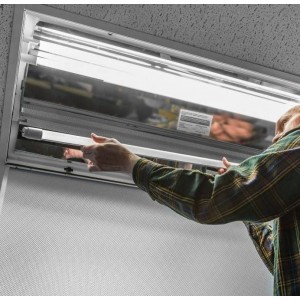

Installation

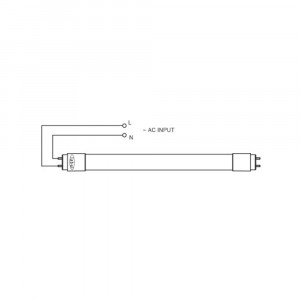

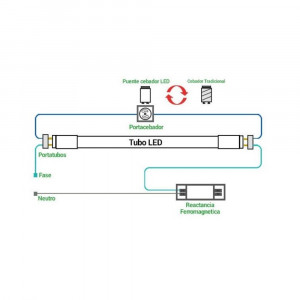

When installing the nano plastic LED tube it's sufficient to replace the starter of the ferromagnetic ballast with the LED Starter supplied in the box. In installations with electronic ballasts, you will have to override them and directly connect the 230V power supply to the batten socket on the same side (it's powered from one side only).
To guarantee the service life of the LED tube, we always recommend connecting the 230V power supply directly to the batten, always on the same side, and then connect the tube, making sure to place it in the same direction in which the connections were made.
Advantages
With a luminous efficacy of 140 lumens/W, it's one of the most efficient LED tubes currently on the market. It incorporates a high quality driver designed to not emit flicker and has EMC filter, which avoids interference with other devices such as radios / wifi / music.
|
Product features:
|
Please note that some technical characteristics such as power or CRI may vary depending on the colour temperature of light. For further details, please refer to the attached "Test Reports" in the "Downloads" section or contact our sales advisors.
Nominal Voltage (V)
220 - 240 V/AC
Power (W)
18
Lumens (Lm)
2600
Kelvin (K)
4000
6500
6500
Beam angle (º)
330
Socket
G13
Lifetime (h)
25000
IP
IP20

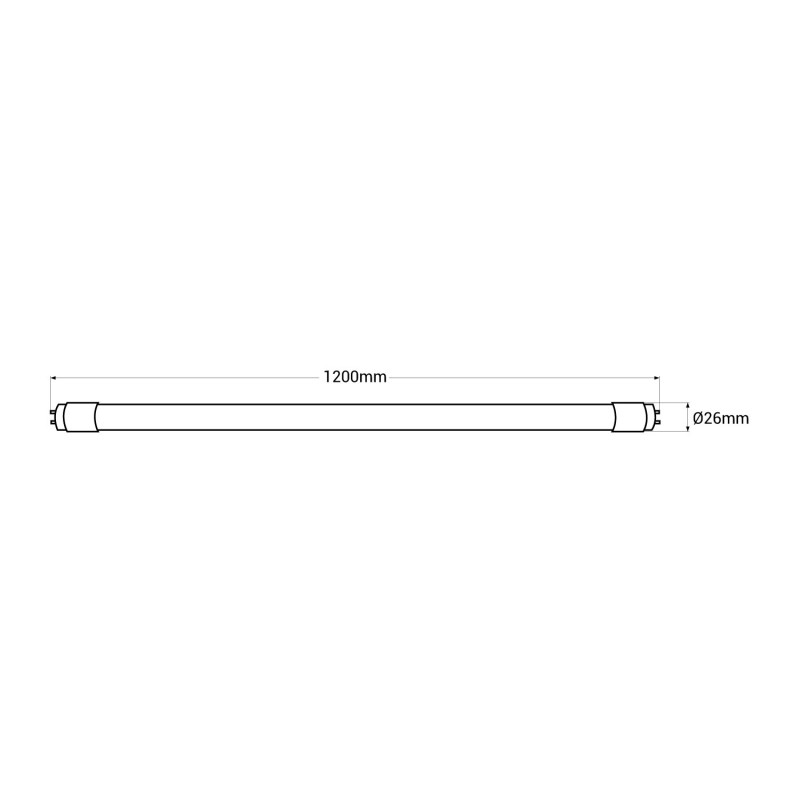

Dimensions (mm) Lxlxh
Ø26x1200
Frequency (Hz)
50 - 60
Hue
Cool white
Neutral white
Neutral white
Sensor
No
CRI
80-85
LED Type
SMD 2835
Dimmable
No
Power factor (cosφ)
0.5
Driver
Internal
Tube type
T8
Orientable
No
Material
ABS
Frequency of use
Intensive
Energy efficiency class
E
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Length
120
Width
Ø26
Height
Ø26
Questions
| P: Question: | Does the offer include the LED starter to make the direct change of the tube without removing the ballast? |
|---|
| R: Answer: | If it includes the jumper, but the ballast can only be magnetic and individual for each tube. It is recommended to install the LED tubes directly to 220Vac and eliminate equipment from other previous systems. |
|---|
| P: Question: | Hello, I would like to know if I can get tubes compatible with 110v. thanks. |
|---|
| R: Answer: | Currently our T8 tube models are 230vac. |
|---|
| P: Question: | I can put LED just by changing the fluorescent directly for the LED one or I have to change the whole fixture. |
|---|
| R: Answer: | You must remove components of the previous system (fluorescent). The LED tubes go directly to 220vac network by only one side. |
|---|
| P: Question: |
I have a garage with normal double fluorescents and I want to change them for LED, which ones would you recommend me. Best regards. |
|---|
| R: Answer: | Any LED tube of the same size can be used. Please note that the ballast and starter of the previous model must be removed and that the LED tubes are connected on the marked side. |
|---|
| P: Question: | I HAVE A STORE THAT ITS LIGHTING IS WATERTIGHT FLUORESCENT TYPE WITH DIFFUSER AND TWO 18 W LED TUBES, THE CUSTOMER NEEDS MORE LIGHT IN THE AISLES, I HAVE PROPOSED TO CHANGE THE LED TUBES FOR HIGH EFFICIENCY LED TUBES WOULD BE CORRECT, THE CURRENT ONES ARE 3.8 HIGH AND IN EACH AISLE THERE ARE 9 DOUBLE SCREENS THANKS. |
|---|
| R: Answer: | The LED tubes are without ballasts, or starters of previous circuits. Normally a T8 fluorescent 18W are 60cm, in LED would be about 9W, the brightness will be similar but will reduce consumption. |
|---|
| P: Question: |
I have a ceiling or strip with two LED tubes type LED T8 120cm; 18W, cold light 6000K, A+80%; manufactured by GSC evolution. One of them flickers and I want to replace it, and although I acquire 2, I want to know if this type is compatible with the one of you with practically the same data and reference B4013BF. I hope you answer my question, to acquire them. Thank you very much Thank you very much Lorenzo Hernandez |
|---|
| R: Answer: | Our T8 LED tube is connected directly to the mains only at the indicated side. |
|---|
| P: Question: | Hello good morning, could you tell me if the LED tubes t8 18w 120cm are compatible with the PEP2TL-SLM-1200 screens, they are already installed but none have tubes and was to know if they are compatible, thank you very much , greetings. |
|---|
| R: Answer: | We do not know this display model, but these LED tubes are connected directly to the mains only on the side marked as L and N. |
|---|
| P: Question: | In the characteristics of the Driver on your website it says EMC. What does it mean? |
|---|
| R: Answer: | Electromagnetic Compatibility - EMC. Electromagnetic Compatibility is concerned with minimizing and neutralizing grid-induced electrical interference between electrical equipment or electronic systems. |
|---|
| P: Question: |
I want to change 36w fluorescent tubes for these LED T8 18W. I understand that there won't be any problem and that they come with bridge starters. O recommend me others of similar price? Without for garage with little use. Thank you |
|---|
| R: Answer: | If they are for 120cm tubes, they have a bridge to place where the previous starter (we recommend installing the tubes directly to the 220vac network, without devices of previous lighting systems). |
|---|
| P: Question: | Hi, if we replace them where before they were glass and are quite a few hours on, these nano plastic tubes bend with heat? |
|---|
| R: Answer: | We have no incidences of deformation in nano plastic LED T8 tubes. |
|---|
