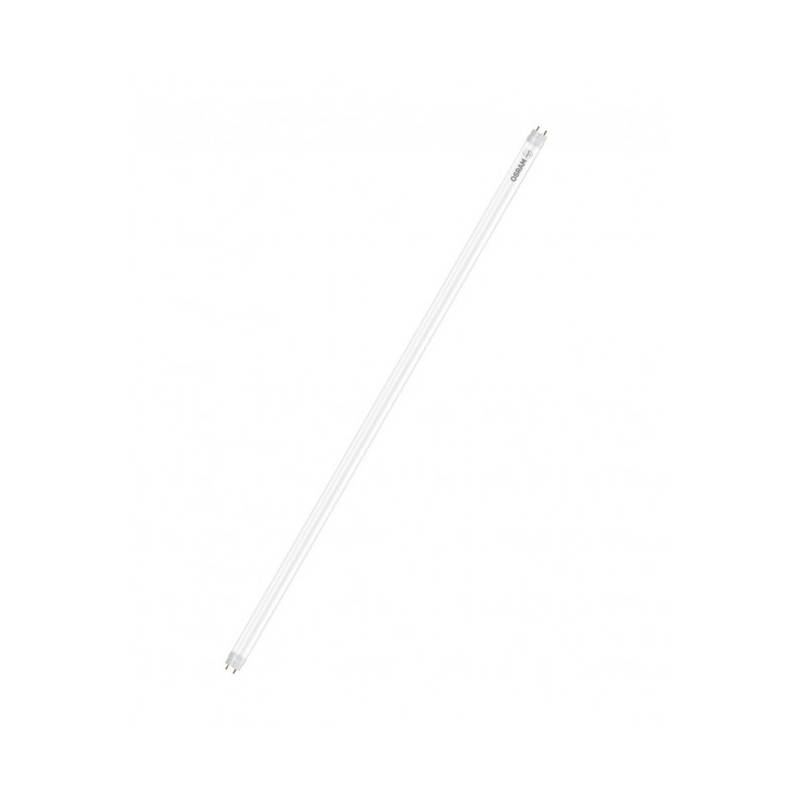

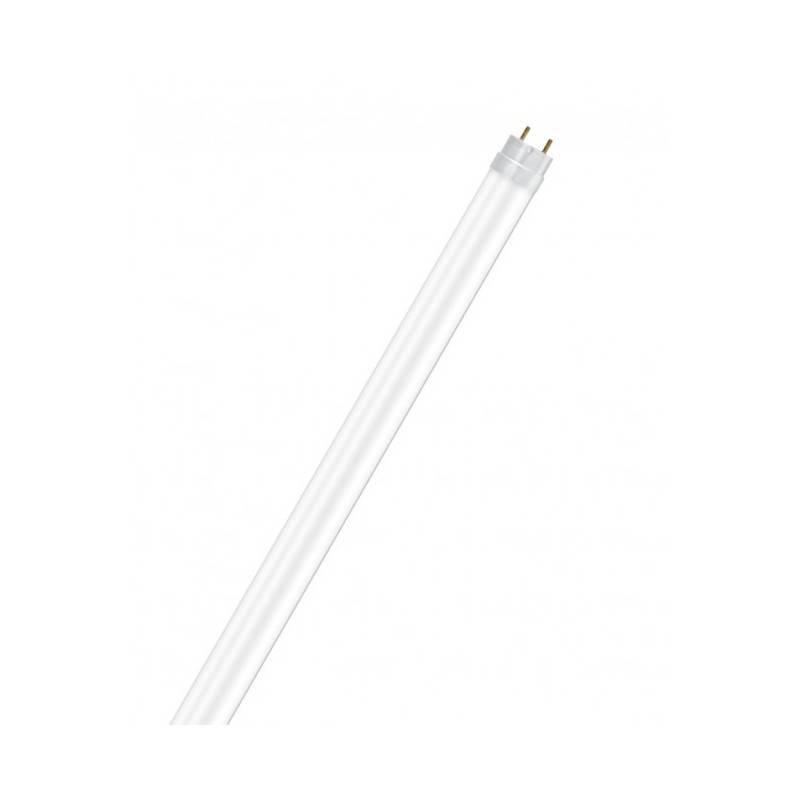

OSRAM LED T8 Tube 60cm 7.3W opal glass | SubstiTUBE STAR

LED tube T8 7.3W 60cm OPAL glass

It replaces the conventional 60cm 18W fluorescent tubes.

The T8 LED tube is instant on, with no preheating time. It has a high brightness, with glass and plastic coating of high light transmission (over 90%) allows a uniform distribution of light.

Perfect for installation in warehouses, garages, stairs, corridors, etc. Suitable for mono and duo operation with conventional power supply. High luminous efficacy of 109lm/W and color rendering index, true to colors, CRI>80.

Long life of up to 30,000 hours and 200,000 switching cycles. Low heat emission. Dimensions of 603x267x267mm and a weight of only 100 grams.

• Wide AC input range from 175V to 265V.
• Short circuit and overheating protection.
• Wide opening angle of 330 degrees.
• Glare-free opal cover.
• Diameter Ø26mm.
• Base: G13.
• Luminous flux: 800 lumens.
• Degree of protection IP20.

Color temperatures of the tube T8 60cm

• Neutral light, 4000ºK, ideal to highlight and illuminate the whole area without altering the view.
• Cool white light, 6500ºK, perfect for improving concentration and optimizing visual performance in kitchens, bathrooms and offices.

T8 LED tube applications

• Perfect for illuminating enclosed parking lots, offices, stores, shopping malls, kitchens, etc.
• Direct replacement of conventional 60cm fluorescent, general lighting.
• Thanks to its angle, it is ideal for placement on walls.

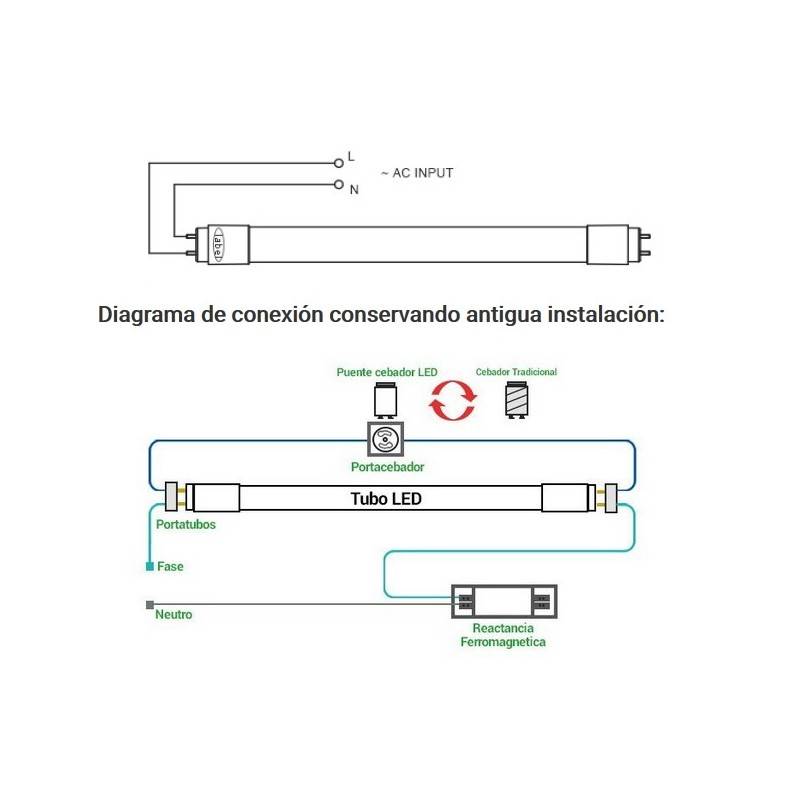

Installation of Ferromagnetic ballasts

Step 1: Turn off the main switchboard and check that there is no electric current.

Step 2: Take out the old tube and then the starter.

Step 3: Put the new LED starter bridge.

Step 4: Remove the capacitor or capacitor (to avoid overvoltage).

Step 5: Install the new LED tube.

Installation on Electronic ballasts

Step 1: Turn off the light at the main switchboard and check that no power is coming through.

Step 2: Remove the old tube (in this case there is no starter, as it is incorporated inside the electronic ballast).

Step 3: Disconnect the cables that enter the electronic ballast (no need to remove it, just disconnect it electrically).

Step 4: Choose one of the 2 tube holders to connect its 2 wires directly to the mains.

Step 5: We recommend marking the lamp holder where the connection has been made to facilitate the installation of the LED tube.
