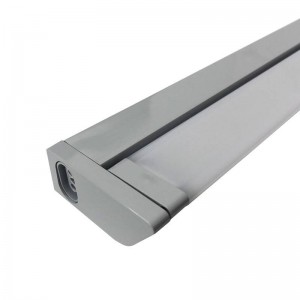

CCT inter-connectable orientable LED luminaire for under furniture 60cm 8W

SKU:B7311-CCT
Has superado el límite de unidades
In stock 748 units
Data sheet

Adjustable and dimmableLED CCT luminaire for under furniture, kitchens and cabinets 556x61x24mm. You can adjust the light temperature with the built-in dial (2700K; 4000K; 6500K). In addition to color temperature, you can also adjust the brightness between 100%, 40% and 15%.

With a power factor >0.5 it has a luminous flux between 554 to 644 lumens. Power of 8W. With a beam opening angle of 120 degrees and an optimum color rendering index CRI>80. SMD2835 LED chip. IP20.

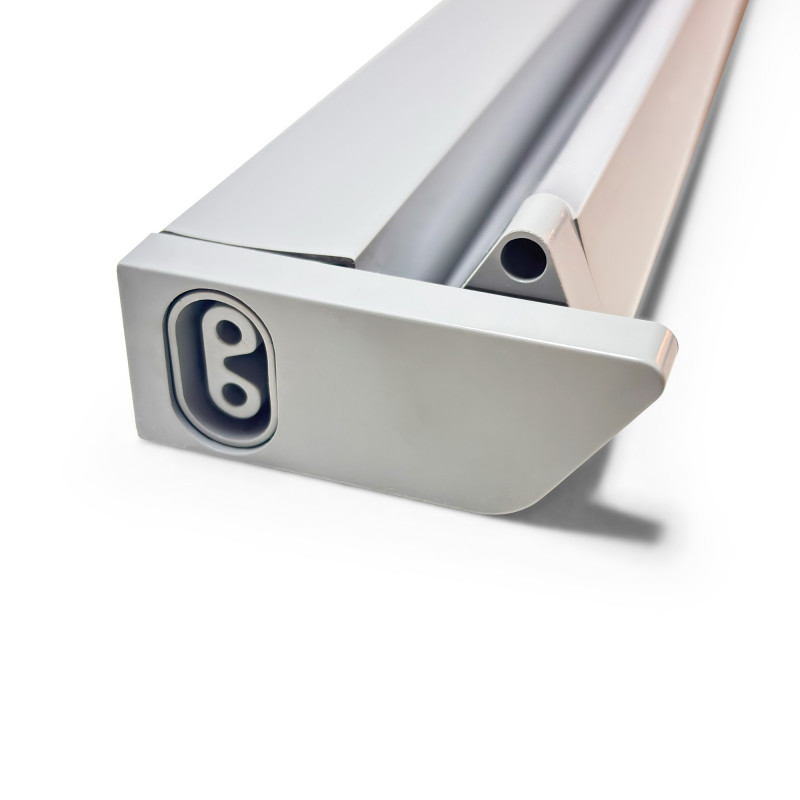

Under cabinet luminaire rotatable from 0º to 170º to meet the lighting needs of the space. For furniture, closets, kitchens, studios, washbasin shelves, etc.

Includes power cable and interconnection.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

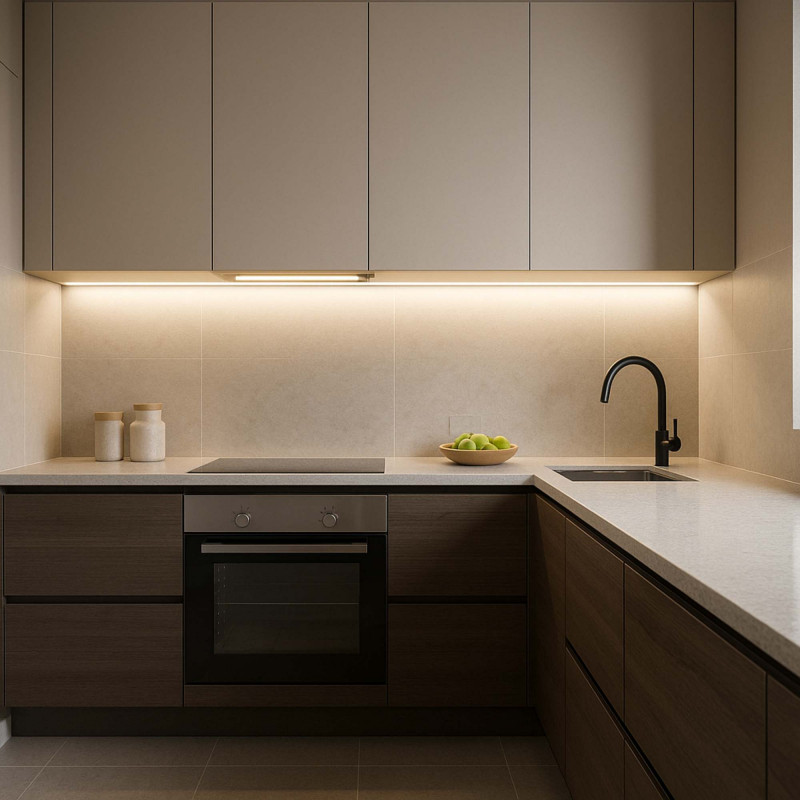

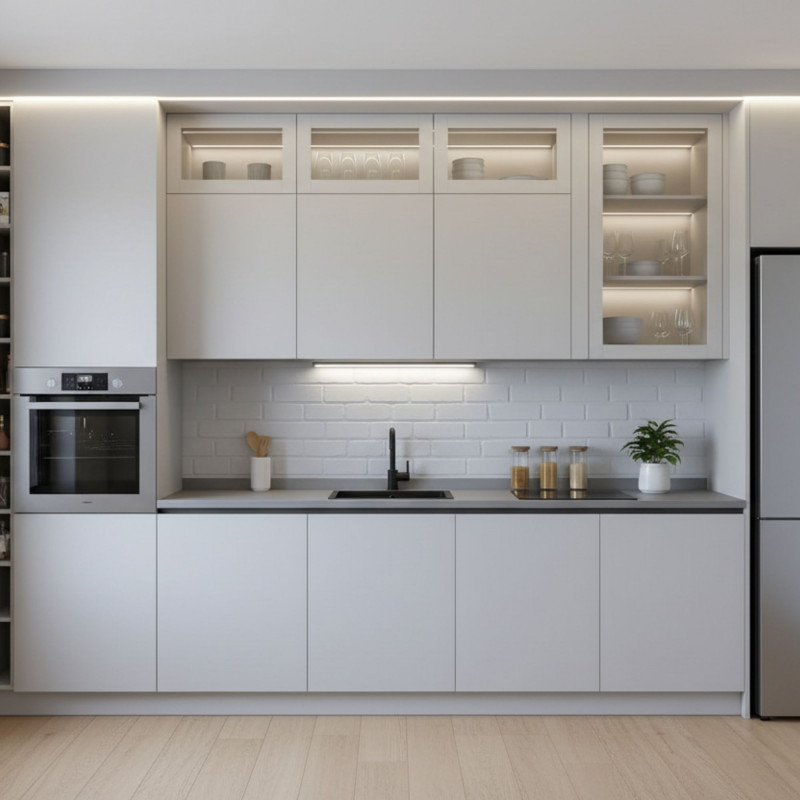

LED CCT Dimmable LED Luminaire for Under Cabinets and Kitchens

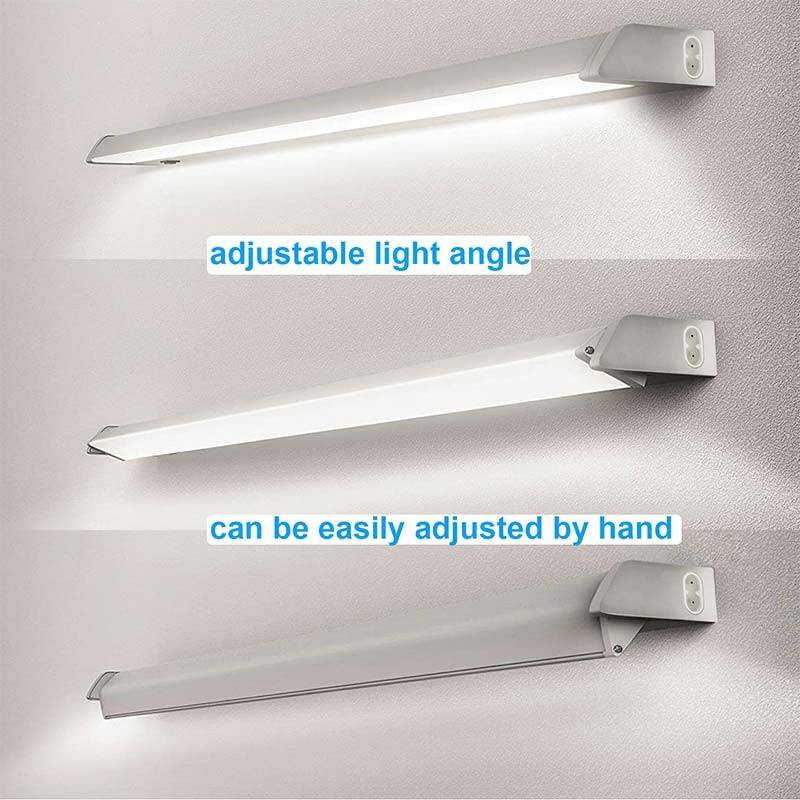

Illuminate kitchens, mirrors, furniture and under furniture, with this dimmable LED CCT luminaire. It orients the light in the direction you want according to the lighting needs of the space. Under cabinet luminaire rotatable from 0º to 170º.

luces armario

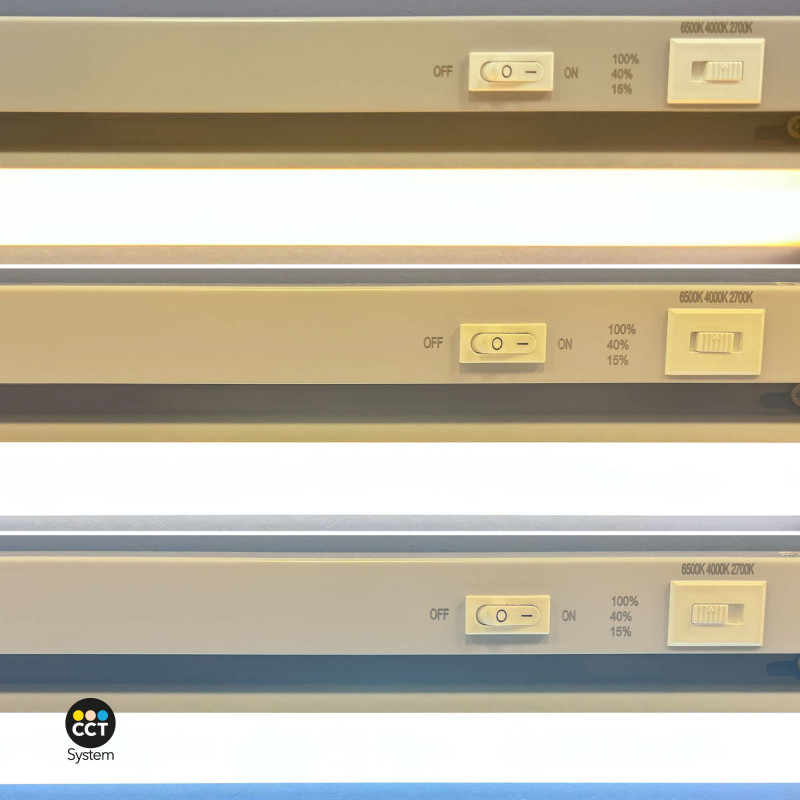

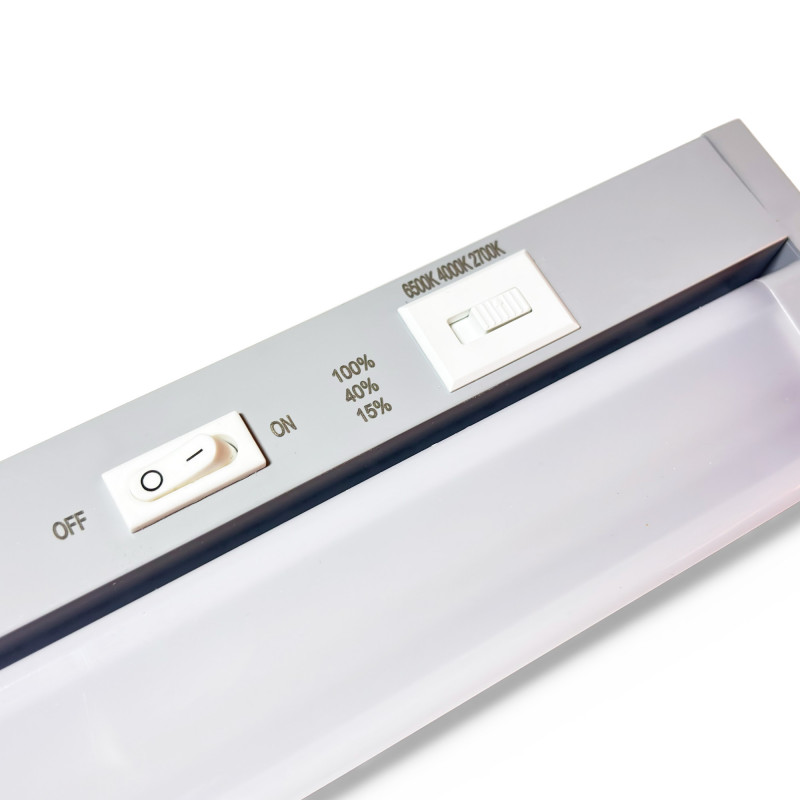

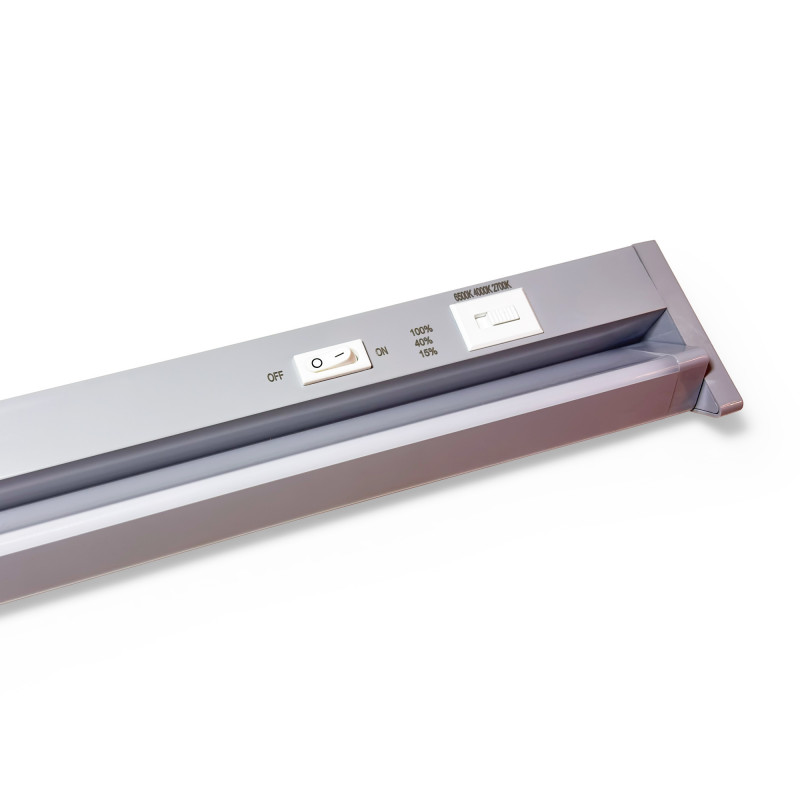

Designed with a switch button, below the LED, which when pressed allows you to adjust the light intensity between 3 percentages: 100%, 40% and 15%. In addition you can select between three shades of light with the CCT system. The built-in CCT system allows between the shades marked on the switch, 2700K; 4000K; 6500K. By simply changing the position of the switch, we can choose the shade that best suits the needs of the room where we place the CCT LED luminaire.

luminaria LED CCT

With a power of 8W, dimensions of 60cm and a luminous angle of 120 degrees, we have a very wide angle with a linear and uniform illumination to illuminate a room in general, without shadows. SMD2835 LED chip with a total luminous intensity of 800 lumens. Optimal color rendering CRI>80. Exclusive for interior, IP20 protection degree.

Perfect LED luminaire to illuminate closets, stores, offices, storage rooms, building landings and kitchens. Replaces conventional fluorescent tubes.

luminarias LED orientables CCT dimable

High quality linear LED swiveling luminaire for under furniture

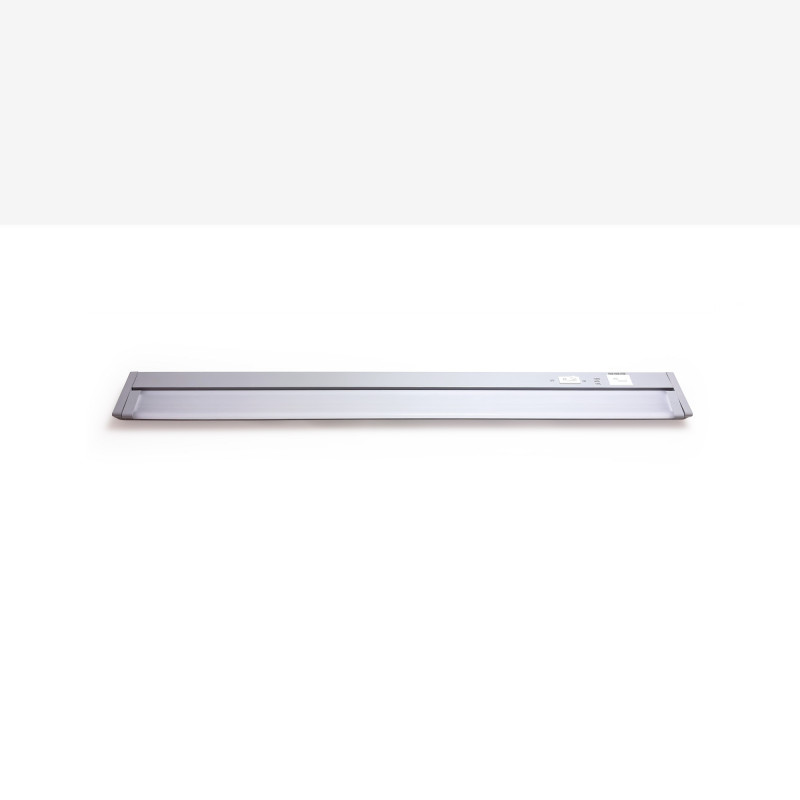

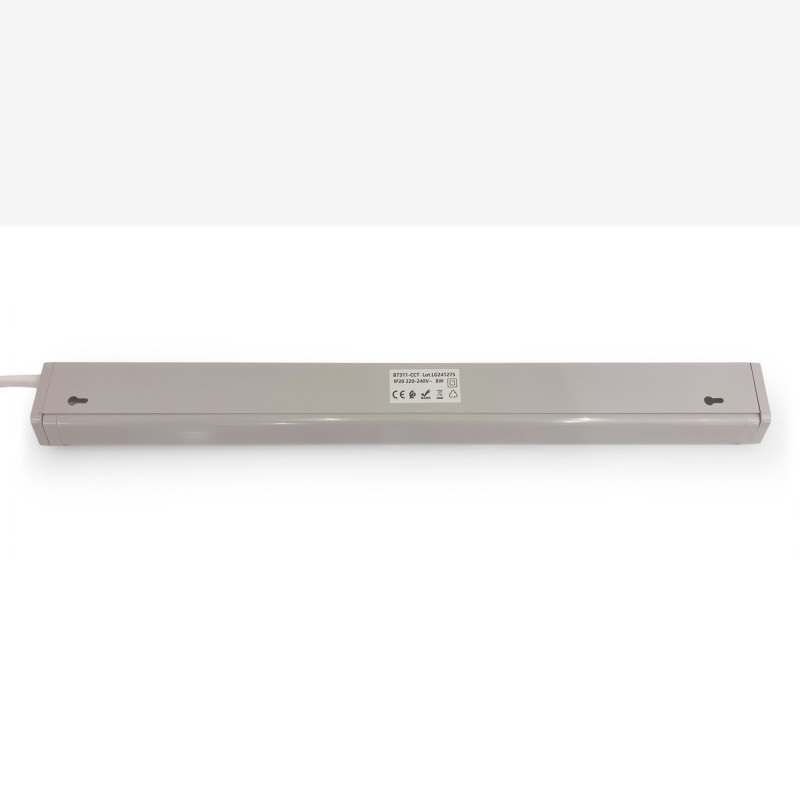

The linear LED luminaire is manufactured with a silver aluminum housing and an opal polycarbonate diffuser. The diffuser allows a correct diffusion of light, homogeneous, without loss of intensity or dark areas. Instant on. Inside the diffuser cover, the adjustable LED CCT luminaire integrates a high performance SMD2835 LED chip.

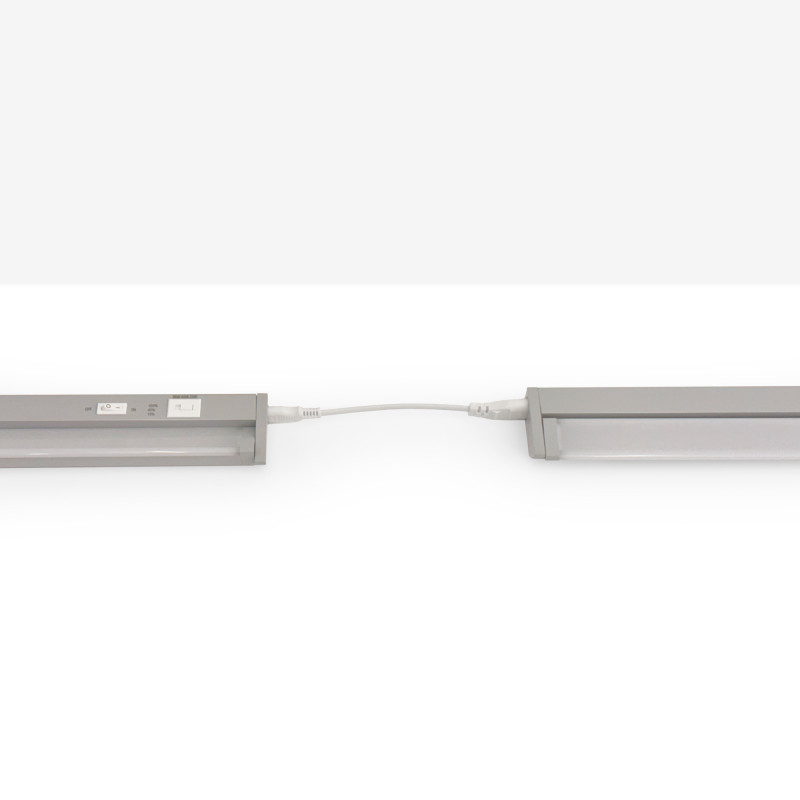

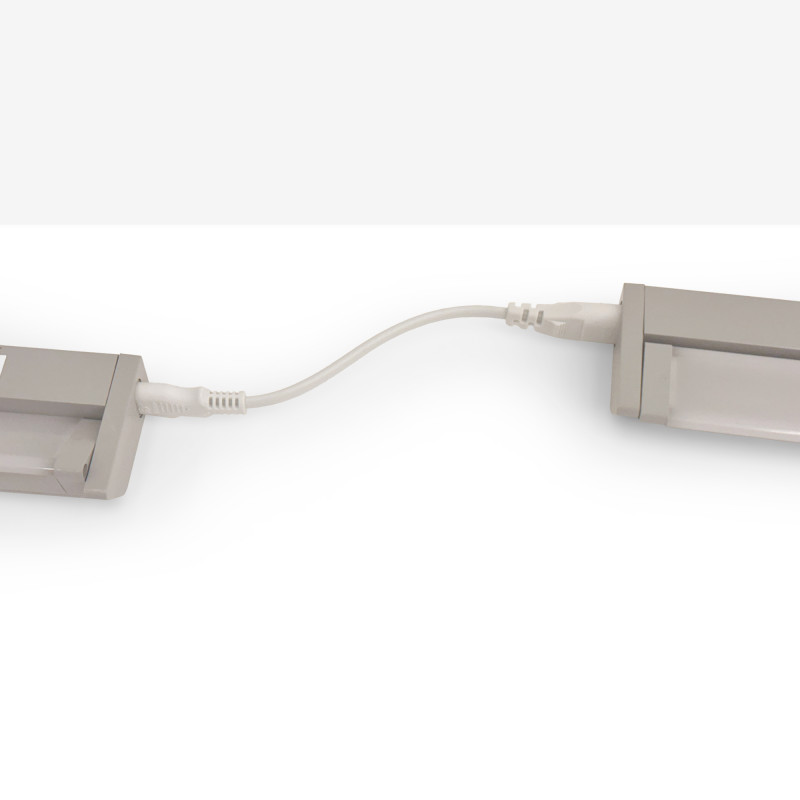

Cable of union between luminaires included of assembly allows to connect up to ten units of these LED lamps under furniture.

Length of the cable of aliemntación: 1.50 meters.

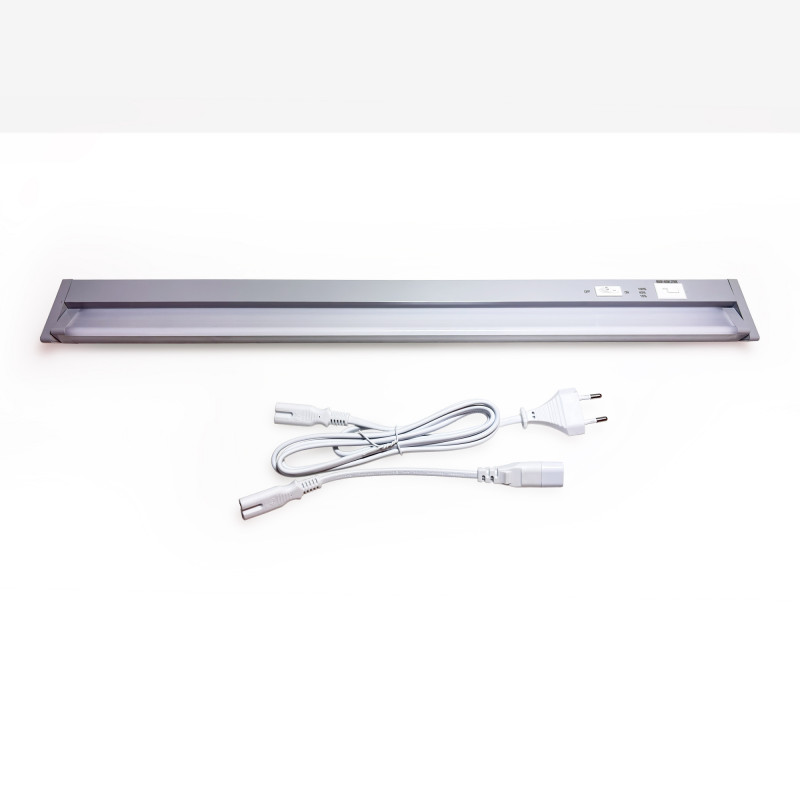

Each luminaire contains a complete installation kit.

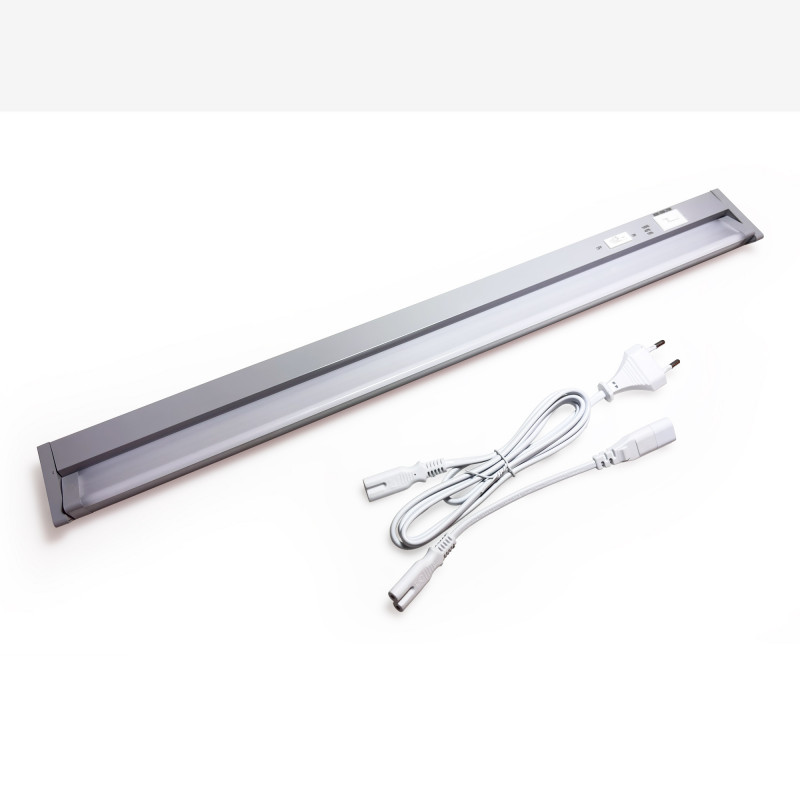

The installation kit contains

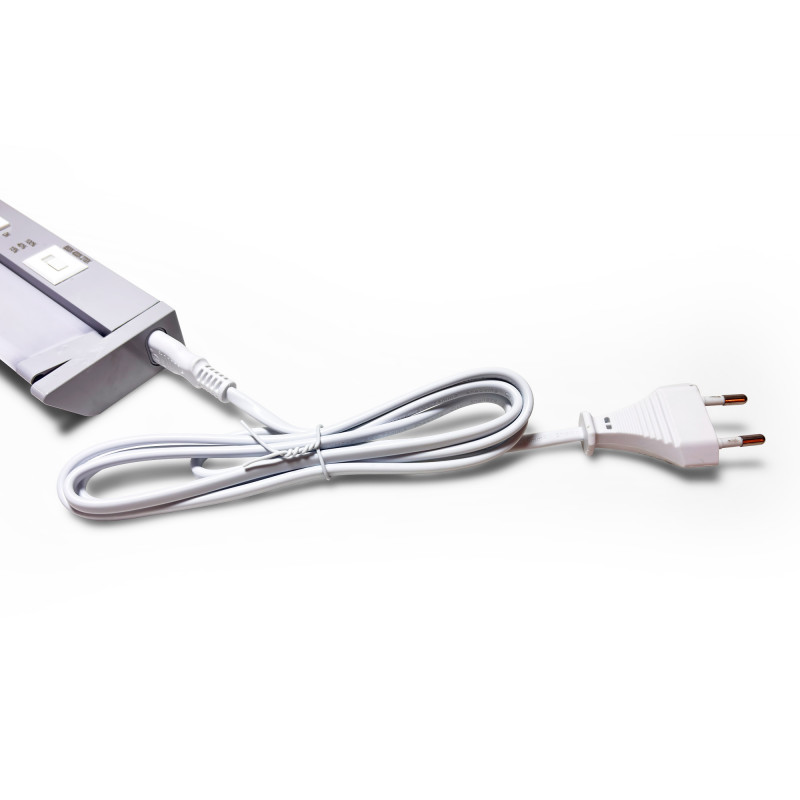

*1.5 meters long power cable to the socket.

*Connection cable between luminaires.

*Screws and fixing plugs.

mueble salon led

LUCES LED BAJOMUEBLES

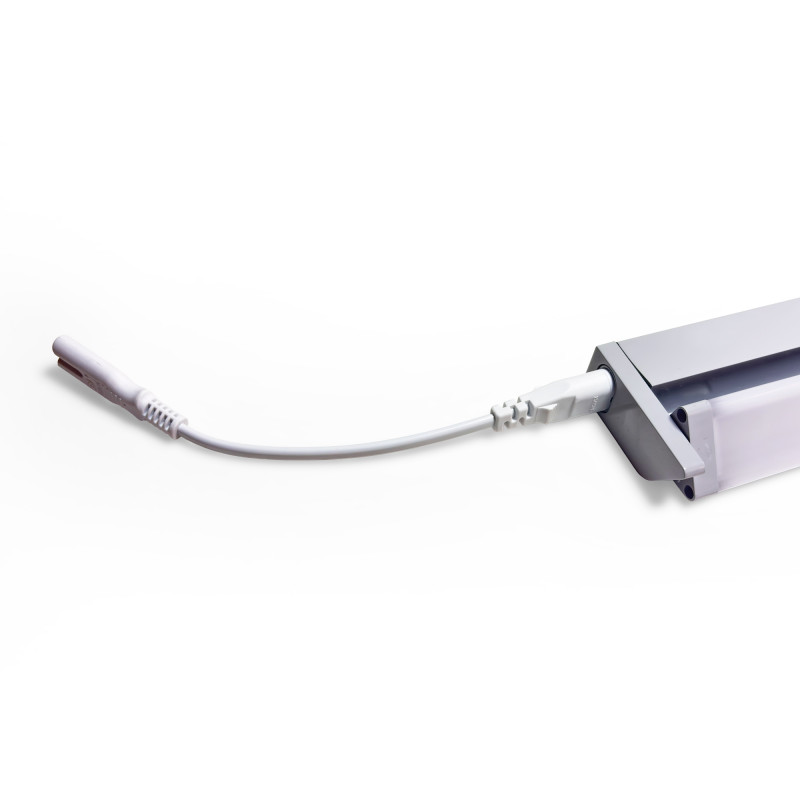

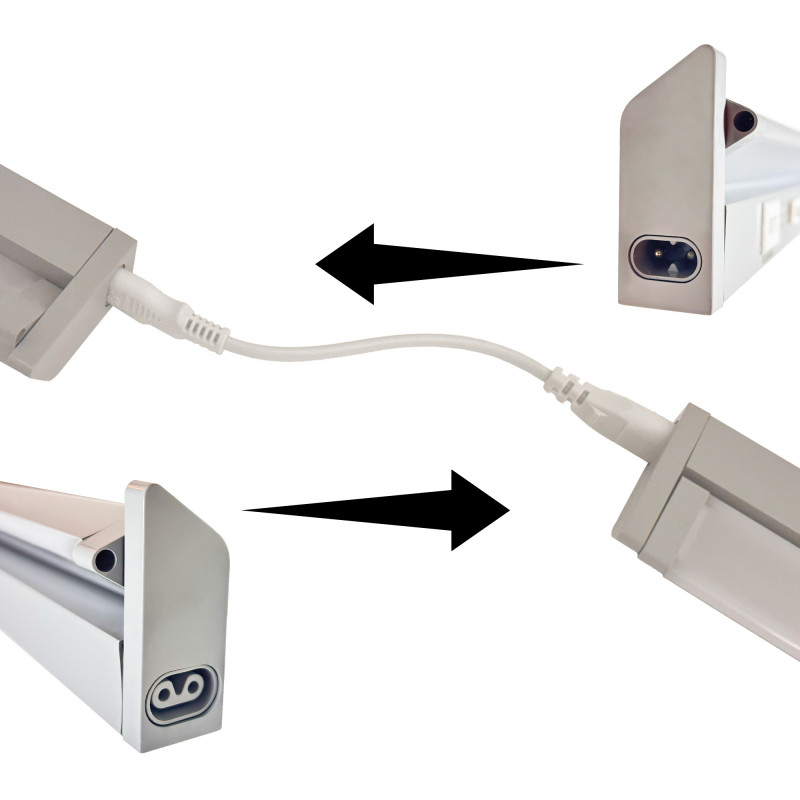

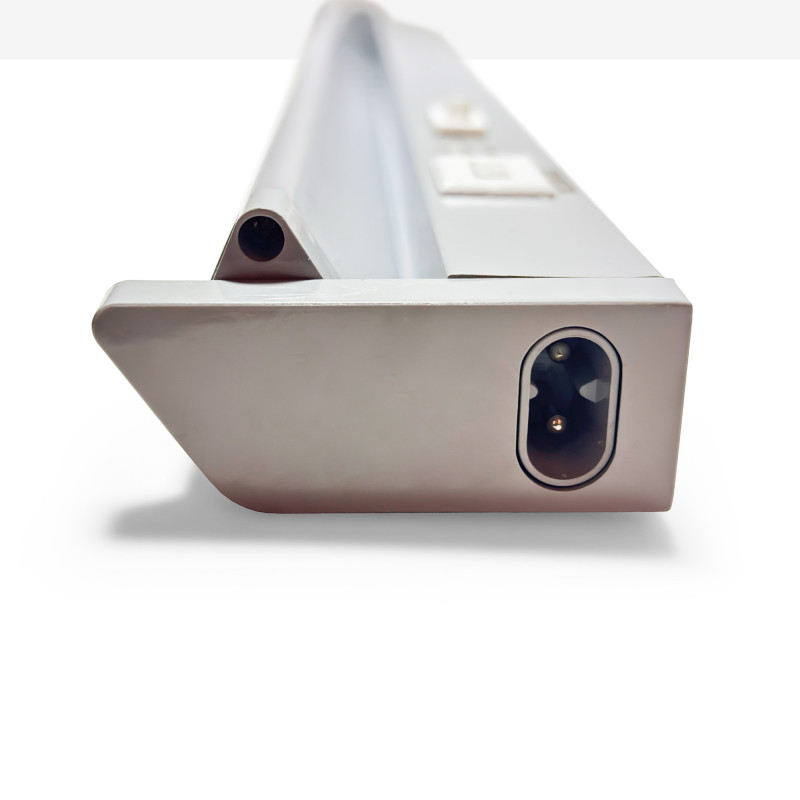

Connection cable for multiple installation

conexión luminarias LED

Suspension mounting

Luminaria LED orientable para bajo muebles

precio de luminarias led luminarias led orientables

Where to illuminate with CCT LED linear lights?

Create an original and unique decoration in any interior room, with the mini mouse lamp. Modern table lamp with realistic finishes that will stand out in any interior room of the home or business as: children's room, studies, libraries, side tables, etc.. Perfect LED luminaire to illuminate closets, stores, offices, storage rooms, building landings and kitchens.

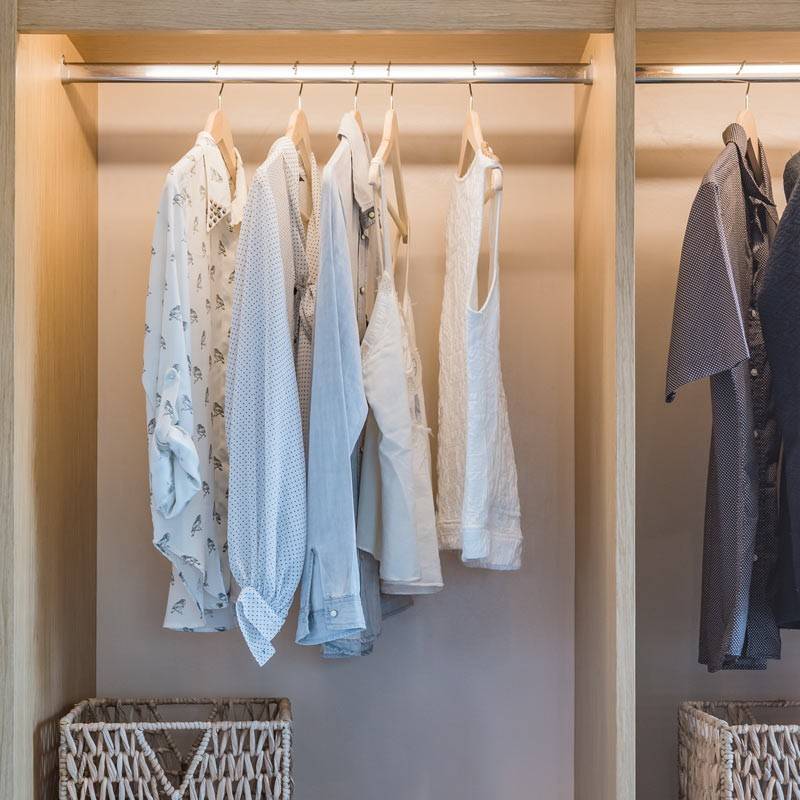

  • ✔ Closet lighting.
  • ✔ Storage room lighting.
  • ✔ Building landing lighting.
  • ✔ Shop, office and kitchen lighting.
  • ✔ Under cabinet lighting.

iluminación bajomuebles


Technical characteristics.

Voltage: 220-240 V/AC.
Power: 8W.
Chip: SMD2835.

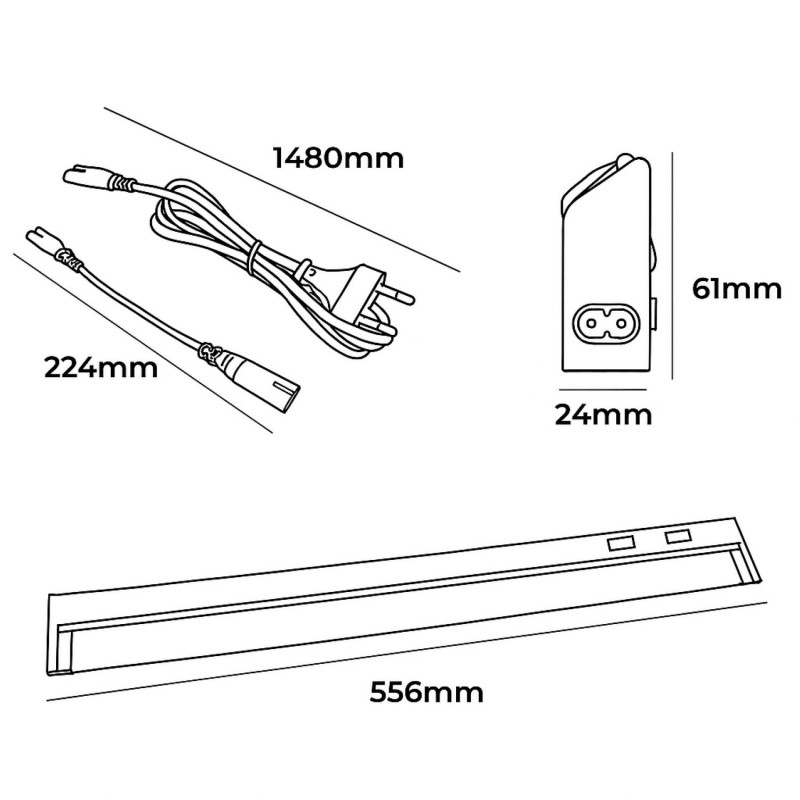

Dimensions: 556x61x24mm.
Material: Aluminum; Polycarbonate.
Degree of protection: IP20.
CCT; DIMMABLE.
Under cabinet luminaire swiveling from 0º to 170º.

Power (W)
8
Kelvin (K)
2700
4000
6500
Beam angle (º)
120
IP
IP20
Dimensions (mm) Lxlxh
556x61x24
Hue
CCT
Sensor
No
CRI
80-85
UGR
No
LED Type
SMD2835
Dimmable
Yes
Driver
Internal
Orientable
Yes
Material
Aluminium
Use Outdoor
No
Temperature range
-20°C ~ +40°C
Frequency of use
Intensive
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
New product
Barcelona LED

Questions

P: Question: The light it makes is for studying or writing. It is to place it under a shelf that is above a desk.
R: Answer: Hello, this luminaire is ideal for that environment, in addition to having a power regulator and 3 colors in itself. Thank you very much!

Barcelona LED: Alejandro| 25/08/2024

P: Question: The 8w of power is equivalent to how much in classic bulbs.
R: Answer: The watts are only the consumption of the luminaire, the brightness depends on the performance of "light / watt" of each bulb. As a guideline the 8w would be equivalent to between 50-60W of a "classic" filament bulb.
P: Question: What is the voltage?
R: Answer: It is connected to the 230vac mains.
P: Question: Can this power strip be connected to another one without the cable? Thanks
R: Answer: YES, it has an accessory to join them together.
