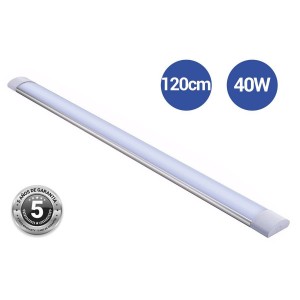

120cm high power LED linear luminaire CCT with sensor

120cm high power LED linear luminaire CCT with sensor

SKU:B8500-120CCT
Has superado el límite de unidades
In stock 107 units
Data sheet

Linear LED luminaire of 120cm length and 40W power. With 5 years warranty. Integrated chip (288 SMD2835) with opal cover. Innovative, with easy installation, long life and resistant. With CCT system of 2700, 4500 and 6500K. Built-in dimmable sensor.

  • 40W - 230V
  • >4000lm
  • 1190x120x42mm
  • IP20
Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

Linear LED luminaires of 120cm, modern and innovative waterproof lampshades with CCT system and sensor.

Linear LED luminaire with CCT system and sensor. With a power of 40W of power and 1200 mm long, also known as Linear-Light LED. Easy to install in the ceiling with wiring hidden inside the screen. These Linear-Light LED luminaires are perfect for integral replacement of fluorescent tube lampshades. Five-year warranty.

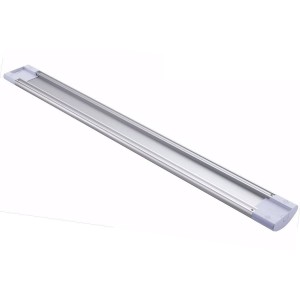

The electrical connection does not require an auxiliary junction box, it is made directly to 230V with connections inside the luminaire. This luminaire, with innovative and compact design, is built on an aluminum profile and an opal polycarbonate cover, with two LED strips with SMD 2835 chip inside. With a high power of more than 4000 lumens and measures 1190x120x42mm.

luminaria lineal led 120cm

This linear luminaire offers LED lighting with high brightness level, uniform light, low power consumption and long life. Excellent thermal management to ensure the working stability of LEDs. The cover uses fireproof polycarbonate material. No flickering, no noise, no glare, no mercury and other harmful substances. This type of luminaires are most commonly used in spaces such as shopping malls, warehouses, parking lots, supermarkets, corridors, etc.

luminaria lineal led 120cm

The microwave sensor is dimmable, always works with movement and has a daylight sensor. It can also be set to an idle state and maintain 25% until motion detection.

The integrated CCT system allows us to switch between three color temperatures from 2700 to 6500.

Sistema CCT y sensor luminaria led linealluminaria lineal led CCT con sensor


Luminarias lineales ajuste color Open the end cap with the CCT adjustment mark, the color temperature can be adjusted by the internal slide switch.
Luminarias lineales con sensor Open the end cap with CCT and sensor adjustment. You can adjust the color temperature by sliding. Sensor switch with parameters on the driver.

INSTALLATION INSTRUCTIONS

Instalación luminaria instrucciones instalación
Mark the correct position to place the screw. Fix the clips to the ceiling.

instrucciones instalacióninstrucciones
Open the end cap with INPUT marker according to picture 1 and picture 2, then open the corresponding preset line hole according to the input register location, finally connect the string3 picture and fix the register clip.

luminaria lineal instruccionesinstrucciones luminaria
Follow the operation of picture 1 and picture 2, adjust the screen and luminaire to the ceiling.

luminarias instrucciones 1200mm

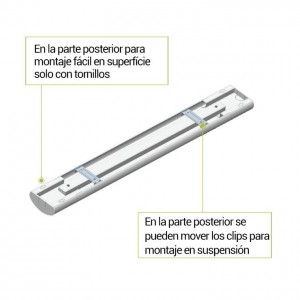

There are two holes to fix the linear led luminaire by fixing to the ceiling or to install in suspension.

The connection cable is the same for ceiling and suspension installation.

Kelvin (K)
2700 - 6500
IP
IP20
Hue
Cool white
Neutral white
Warm white
Sensor
Yes
Dimmable
No
Driver
Internal
Orientable
No
Material
Plastic
Diffuser material
Polycarbonate
Use Outdoor
No
Temperature range
-20°C ~ +40°C
Frequency of use
Intensive
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
Barcelona LED

Questions

P: Question: Hello in a hallway I have no light point , but I will take one out , but without putting the switch .
I can place it , so that it turns on only when there is no light and by the sensor ?
And you can change the color and intensity ?
Thanks
R: Answer: This display is turned on by movement , you can adjust the time , sensitivity and how much ambient light to turn on. The color temperature is changed with a micro switch on the display , you can not change the intensity but has function to reduce the intensity to 30% .
P: Question: Is it possible to install it in such a way that it can be turned on by sensor and switch action?
R: Answer: This linear model works only with the sensor
P: Question: HELLO.
THE LIGHT IS ALWAYS ON? I WANT TO PLACE THEM IN THE GARAGE BUT THEY TURN ON WHEN I ENTER WITH THE CAR OR WHEN I ENTER THE GARAGE FROM THE HOUSE BUT THE REST OF THE HOURS I WANT IT OFF, I DO NOT KNOW IF YOU HAVE THIS OPTION.
THANK YOU!
R: Answer: Yes, it has motion sensor and twilight sensor settings.
P: Question: Hi, I am looking for a kind of linear lighting for room that is only illuminated by motion sensor but only when it is night or at a certain time.
R: Answer: This linear can adjust the power level according to the ambient light, but it does not have a clockwise power adjustment.
P: Question: If I install them on the wall above the elevator door, will it have the same illumination?
R: Answer: The CCT linear luminaire can be set in the desired color between cool white, white, neutral and warm white light.
P: Question: Can the sensor be regulated to be turned on and off by passing the hand for example at short distance, which will act as a switch or if you have this option in another linear?
R: Answer: The ranges of the microwave sensor are greater, it will detect any movement besides the hand. You may be interested in the led strip ref. B7300-50-BN.
P: Question: Can this led strip be hung on the wall? The cordless one? Does it work with batteries?
R: Answer: This product is a 120cm Linear is connected to the 220v mains.
P: Question: If you are sitting in a room and do not move, how does the motion sensor work? Can it be overridden?
R: Answer: In the linear led luminaire the sensor can be adjusted in distance, time and annular. If you are in a completely still room the motion sensor will not act.
P: Question: Hello, good afternoon.
The sensor that has this screen is motion or light?
Thank you
R: Answer: Good morning, The linear LED luminaire has motion sensor and adjustable light sensor.
P: Question: Hello, do you have something like this for outdoor and wall, without sensor?
R: Answer: The most similar for outdoors is the waterproof led screen with reference B8400 and all the products of the category waterproof screens. It can be installed on the wall although it is not the usual.
