150cm high power LED linear luminaire CCT with sensor

150cm LED linear luminaires, innovative and modern waterproof lampshades with dimmable sensor and CCT System.

Linear LED luminaire with CCT system and sensor. With a power of 60W of power and 1500 mm of length, also known as Linear-Light LED. With five years warranty. Wiring inside the cover, invisible wiring. Linear-Light LED luminaires perfect for the integral replacement of fluorescent tube lampshades.

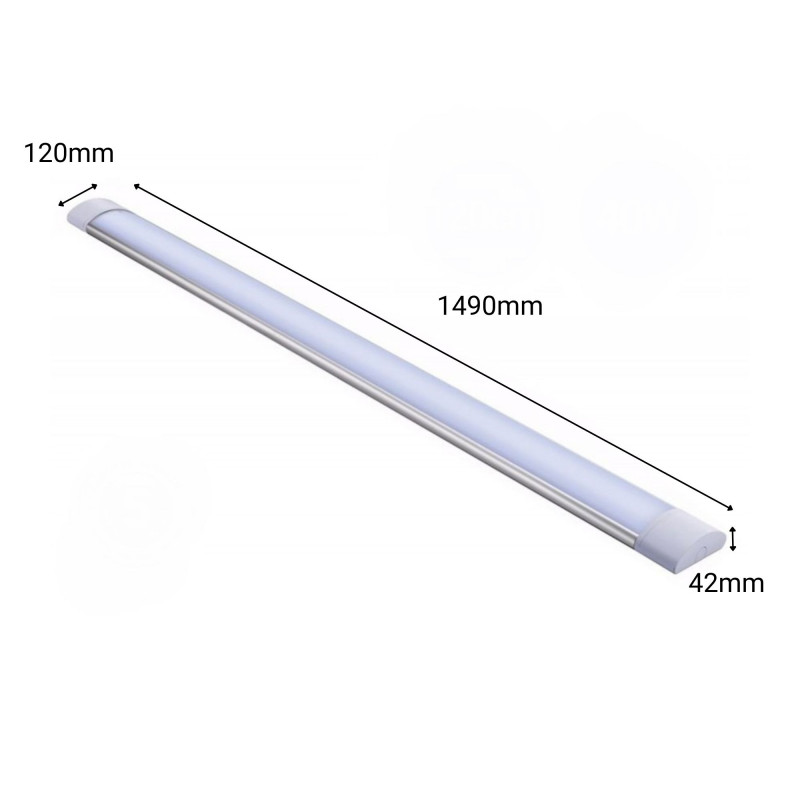

The electrical connection does not require an auxiliary junction box, it is made directly to 230V with connections inside the luminaire. This luminaire, with modern and innovative design, is built on an aluminum profile and an opal polycarbonate cover, with two LED strips with 288 SMD 2835 chips inside. With a high power of more than 6000 lumens and measures 1490x120x42mm.

The linear LED linear luminaire provides LED lighting with high brightness, low energy consumption, uniform light, and long life. With excellent thermal management to ensure the working stability of the LEDs. The cover uses fireproof polycarbonate material. No glare, no flickering, no noise, no mercury and other harmful substances. This type of luminaires are the most commonly used in spaces such as warehouses, shopping malls, supermarkets, corridors, parking lots, etc.

It integrates a dimmable microwave sensor, always works with movement and has a daylight sensor. In addition, it can be set to a sleep state and maintain 25% until motion detection.

The integrated CCT system allows us to switch between three color temperatures 2700, 4000 and 6500 degrees Kelvin.

Open the end cap with the CCT adjustment mark, the color temperature can be adjusted by the internal slide switch.

Open the end cap with CCT and sensor adjustment. You can adjust the color temperature by sliding. Sensor switch with parameters on the driver.

INSTALLATION INSTRUCTIONS

Mark the correct position to place the screw.	Fix the clips to the ceiling.

Open the end cap with INPUT marker according to picture 1 and picture 2, then open the corresponding preset line hole according to the input register location, finally connect the string3 picture and fix the register clip.

Follow the operation of picture 1 and picture 2, adjust the screen and luminaire to the ceiling.

There are two holes to fix the linear led luminaire by fixing to the ceiling or to install in suspension. The connection cable is the same for ceiling and suspension installation.
