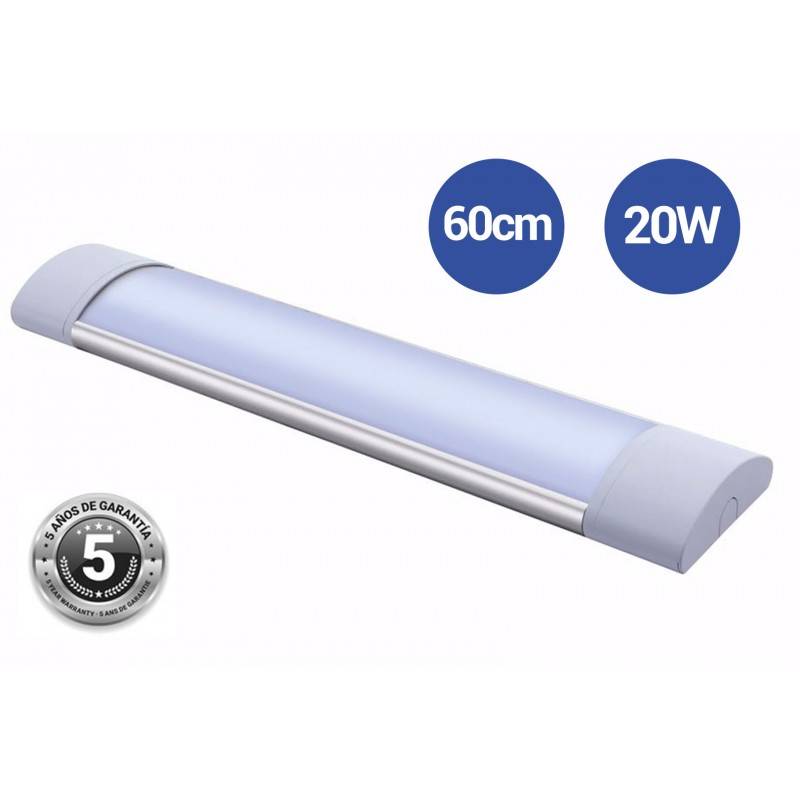

60cm high power LED linear luminaire CCT with sensor

SKU:B8500-60CCT
Has superado el límite de unidades
In stock 169 units
Data sheet

Linear LED luminaire 60cm long and 20W power (288 SMD2835) with opal cover. Compact, easy to install, resistant and durable. With sensor and CCT system from 2700 to 6500 Kelvin degrees.

  • 20W - 230V
  • >2000lm
  • 590x120x42mm
  • IP20
Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

60cm Linear LED luminaires, modern and innovative watertight lampshades with CCT system and sensor.

Linear LED luminaire with CCT system and sensor. With a power of 20W of power and 600 mm long, also known as Linear-Light LED. Easy to install in the ceiling with wiring hidden inside the screen. These linear LED luminaires are perfect for integral replacement of fluorescent tube lampshades.

The electrical connection does not require an auxiliary junction box, it is made directly to 230V with connections inside the luminaire. This luminaire, with innovative and compact design, is built on an aluminum profile and an opal polycarbonate cover, with two LED strips with SMD 2835 chip inside. With a high power of more than 2000 lumens and measures 590x120x42mm.

Características luminaría

The LED lighting it provides has high brightness, uniform light, low energy consumption and long service life. With excellent thermal management, it can effectively guarantee the working stability of LED. The display uses fireproof polycarbonate material. No flicker, no noise, no glare, no mercury and other harmful substances. It is mainly used in spaces such as warehouses, parking lots, corridors, shopping malls, supermarkets, etc.

luminaria lineal led 60cm

The microwave sensor always works with motion and has a daylight sensor. It can also be set to an idle state and maintain 25% until motion detection.

The integrated CCT system allows us to switch between three color temperatures from 2700 to 6500.

Sistema CCT y sensor luminaria led linealluminaria lineal led CCT con sensor


Luminarias lineales ajuste color Open the end cap with the CCT adjustment mark, the color temperature can be adjusted by the internal slide switch.
Luminarias lineales con sensor Open the end cap with CCT and sensor adjustment. You can adjust the color temperature by sliding. Sensor switch with parameters on the driver.

INSTALLATION INSTRUCTIONS

Instalación luminaria instrucciones instalación
Mark the correct position to place the screw. Fix the clips to the ceiling.

instrucciones instalacióninstrucciones
Open the end cap with INPUT marker according to picture 1 and picture 2, then open the corresponding preset line hole according to the input register location, finally connect the string3 picture and fix the register clip.

luminaria lineal instruccionesinstrucciones luminaria
Follow the operation of picture 1 and picture 2, adjust the screen and luminaire to the ceiling.

luminarias instrucciones

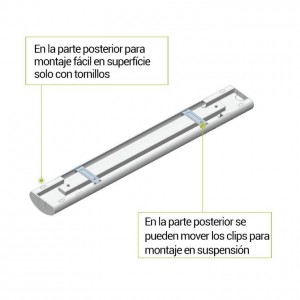

There are two holes to fix the linear led luminaire by fixing to the ceiling or to install in suspension.

The connection cable is the same for ceiling and suspension installation.

Kelvin (K)
2700 - 6500
IP
IP20
Hue
Cool white
Neutral white
Warm white
Sensor
Yes
Dimmable
No
Driver
Internal
Orientable
No
Material
Plastic
Diffuser material
Polycarbonate
Use Outdoor
No
Temperature range
-20°C ~ +40°C
Frequency of use
Intensive
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
Barcelona LED

Questions

P: Question: It has a motion sensor? that turns on when approaching?
R: Answer: If a motion sensor is installed
P: Question: Bon dia
La voldria posar sota els armaris de cuina, detecta el moviment al entrar a la cuina o passant la ma per sota el panel?
I've seen one that reacted when you pass the ma per devant, is this one?
R: Answer: This model will detect from a distance. To turn on any luminaire by waving your hand, you can use model SP29A as a switch.
P: Question: I don't understand how the Daylight Sensor - Ambient brightness sensor acts on the linear
Daylight, 50lux, 15lux, 5lux operation
what does daylight operation, 50 lux... mean?
Thank you very much
R: Answer: The minimum amount of ambient light that can be set for the luminaire to turn on. No minimum light setting and minimums of 50lux, 15lux or 5lux.
P: Question: How to turn on the bar?
R: Answer: Linear goes directly to the mains, the sensor adjusts the automatic ignitions.
P: Question: Is the light included?
In case it is missing or melted, which light model would be the right one for reference?

Thanks
R: Answer: It is a complete set of housing, electronics and leds. No bulbs or tubes for replacement.
P: Question: Bon dia,
I would like more information about the sensor (to compare with other sensors on the market) to see if it fits my needs.
Thank you
R: Answer: Detection Area - Detection Area
Detection area/angle selection
25% - 50% - 75% - 100% range

Hold Time - On Time
Power on time at 100% brightness
Times: 5s, 90s, 3min, 10min

Daylight Sensor - Ambient brightness sensor
Daylight, 50lux, 15lux, 5lux operation

Operating Mode
Operation at 30% after 100% power-on time
No 30% on-time
30s 30% ON time
10min power-on time at 30%
Continuous ON time at 30%
