Kit SKYline linear lighting 120led/m 90W 5m
SKU:SKY5-N-180
€77.43
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com
SKYline Suspended Linear Lighting Kit | Modern Indoor Lighting
The innovative SKYline linear luminaire provides a modern, minimalist and professional look for modern indoor lighting, especially for decorative lighting in museums, art galleries, stores, hotels, restaurants, etc. SKYline technology allows multiple ways of lighting, you can use a direct or indirect lighting or can serve as a wall washer. The kit includes a 24V SMD2835 LED strip with 120 LED chips per meter, with a total length of 5 meters and a total power of 90W. All accessories included for easy installation, except for the required 24V power supply.
✔ Voltage: 24V.
✔ Power: 90W.
✔ Lumens: 2000lm.
✔ Length: 5m.
✔ Power supply not included.
✔ IP20.
Product features.
✔ Dimmable.
✔ Color: Black.

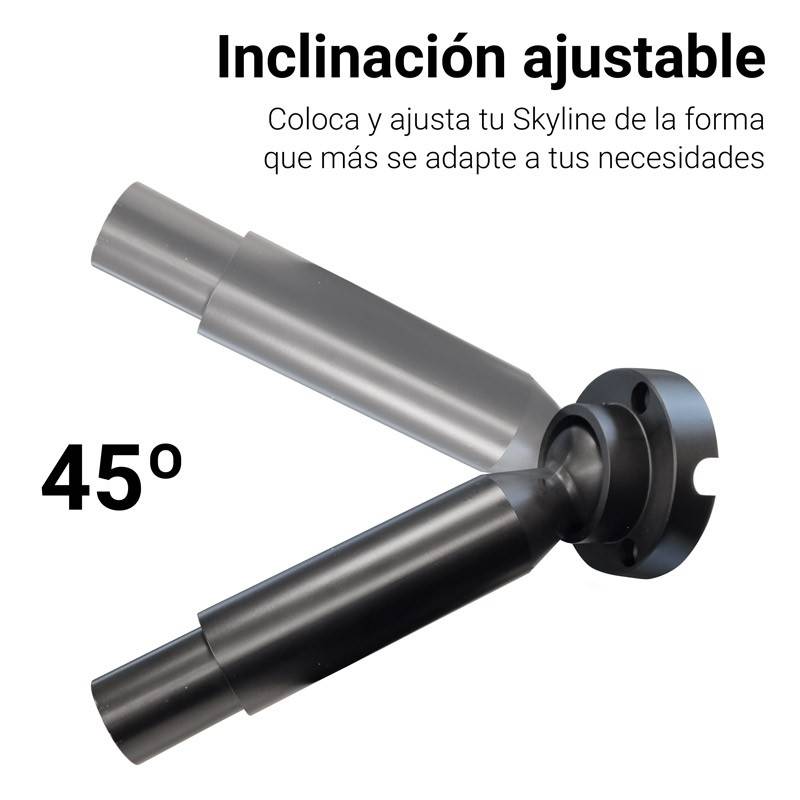

✔ Adjustable 45º.
✔ Indirect lighting, direct lighting or wall washer.

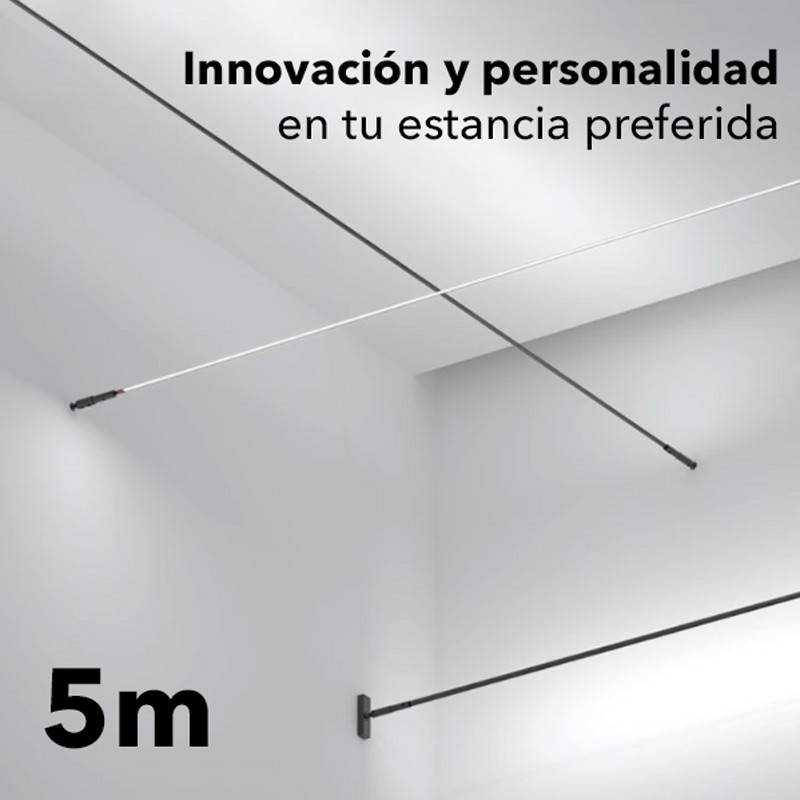

Suspension linear lighting kit

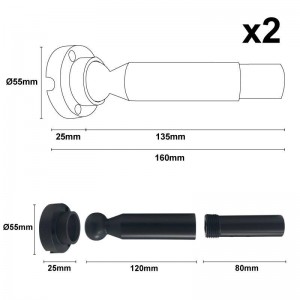

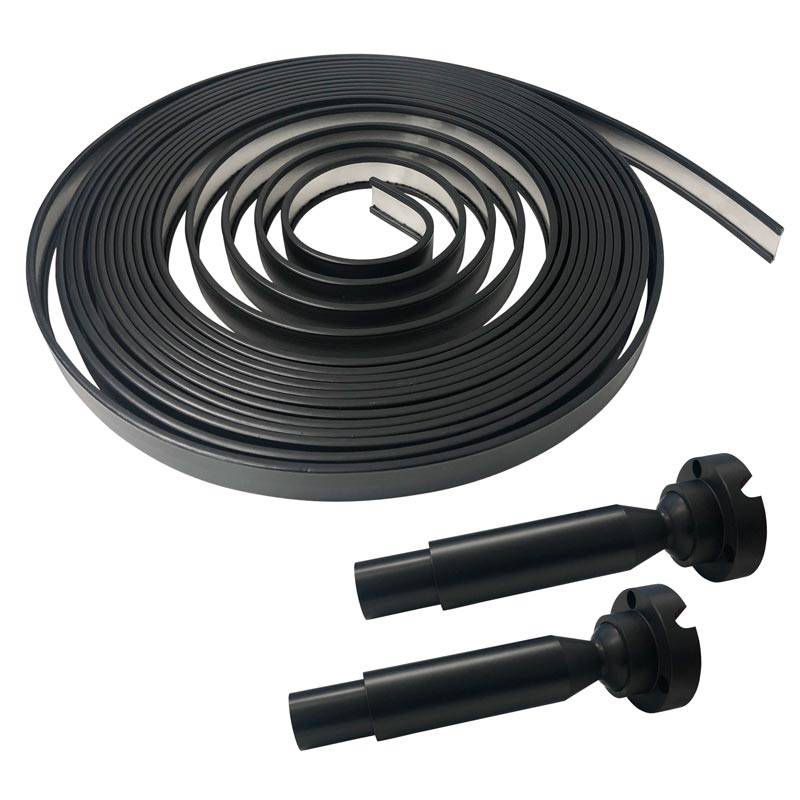

SKYline is an innovative modern linear suspended lighting system that includes all accessories for installation and a 5 meter long, 90W SMD2835 LED SMD2835 LED strip together with a 5 meter strip, finished in black color. Indoor lighting, IP20 rated, with accessories to orient the luminaire in a horizontal and vertical angle of 45 degrees.

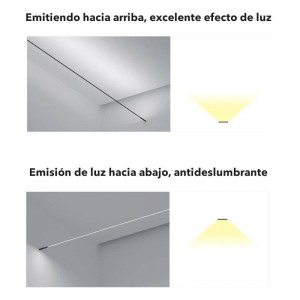

The SKYline system offers linearupward indirect lighting and downward indirect lighting or as a wallwasher.

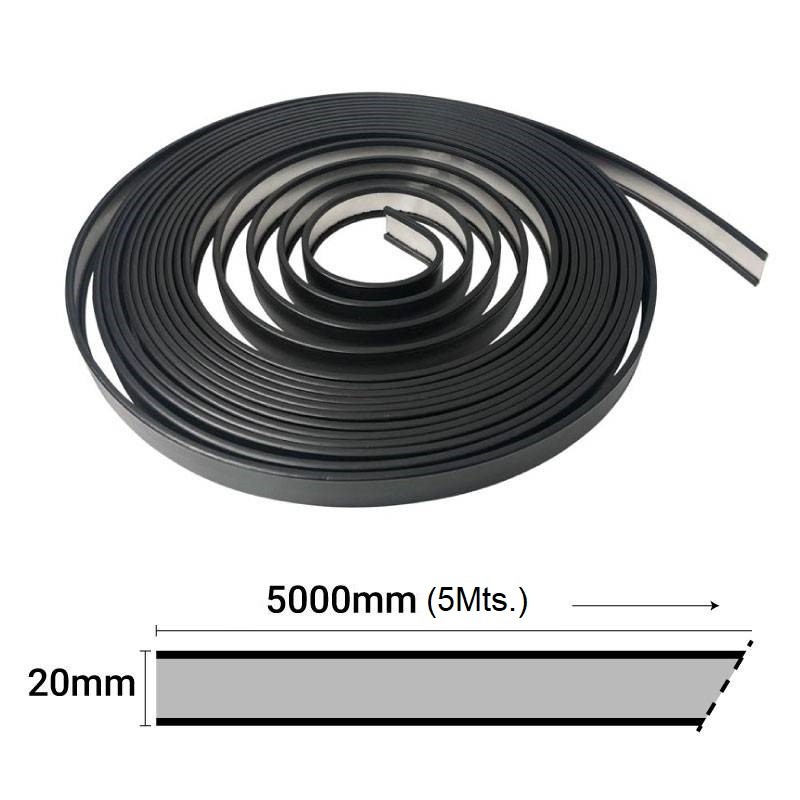

The SKYline Kit includes a band made of high quality materials, with a length of 5 meters and a width of 20mm, in which a 24V and 90W LED strip is placed. With all the necessary accessories for an optimal installation and a long durability of the product. With all these elements will form a unique, modern and innovative suspended linear LED bar for any indoor room.

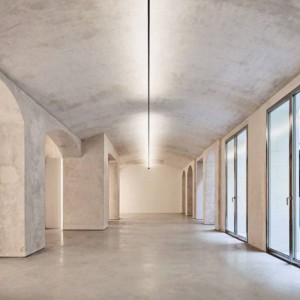

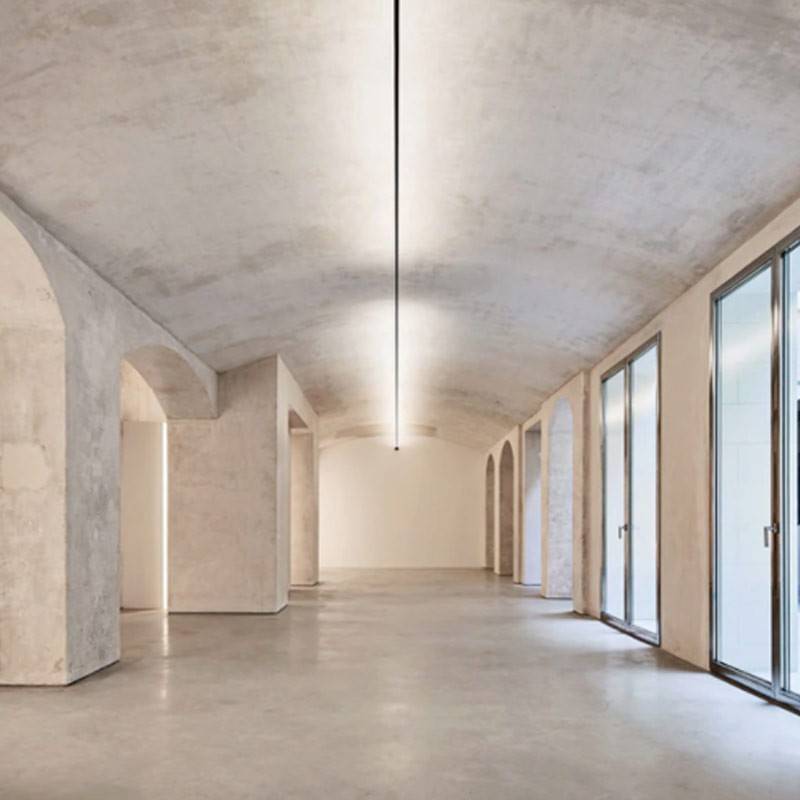

These luminaires or LED pendant lamps are often used in exhibition halls: museums, art galleries, etc.. Both as a wall washer or as decorative lighting, upwards. In addition, they are often installed in hotels, restaurants, stores, and any business, causing a modern and innovative look that attracts the attention of the customer.
LED Strip

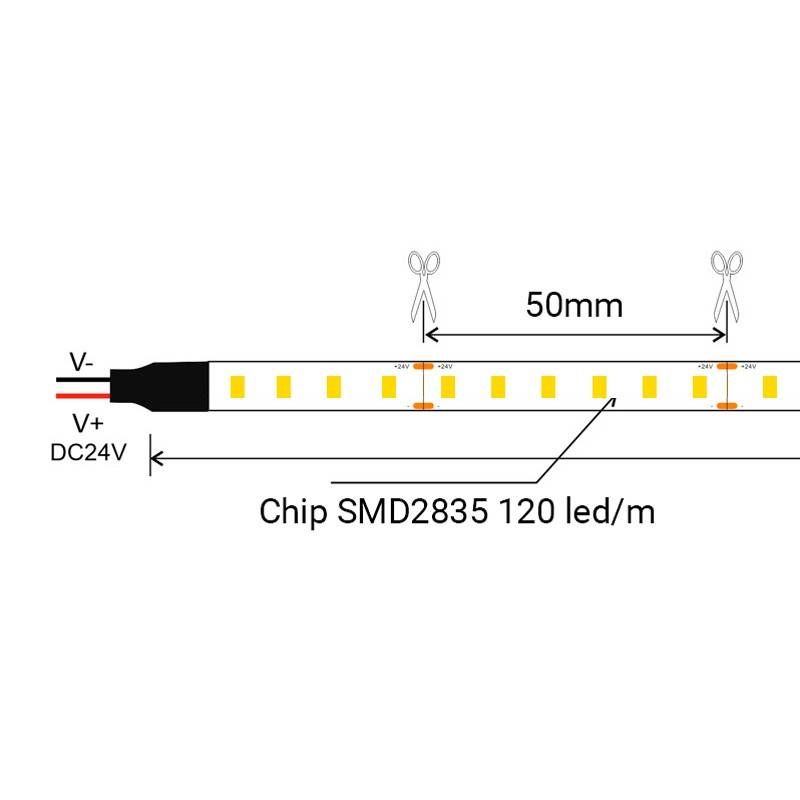

The SKYline Kit integrates a SMD2835 LED strip of 24V-DC, single color, 90W and 5 meters. High quality LED strip, with 120 chips/LED per meter, offering a homogeneous and intense illumination. It allows a cut to size by means of the copper marks, approximately every 5 cm. With an efficiency of more than 100lm/W, 18W/m. The total length of the strip is 5 meters and the width of the track is 10mm. Single color LED strip selectable in multiple color temperatures (1800ºK; 2400ºK; 2700ºK; 3000ºK; 4000ºK; 6000ºK; Amber), and different colors (Red; Green; Blue; Pink).

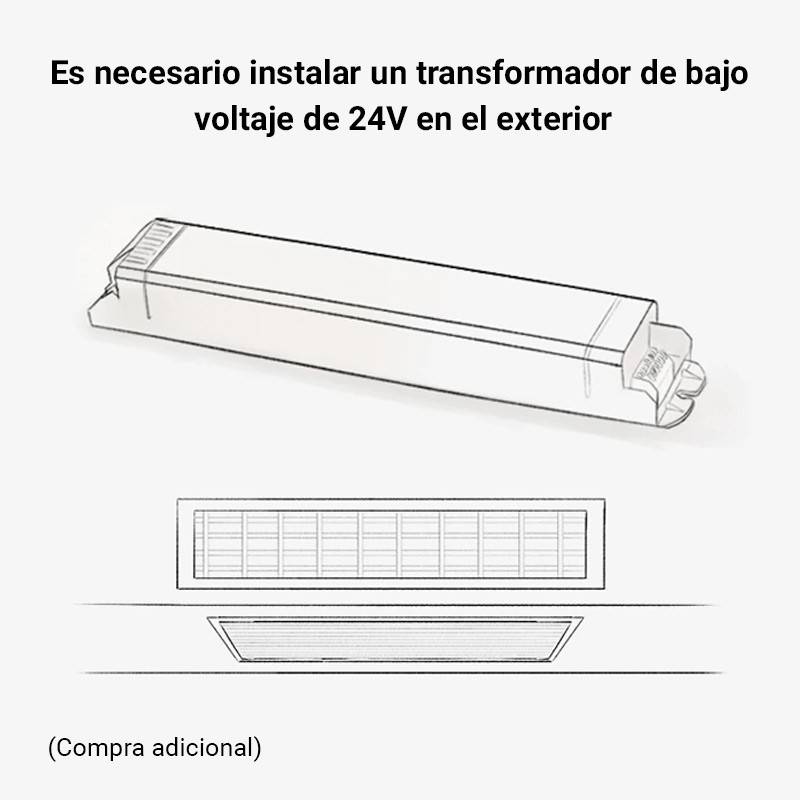

The SKYline kit does not include the 24V power supply required for installation.
SKYline linear lighting applications
With an innovative and unique design, the SKYline kit will be the ideal luminaire to decorate and illuminate interior rooms directly or indirectly, with a differential and unique touch that will cause a sensation in any interior room of the home or business. Widely used in corridors, hotels, exhibition areas and hotels.
- ✔ Exhibition areas: museums, art galleries, etc.
- ✔ Lights of hotels, stores, restaurants, etc.
- ✔ Indirect or direct lighting in offices.
- ✔ Interior decoration: corridors, living rooms, bedrooms, etc.
- ✔ Architectural projects.
- ✔ Modern, clean and innovative style.
Technical characteristics.
✔ Voltage: 24V-DC.
✔ Power: 90W.
✔ O pening angle: 120º.
✔ S trip dimensions: 500x20mm.
✔ Lumens: 2000lm.
Degree of protection: IP20.
✔ Adjustable 45º.
SMD2835 LED chip 120led/m.
✔ Amber; 1800ºK; 2400ºK; 2700ºK; 3000ºK; 4000ºK; 6000ºK; Red; Green; Blue; Pink.
✔ Dimmable.
✔ 24V-DC power supply not included.
Nominal Voltage (V)
24V-DC
Power (W)
90
Lumens (Lm)
2000
Kelvin (K)
1800
2400
2700
3000
4000
6000
2400
2700
3000
4000
6000
Beam angle (º)
120
Lifetime (h)
25000
IP
IP20
Dimensions (mm) Lxlxh
5000x20
Frequency (Hz)
50 - 60
Hue
Blue
Cool white
Extra warm white
Extra warm white plus
Green
Neutral white
Pink
Red
Warm white
Cool white
Extra warm white
Extra warm white plus
Green
Neutral white
Pink
Red
Warm white
LED Type
SMD 2835
Dimmable
Yes
No. of chips/metre
120
Track width (mm)
10
Cutting distance (mm)
50
Use Outdoor
No
Adhesive
3M
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Questions
| P: Question: | Is the intensity fixed or can it be regulated in any way? It would be to mount as ambient light in a room and I would like to be able to adjust it to taste. Thank you. |
|---|
| R: Answer: | In the kit a 24v led strip is installed, you will need a 24vdc alignment source with enough power for the meters installed and if you want to regulate you will need a controller for strips. |
|---|
| P: Question: | If I cut the strip at 2.5 meters then the total power would be 45W? |
|---|
| R: Answer: | The strips are about 18W per meter, 2.5mts would be 45W (50W source or higher). |
|---|
| P: Question: | Can it be used as general lighting of a room, if it projects to the floor? It would be enough for the general lighting of a kitchen 3 meters long by 2 meters wide (placing 3 meters longitudinally in the center). Thank you! |
|---|
| R: Answer: | Kitchens should have better lighting than other places since it is an area of activity. It can be used as general lighting, but there should be support lighting in places of increased activity. "as a cutting area or fires" |
|---|
| P: Question: | Would one or two parallel or crossed strips be enough to illuminate a 30 meter cone? |
|---|
| R: Answer: | For general, ambient or decorative use, depending on the strip model, color temperature, etc., it may be sufficient, although in areas of activity it may need some additional light. |
|---|
| P: Question: | Can it be cut to fit different lengths? |
|---|
| R: Answer: | Yes, it can be cut without problems to put the desired size, it is an aluminum profile. |
|---|
| P: Question: | I would like to know how exactly is the installation of these luminaires. Especially if I have several in the same room and they must be part of the same circuit. |
|---|
| R: Answer: | The linear Skyline is a flexible profile that is anchored at the ends with the mounting kit and an LED strip is installed on the profile(it requires a corresponding power supply depending on the voltage and power of the LED strip ). |
|---|
