Kit SKYline linear lighting COB 320led/m 120W 10m
SKU:SKY10-N-BF
€159.95
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com

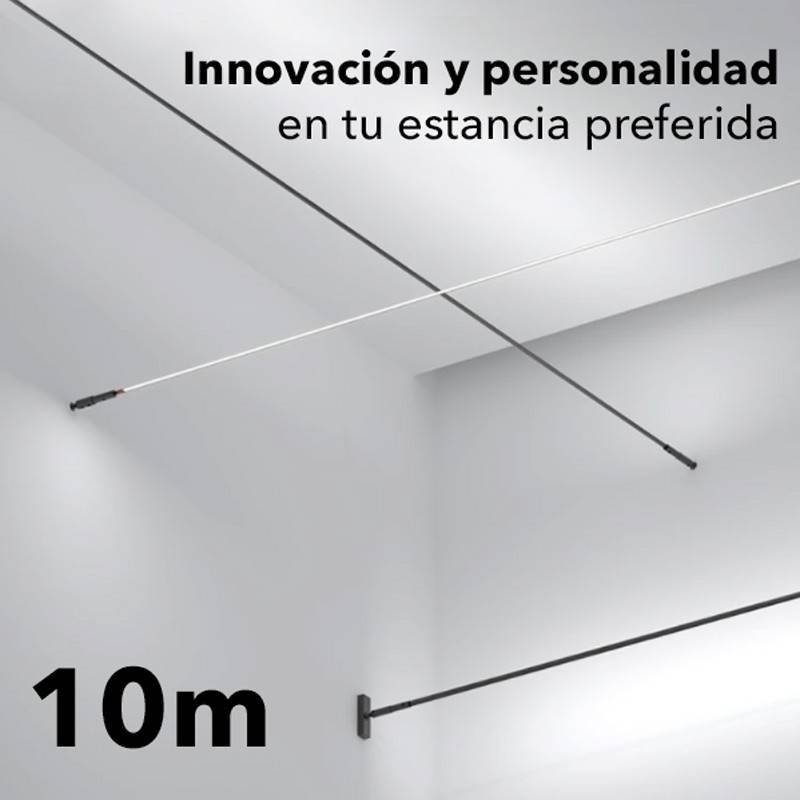

SKYline Linear Lighting | Suspended Lighting Kit
Modern and innovative suspended linear lighting. The new SKYline luminaire offers a professional, clean and minimalist finish perfect for decorating and illuminating exhibitions, stores, hotels and any indoor home or business. The kit includes a 24V COB LED strip and 320 LED chips meter, with a total length of 10 meters long and a width of 10mm. Linear LED bar with multiple lighting possibilities: direct, indirect, wall washer....
✔ Voltage: 24V.
Power: 120W.
✔ Efficiency: 123lm/W.
✔ Length: 10m.
✔ Power supply not included.
✔ IP20.
Product features.
✔ CRI>90.
✔ Color: Black.
✔ Adjustable 45º.
✔ Direct light, indirect light, wall washer.

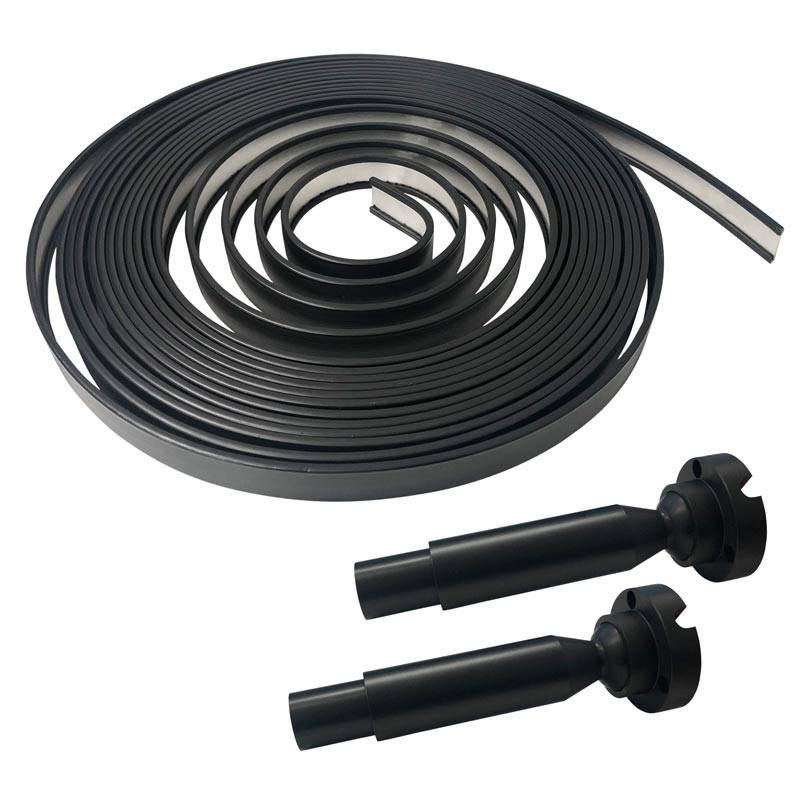

Complete kit for suspended linear lighting.
SKYline is the new method of suspended linear lighting that includes accessories and COB LED strip 10 meters long for a complete installation with top quality finishes. Perfect decorative lighting for any indoor environment. Provides general illumination by choosing between different light shades: warm, neutral or cold.

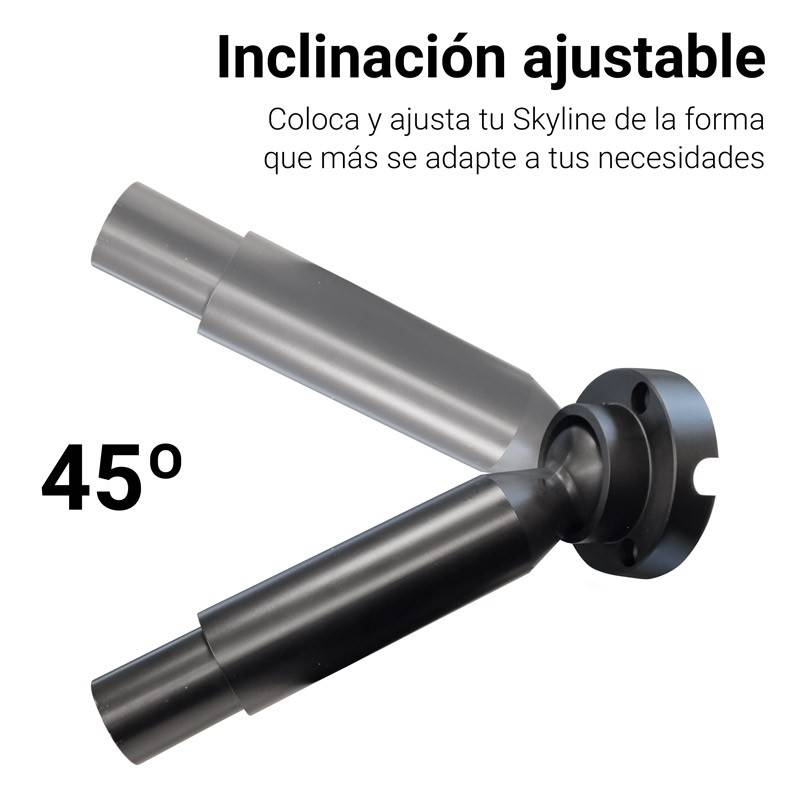

Exclusive for interior, with IP20 protection degree. The SKYline system offers linear lighting that can be indirect, direct or as a wallwasher. Adjustable in an angle of inclination up to 45 degrees.
The materials are of high quality. Flexible band of 10 meters made of steel alloy and zinc. With a long service life. Perfect LED decorative lighting which is used as suspended LED linear bar.

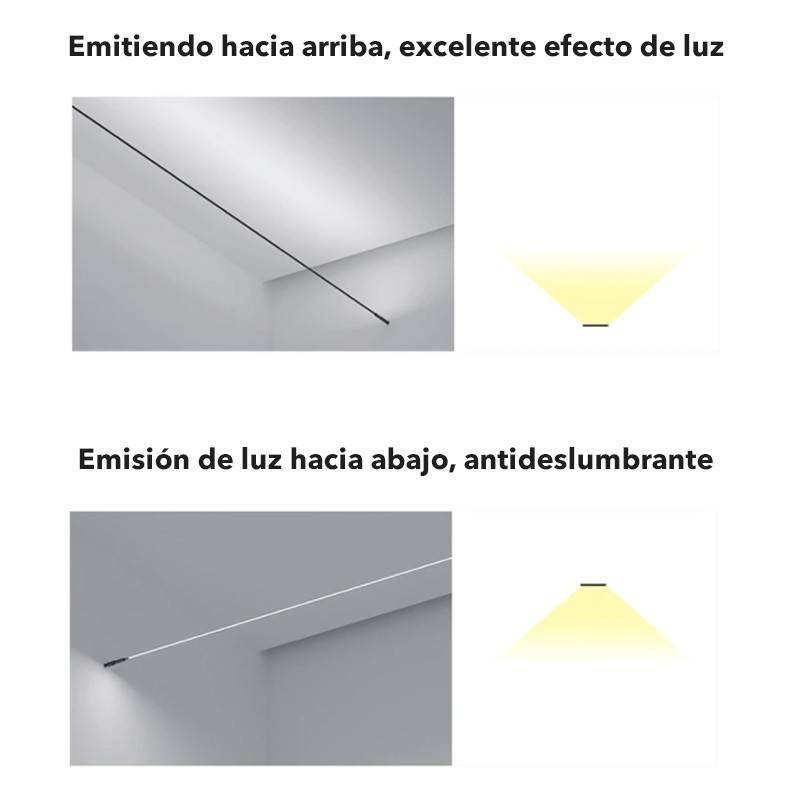

It emits upward and downward illumination. Downward if you want to provide direct lighting, and upward if you want decorative indirect lighting. It creates a unique space in any place inside the home or business. Especially recommended for hotels, stores, corridors, and any space where you want to offer a modern, minimalist and innovative look.

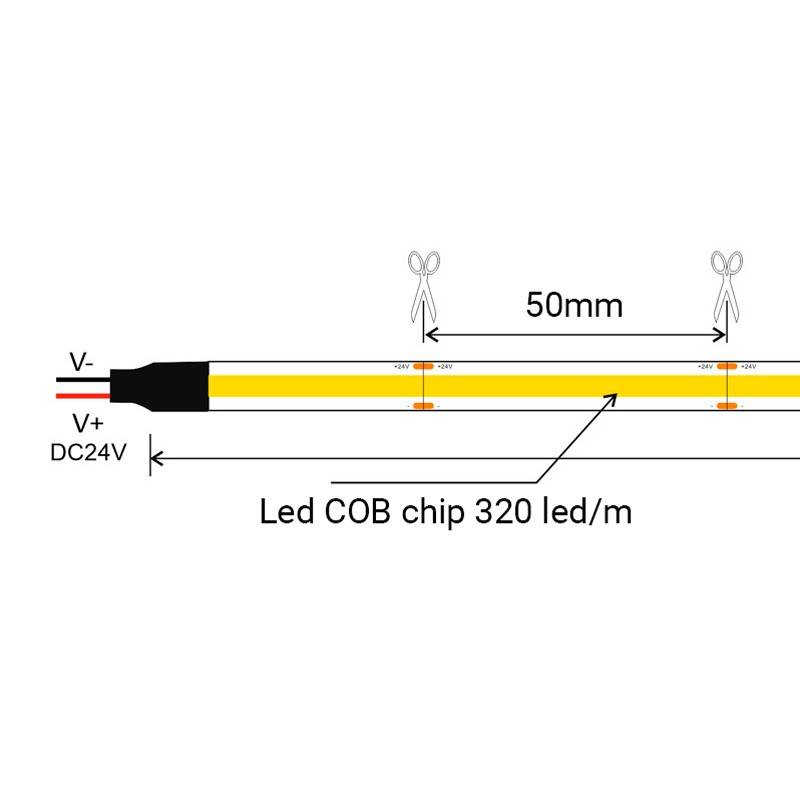

The SKYline Kit includes a 24V dimmable COB LED strip. With a length of 10m and a power of 12W/m. The width of the track is 10mm and the cutting distance is marked with a copper mark, approximately every 50mm. 320 LED chips/m and a high luminous efficacy of 123lm/W. 120 degree opening angle. Optimal color rendering CRI>90. Kit does not include 24V power supply.

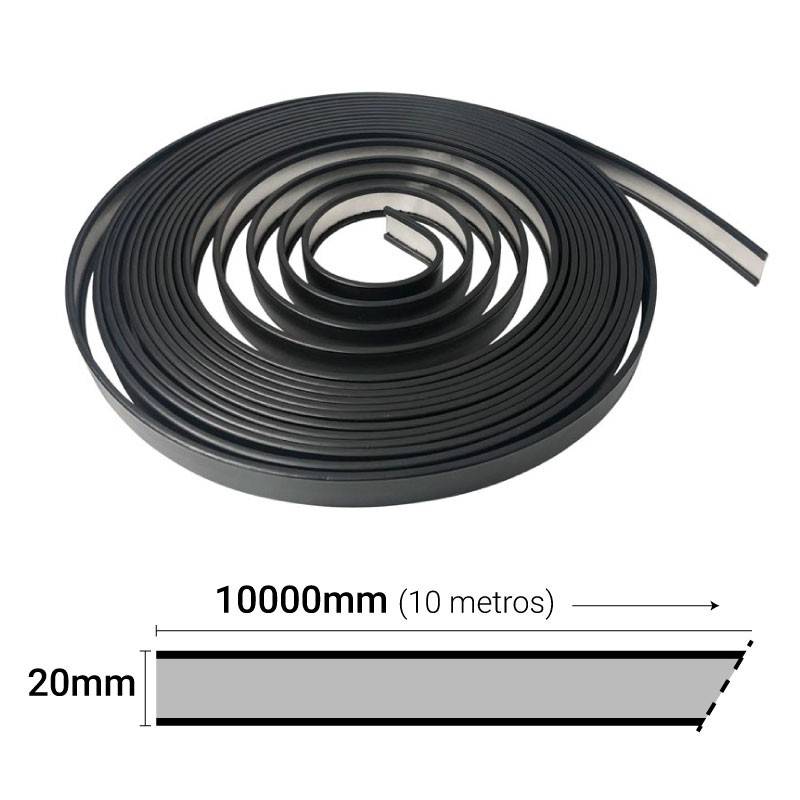

Lighting for large spaces with a minimalist and professional design. With all accessories included for quick and easy installation, except 24V power supply. Flexible band, made of zinc and steel alloy, 10 meters long and 20mm wide.

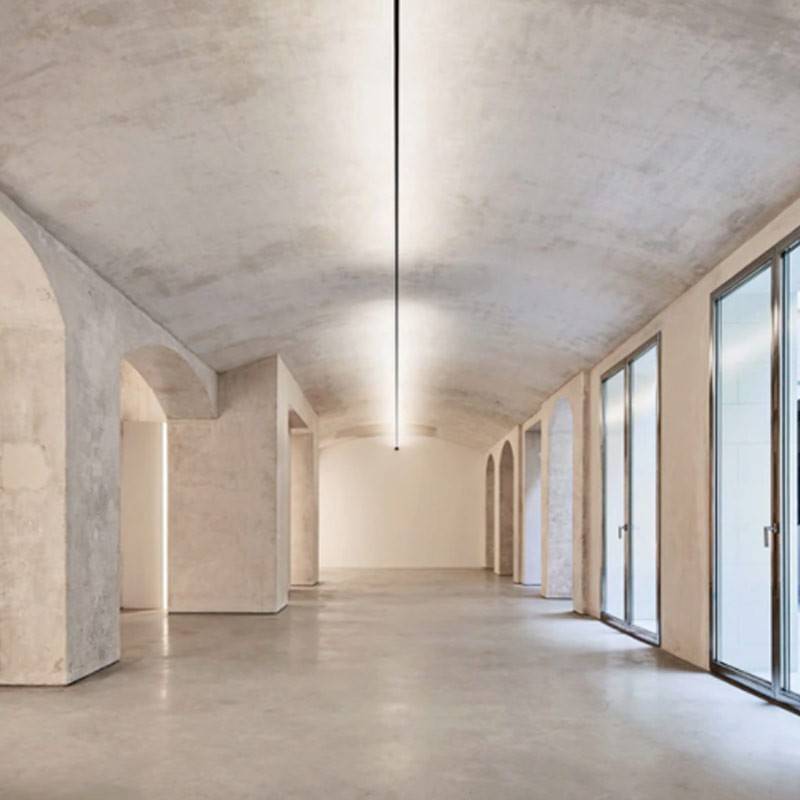

SKYline linear suspension lighting applications
With an innovative and unique design the SKYline kit will be the ideal luminaire to decorate and illuminate large spaces directly or indirectly, with a differential and unique touch that will cause a sensation in any room inside the home or business. Widely used in corridors, hotels, exhibition areas and hotels.
- ✔ Exhibition areas: museums, art galleries, etc.
- ✔ Lights of hotels, stores, restaurants, etc.
- ✔ Lighting of large spaces.
- ✔ Indirect or direct lighting in offices.

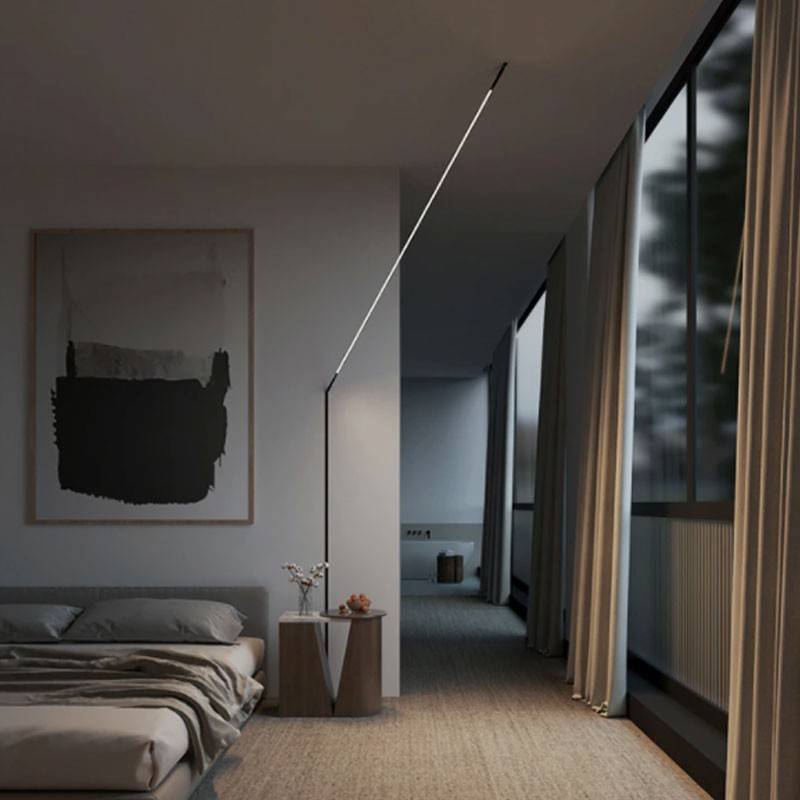

- ✔ Interior decoration: corridors, living rooms, bedrooms, etc.
- ✔ Architectural projects.
- ✔ Modern style.
Technical characteristics.
✔ Voltage: 24V.
✔ Power: 120W.
✔ O pening angle: 120º.
✔ Band dimensions: 1000x20mm.
✔ Material: Alloy steel + Zinc.
✔ Degree of protection: IP20.
✔ Adjustable 45º.
COB 320led/m LED chip.
✔ 2700ºK; 4000ºK; 6000ºK.
✔ Dimmable.
✔ Power supply not included.
Nominal Voltage (V)
24V-DC
Kelvin (K)
2700
3000
4000
6000
3000
4000
6000
IP
IP20
Dimensions (mm) Lxlxh
1000x20
Frequency (Hz)
50 - 60
Hue
Cool white
Extra warm white
Neutral white
Warm white
Extra warm white
Neutral white
Warm white
LED Type
COB
Dimmable
Yes
Track width (mm)
10
Cutting distance (mm)
50
Material
Acero
Use Outdoor
No
Temperature range
-20°C ~ +40°C
Adhesive
3M
Frequency of use
Intensive
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Questions
| P: Question: | Good afternoon: Does the LED strip has some kind of diffuser? In all the documentation and assembly tutorial the LED strip is perceived directly and I wanted to know if it has a diffuser or can be added so that the light is homogeneous and the points of the LEDs are not perceived. On the other hand, is it possible to install it creating a corner? Either with its own fastening or as an alternative to the two anchor points of the kit. Thank you, best regards, |
|---|
| R: Answer: | Hello, with this strip, the LED dots are practically not perceived, therefore a diffuser would not be necessary. Thank you very much!
Barcelona LED: Sergi| 02/10/2024 |
|---|
| P: Question: |
I am interested in purchasing the SKYline linear lighting kit, but needing to install a 220V led strip, I am asking if it would be possible to have only the two supports and the black metal band so that I can independently glue the led strip to it. Thank you |
|---|
| R: Answer: | Hi. The kit comes complete with led strip included, unfortunately we don't have only the stand. Barcelona LED: Santiago| 16/12/2022 |
|---|
| P: Question: | Is the transformer, which seems to be necessary, not included in the kit? |
|---|

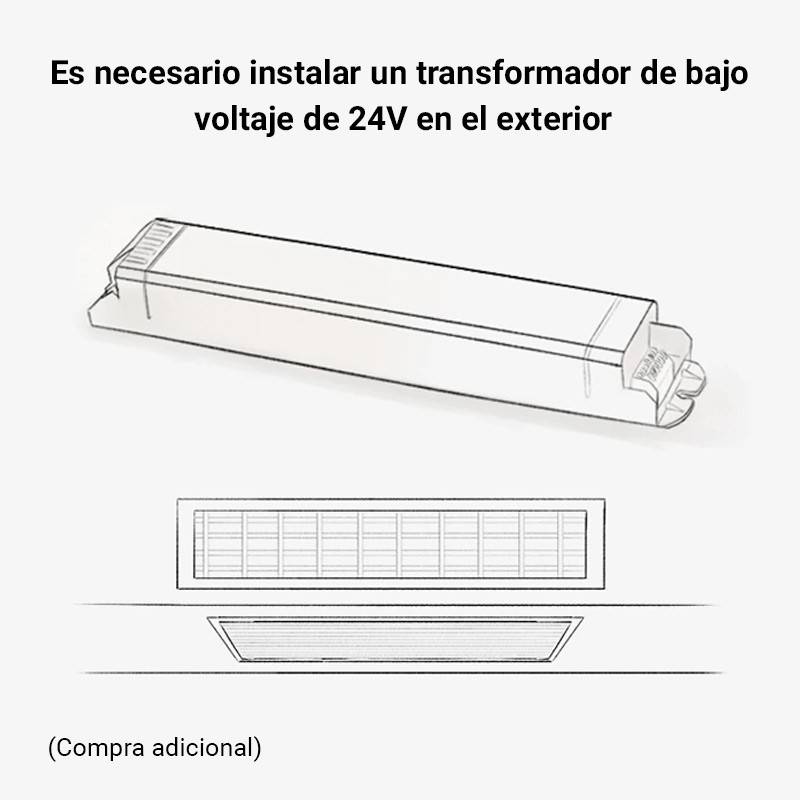

| R: Answer: | The power supply is not included, you must choose a 24v power supply of the power according to the meters of strip to install. In the case of the kit a 120W 24vdc power supply. |
|---|
| P: Question: | How can I buy the transformer? And how is the part connected to the wall with respect to the wiring? Thanks |
|---|

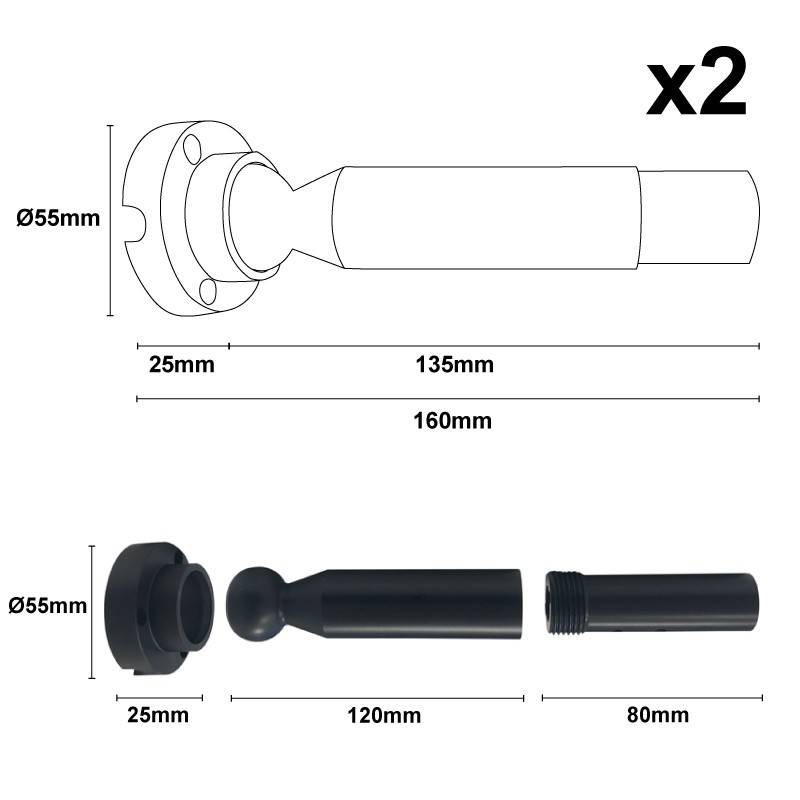

| R: Answer: | The power supply must be of the voltage of the strip to be installed and of the power for the meters of strip. In the case of the kit a 24vdc 120W power supply. The wall mounting kit has a slot to pass the cable inside since the starting tube is hollow. |
|---|
| P: Question: |
Is it possible to cut and make two separate light strips of approximately 5m each? What would you need to buy and how much would it cost? Thank you! |
|---|
| R: Answer: | It is an aluminum plate that can be cut to the size you need. But to make another lighting fixture you need another mounting kit, as it is not sold separately. You may be interested in the model of 5 mts Ref. SKY5-N-BN |
|---|
| P: Question: | IS IT POSSIBLE TO MAKE A COMPOSITION OF SEVERAL SECTIONS CONNECTED IN DIFFERENT ORIENTATIONS AND POSITIONS? |
|---|
| R: Answer: | The profiles can be oriented and placed in different positions up to 10mts. |
|---|
| P: Question: |
CAN IT BE CUT? OR SHOULD THE 5 METER KIT OR THE WHOLE 10 METER KIT BE ASSEMBLED? THANK YOU |
|---|
| R: Answer: | It is an aluminum plate that can be cut to the size you need. |
|---|
