High power CCT LED linear luminaire - 60W - 150cm

High power CCT LED linear luminaire - 60W - 150cm

SKU:B8596-CCT-150
Has superado el límite de unidades
In stock 30 units
Data sheet

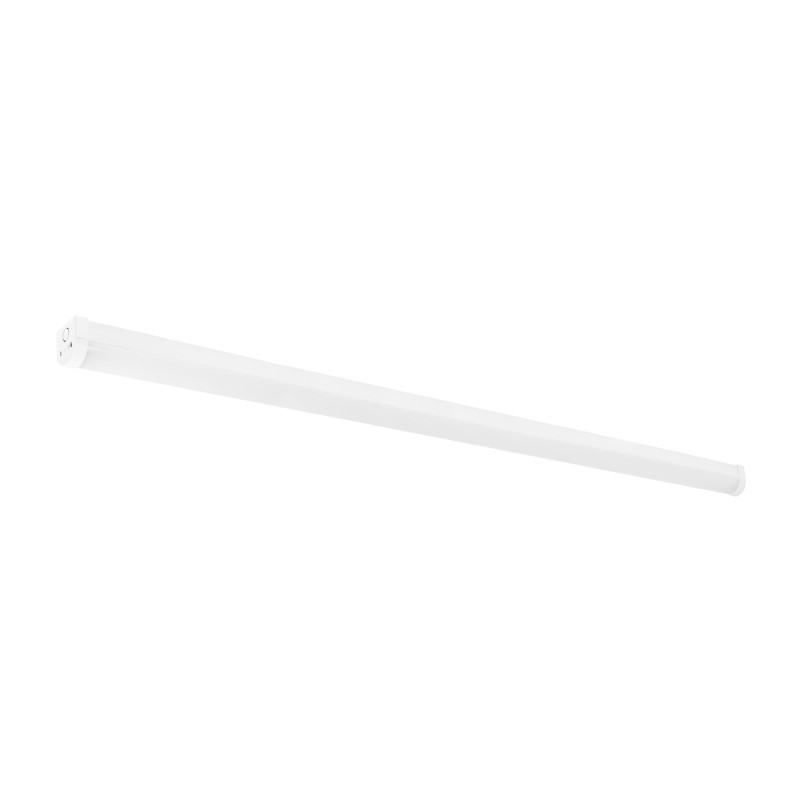

150 cm LED linear luminaire with a power of 60W, particularly useful for replacing traditional fluorescent tubes, as it combines quality with significant energy savings.

It offers high-quality lighting, without flicker, with a luminous efficacy of 115lm/W and a CRI>80.

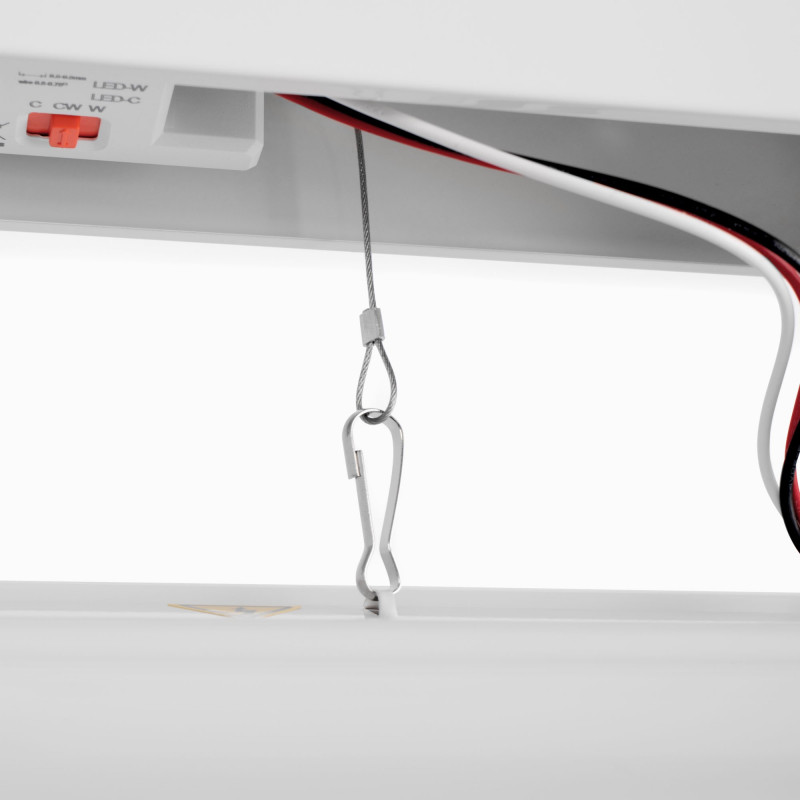

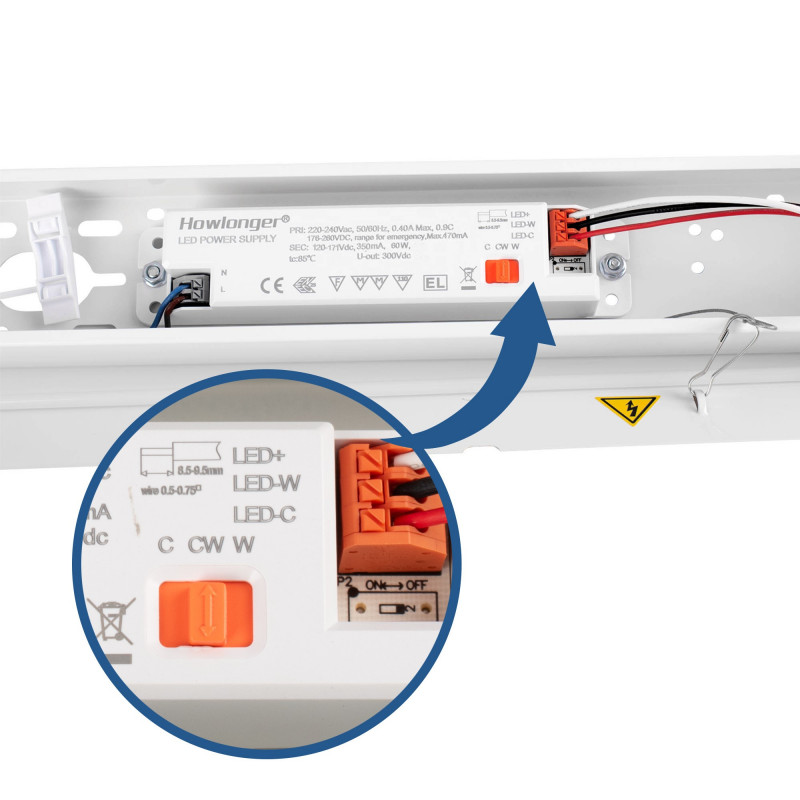

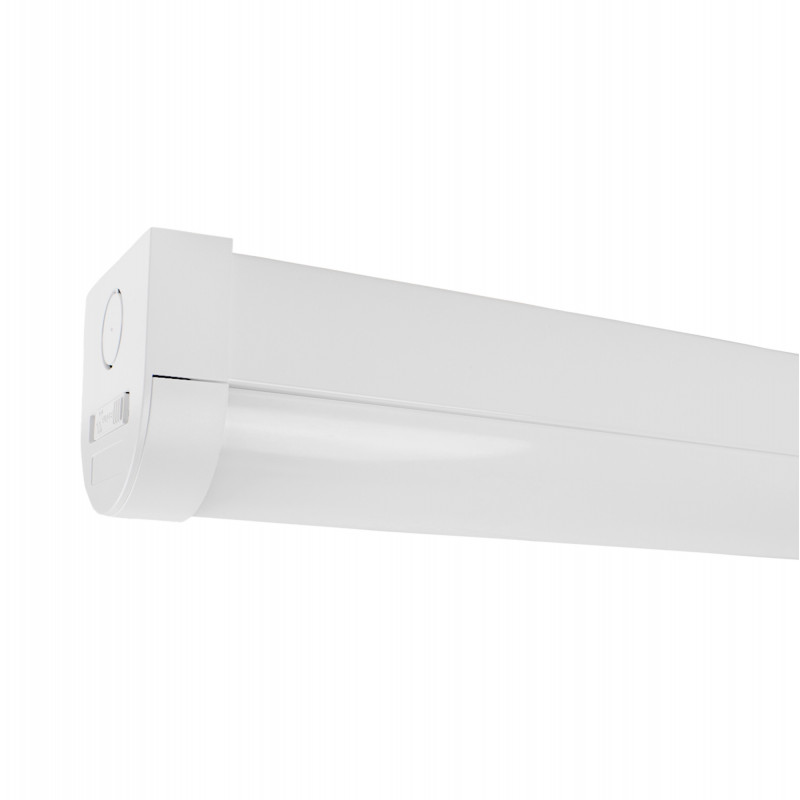

It incorporates a CCT selector, which allows to modify the color temperature between three different shades: warm white (3000K), neutral white (4000K) and cool white (6000K).

**Includes screws and set of metal fixing clips**

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

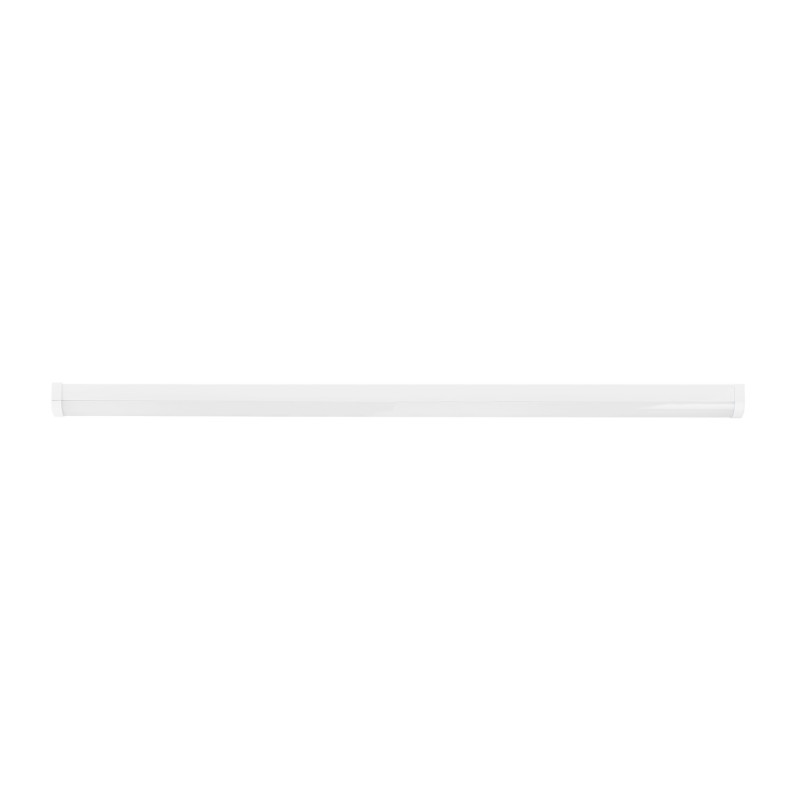

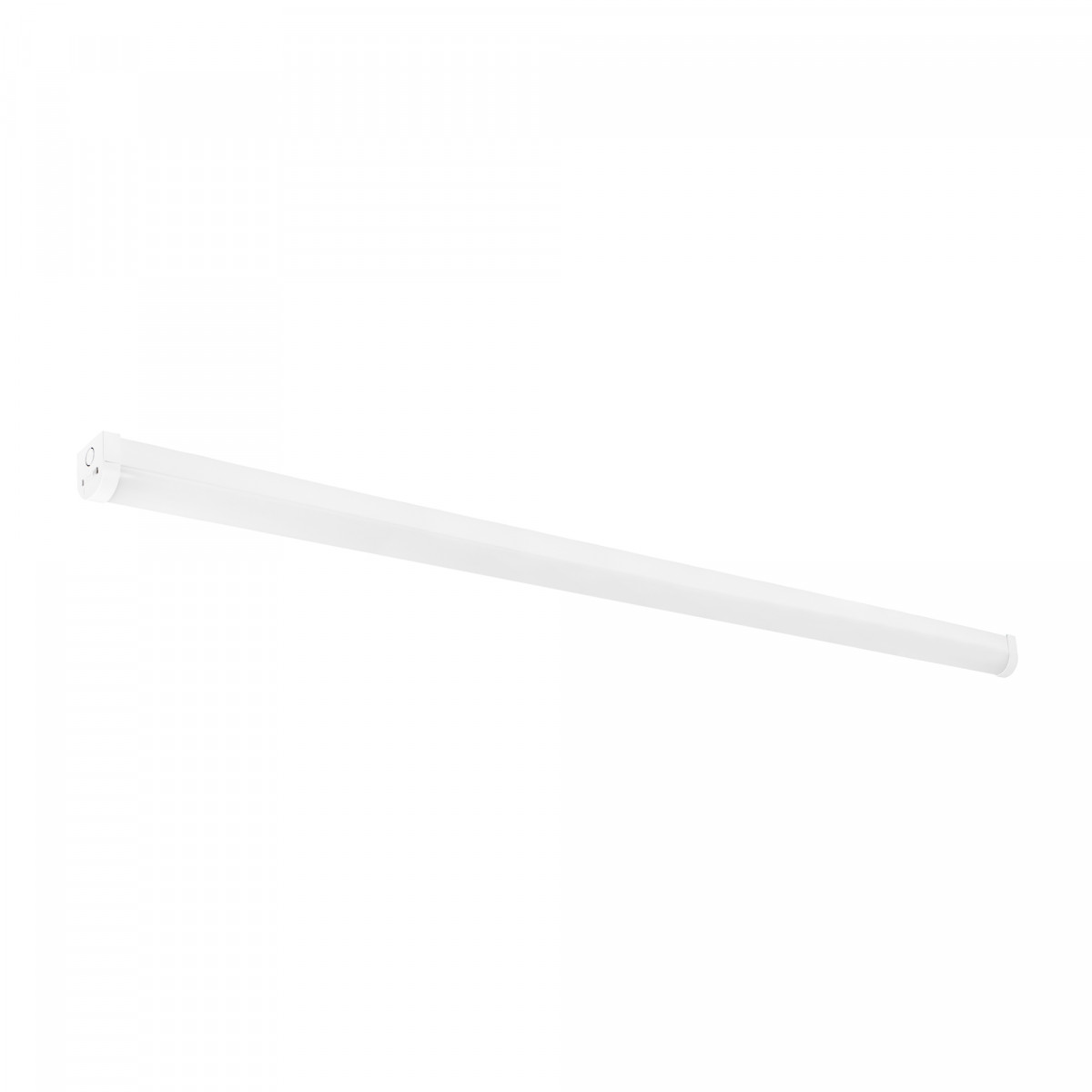

150 cm Linear LED CCT Luminaire: Design and Versatility

This linear luminaire has a modern design and excellent performance, being an ideal option to replace obsolete fluorescent luminaires.

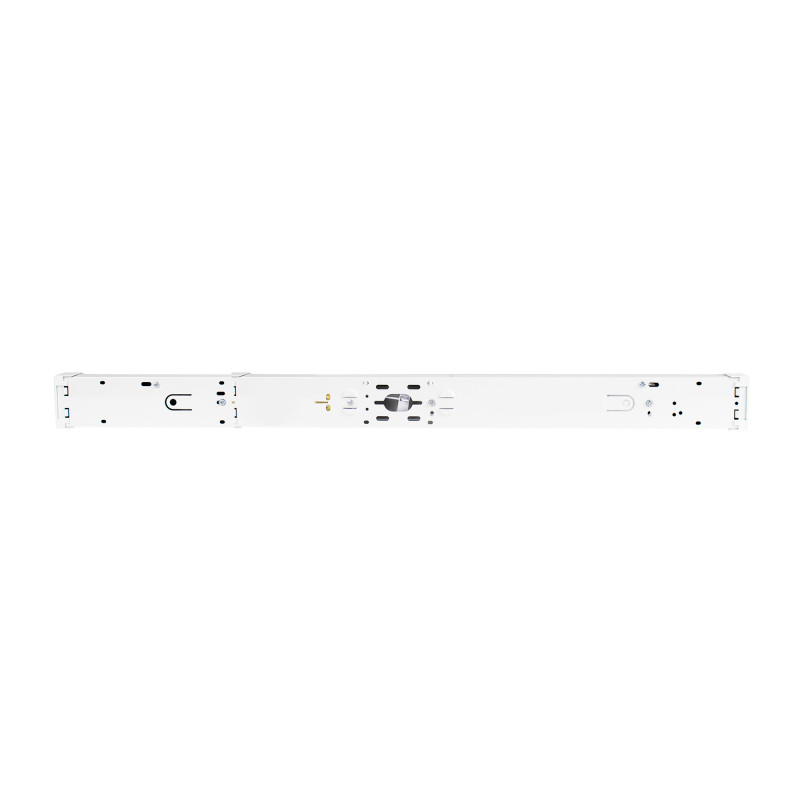

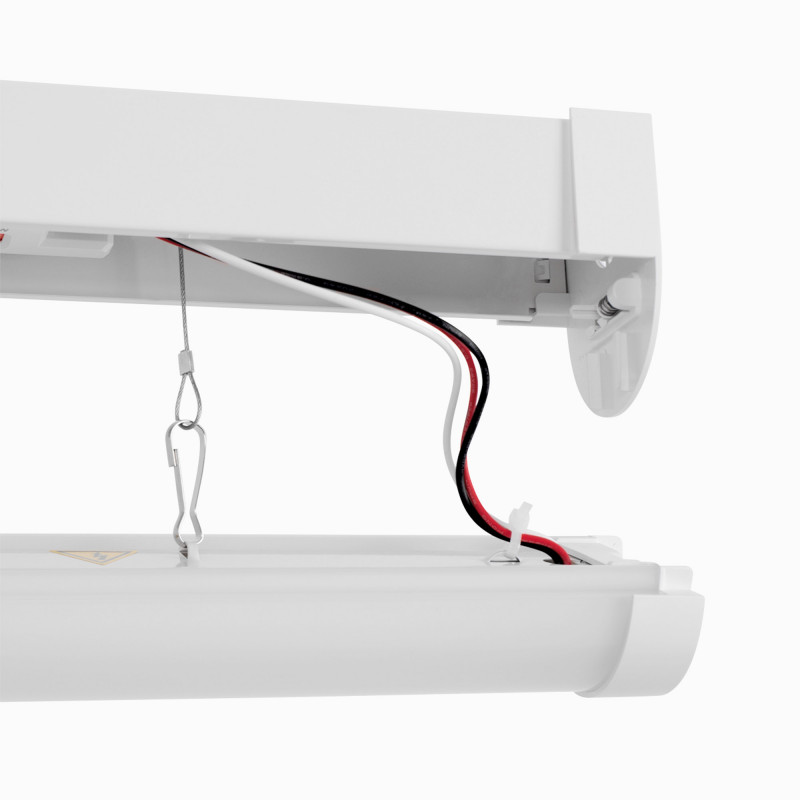

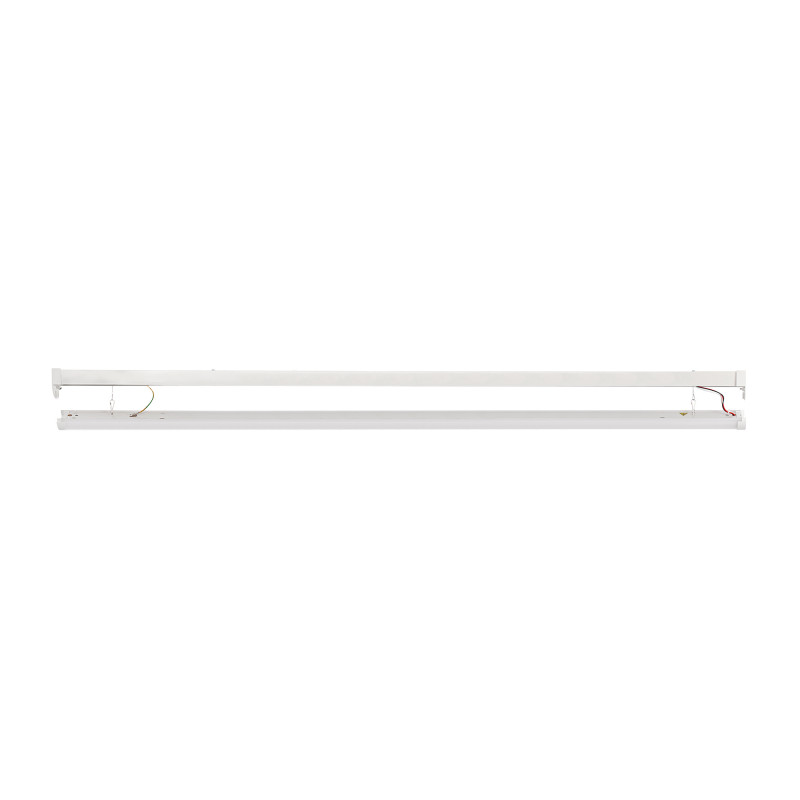

It can be easily installed both on ceiling and wall, and since the electrical connection is performed inside the luminaire using connectors, there's no need for an additional junction box.

Optimal and customized lighting

Provides homogeneous, glare-free lighting with a beam angle of 120°.

It incorporates SMD 2835 LED chips of 60W, with a luminosity of 7600 lumens and a high color rendering index (CRI>80), ensuring a display of colors with great fidelity, similar to natural light.

Its CCT system allows to regulate the color temperature in three shades (3000K, 4000K, 6000K), and its driver with EMC filter ensures flicker and interference free lighting.

Efficiency and durability

Due to its efficiency and durability, this luminaire is ideal for installation in areas that require many hours of lighting such as parking lots, supermarkets, shopping malls, offices, schools, etc.

Product features:

  • Voltage: 220-240V AC
  • Power: 60W
  • Lumens: 7600 lm
  • Indoor use: IP20
  • CCT system: warm white, neutral white and cool white
  • Easy installation
  • CRI>80
  • Includes screws and fixing clips

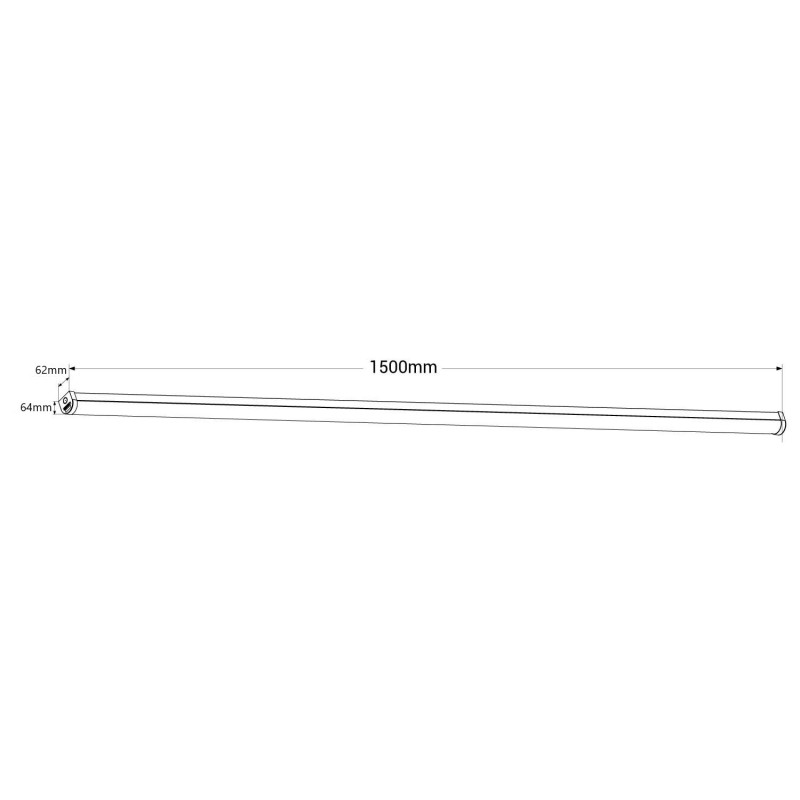

  • Dimensions: 1500 x 64 x 62 mm

Advantages of LED linear luminaires over fluorescent lighting:

- Environmentally friendly, as they do not emit UV or IR radiation. They don't incorporate mercury or hazardous materials.

- Maximum energy savings by incorporating LED technology.

- They produce no heat.

- Constant light, no flickering or degradation over time.

- Unlike conventional fluorescent tubes, their service life is not shortened by frequent switching on and off.

- Instant on: there is no delay from the moment they are switched on until they deliver full light output.

- Easy installation: no transformers required, ready to connect to the mains (220-240V).

- Versatility: they allow various uses and the possibility of connecting them in series without any additional accessories.

Nominal Voltage (V)
220 - 240 V/AC
Power (W)
60
Lumens (Lm)
7600
Kelvin (K)
3000
4000
6500
Beam angle (º)
120
Lifetime (h)
25000
IP
IP20
Dimensions (mm) Lxlxh
1500x 64 x 62
Frequency (Hz)
50 - 60
Hue
CCT
Efficiency (Lm/w)
100
CRI
80-85
UGR
No
LED Type
SMD 2835
Dimmable
No
Power factor (cosφ)
0.9
Material
Metal
Diffuser material
Polycarbonate
Use Outdoor
No
Temperature range
-20°C ~ +40°C
Frequency of use
Normal
Energy efficiency class
F
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
