Flexible monochrome LED Wall washer 24V DC - 5 meters - 2700K - IP67

SKU:B1939-270
Has superado el límite de unidades
In stock 29 units
Data sheet

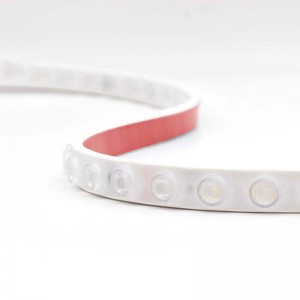

The flexible single-color watertight wall washer is an ideal solution for architectural lighting in commercial and residential environments.

Its flexible design allows installation at curved angles, providing asymmetrical lighting with a beam angle of 15 x 45°.

With a high color rendering index (CRI≥80), it ensures accurate color rendering.

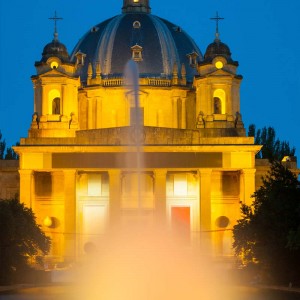

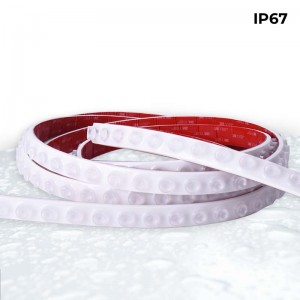

Thanks to its IP67 protection rating, it's suitable for various outdoor lighting projects, such as facade decoration, arches, letter backlighting and advertising signs.

Although it allows for custom cuts, complete waterproofing is not guaranteed.

Shade: warm white (2700K).

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

The single-color wall washer stands out for its flexibility, adapting to curved angles to highlight textures and provide depth in the illuminated area.

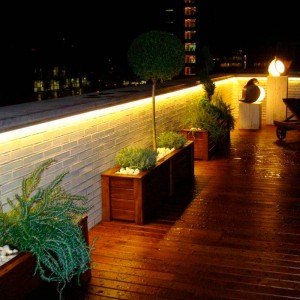

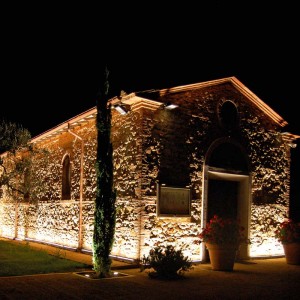

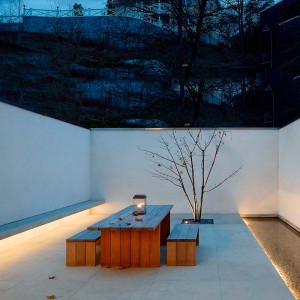

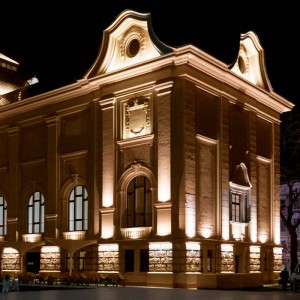

It's ideal for highlighting architectural elements such as walls, pillars and facades and other architectural features of buildings.

Equipped with 42 LED/m SMD2835 LED chips, it offers bright and high-efficacy lighting (124lm/W).

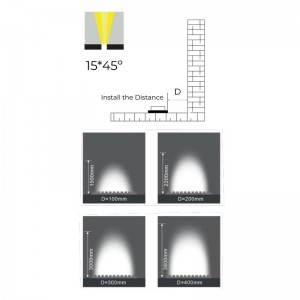

It features asymmetrical optics, especially useful for facade lighting, with a beam angle of 15 x 45°.

When installing the flexible floodlight in curved angles, a turning radius greater than 50mm should be considered.

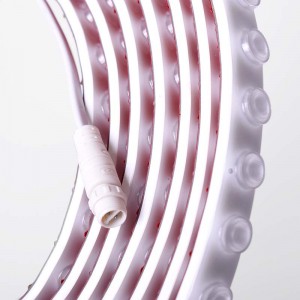

Includes a starter cable for MONOCHROME connection.

Features:

✔ Encapsulating glue, strong adhesion, good durability and high reliability.
✔ Resistant to high temperature, corrosion, weak acids and alkalis.
✔ Characterized by high flexibility.
✔ Light weight, flexible and easy to install.
✔ Can be bent, flexed and contoured around curved surfaces.
✔ It can be cut to size, although waterproofing is not guaranteed.
✔ 42 LED/m
✔ CRI≥80

Installation methods:

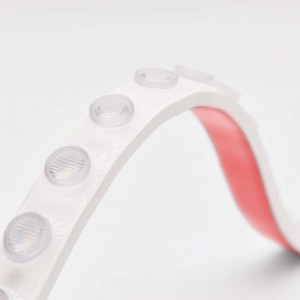

The single-color flexible wall washer comes with 3M tape for direct installation on smooth surfaces with good heat dissipation. In different cases, additional accessories can be used to achieve the desired installation:

Installation with Silicone Staples: fix it in the desired position and screw on the silicone staples to immobilize it.

Installation with an aluminum profile: Fasten metal fixing clips to the desired surface, clean the surface of the aluminum profile and attach the wall washer with 3M tape. Fix the aluminum profile to the metal clips.

Installation with tilting aluminum profile: Fix tilting clips on the desired surface, clean the surface of the aluminum profile and adhere the wall washer with 3M tape. Fix the aluminum profile on the clips that will allow it to tilt and direct the light beam.

Product features:

  • Rated voltage: 24V DC
  • Outdoor use: IP67
  • Efficacy: 124 lm/W
  • Beam angle: 15 x 45°
  • CRI>80
  • Shade: warm white (2700K)

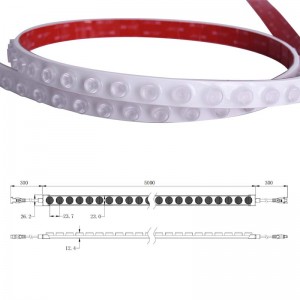

  • Dimensions: 22,7 x 5000 mm
  • Cut distance: 165mm
Power/m (W/m)
20W/m
Kelvin (K)
2700
Beam angle (º)
15*45º
IP
IP67
Dimensions (mm) Lxlxh
22,7 x 5000
Efficiency (Lm/w)
124
CRI
80-85
No. of chips/metre
42
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
