SKU:B1939-RGB
Has superado el límite de unidades
In stock 79 units
Data sheet

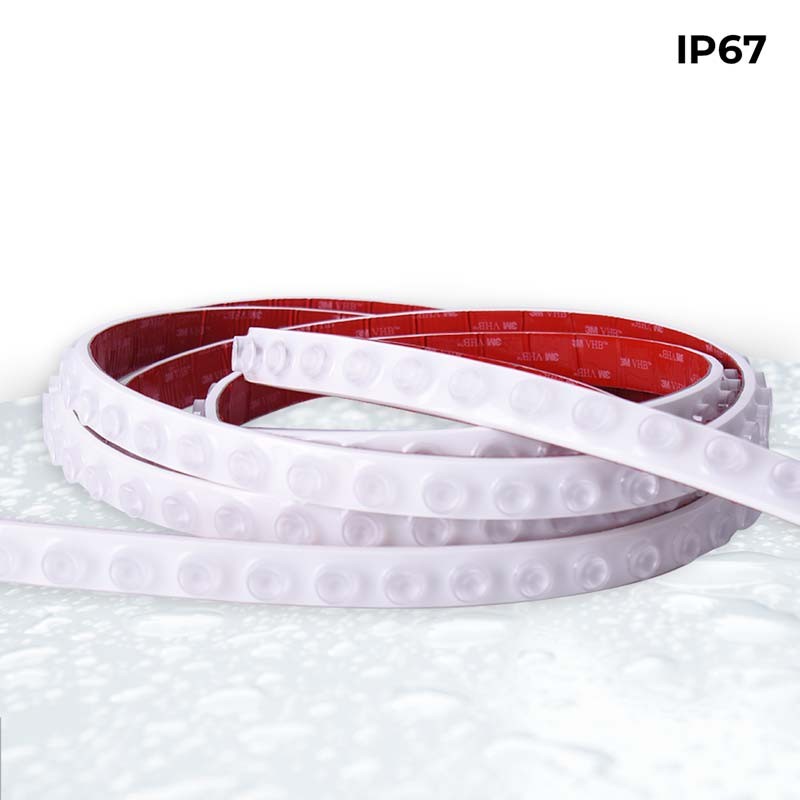

The RGB watertight flexible wall washer is a versatile solution for architectural lighting in commercial and residential environments.

Its flexible design allows installation in curved angles, providing asymmetrical lighting with a beam angle of 15 x 45°.

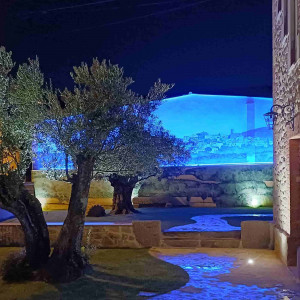

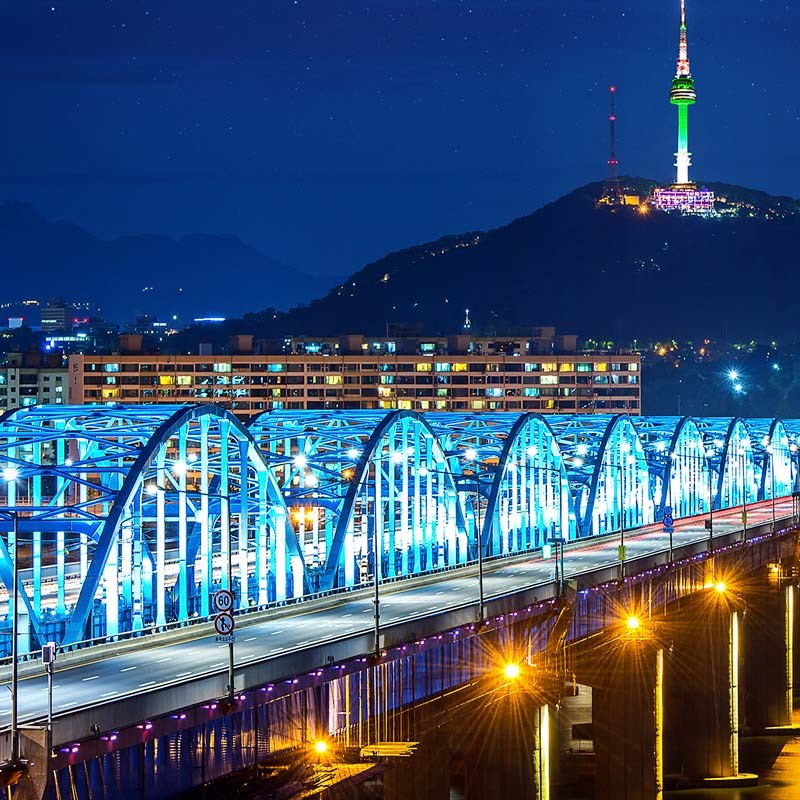

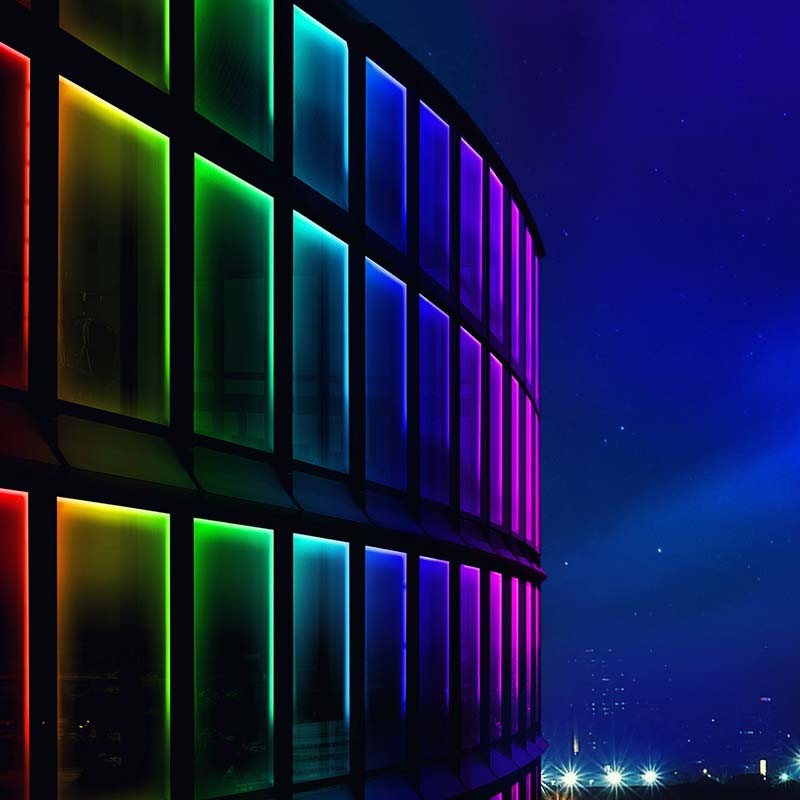

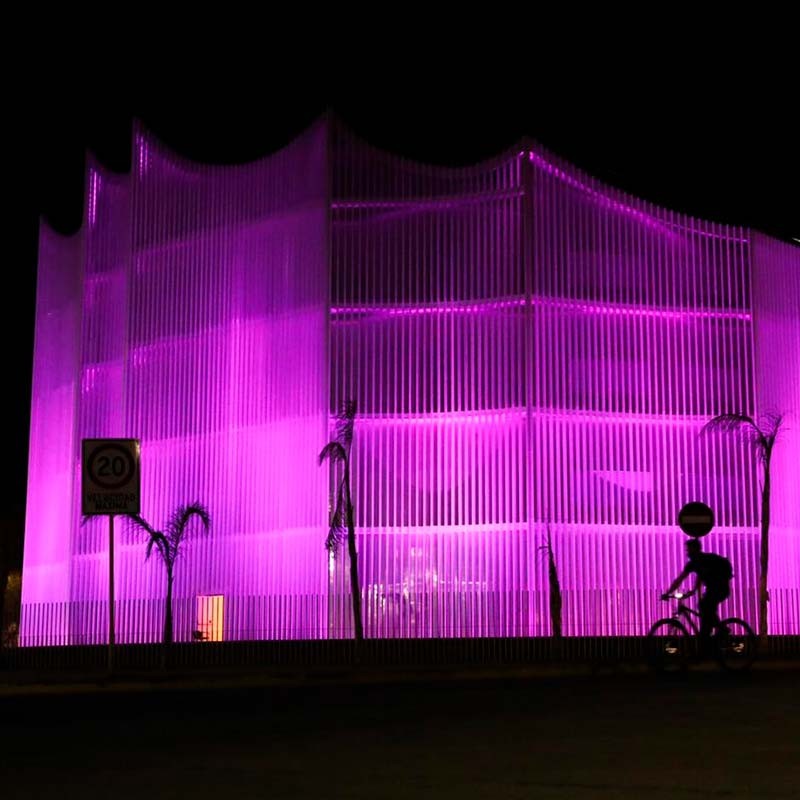

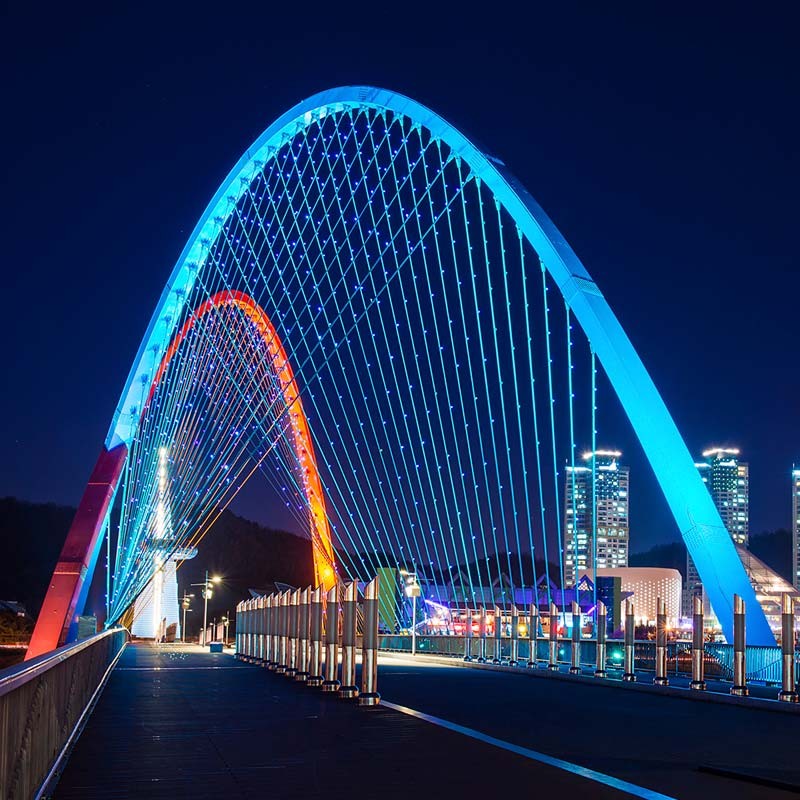

Thanks to its IP67 protection rating, it's suitable for a variety of outdoor lighting projects, such as facade decoration, arches, letter backlighting and advertising signs.

Although it can be cut to size, it's not guaranteed to be completely waterproof.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

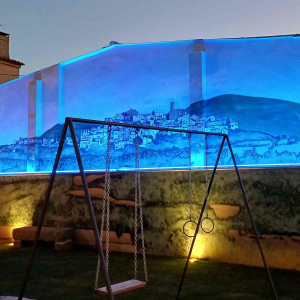

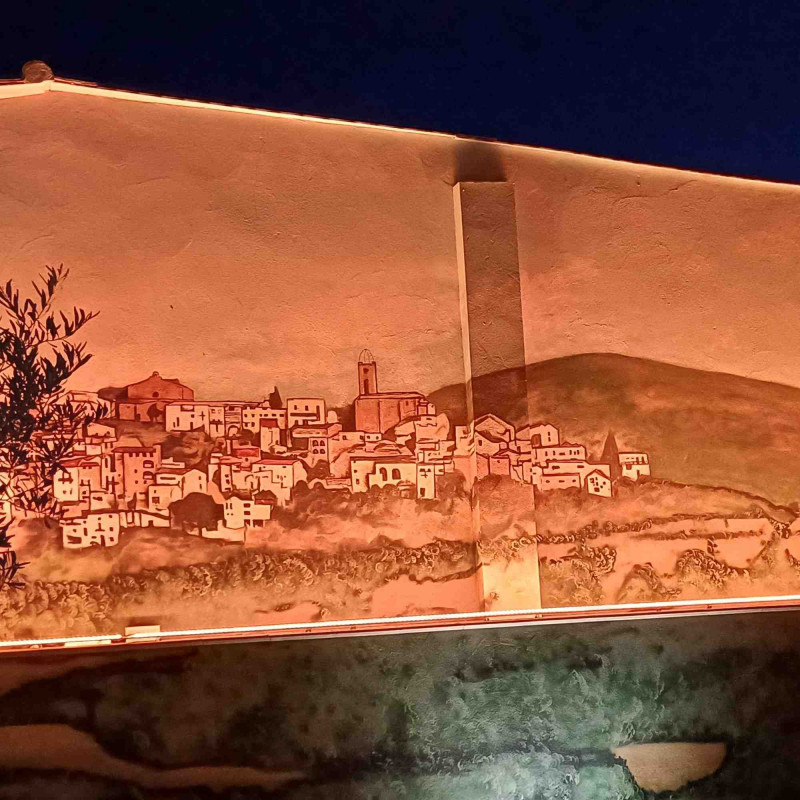

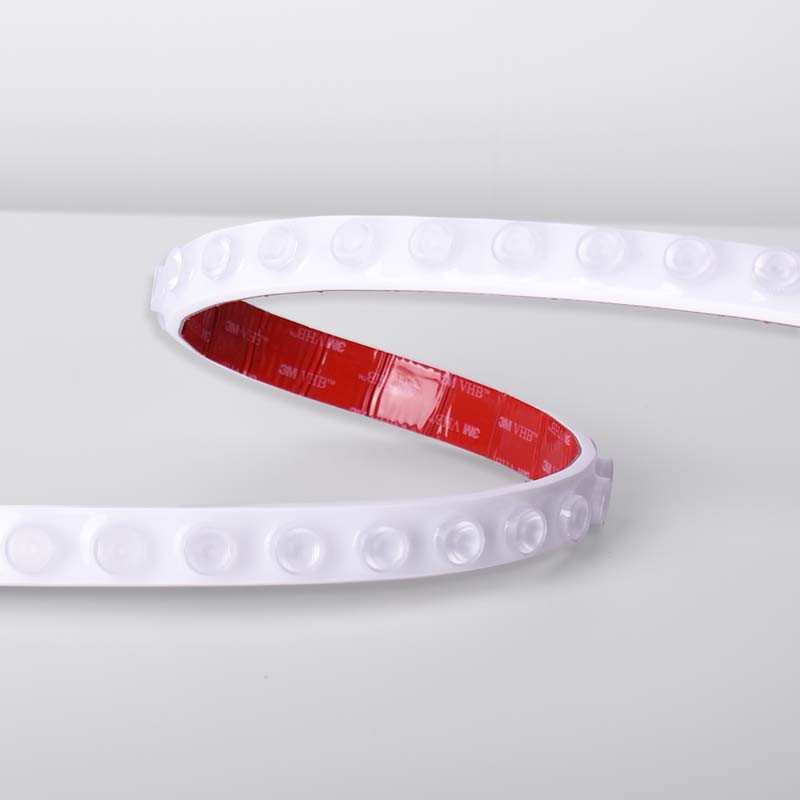

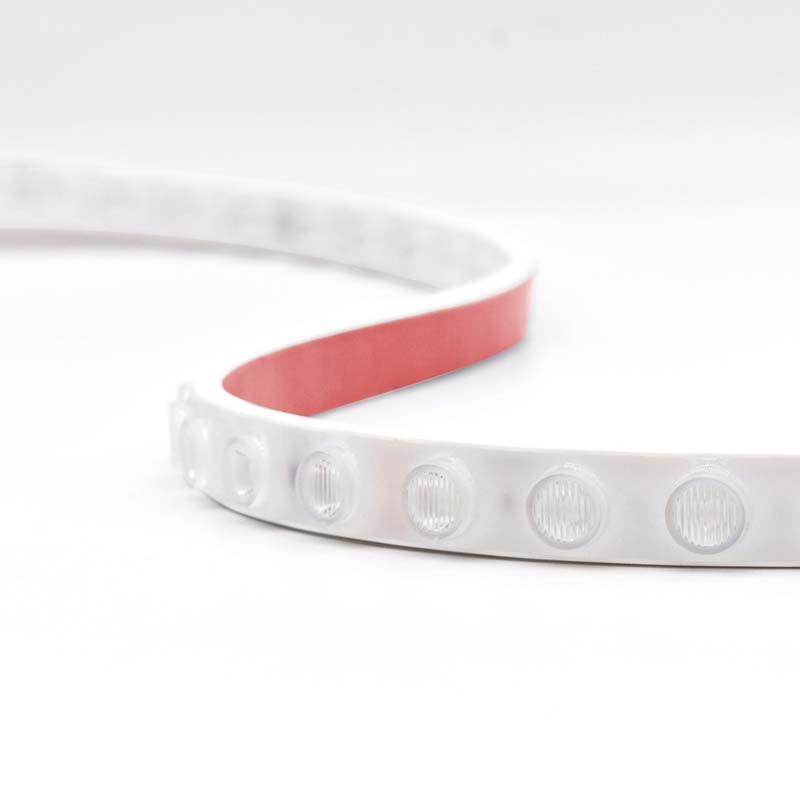

The RGB wallwasher stands out for its flexibility, adapting to curved angles to highlight textures and provide depth in the illuminated area.

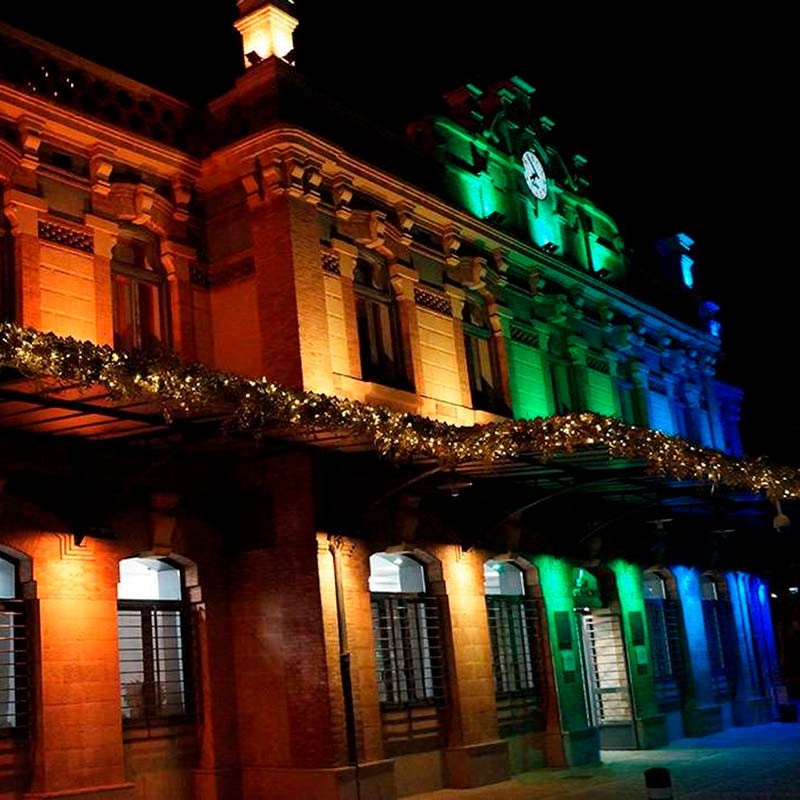

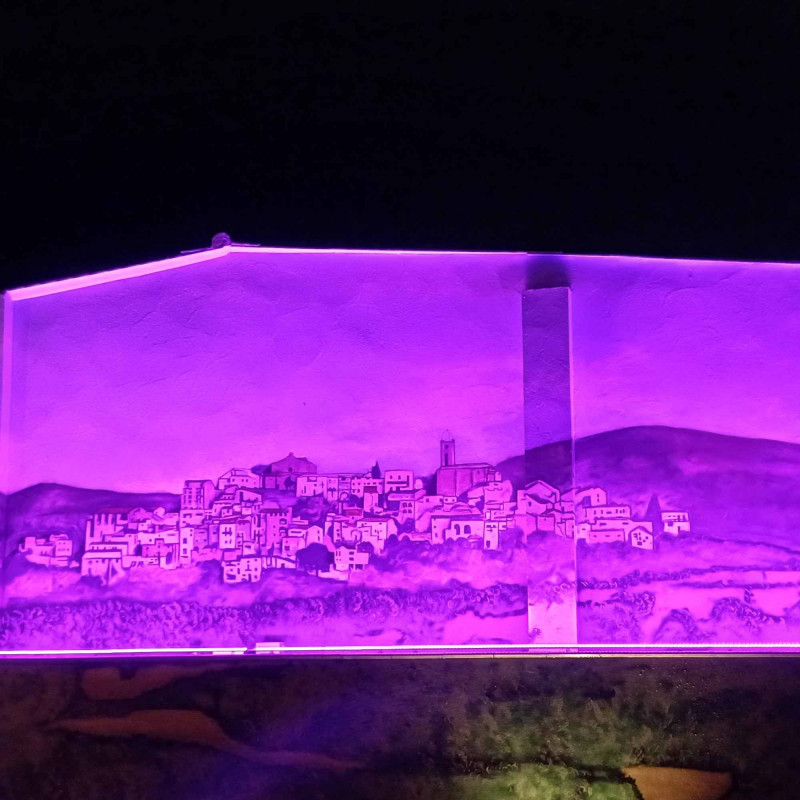

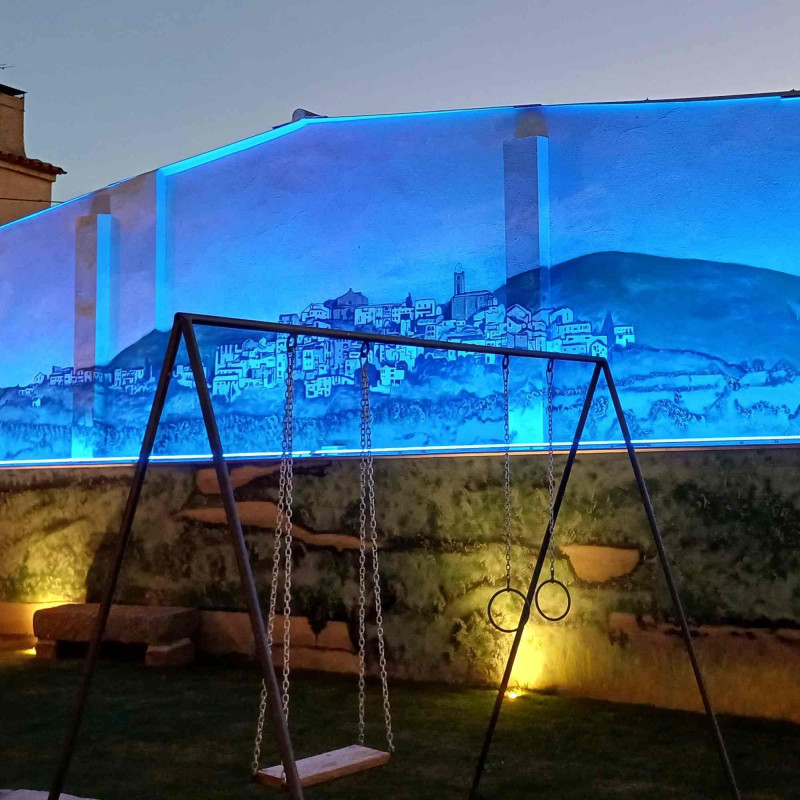

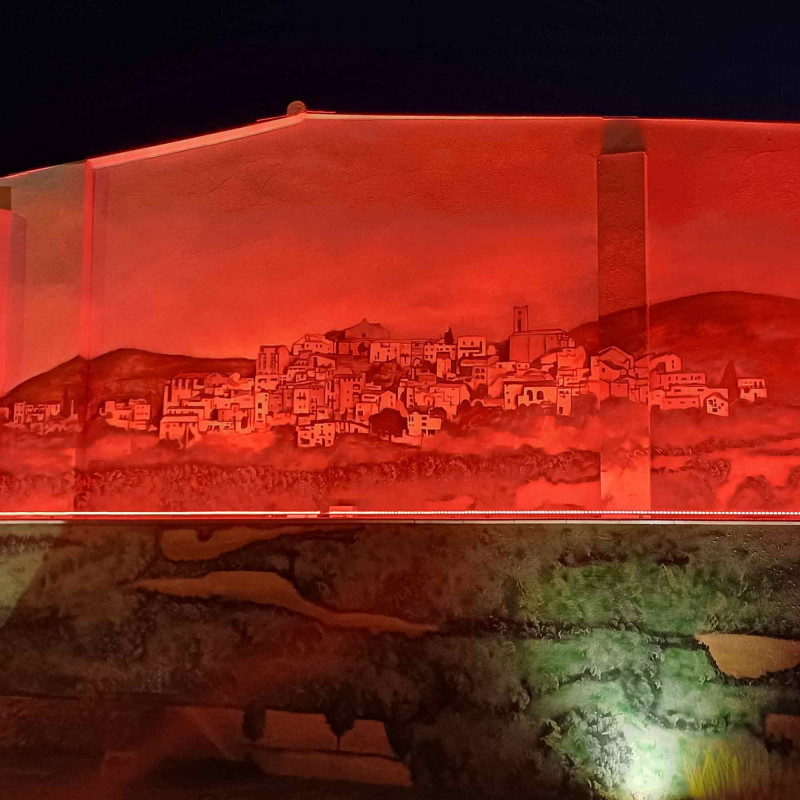

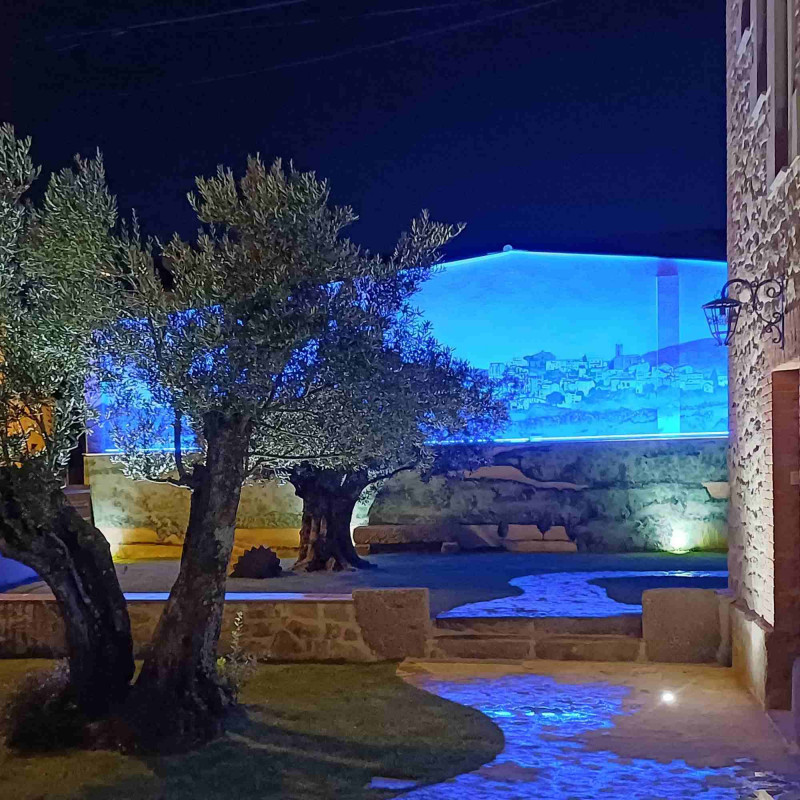

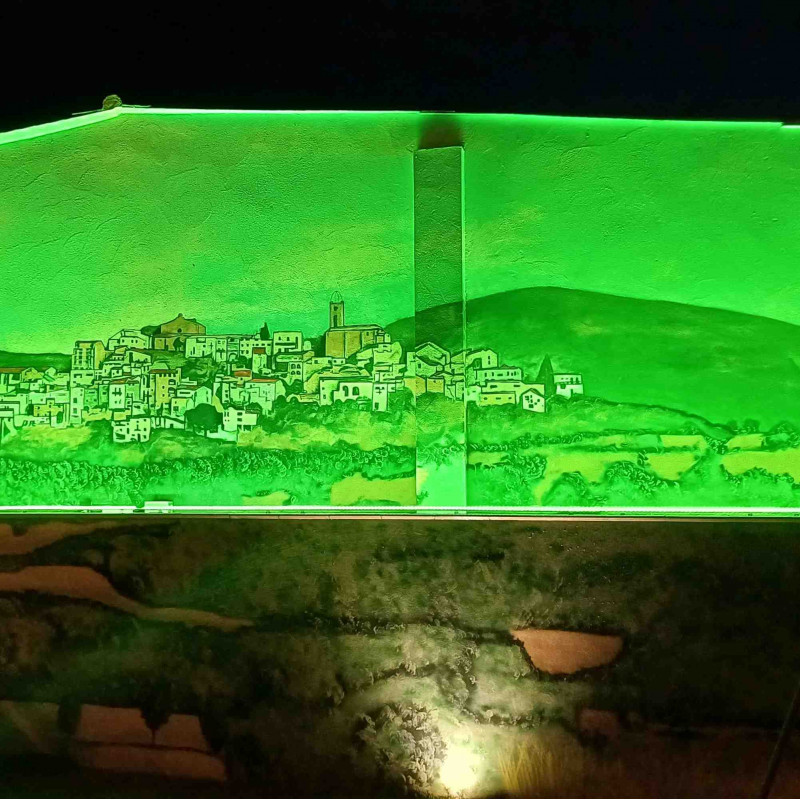

It's ideal for highlighting architectural elements such as walls, pillars and facades and other architectural features of buildings.

Equipped with 42 LED/m SMD3030 LED chips, it offers bright lighting, with multiple color options thanks to its RGB system.

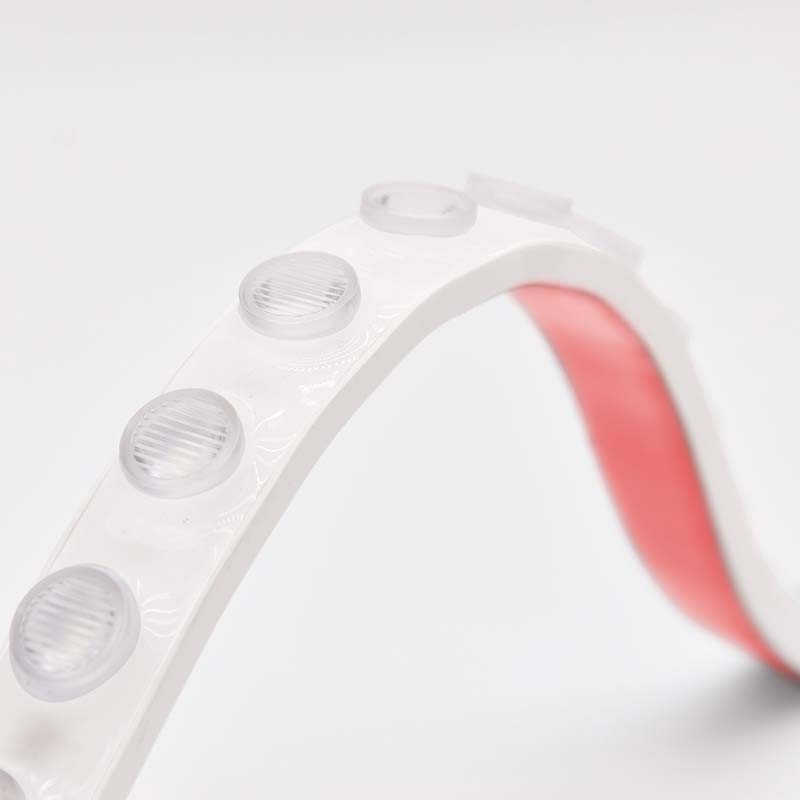

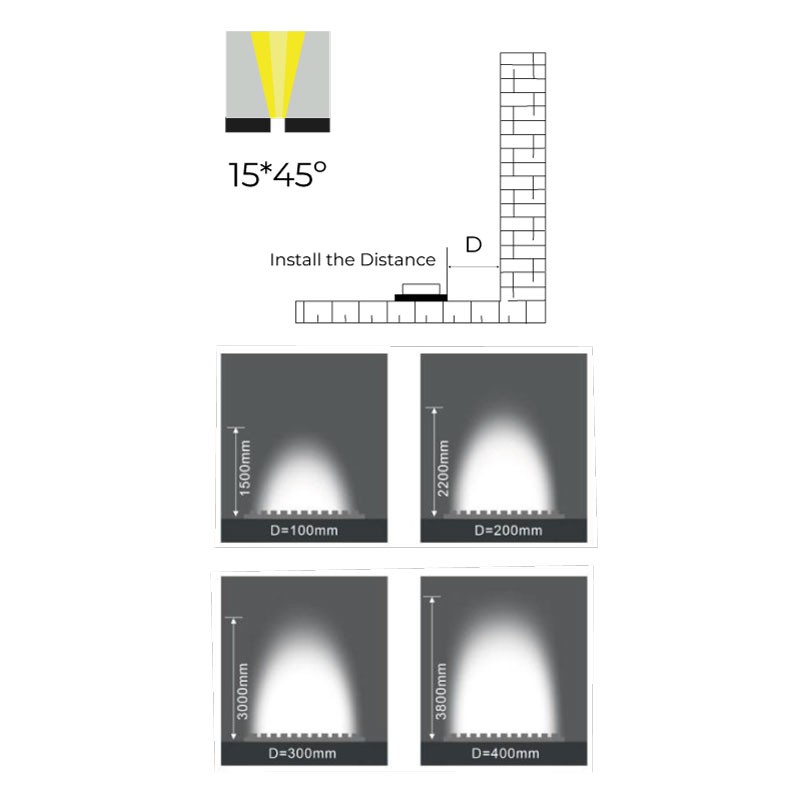

It features asymmetrical optics, especially useful for façade lighting, with a beam angle of 15 x 45°.

When installing the flexible wall washer in curved angles, a turning radius greater than 50mm should be considered.

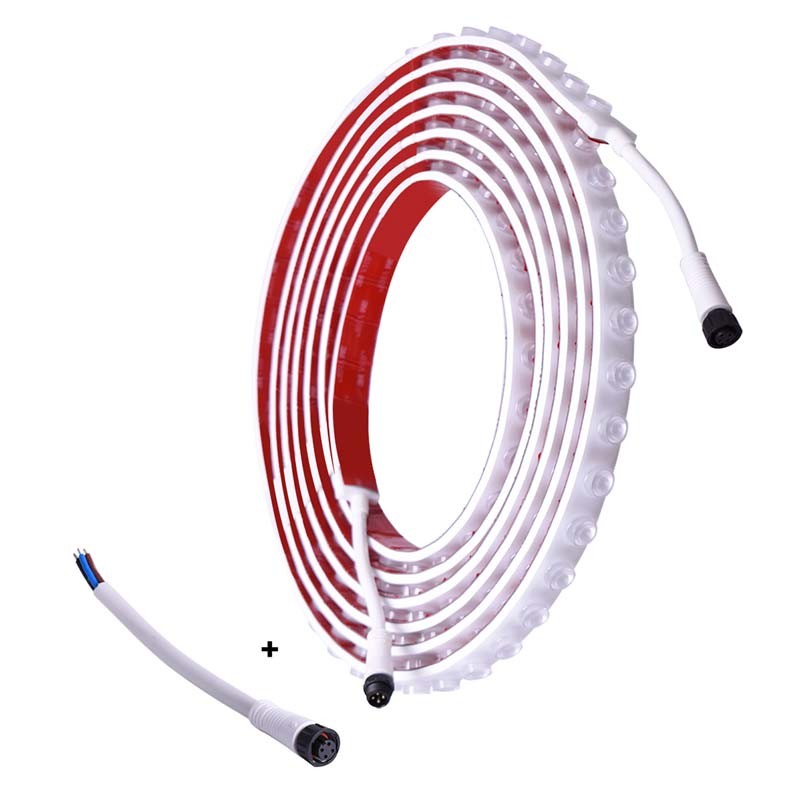

Includes a starter cable for RGB connection.

Features:

✔ Encapsulation glue, strong adhesion, good durability and high reliability.
✔ Resistant to high temperature, corrosion, weak acid and alkali.
✔ Characterized by high flexibility.
✔ Light weight, flexible and easy to install.
✔ Can be bent, flexed and contoured around curved surfaces.
✔ It can be cut to size, although waterproofing is not guaranteed.
✔ 42 LED/m

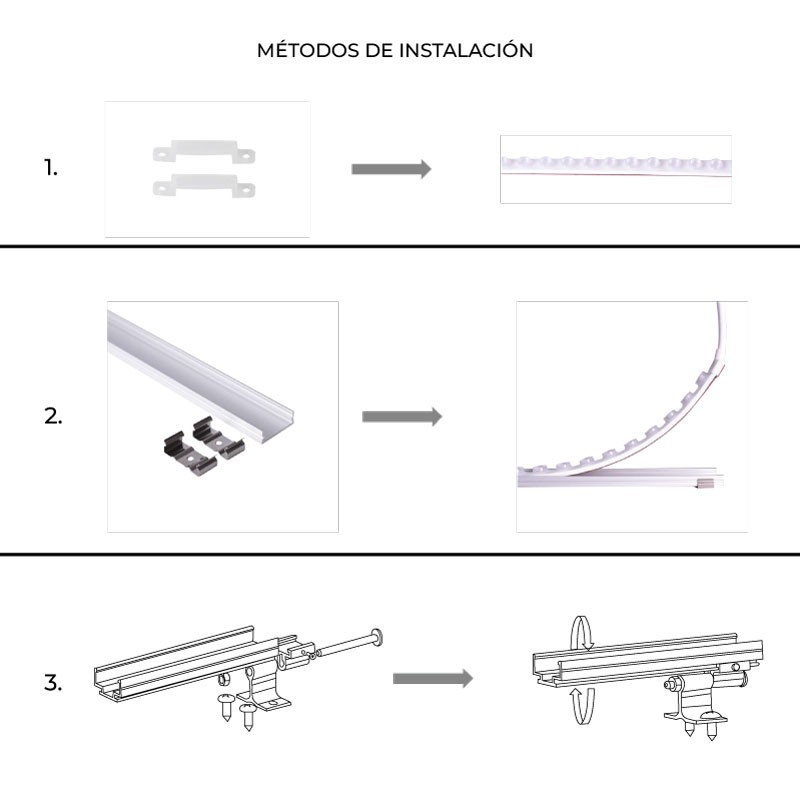

Installation methods:

The RGB flexible wall washer comes with 3M tape for direct installation on smooth surfaces with good heat dissipation. In different cases, additional accessories can be used to achieve the desired installation.

Installation with Silicone Clips: Fix it in the desired position and screw on the silicone clips to immobilize it.

Installation with an aluminum profile: Fasten metal fixing clips to the desired surface, clean the surface of the aluminum profile and attach the wall washer with 3M tape. Fix the aluminum profile to the metal clips.

Installation with tilting aluminum profile: Fix tilting clips on the desired surface, clean the surface of the aluminum profile and adhere the wall washer with 3M tape. Fix the aluminum profile on the clips that will allow it to tilt and direct the light beam.

Product features:

  • Rated voltage: 24V DC
  • Outdoor use: IP67
  • Efficacy: 52 lm/W
  • Beam angle: 15 x 45°
  • Shade: RGB
  • Dimensions: 22,7 x 5000 mm
  • Cut distance: 165mm
Nominal Voltage (V)
24V-DC
Power/m (W/m)
20W/m
Beam angle (º)
15*45º
IP
IP67
Dimensions (mm) Lxlxh
22,7 x 5000
Hue
RGB
Efficiency (Lm/w)
52
CRI
80-85
No. of chips/metre
42
Cutting distance (mm)
165
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Barcelona LED

Questions

P: Question: Is it possible to add a diffuser screen?
Thank you
R: Answer: No accessories, it is a wall washer with asymmetric angles 15º - 45º, the optics must be uncovered.
P: Question: Hello, can this strip be cut to reduce its length?
Thank you
R: Answer: The cut is every 7 optics, about 16.5cm.
