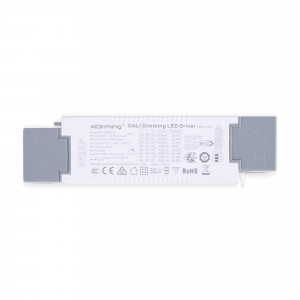

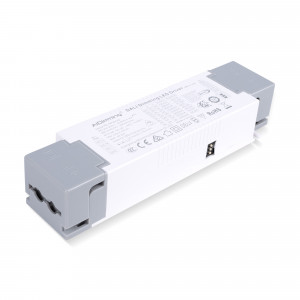

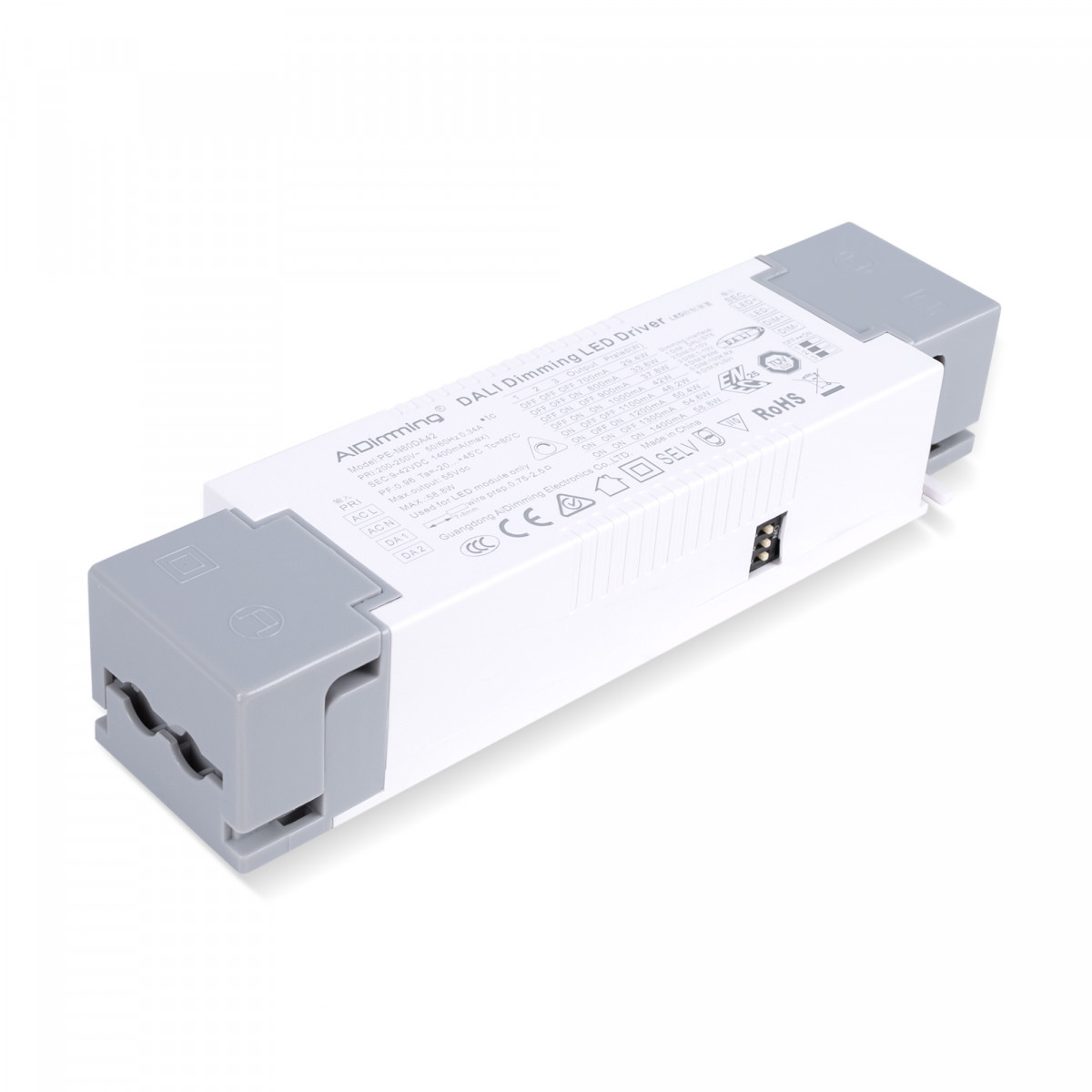

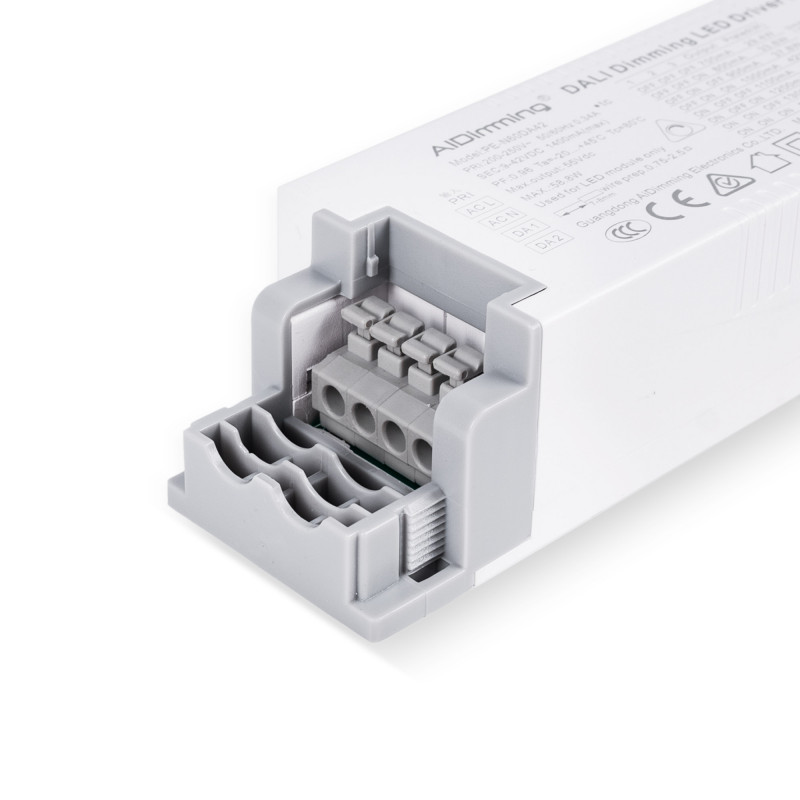

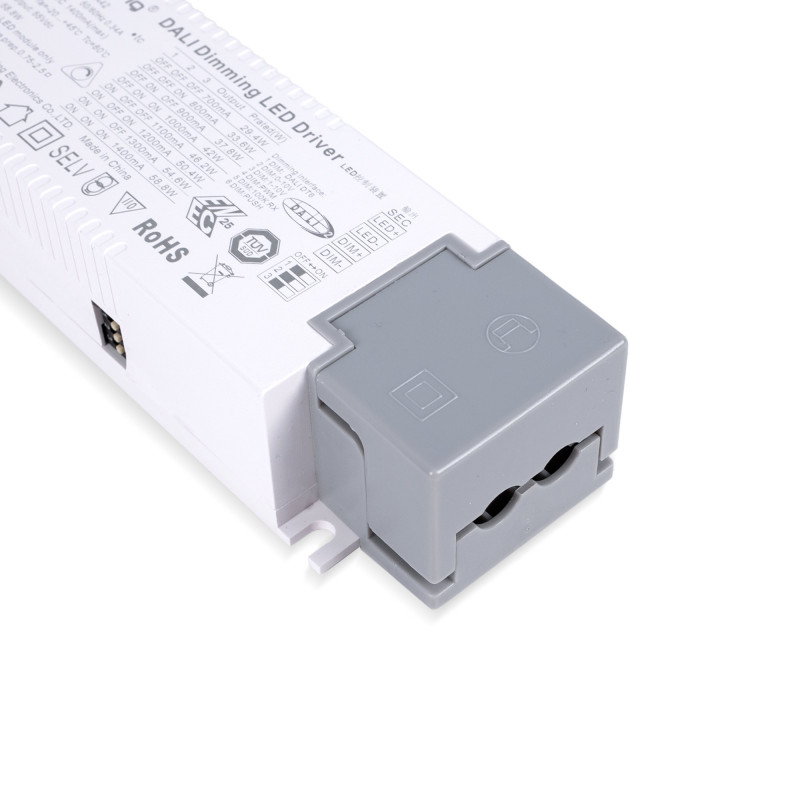

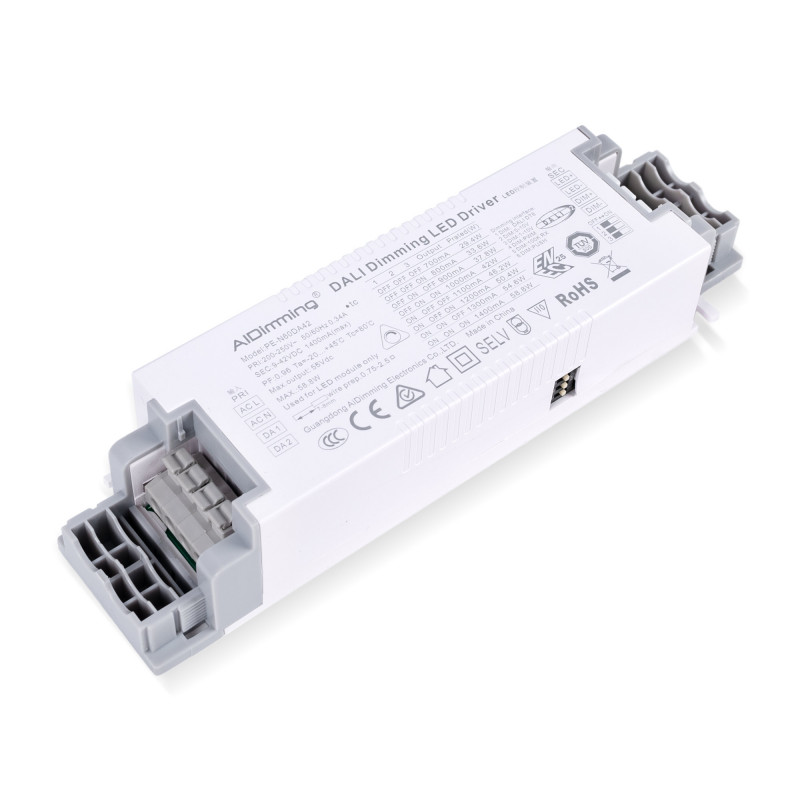

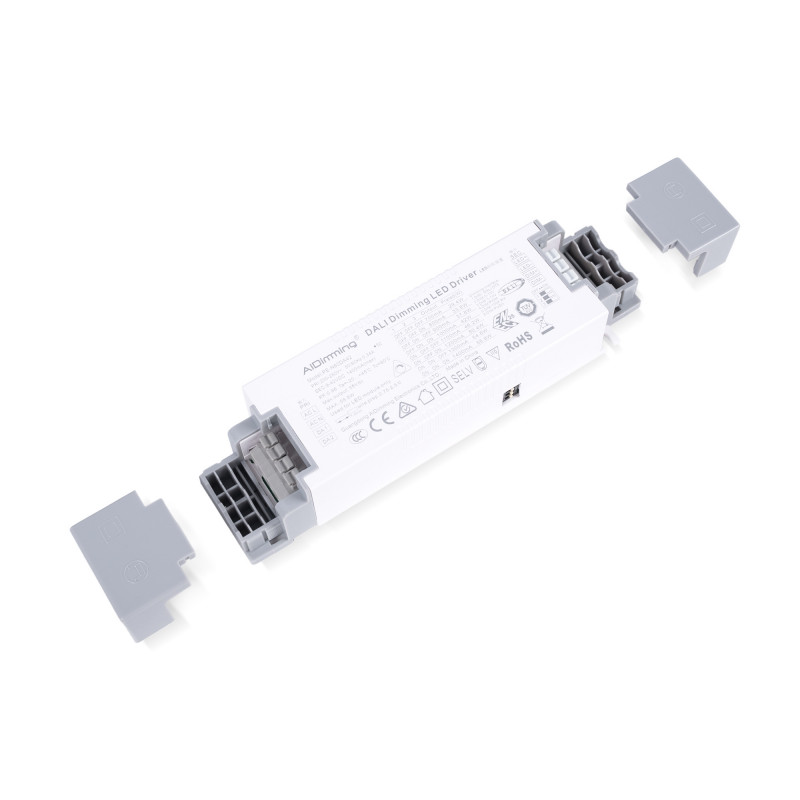

DALI + 1/0-10V + PUSH dimmable driver - 9-42V DC - 58W - Multi current (700-1400mA)
SKU:PE-N60DA42
€38.99
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com
This Driver is a multifunction device of great versatility, manufactured with high quality components and with a robust design that guarantees a long life of the product.
It allows DALI, 1/0-10V and PUSH dimming.

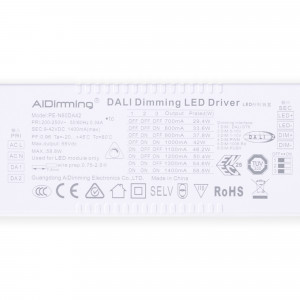

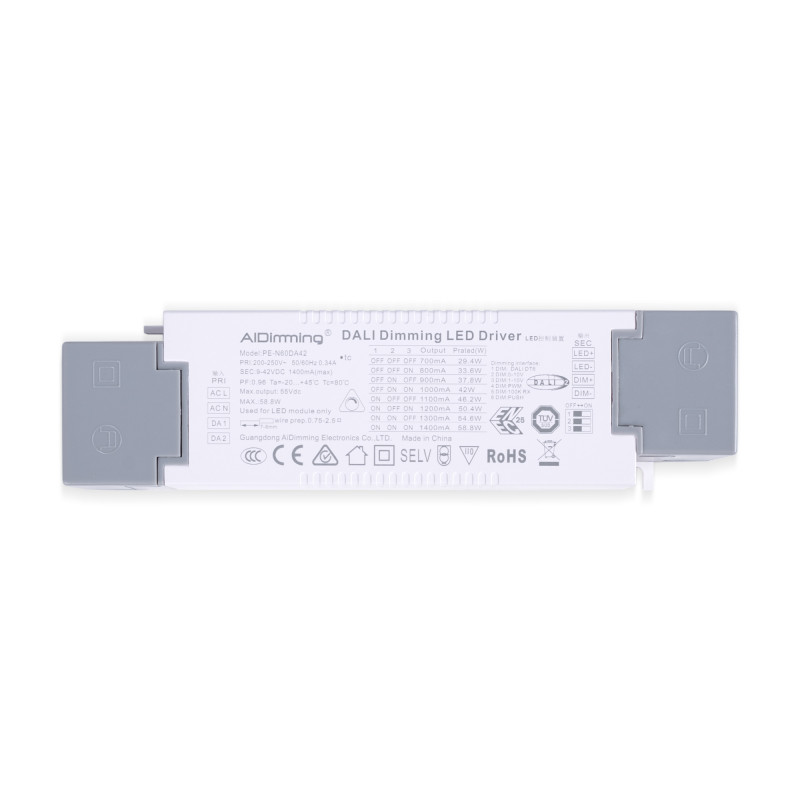

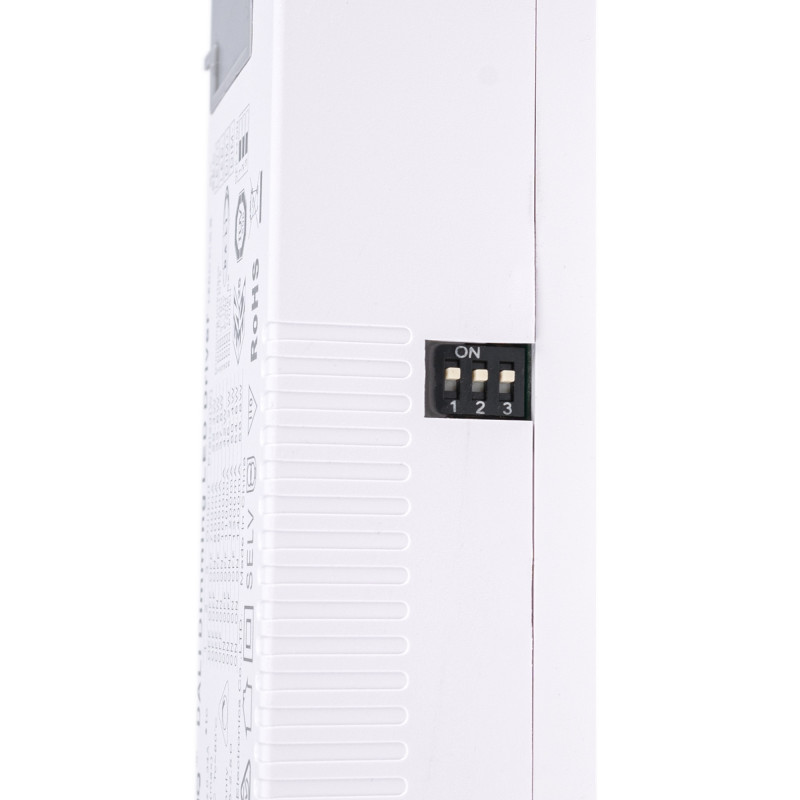

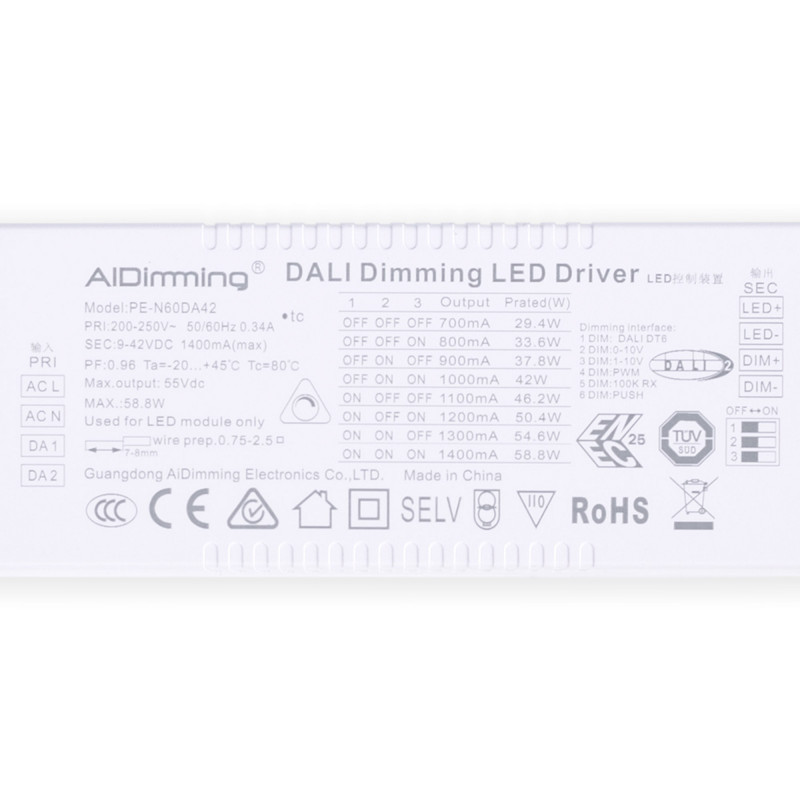

It features 1 channel with constant current output and adjustable current from 700mA to 1400mA through DIP switches, making it suitable for a wide range of LED luminaires.
It ensures constant and flicker-free light, extremely accurate dimming down to 0.01%, with high power factor and energy efficiency.
It's highly compatible with universal DALI masters that support DT6 commands, simplifying integration into existing systems.
It incorporates protection against short circuits and overloads.
|
Product features:
|
Nominal Voltage (V)
12 - 24 V/DC
Maximum power (W)
58
IP
IP20

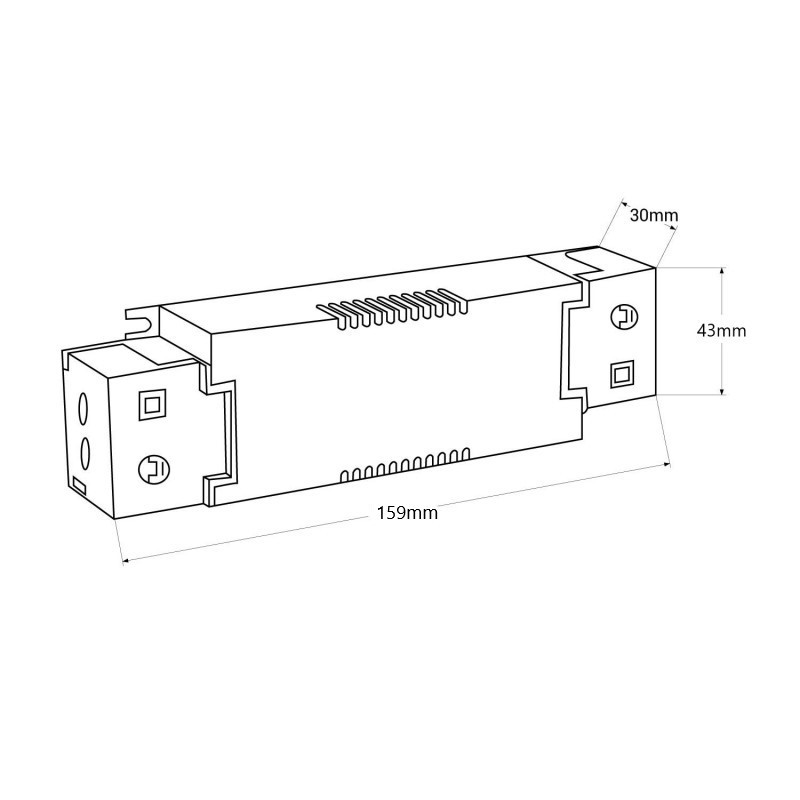

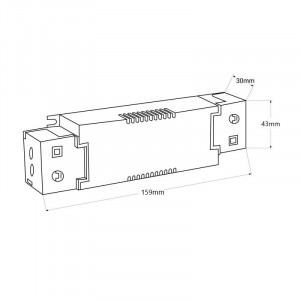

Dimensions (mm) Lxlxh
159 x 43 x 30
Frequency (Hz)
50 - 60
Power factor (cosφ)
0.96
Control system
DALI
PUSH
TRIAC
PUSH
TRIAC
Material
Plastic
Use Outdoor
No
Temperature range
-20°C ~ +45°C
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Output current mA
1400mA
