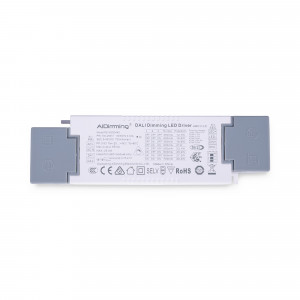

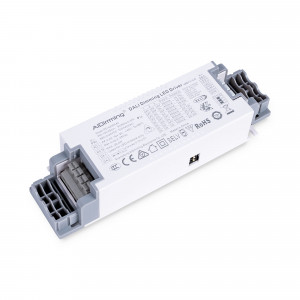

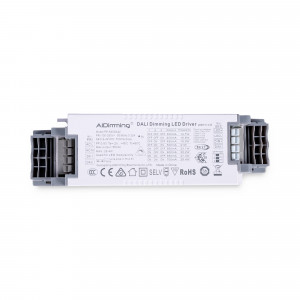

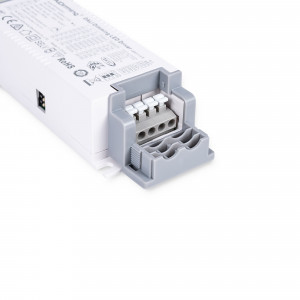

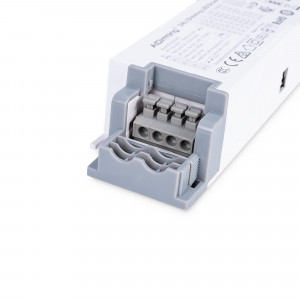

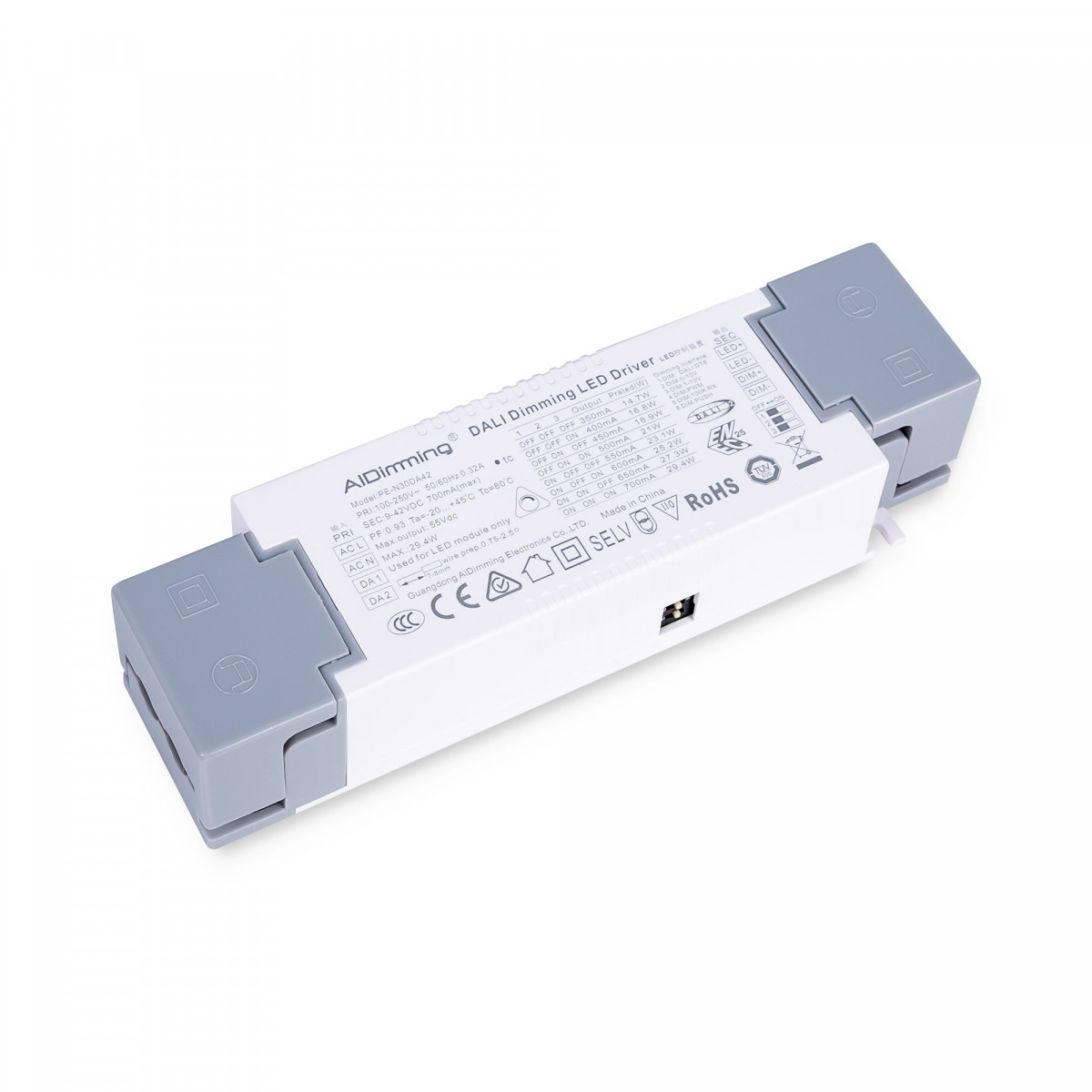

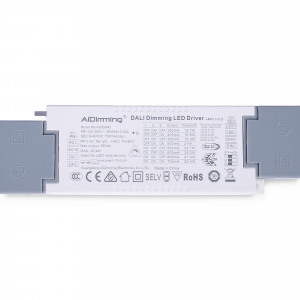

DALI + 1/0-10V + PUSH dimmable driver - 9-42V DC - Multi current (350-700mA)
SKU:PE-N30DA42
€24.75
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com
This Driver is a multifunction device of great versatility, manufactured with high quality components and with a robust design that guarantees a long service life.
It allows DALI, 1/0-10V and PUSH dimming.

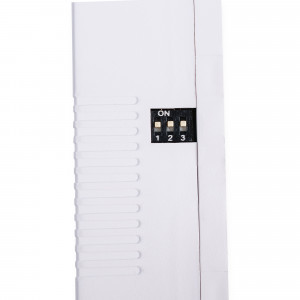

It features 1 constant current output channel and adjustable current from 350mA to 700mA by means of DIP switches, making it suitable for a wide variety of LED luminaires.
It ensures constant and flicker-free light, extremely accurate dimming down to 0.01%, with high power factor and energy efficiency.
It's highly compatible with universal DALI masters that support DT6 commands, simplifying integration into existing systems.
Incorporates protection against short circuits and overloads.
|
Product features:
|
Nominal Voltage (V)
100 - 250
Maximum power (W)
29.4
IP
IP20

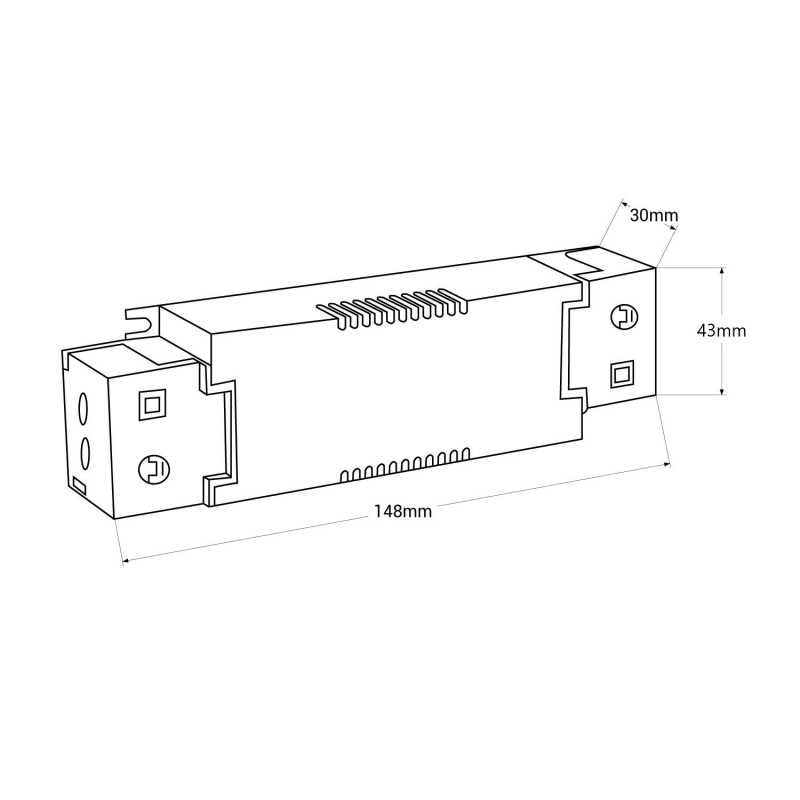

Dimensions (mm) Lxlxh
148 x 43 x 30
Frequency (Hz)
50 - 60
Power factor (cosφ)
0.93
Control system
0-10V / 1-10V
DALI
PUSH
DALI
PUSH
Output voltage (V)
9 - 42
Material
Plastic
Use Outdoor
No
Temperature range
-20°C ~ +45°C
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
0,7
