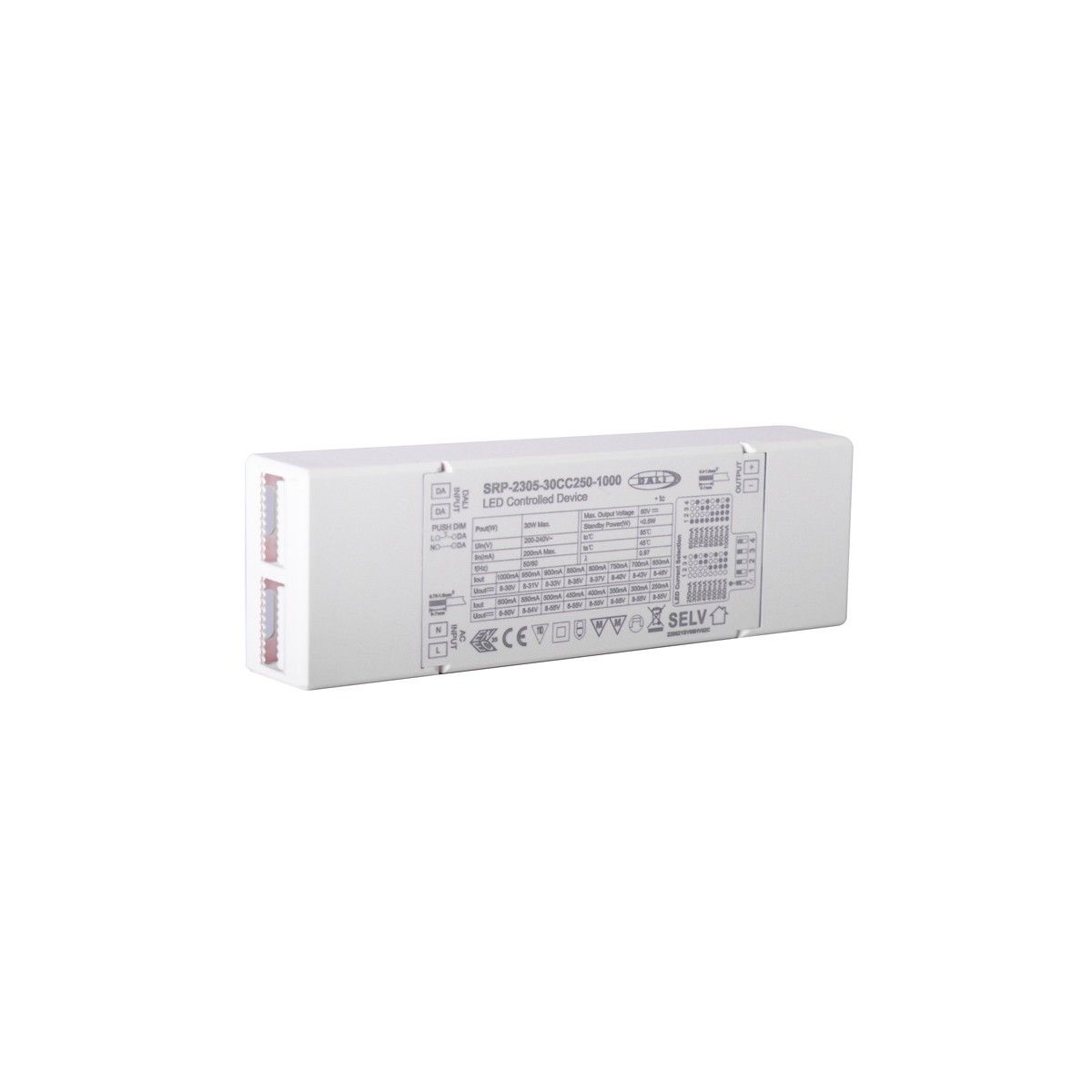

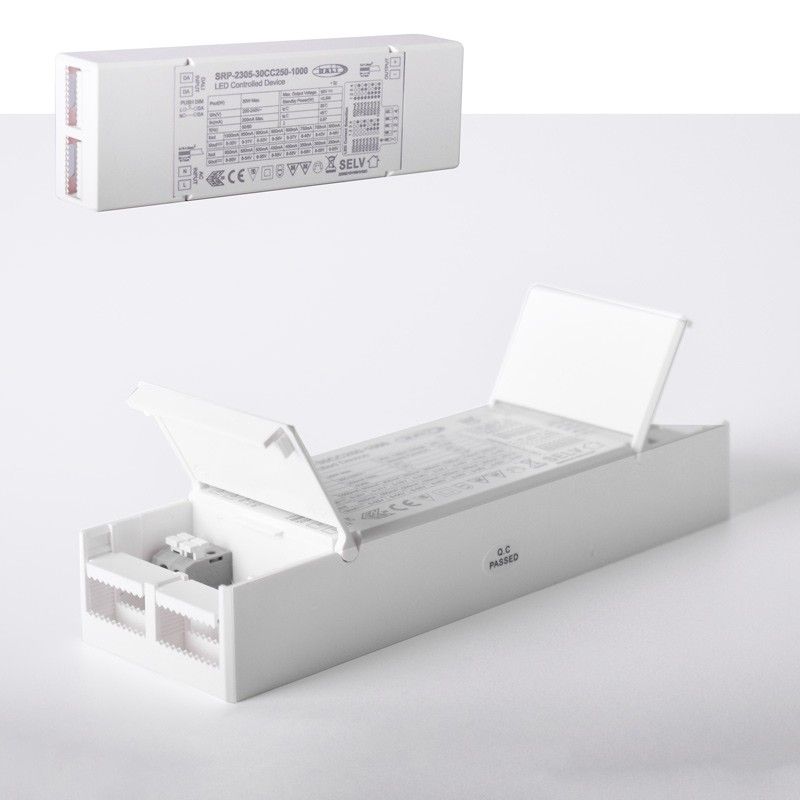

Dali Driver 1 Channel Constant Current from 250ma to 1000ma

DALI dimmable driver 1 channel 8-48V 30w multicurrent (250-1000mA)

Name: Dali Driver 1 Channel Constant Current from 250ma to 1000ma
Brand: Barcelona LED
SKU: SRP-2305-30CC250-1000
Price: 49.95 EUR
Availability: InStock

SKU:SRP-2305-30CC250-1000

€49.95 Tax included

In stock 140 units

Data sheet

Driver DALI 30W multicurrent 250 to 1000mA single channel. The current is configured by DIP switches, allowing it to be used for different LED luminaires. It is designed with an input of 200-240V with a power factor that can be higher than 0.9 and an efficiency higher than 83%. It allows smooth and deep dimming from 0.1% to 100% without flickering or buzzing.

Shipping to Africa available

public

For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com

DALI driver 30W 1-channel 250mA-1000mA

✔ DALI control device <2mA
✔ 1 -channel constant current output, 250mA-1000mA constant current (adjustable via DIP switches).
✔ Class II power supply, fully insulated plastic enclosure.
✔ Enables control of single color LED lighting.
✔ Smooth and deep dimming to 0.1 % with no flicker.
✔ IP20 rating, suitable for indoor LED lighting applications.
