Dimmable DALI Driver DT6 Monochrome - 220-240V - Output 6-25V DC - 9W

SKU:SRP-2305-9CC350-700
Has superado el límite de unidades
Out of stock
Data sheet

Compact 9W DALI LED driver with an integrated DALI-2/Push interface.

Allows dimming of single-color LED lighting and offers smooth dimming from 0.1% to 100%.

Compatible with DALI DT6 masters, featuring an insulated housing and IP20 protection.

Notify me when available

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  commercial@barcelonaled.fr

LED DRIVER DALI: Advanced Dimming for LED lighting

Optimize your LED lighting system with the DALI driver. Designed to offer precise and uniform dimming, adjusting the intensity without noise or flicker.

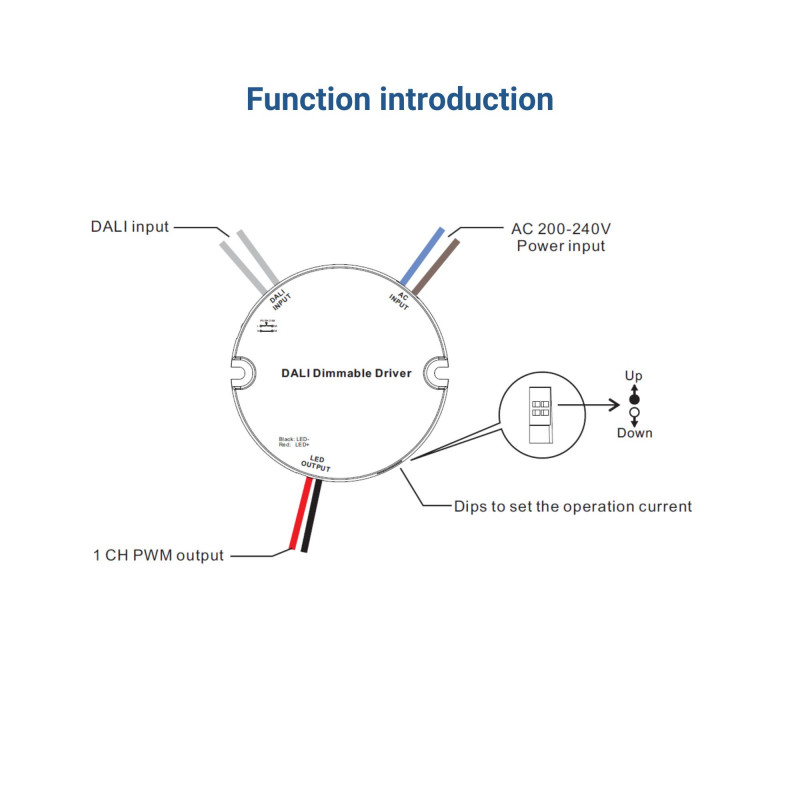

  • Adjustable constant current: 350/700mA output, configurable via DIP switch.

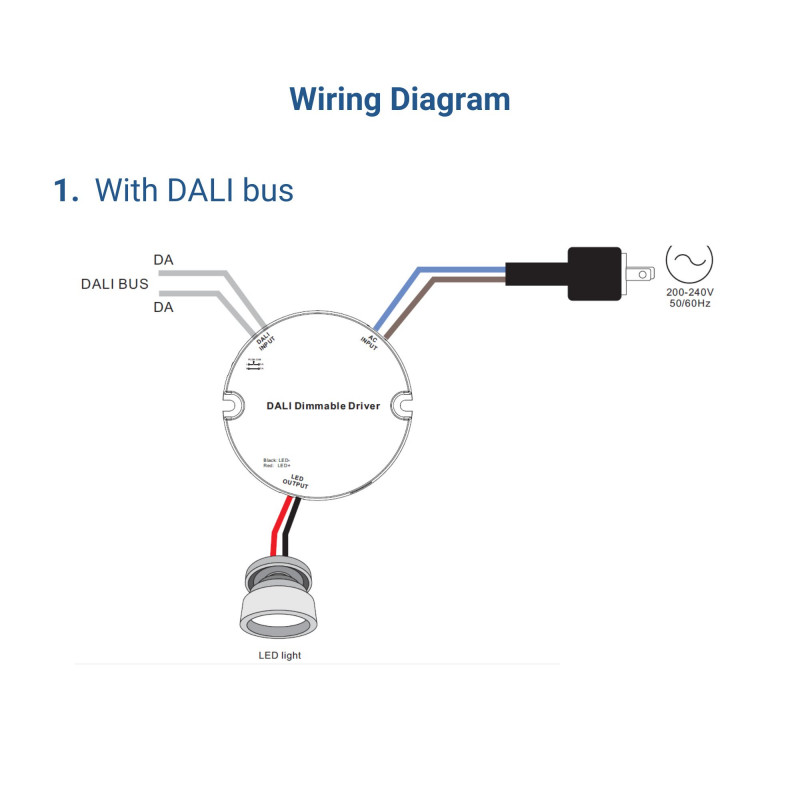

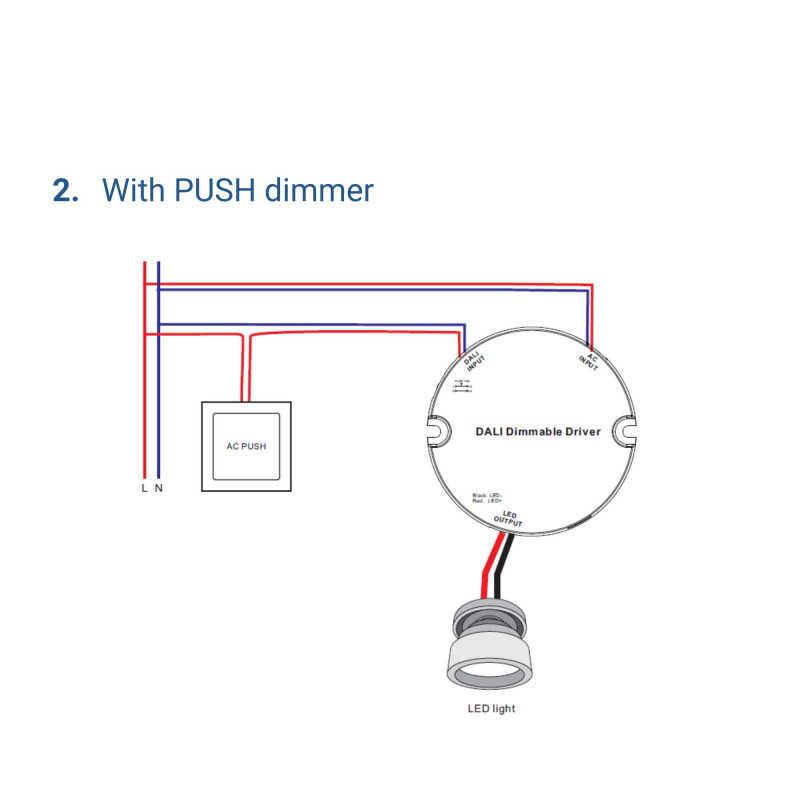

  • Full compatibility: Compatible with DT6 DALI systems and Tridonic software, with integrated DALI/Push Dim interface.

  • Smooth dimming without interruption: Smooth and deep dimming to 1%, no flicker or noise.

  • Compact and safe design: Insulated plastic housing (IP20), ideal for indoor use. Dimensions Ø57 x 24mm.

  • Superior efficiency: High power factor (>0.9) with minimum power consumption.

  • Intelligent control: Compatible with applications for luminaire management via WiFi.

Nominal Voltage (V)
220 - 240 V/AC
Frequency (Hz)
50 - 60
Dimmable
Yes
Power factor (cosφ)
0.9
Control system
DALI
Output voltage (V)
6-12V-DC (700mA)
6-25V-DC (350mA)
Temperature range
-20°C ~ +45°C
Certificates
CE
ROHS
Warranty
5 years
