TRIAC constant current 25-42V DC dimmable driver - 25W - 600mA
SKU:PE283B4260
€14.95
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com

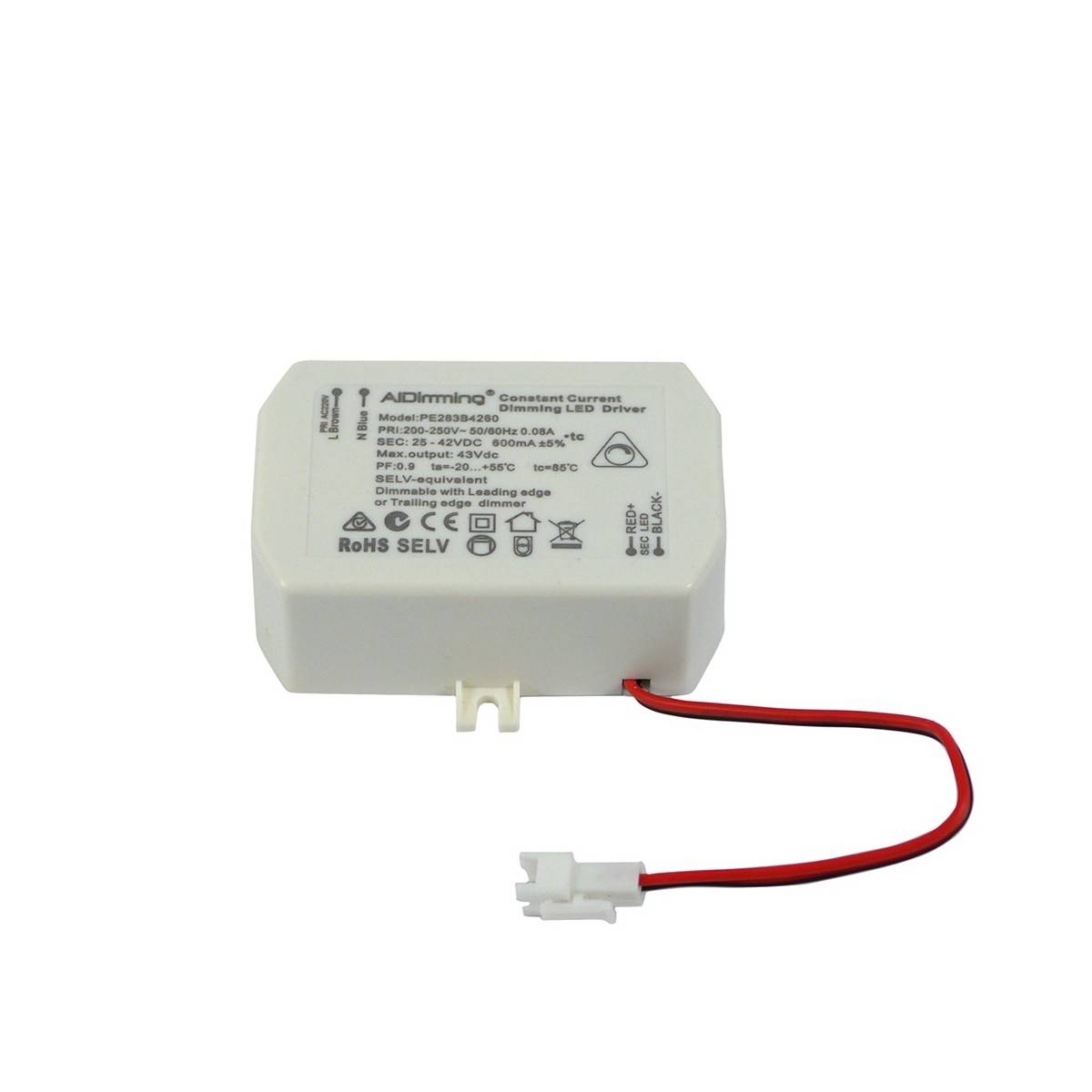

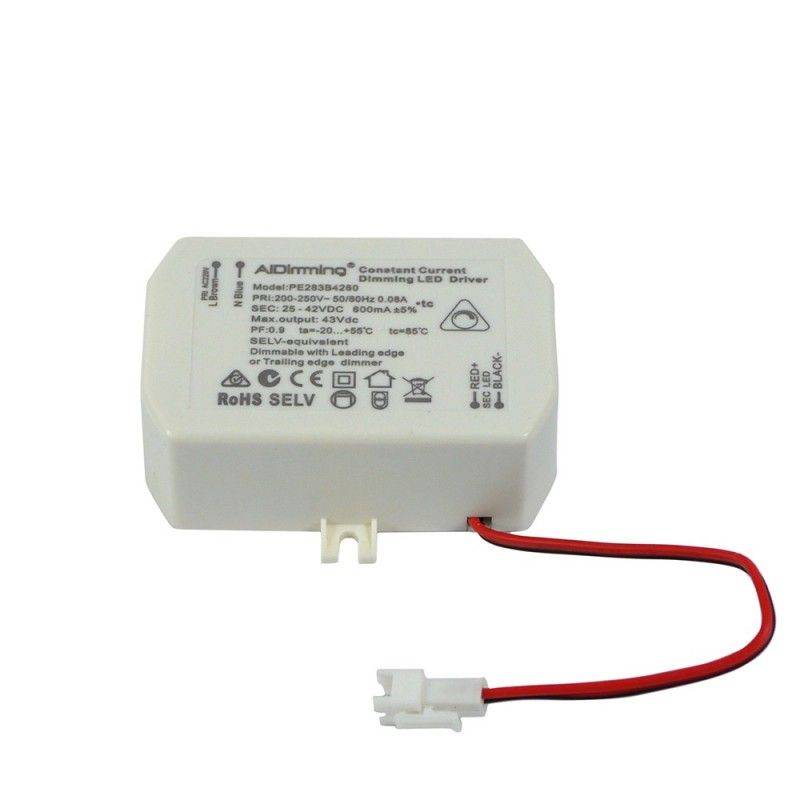

Dimmable TRIAC constant current driver for LED luminaires
Optimize your LED lighting system with our TRIAC dimmable driver. Designed for superior performance, it ensures smooth and uninterrupted dimming.
- Input voltage: 200-250V AC
- Output voltage: 25-42V DC
- Maximum current: 600mA
- Power factor: 0.90
- Maximum power: 25W
- Flicker-free dimming: "no flicker" lighting, pleasant and comfortable for the eyes.
- EMC filter: ensures interference-free dimming.
- Certifications: CE, RoHS, TUV, EMC, SAA, LVD
- Input/output wiring included
This driver is perfect for those who are looking for efficiency and quality in their LED lighting system. If you have any questions, please contact us.
Nominal Voltage (V)
200 - 250V AC
Maximum power (W)
25
Lifetime (h)
25000
IP
IP20
Dimensions (mm) Lxlxh
74X60X27
Frequency (Hz)
50 - 60
Power factor (cosφ)
0.9
Control system
TRIAC
Output voltage (V)
25 - 42 VDC
Number of channels
1
Material
Plastic
Use Outdoor
No
Temperature range
-20℃～+50℃
Frequency of use
Intensive
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
0.6
Questions
| P: Question: |
Hello, we plan to install a large number of these drivers, they would be used to power your 60x60 and 30x60 screens. I understand, I would use a driver for each screen and these drivers can be linked up to the maximum allowed by the regulator, (in the case of the recommended 150W). I would like to know if this is so and also if you can feed these drivers from an electronic dimmer and if we can use all the power of each channel 2500W. My name is Joaquin from CINELUX BCN my phone number is 670 22 29 64. I have a meeting with the client on Monday mid-morning and I would like to take the project already quite outlined. Thank you very much and sorry for the urgency. |
|---|
| R: Answer: | That dimmable driver would be compatible for 30x60 panels, for 60x60 panels it would be another model B4255 or B4320-T. Each panel would have a driver and the number of units to be dimmed depends on the power of the TRIAC dimmer. The power and regulation of the electronic dimmer depends on its compatibility for led, sometimes the maximum powers are expressed for lighting systems of incandescent lamps, it would be necessary to see which is the maximum power for led lighting. |
|---|
