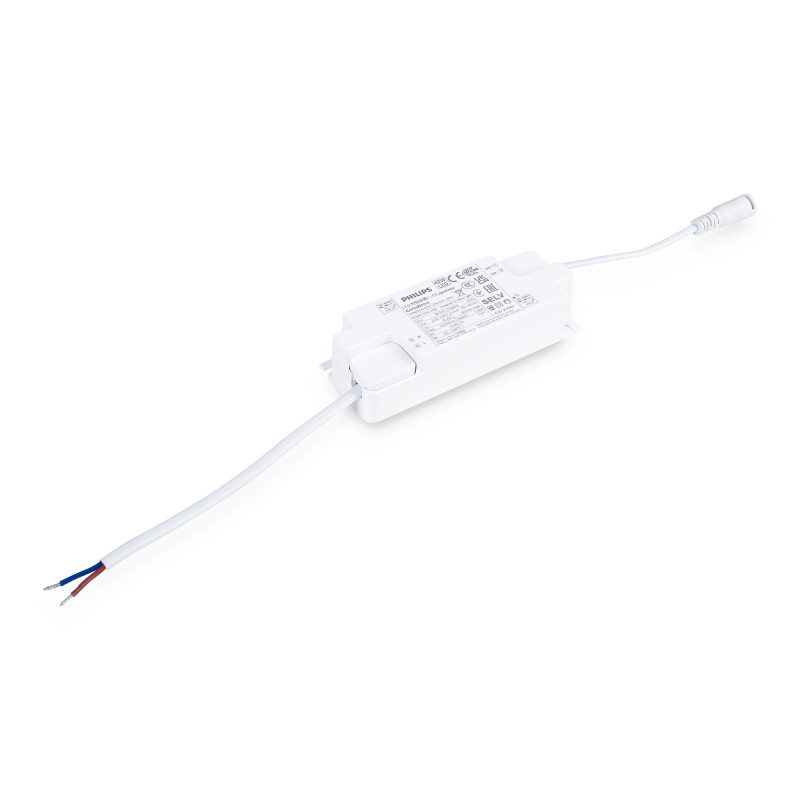

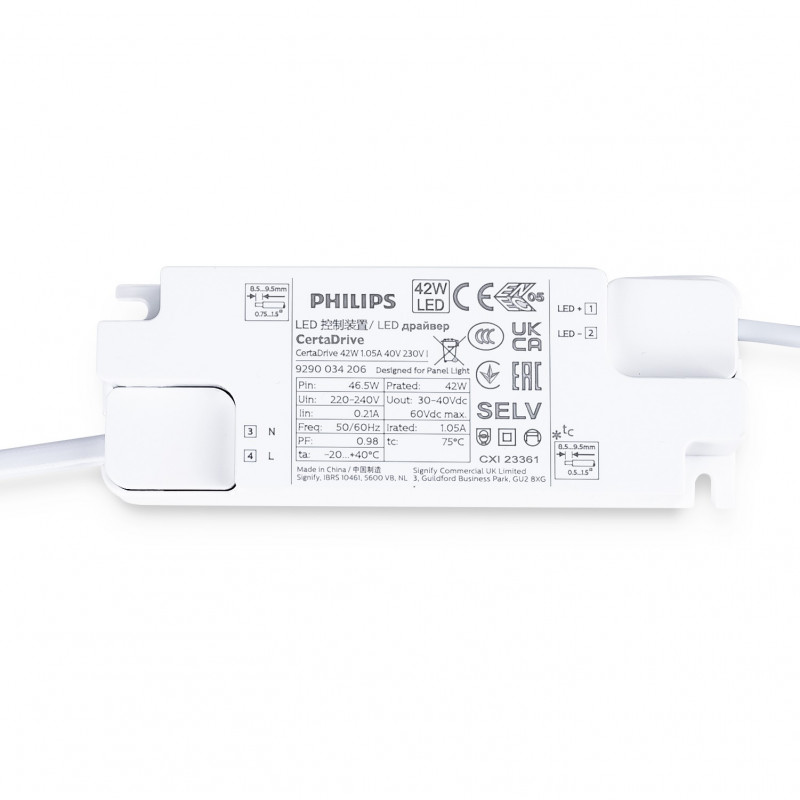

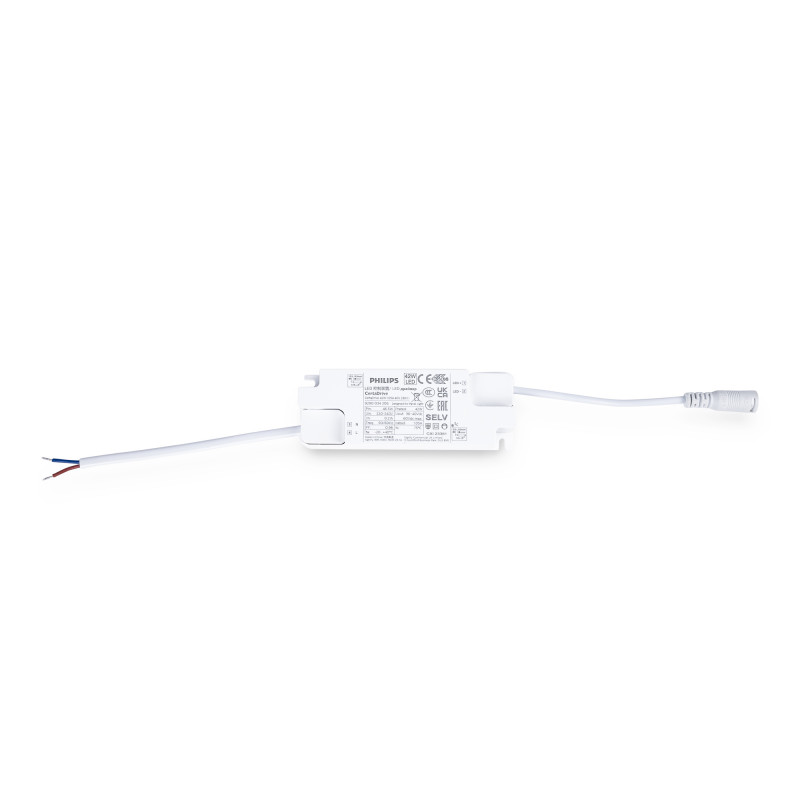

PHILIPS CertaDrive 220-240V Driver - Output 30-42V DC - 0.9/1,05A - 44W

SKU:929002804880
Has superado el límite de unidades
In stock 39 units
Data sheet

The PHILIPS CertaDrive 220-240V 44W Driver transforms alternating current into direct current to power LED luminaires such as LED panels, downlights and ceiling lights.

Its multi-voltage output allows its use in various applications with different current and voltage requirements, and its high power factor makes it very efficient.

In addition, it features a PC cover for protection against shock and external factors.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

The Philips CertaDrive Driver is a highly efficient power supply device. It is manufactured with high quality components and features a robust design to ensure a long product life.

With a power rating of 44W, it is capable of supplying a constant current to a wide variety of LED luminaires. This device is compact and easy to install, ideal for applications in confined spaces.

In terms of operation, this driver operates with an input voltage of 220-240V and a multi-current output of 0.9A and 1.05A, allowing it to work with a wide range of voltages.

The Philips CertaDrive Driver also features a high power factor and low harmonic distortion, ensuring a stable and high quality power supply.

Main product features:

  • Power rating: 44W
  • Input Voltage: 220-240V AC
  • Input current: 1.05A
  • Output voltage: 30-42V DC
  • Indoor use: IP20
  • Dimensions: 124 x 44 x 26 mm

Nominal Voltage (V)
220-240 V
Power (W)
42
IP
IP20
Dimensions (mm) Lxlxh
124 x 44 x 26
Frequency (Hz)
50 - 60
Power factor (cosφ)
0.98
Driver
Philips
Output voltage (V)
30-42V DC
Material
Polycarbonate
Use Outdoor
No
Temperature range
-20°C ~ +40°C
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Output current mA
1050mA
