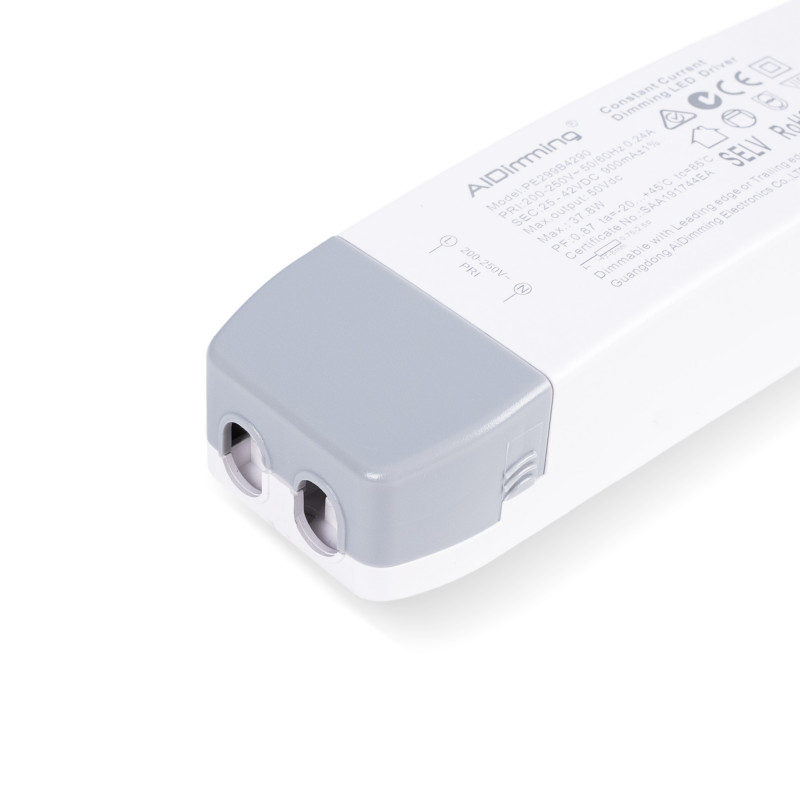

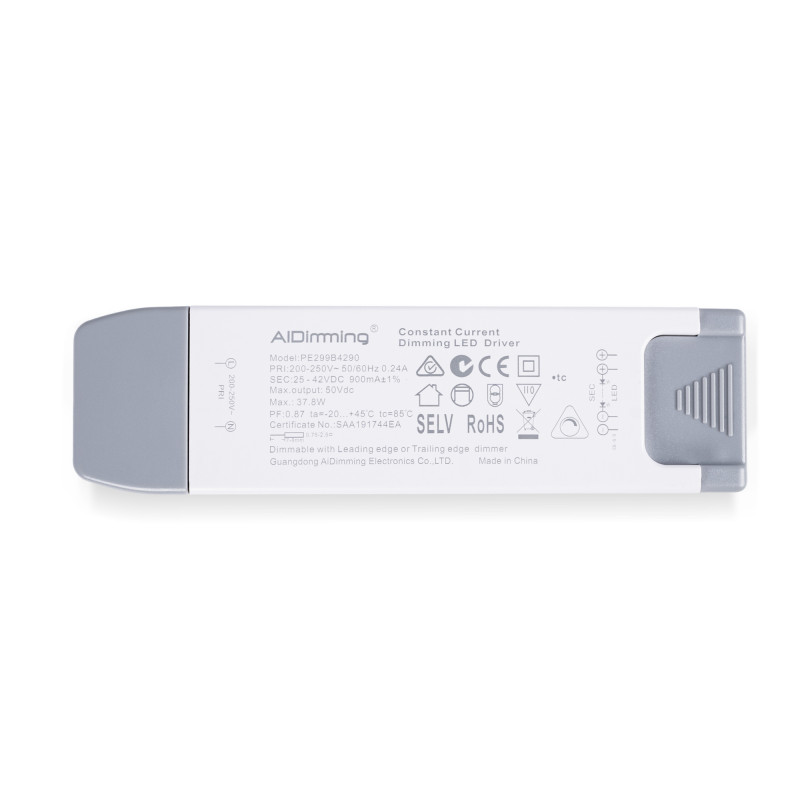

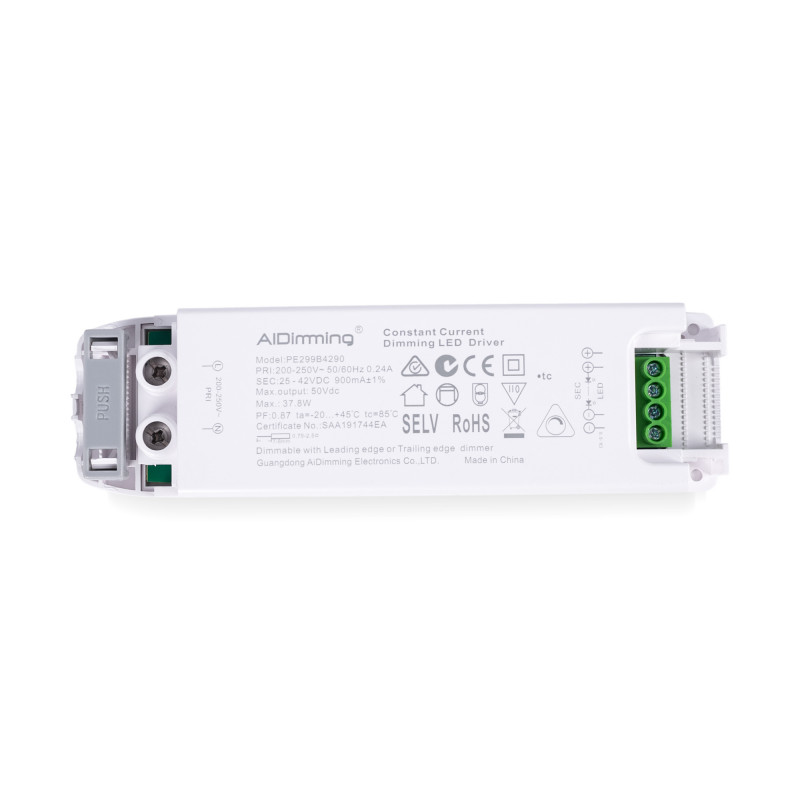

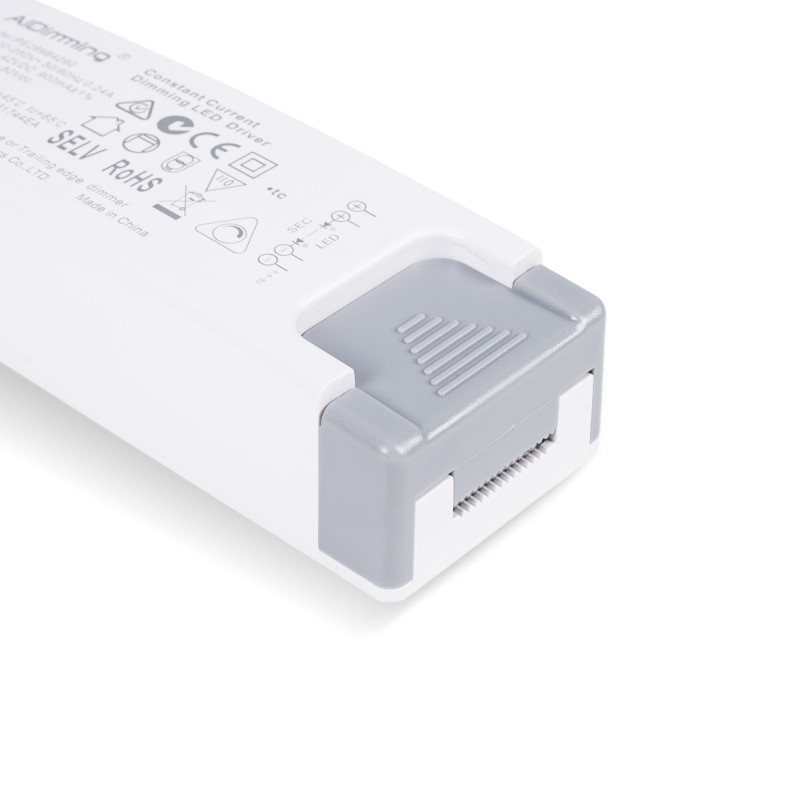

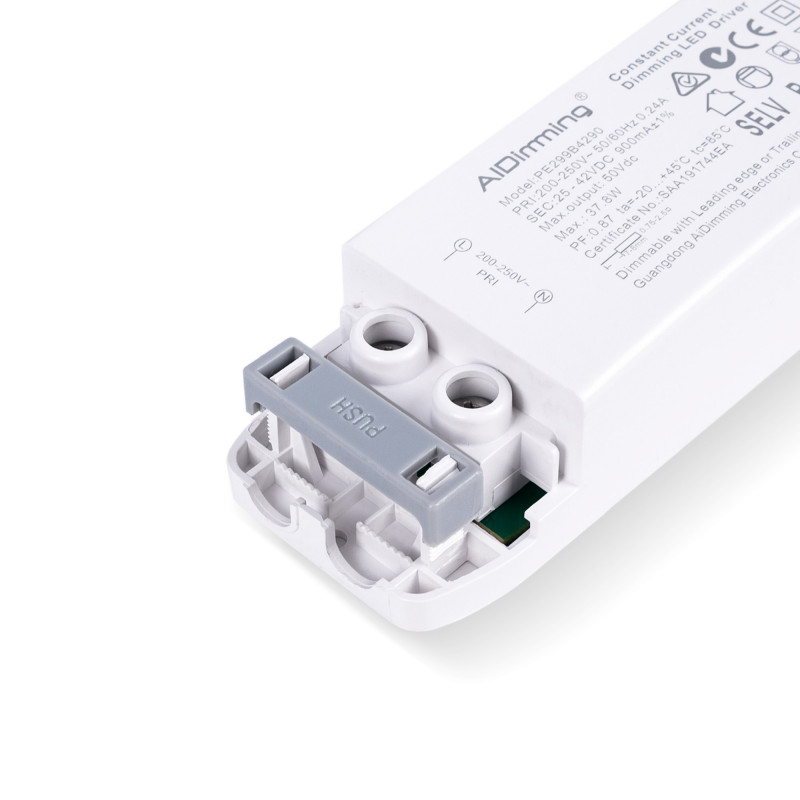

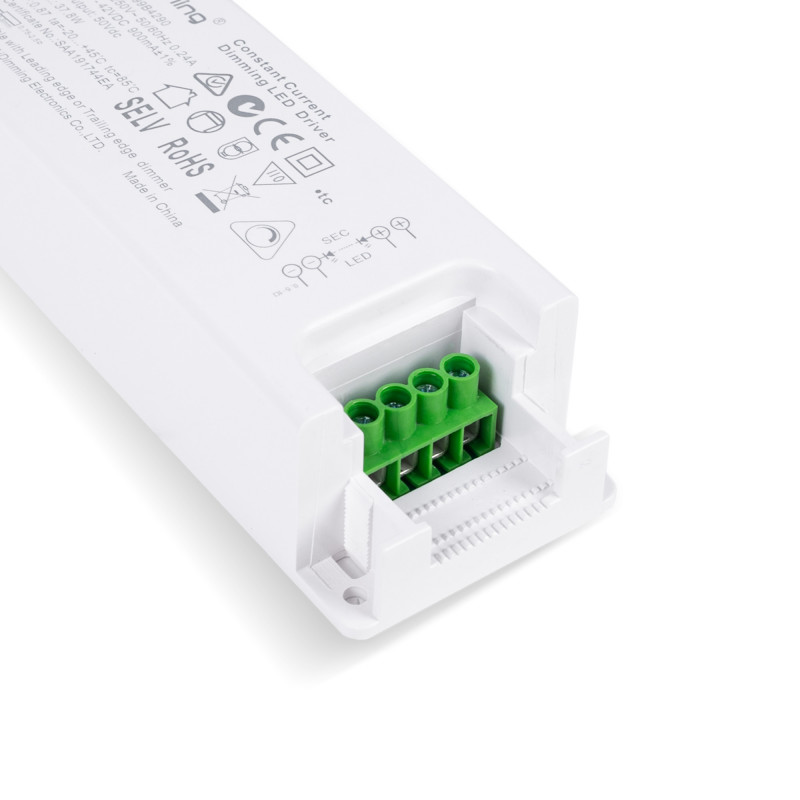

TRIAC dimmable driver - 25-42V DC - 900mA - 37W
TRIAC dimmable driver - 25-42V DC - 900mA - 37W
TRIAC dimmable driver - 25-42V DC - 900mA - 37W
TRIAC dimmable driver - 25-42V DC - 900mA - 37W
TRIAC dimmable driver - 25-42V DC - 900mA - 37W
TRIAC dimmable driver - 25-42V DC - 900mA - 37W
TRIAC dimmable driver - 25-42V DC - 900mA - 37W
TRIAC dimmable driver - 25-42V DC - 900mA - 37W

TRIAC dimmable driver - 25-42V DC - 900mA - 37W

SKU:PE299B4290
Has superado el límite de unidades
In stock 265 units
Data sheet

Constant current LED driver with TRIAC regulation, specially designed for LED luminaires.

It supports an input voltage of 200-250V AC.

It features an EMC filter for smooth, flicker-free regulation, without jumps or noise.

It incorporates protection against short circuits and overloads.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

The TRIAC dimmable driver is manufactured with high quality components and a robust design that guarantees a long product life.

It supplies constant current to LED lamps and luminaires up to a maximum of 900mA.

It offers stable, homogeneous dimming without abrupt jumps. In addition, it includes EMC filter to avoid interference with radio signals and WiFi.

It's specially designed to emit flicker-free light, ensuring pleasant and comfortable illumination for the eyes, thereby promoting the well-being and productivity of users.

It supports both leading-edge phase-cut dimming and trailing-edge phase-cut dimming.

Product features:

  • Input voltage: 200-250V AC
  • Output voltage: 25-42V DC
  • Max. power: 37.8W
  • Output current: 900mA ± 5%.
  • Power factor 0.91
  • Regulation: TRIAC
  • Indoor use: IP20

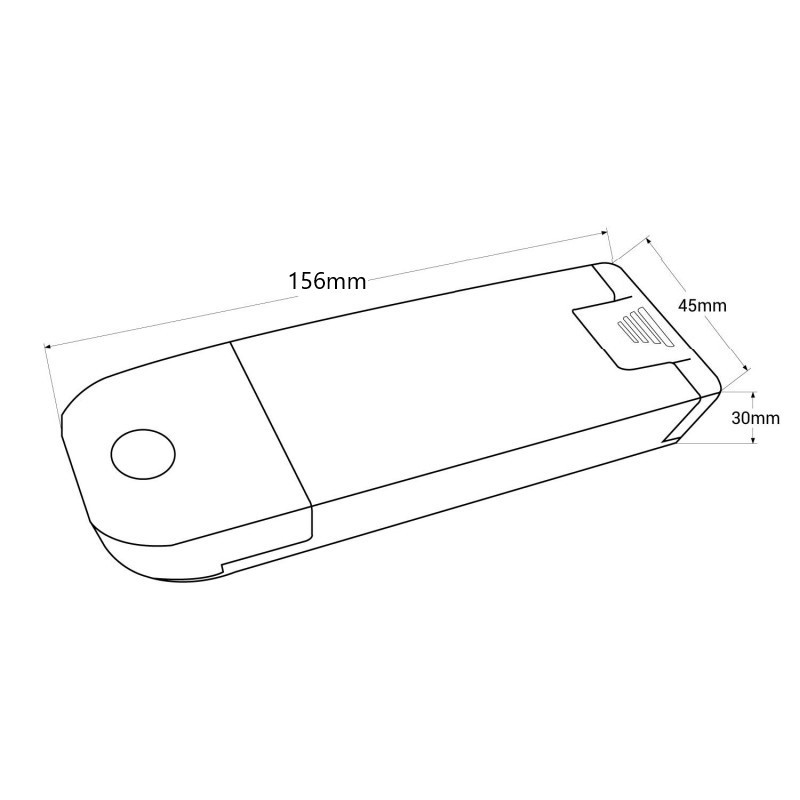

  • Dimensions: 156 x 45 x 30 mm

Nominal Voltage (V)
12 - 24 V/DC
Maximum power (W)
37
IP
IP20
Dimensions (mm) Lxlxh
156 x 45 x 30
Output voltage (V)
25 - 42
Material
Plastic
Use Outdoor
No
Temperature range
-20°C ~ +45°C
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Output current mA
900mA
Barcelona LED
