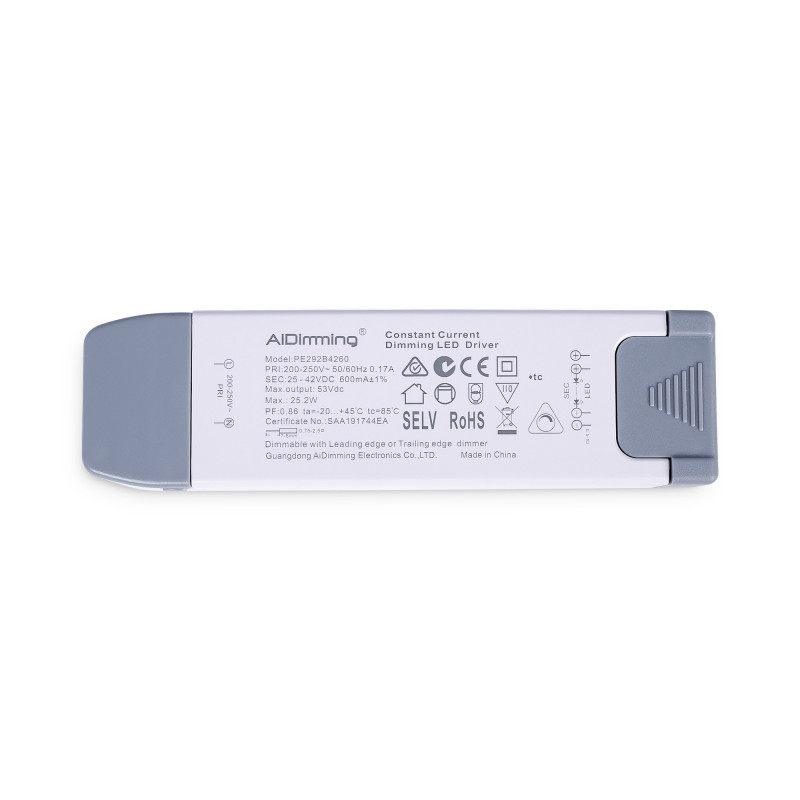

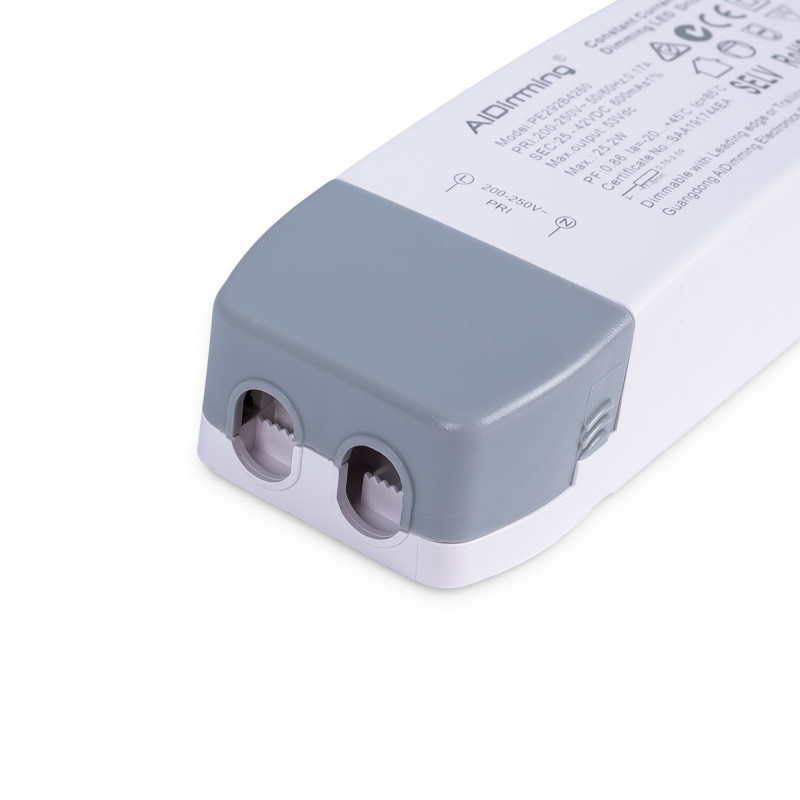

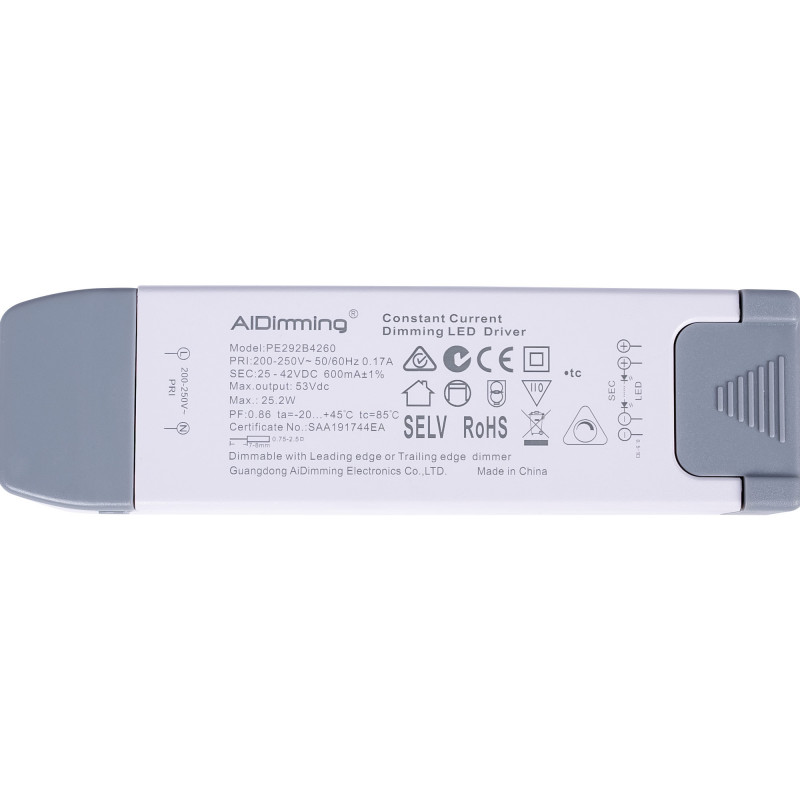

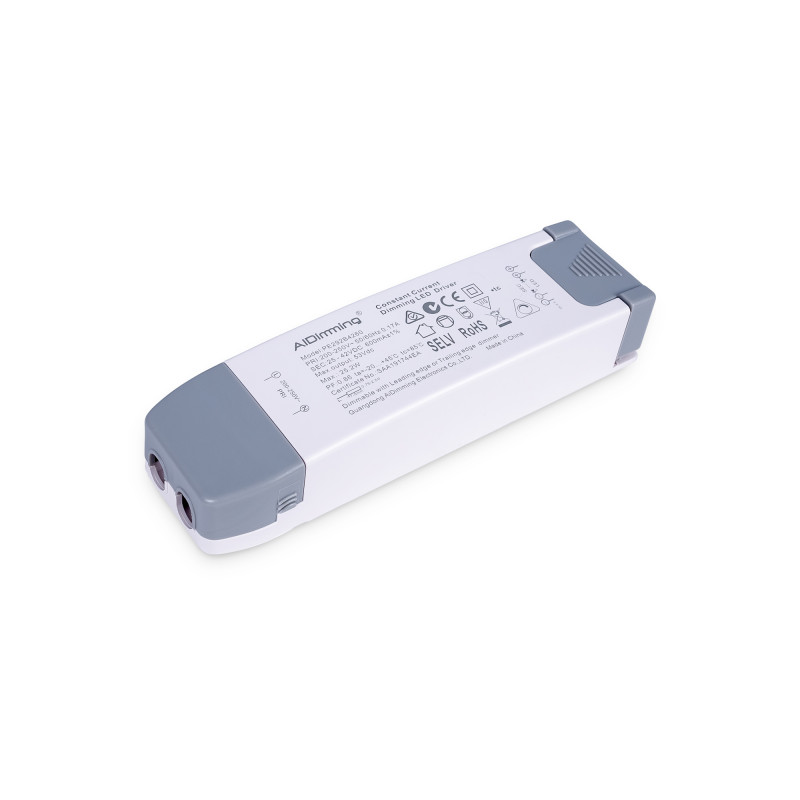

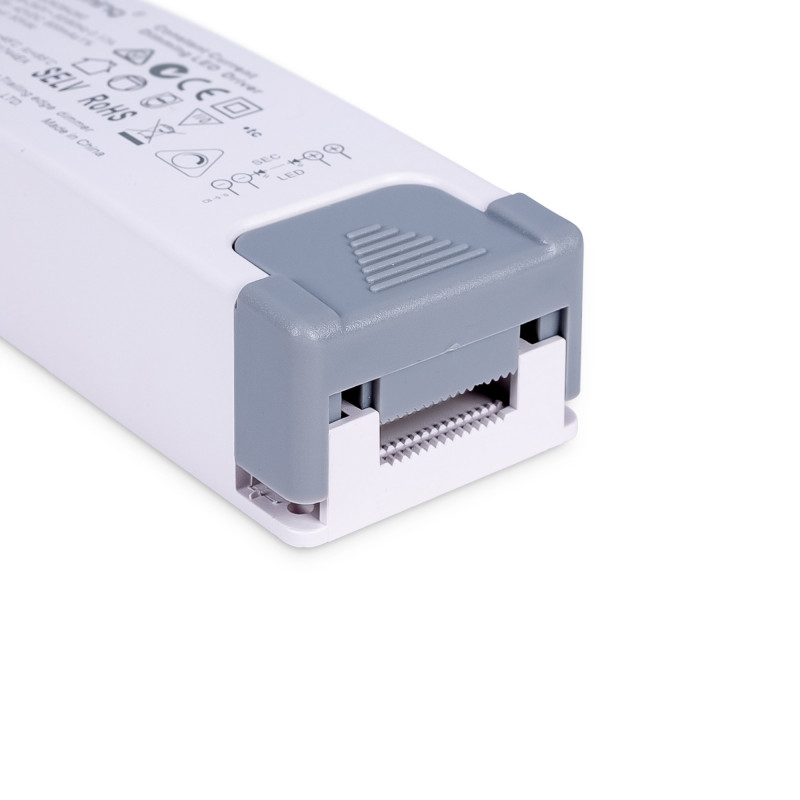

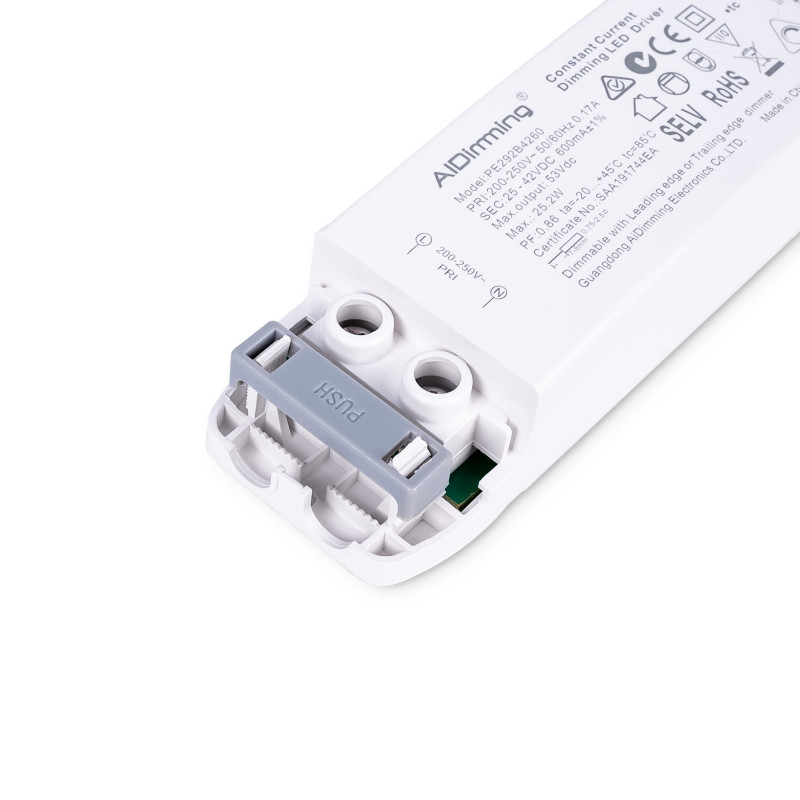

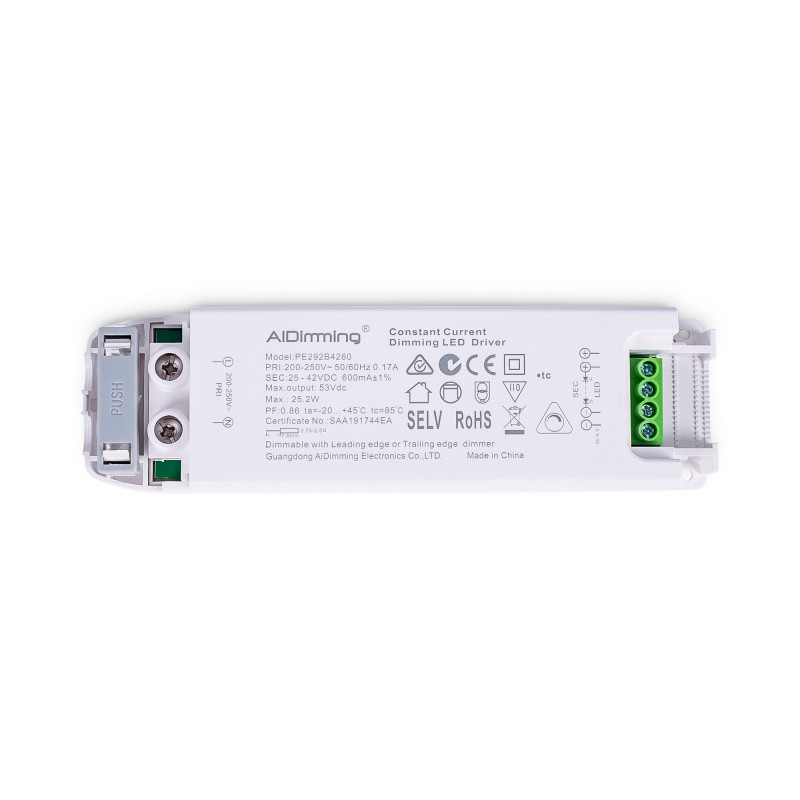

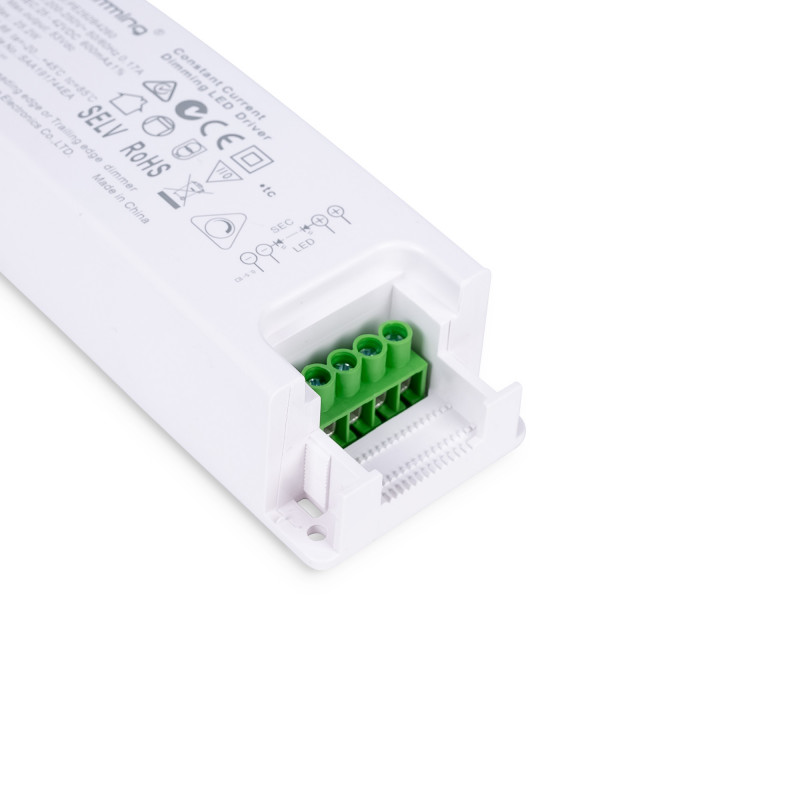

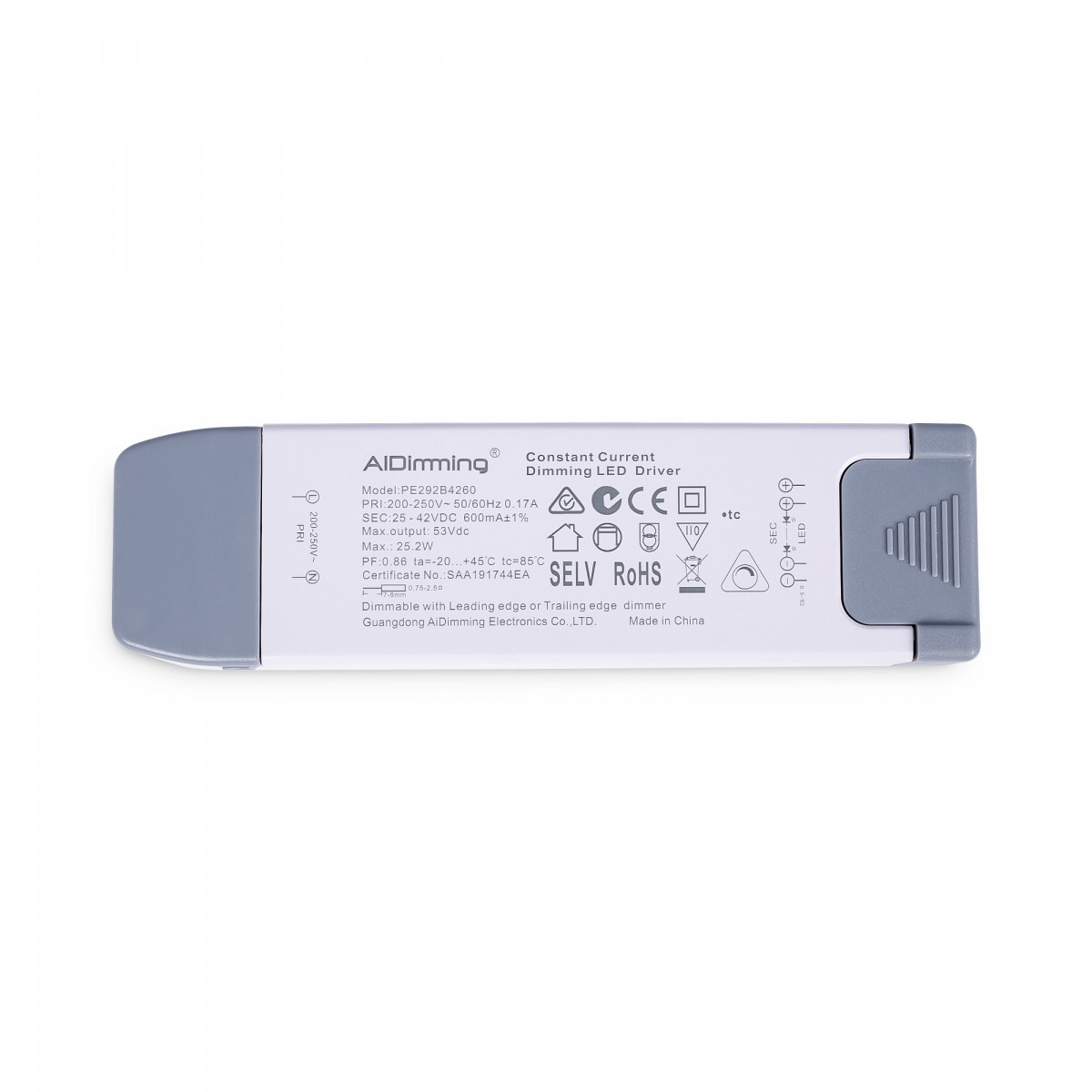

TRIAC dimmable driver - 25-42V DC - 600mA - 25,2W
SKU:PE292B4260
€19.95
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com
The TRIAC dimmable driver is manufactured with high-quality components and a robust design, ensuring a long service life.
It supplies constant current to LED lamps and luminaires up to a maximum of 600mA.
It provides stable, uniform regulation without abrupt jumps. Additionally, it includes an EMC filter to prevent electromagnetic interferences.
It's specially designed to emit light without flickering, ensuring pleasant and comfortable lighting for the eyes, promoting the well-being and productivity of users.
Supports both leading-edge phase-cut dimming and trailing-edge phase-cut dimming.
|
Product features:
|
Nominal Voltage (V)
200 - 250V AC
Power (W)
25
IP
IP20

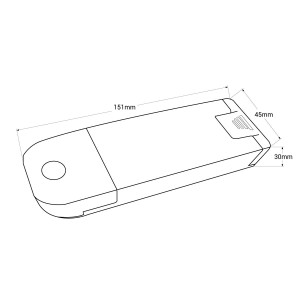

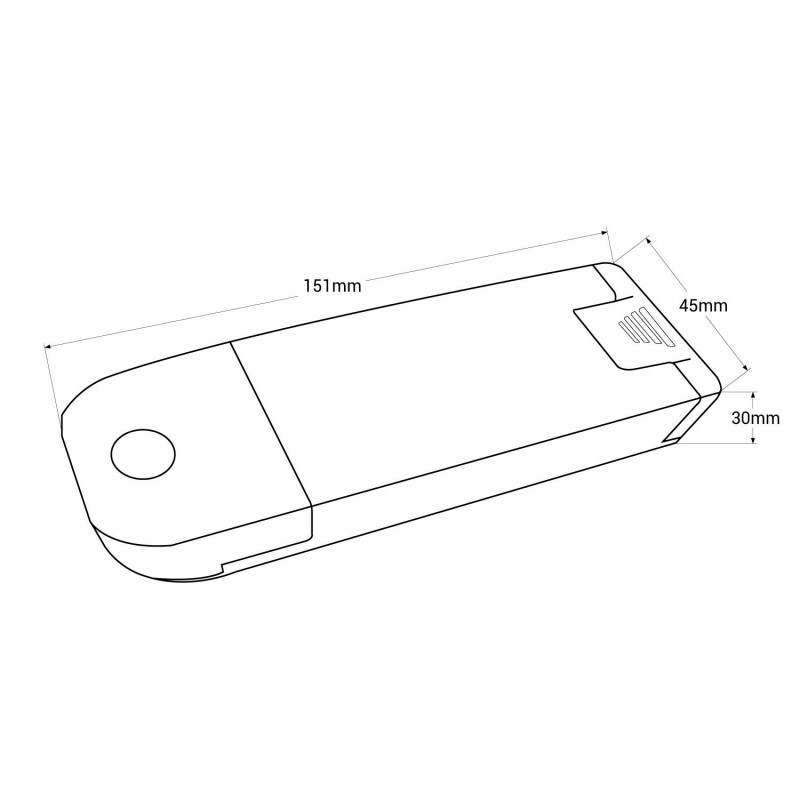

Dimensions (mm) Lxlxh
151 x 45 x 30
Frequency (Hz)
50 - 60
Power factor (cosφ)
0.86
Control system
TRIAC
Output voltage (V)
25 - 42 VDC
Number of channels
1
Material
Plastic
Use Outdoor
No
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
0.6
