TRIAC dimmable driver constant current 25-42V 10.5W 250mA
SKU:PE294R4225
€14.94
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: commercial@barcelonaled.fr
Triac dimmable constant current driver 25-42V/DC 10W
Triac phase cutdimming compatible with most of the phase cut dimmers on the market.
Dimming is a booming system and with TRIAC drivers you will get fantastic results, both for the smoothness of its regulation and its accuracy.
- Driver adjustable by phase cut, regulation range 2-100%.
- Compatible with most dimmers on the market.
- Active PFC.
- Protections: short circuit, overload, high voltage.
- Screw terminals for cables up to 1.5 mm.
- Usable in domestic and commercial lighting.
- Class II protection.
- TUV, CE, ROHS, EMC certified.
- 2 years warranty.
Dimming is a booming system and with TRIAC controllers you will get fantastic results, both for the smoothness of its regulation and its accuracy.

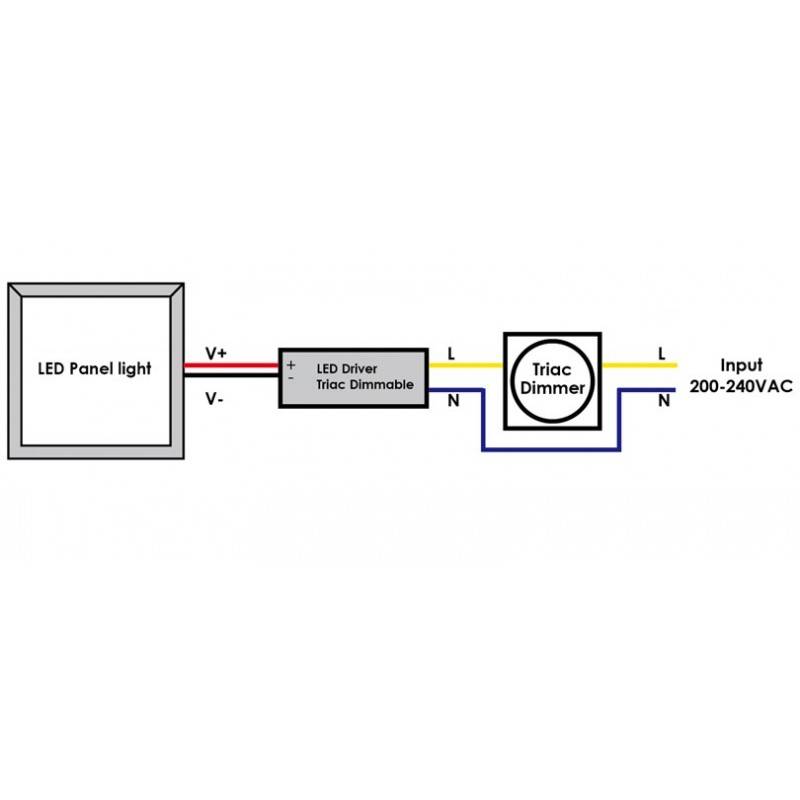

Wiring diagram Triac Dimmer
Nominal Voltage (V)
180-240V-AC
Power (W)
10,5
Lifetime (h)
25000

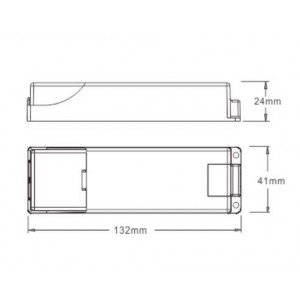

Dimensions (mm) Lxlxh
132x41x24
Frequency (Hz)
50 - 60
Sensor
No
Control system
TRIAC
Output voltage (V)
25-42V-DC
Connectivity
By wiring
Material
Plastic
Use Outdoor
No
Frequency of use
Intensive
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Questions
| P: Question: | Good afternoon. I have made a quotation to customer, including 11 units of TRIAC dimmable driver with ref B4258-250. At the moment you show a stock of 7 units, do you plan to bring more units soon, I mean before the end of this month of March. Thank you very much. |
|---|
| R: Answer: | It is not likely to be in stock at the end of this month of March, perhaps the model PE294B4230 or a multi-current by PUSH regulation ref. PE10DA42 can serve you. |
|---|
