TRIAC dimmable driver constant current 43-70V 20W 250mA
SKU:PE296R7025
€12.95
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: commercial@barcelonaled.fr

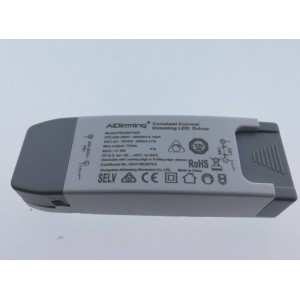

Dimmable Triac driver with constant current 43-70V/DC 20W
Triac driver used for dimming downlights or panels up to 20 watts of power.
Triac phase cutdimming compatible with most phase cut dimmers on the market.
Dimming is a booming system and with TRIAC controllers you will get fantastic results, both for the smoothness of its regulation and its accuracy.
- Driver adjustable by phase cut, regulation range 2-100%.
- Compatible with most dimmers on the market.
- Active PFC.
- Protections: short circuit, overload, high voltage.
- Screw terminals for cables up to 1.5 mm.
- Usable in domestic and commercial lighting.
- Class II protection.
- TUV, CE, ROHS, EMC certified.
- 2 years warranty.
Triac Dimmer connection diagram
Nominal Voltage (V)
180-240V-AC
Power (W)
20
Lifetime (h)
25000
IP
IP20
Dimensions (mm) Lxlxh
104x39x26
Frequency (Hz)
50 - 60
Sensor
No
Control system
TRIAC
Output voltage (V)
43-70V-DC
Connectivity
By wiring
Number of channels
1
Material
Plastic
Use Outdoor
No
Temperature range
-20 ~ +65°C
Frequency of use
Intensive
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Questions
| P: Question: | What is the exact size of this transformer because I see 2 different picture both with different dimensions |
|---|
| R: Answer: |
Barcelona LED: Jhosimar| 05/12/2024 |
|---|
| P: Question: | How long does this driver take to start up? I have tried another 18W triac driver from another brand and it takes 1 or 2 seconds, which is too slow for use with motion sensors. I would like one that is almost instantaneous. |
|---|
| R: Answer: | We do not have specific data on start-up times, but they are usually less than 1s. The times may vary depending on no-load or pre-load starts. |
|---|
