LED REGULATOR

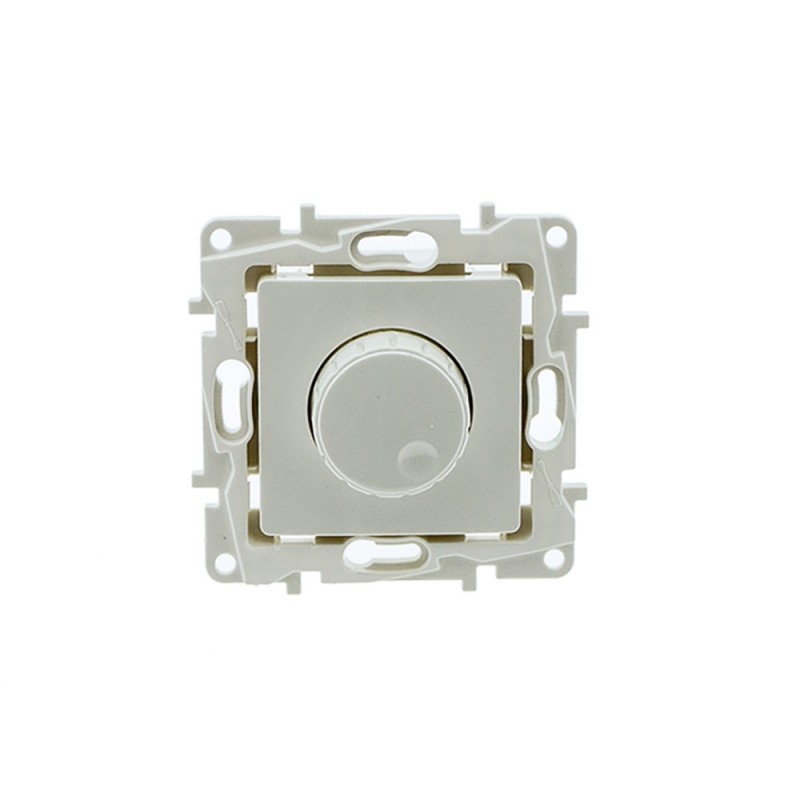

200W 230V rotary regulator for recessed mounting and trim frame

200W 230V rotary regulator for recessed mounting and trim frame

SKU:B6036-B
Colour
Has superado el límite de unidades
In stock 750 units
Data sheet

Rotary roulettedimmer dimmer mechanism. Compatible with TRIAC systems. Specially designed for LED, dims loads from 10W to 200W maximum. Linear dimming from 1% to 100% with on/off switch function with the roulette at minimum. Wiring is screwed to the integrated terminal strip. Available in white or ivory color.

Includes trim frame and mounting accessories.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

Dimmer rotary dimmer mechanism 200W 230V

Recessed mechanism with roulette to regulate the intensity of the light. Specially designed for LED dimming, it is compatible with TRIAC systems and supports loads from 10W to 200W, with a voltage of 230V.

Dimming occurs smoothly, without jumps or flicker. With a dimming range from 0.1% to 100%, the mechanism has an on/off function by turning the knob all the way to the left (on/off click).

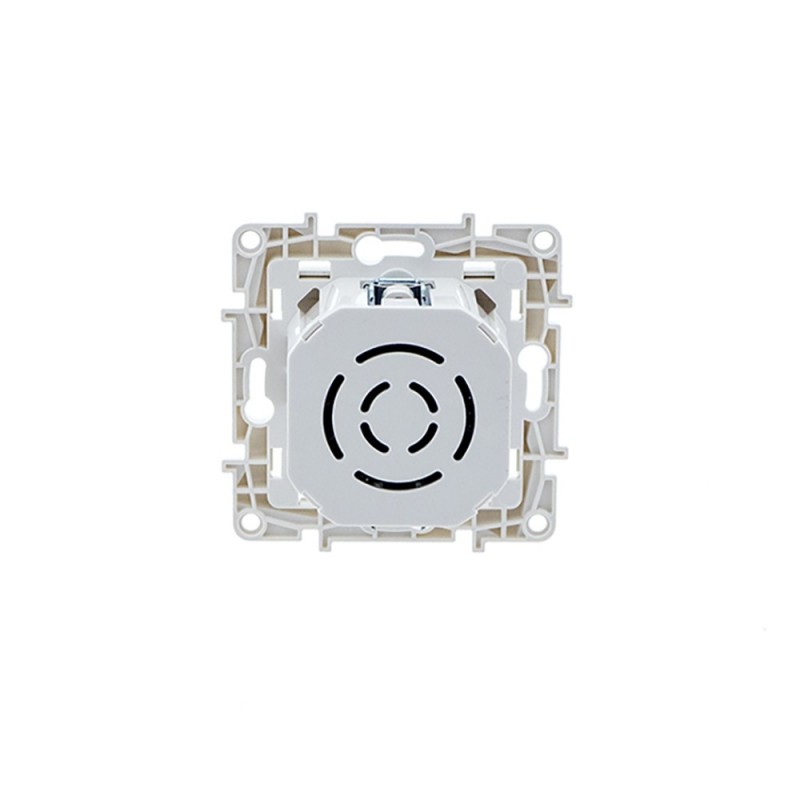

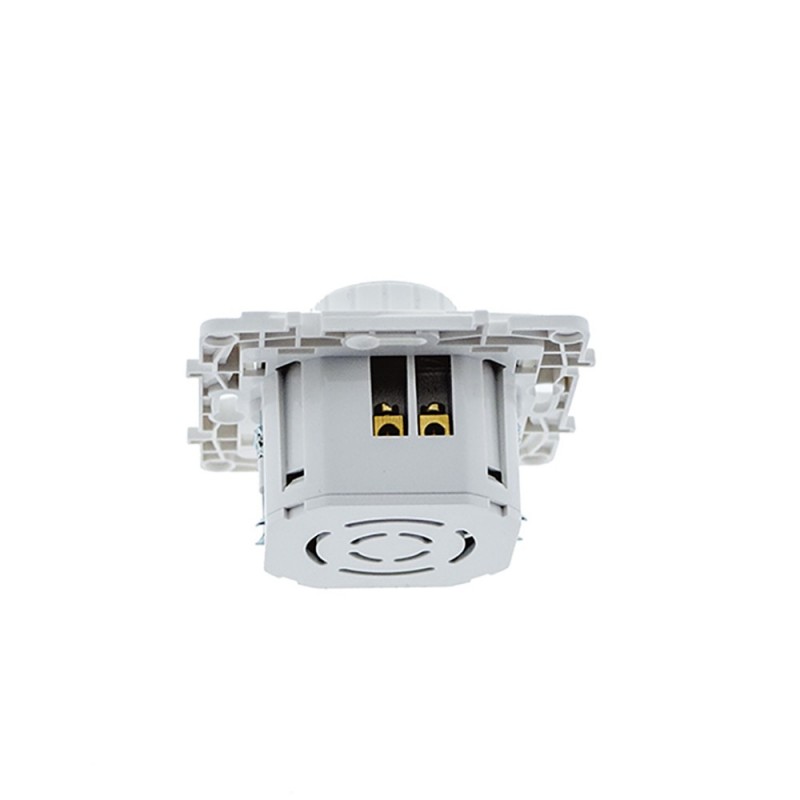

The wiring is fixed directly by screwing to the connections integrated in the mechanism. The device includes the necessary elements for mounting in a universal recessed box.

In order to correctly dim the bulbs connected to the circuit, make sure that the bulbs are dimmable / dimmable. You can find in our bulb catalog a wide selection of dimmable bulbs, both decorative and for intensive / professional use.

The design of the rotary dimmer is minimalist, with a discreet and comfortable roulette, and is perfect for both domestic and professional use, as well as for new construction, renovations and projects.

It includes a single-element trim frame and accessories.

Nominal Voltage (V)
230
Maximum power (W)
200
Lifetime (h)
30000
IP
20
Dimensions (mm) Lxlxh
70x70
Frequency (Hz)
50-60
Dimmable
Yes
Control system
TRIAC
Cutting dimensions (mm)
Ø60
Material
PC
Use Outdoor
No
Frequency of use
Normal
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Barcelona LED

Questions

P: Question: Can it be used to regulate the speed of a domestic ceiling fan (60W, 220 V AC)?
R: Answer: It is for dimming LED loads from 10W to 200W by TRIAC systems. We do not know the use in motor drives.
P: Question: With this dimmer could I use this bulb?
OSRAM Vintage 1906 Edison ST64 E27 7W dimmable LED bulb

In the dimmer features it says it supports loads from 10W to 200W, but the bulb only has 7W.
R: Answer: You may have regulation problems at minimum intensities, you may be interested in ref, B704 allows minimum adjustments.
P: Question: Installed by replacing a single switch (same wires)
R: Answer: If in this model
