Merrytek Motion Sensor Control 1-10V MC054V

Microwave motion sensor for 1-10V luminaires IP65

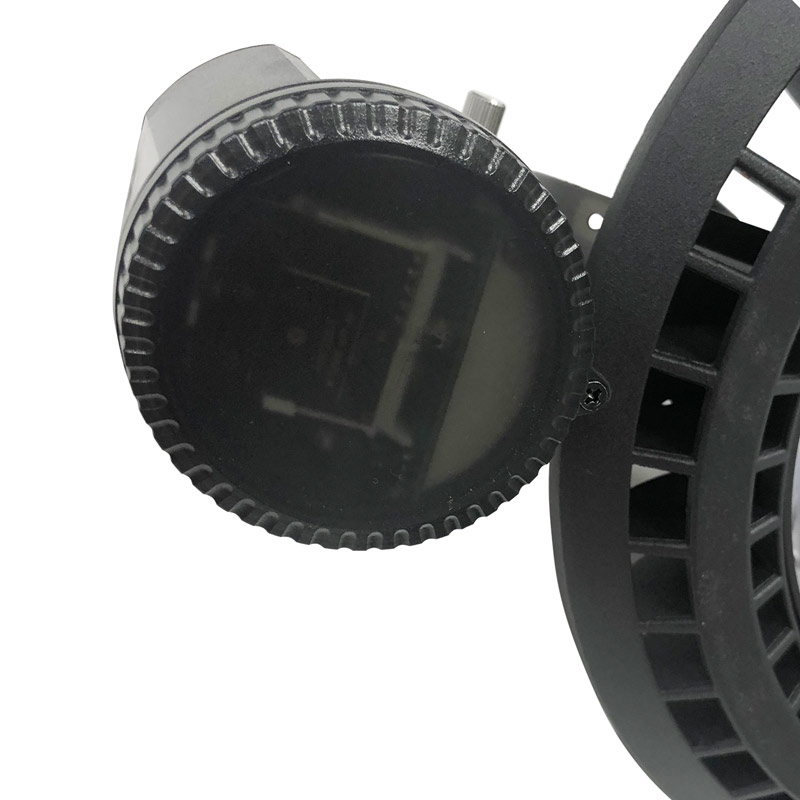

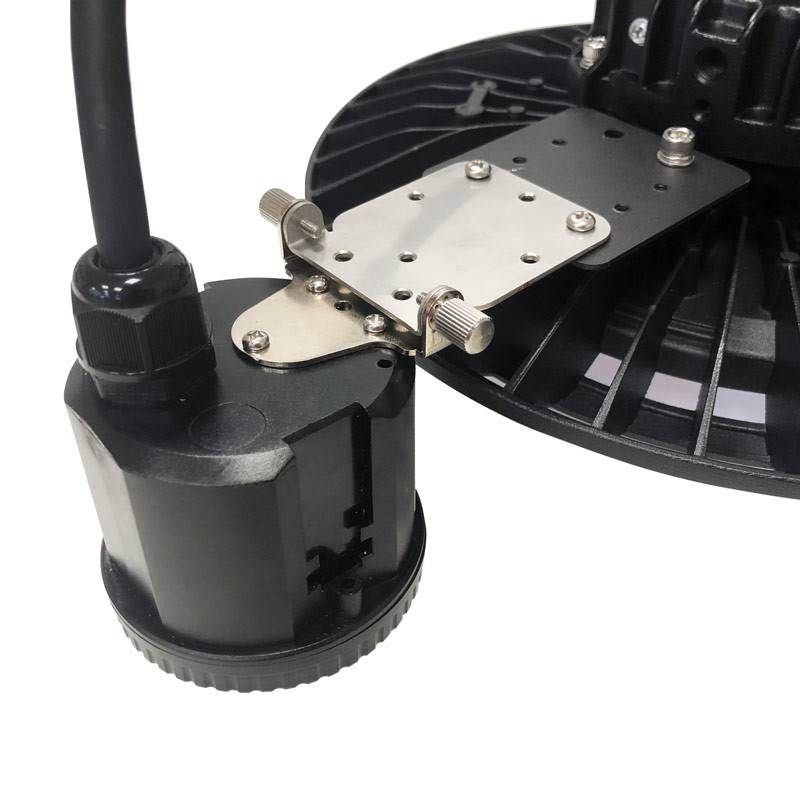

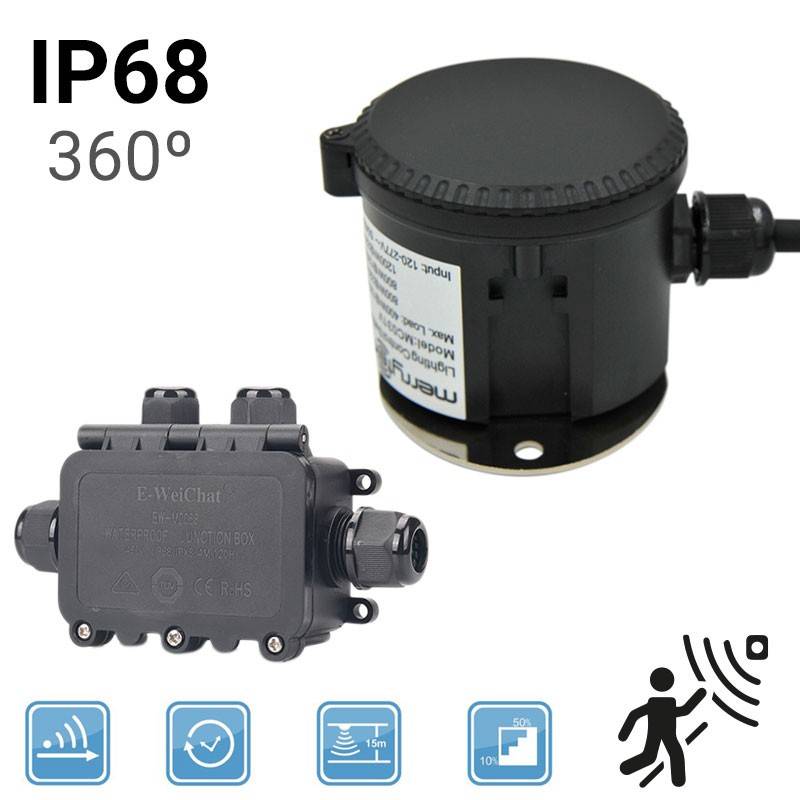

The motion sensor includes a mounting accessory to be placed in the UFO 1-10V 150W or 200W hoods. It includes a watertight, IP68, waterproof box for safe outdoor wiring and installation. It also includes a mounting accessory for easy installation on the hood.

The sensor allows significant energy savings, extending the life of the 1-10V luminaires, since the working time is much better distributed.

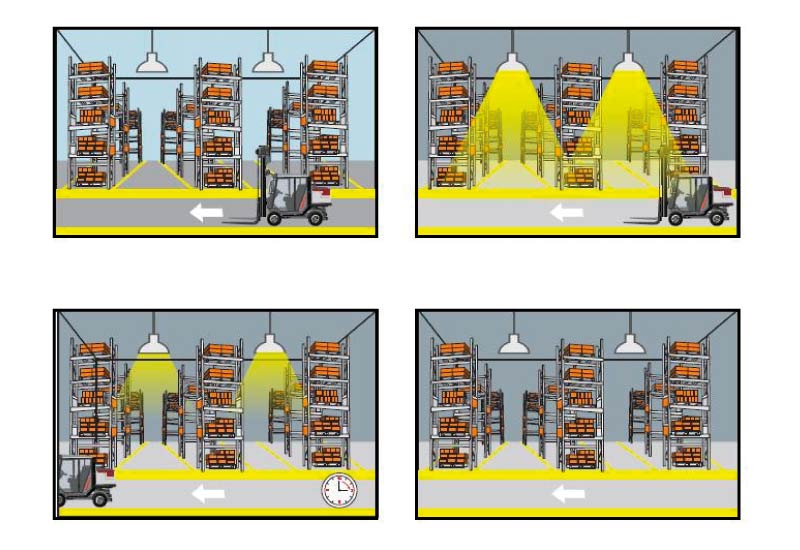

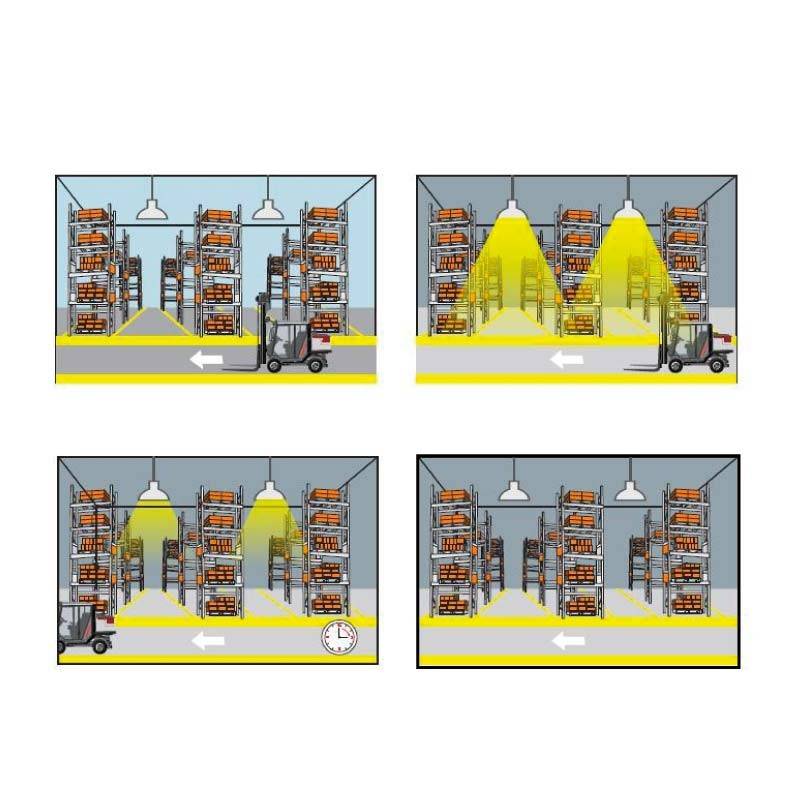

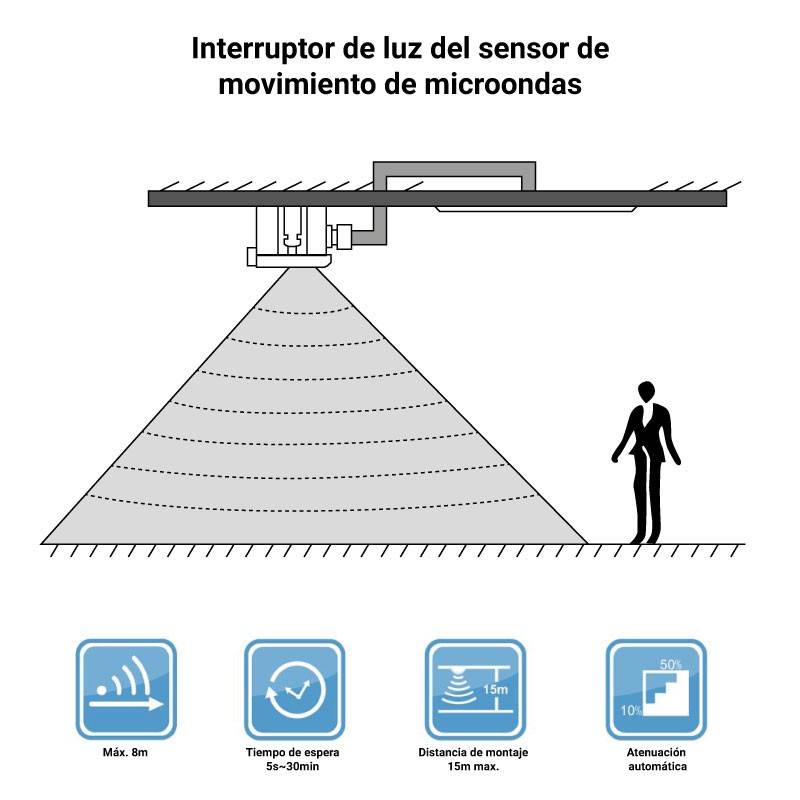

The microwave motion sensor has a maximum mounting height of 15 meters. Automatic dimming. With an adjustable switch-on time from 5 seconds to 30 minutes after detecting motion. It integrates micro-switches to be able to configure the switch-on time after motion detection, brightness level, detection area, etc.

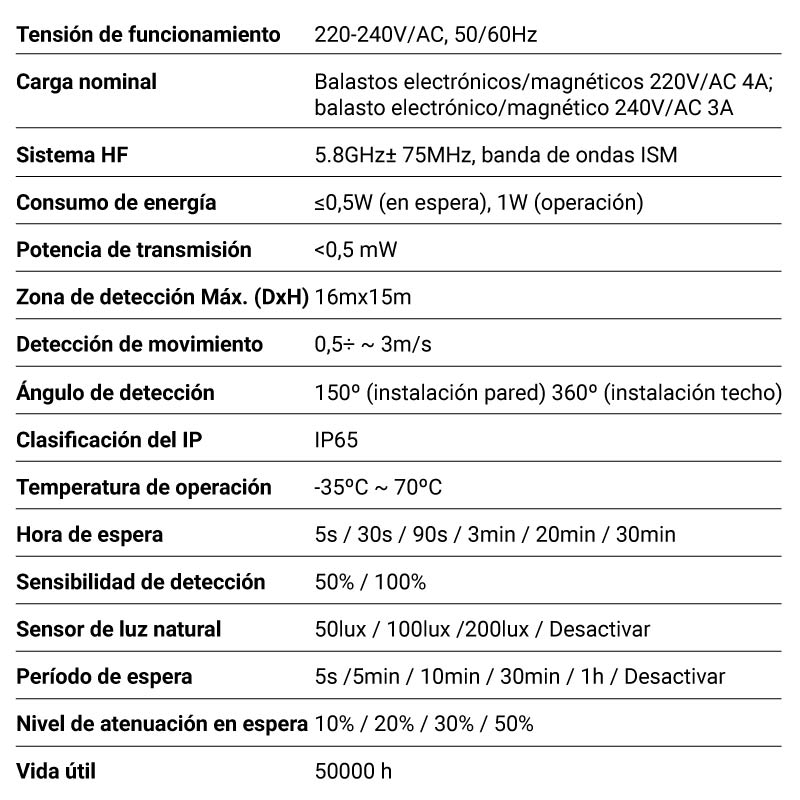

It can be installed both on the wall, with a detection angle of 150 degrees and on the ceiling, with a detection angle of 360 degrees. Microwave motion sensor with IP65 protection degree. Power consumption of <0.5W (standby) and <1W (operating). Maximum load: 800W (LED); 1200W (Incandescent).

Sensor functions.

• ✔ Adjustable daylight interface.
• ✔ Accurately set detection area, time delay, daylight threshold.
• ✔ Dimming function.
• ✔ Wide detection area, up to 16 meters in diameter and 15 meters in height.

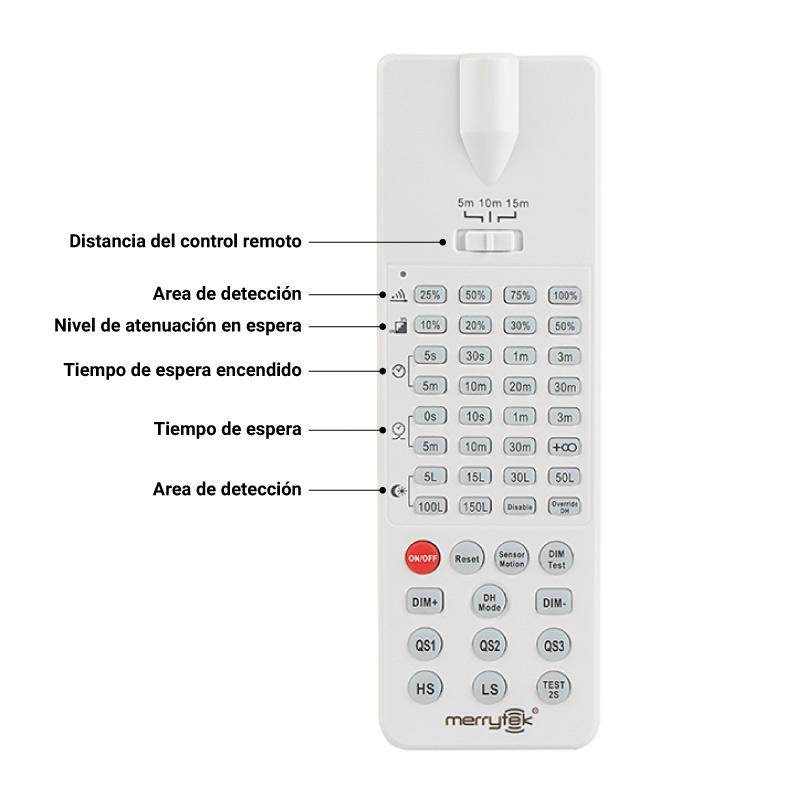

In addition, with the Merrytek MH10 infrared-basedremote control, you can configure the Merrytek MC054V 1-10V sensor remotely.

Remote control functions

• ✔ Distance to the luminaire.
• Detection area.
• Dimming level in standby time.
• ✔ Standby time.
• ✔ Standby time.
• ✔ Daylight sensor.
• The sensor is not compatible with the DIM+; DIM- function of the remote control.

In addition the remote control adds buttons with preset settings.

The remote is powered by two AAA batteries, not included, which are inserted into the cover on the back of the remote control.
