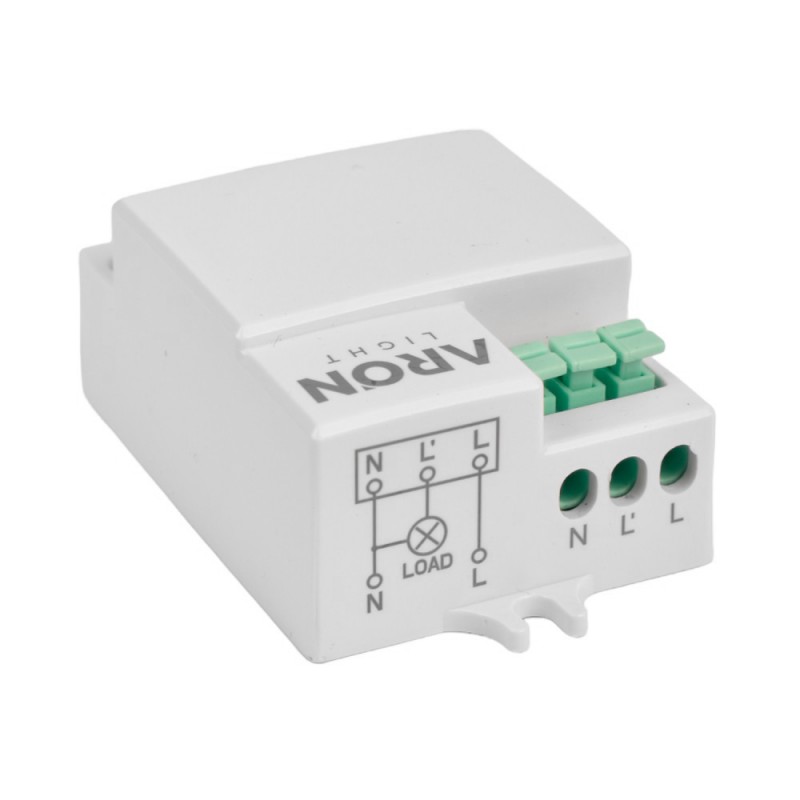

Microwave motion sensor 180°/ 360º Surface - IP20

Microwave motion sensor 180°/ 360º Surface - IP20

SKU:ST701E
Has superado el límite de unidades
Out of stock
Data sheet

Microwave motion detector for installation in ceilings or interior walls, with IP20 degree of protection.

It has a detection angle of 180º / 360º and a range of 5 to 15 meters (wall) or 1 to 8 meters (ceiling).

Maximum supported power of 300W (LED) and 1200W (incandescent).

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

The microwave motion sensor can be used indoors, both for domestic and commercial purposes.

It allows great energy savings, since the sensor turns on the lights only when motion is detected. It allows programming the timeout time, i.e. the time the luminaire turns off once the sensor stops detecting presence, from 10 seconds to 12 minutes.

This sensor is compatible with most of our LED products. It has an almost instantaneous reaction and can detect bodies through doors, glass and thin walls.

Main product features:

  • Voltage: 220-240 V/AC
  • Ceiling or wall surface installation
  • Detection Angle: 180°/ 360°.
  • Rated Load: 300W (LED); 1200W (Incandescent)
  • Dimensions: 54.5 x 39.4 x 25 mm
  • IP20 - Indoor use
  • Detection distance: 5 to 15 meters (wall) / 1 to 8 meters (ceiling).
  • Installation height: Wall: 1.5-3.5 mts / Ceiling: 2-8 mts
  • Timer: 10s-12min
Nominal Voltage (V)
220 - 240 V/AC
Maximum power (W)
300
IP
IP20
Dimensions (mm) Lxlxh
54.5 x 39.4 x 25
Detection angle (º)
180
360
Detection range (m)
5-15 mts.(wall) - 1-8 mts. (ceiling)
Sensor
Yes
Dimmable
No
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
