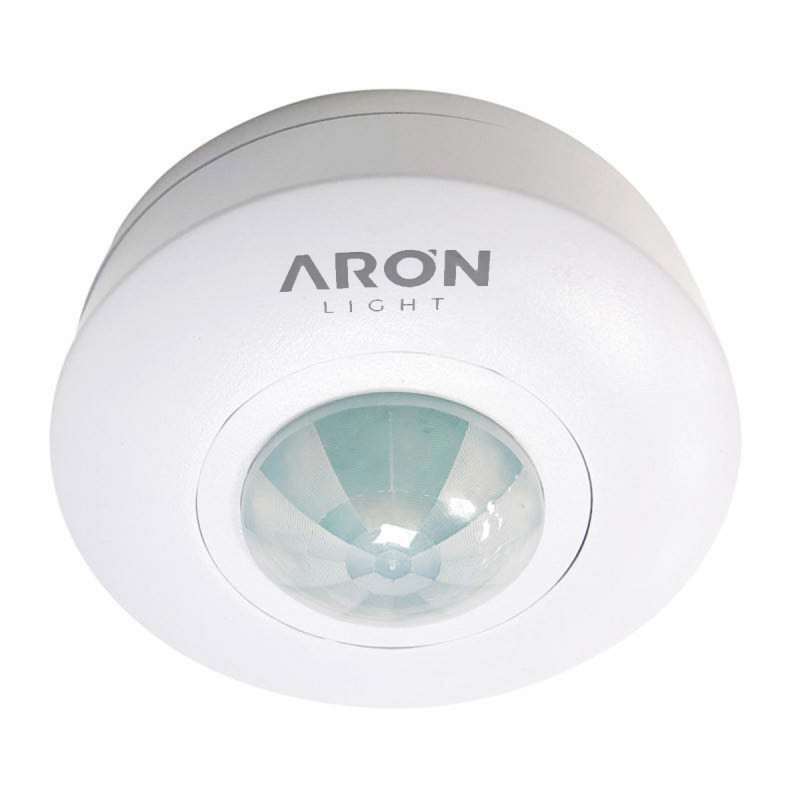

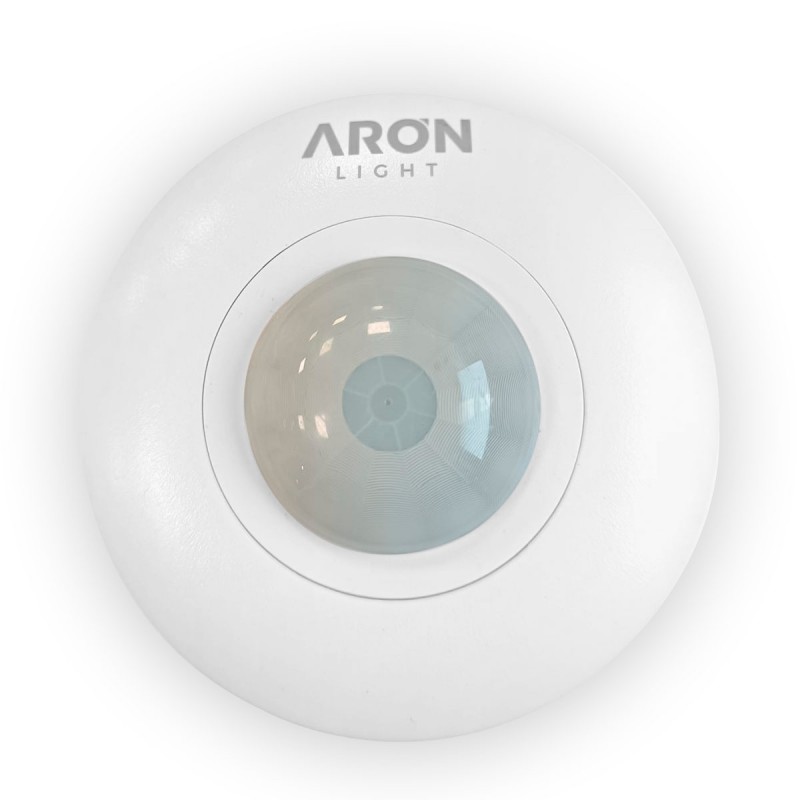

360º surface PIR motion sensor - IP44

The PIR motion sensor is capable of detecting the energy radiated by bodies at a distance of up to 6 meters and can be used for both domestic and commercial purposes by installing it on the ceiling or on the wall.

One of the main features of this sensor is that it can automatically identify day and night light.

It allows great energy savings, since the sensor turns on the lights only when it detects the presence of people. Then, when it detects that there is no one in its radius of action, with a predefined time between 10 seconds and 15 minutes, it turns them off. It is possible to regulate from the switch-off time to the switch-on sensitivity of the device according to the ambient light (in a range from 3 to 2,000 LUX).

This sensor is compatible with most of our LED products and can be configured to operate only at night or all the time, according to the needs of each place and circumstances. It has an almost instantaneous reaction and can detect bodies through doors, glass and thin walls.

PIR surface sensor installation

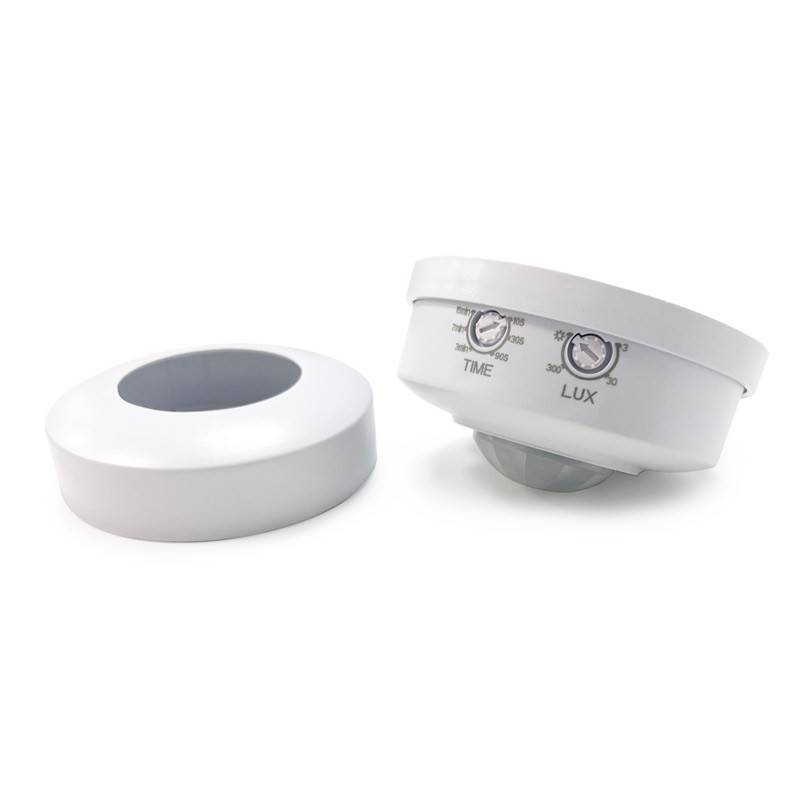

✔ Move the top cover with counterclockwise rotation.

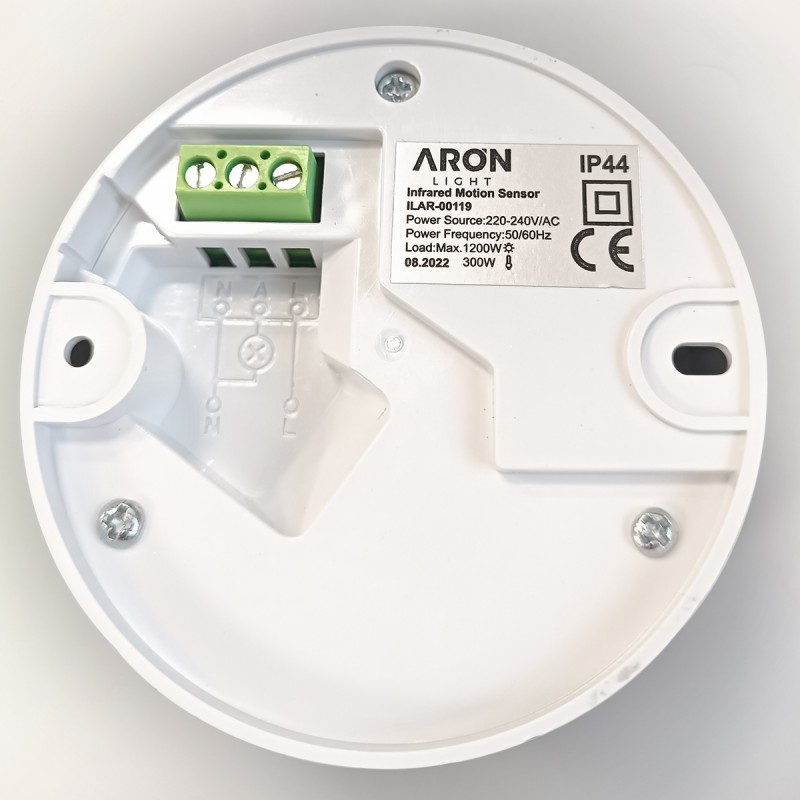

✔ Connect the power and load according to the connection cable diagram.

✔ Fix the lower part in the selected position with the screw.

✔ To install the top cover on the sensor, you can turn on the power and test it.

Technical characteristics.

✔ Voltage: 220-240 V/AC.
✔ S urface installation.
✔ Detection angle: 360º.
Nominal load: 300W(LED); 1200W(Incandescent).
✔ Dimensions: 80x41mm.
✔ Degree of protection: IP44.
✔ Detection distance: 6 meters maximum.
✔ Installation height: 2.2-4m.
✔ Twilight control: <3-2000lux (dimmable).
Timer: 10s-15min.
