Recessed 360º PIR motion sensor - IP20
Recessed 360º PIR motion sensor - IP20
Recessed 360º PIR motion sensor - IP20
Recessed 360º PIR motion sensor - IP20

Recessed 360º PIR motion sensor - IP20

SKU:ST41H
Has superado el límite de unidades
In stock 19 units
Data sheet

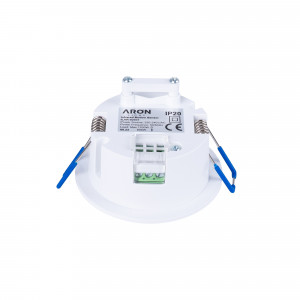

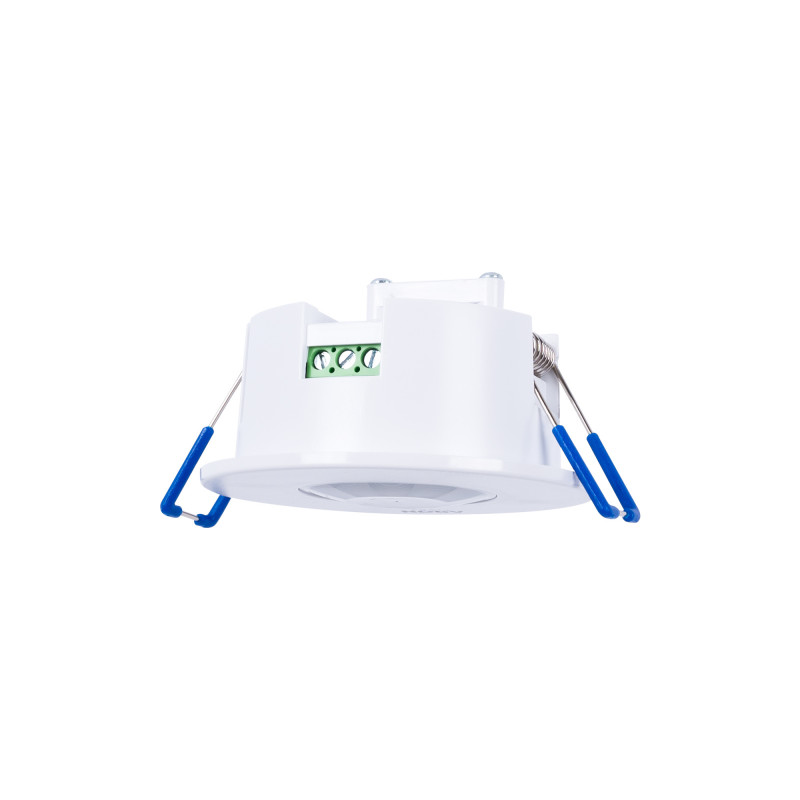

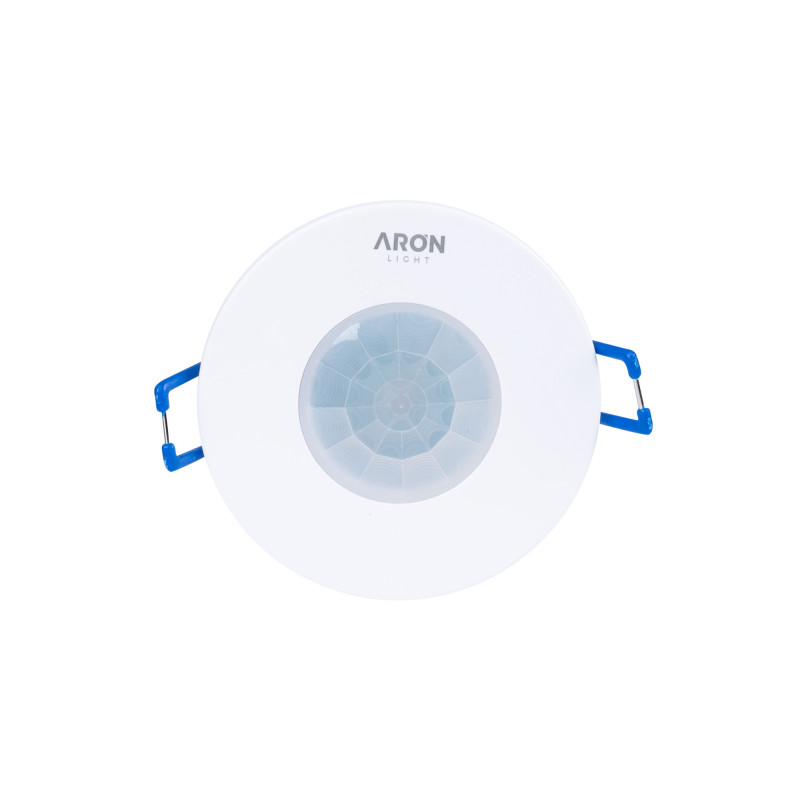

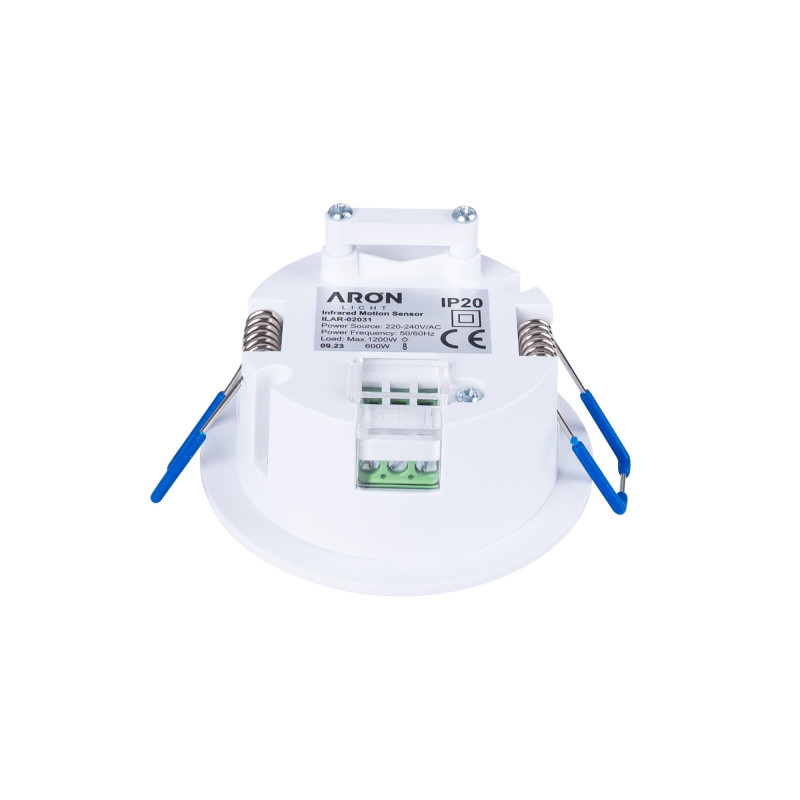

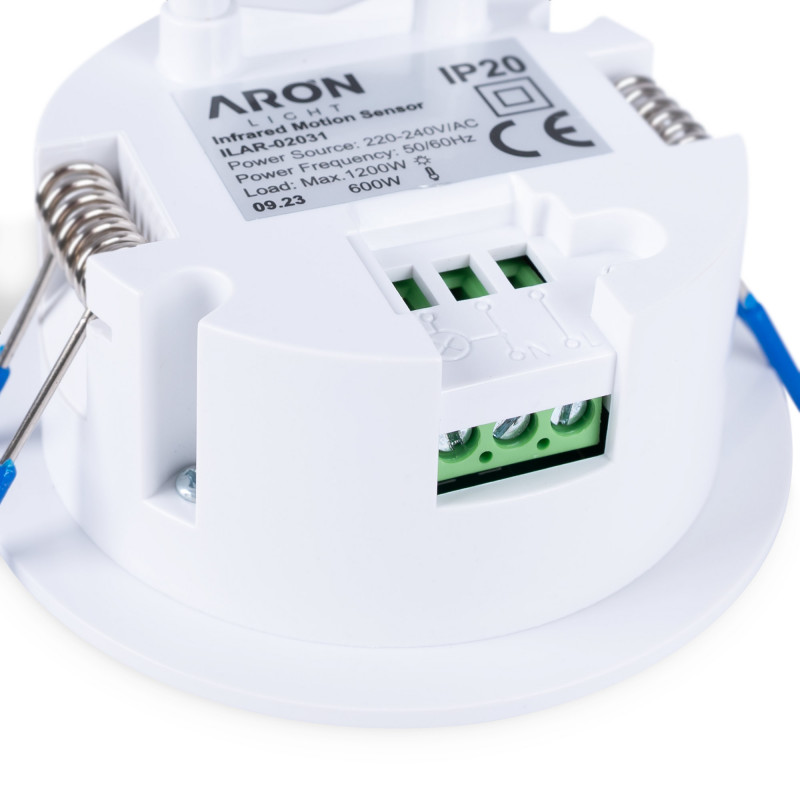

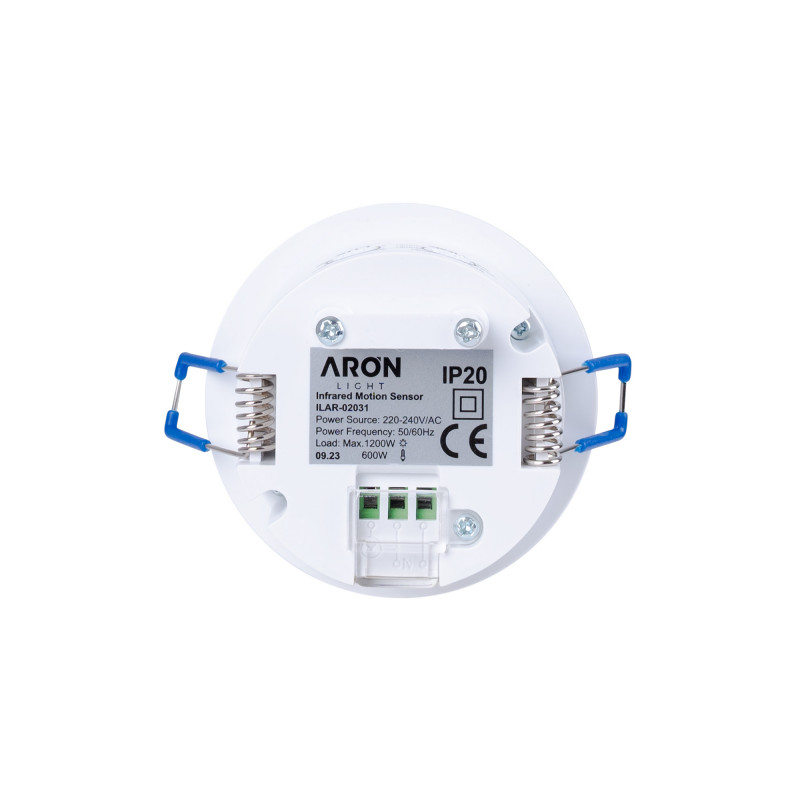

Infrared motion detector (PIR) for indoor ceiling installation, with an IP20 protection rating.

Its infrared sensor detects when someone enters its field at a 360° angle and a distance range of up to 8 meters.

It's capable of identifying both day and night light, enabling efficient utilization of LED products energy.

Maximum supported power of 600W (LED) and 1200W (incandescent).

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

The PIR motion sensor is capable of detecting the energy radiated by bodies at a distance of up to 8 meters and can be used indoors, both for residential and commercial purposes.

One of its main features is the ability to automatically identify both daylight and nighttime conditions.

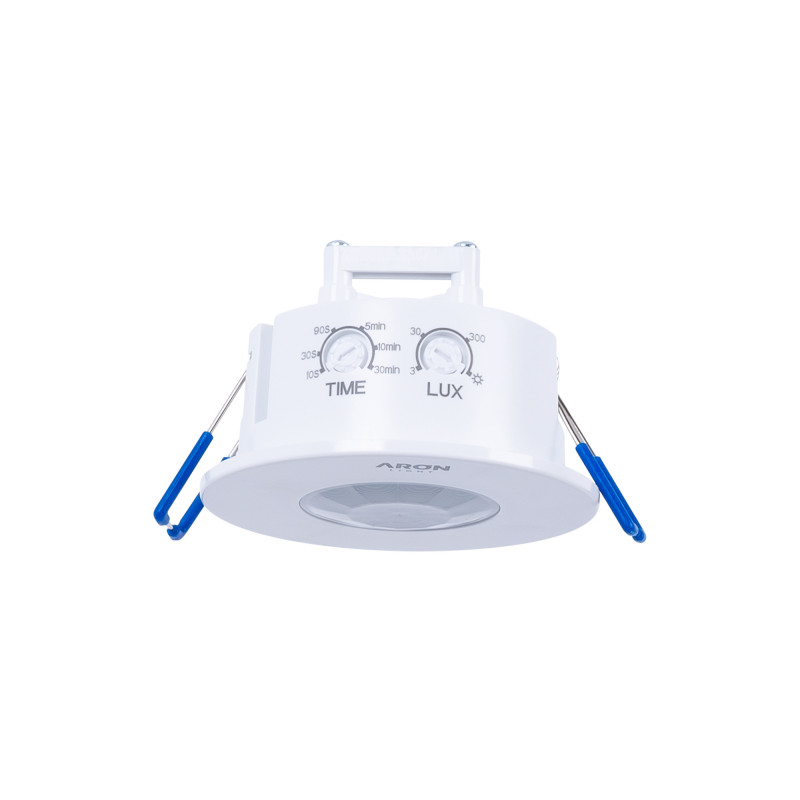

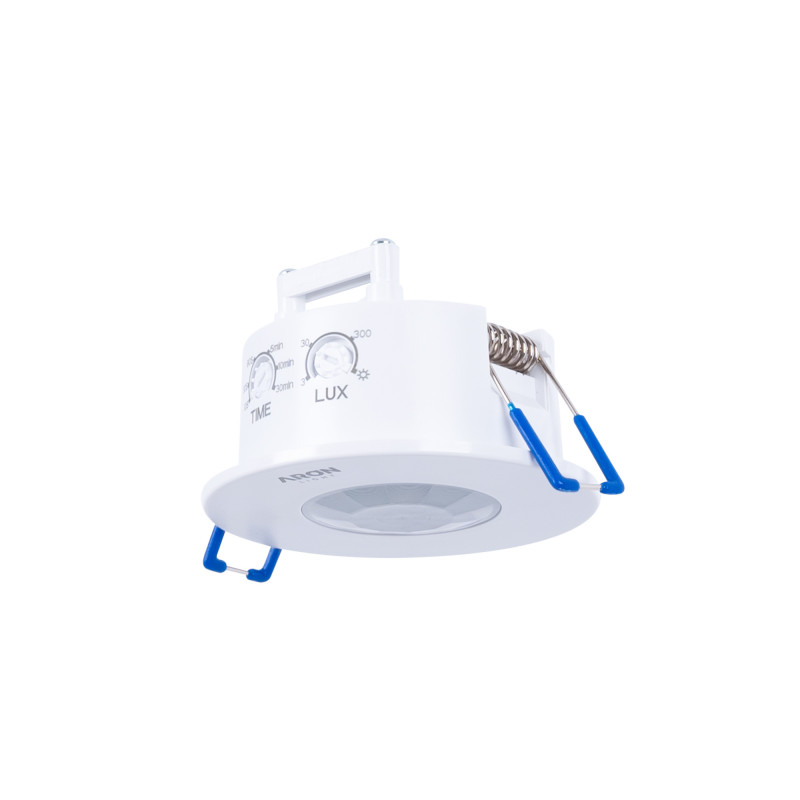

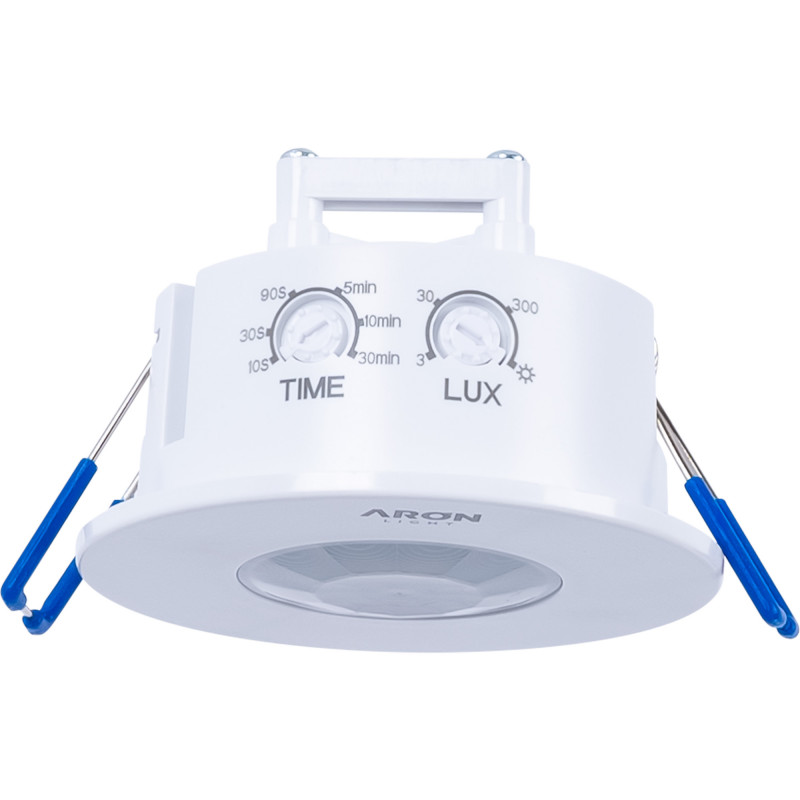

It enables significant energy savings since the sensor activates the lights only when it detects the presence of people. Subsequently, when it detects that no one is within its range, within a predefined time frame ranging from 10 seconds to 30 minutes, it turns the lights off. It is possible to adjust settings, such as the shutdown time and sensitivity of the device based on ambient light conditions (within a range of 3 to 2,000 LUX).

This sensor is compatible with most of our LED products and can be configured to operate only at night or continuously, according to the needs of each place and circumstances. It has an almost instantaneous reaction and can detect bodies through doors, glass and thin walls.

Product features:

  • Voltage: 220-240V AC

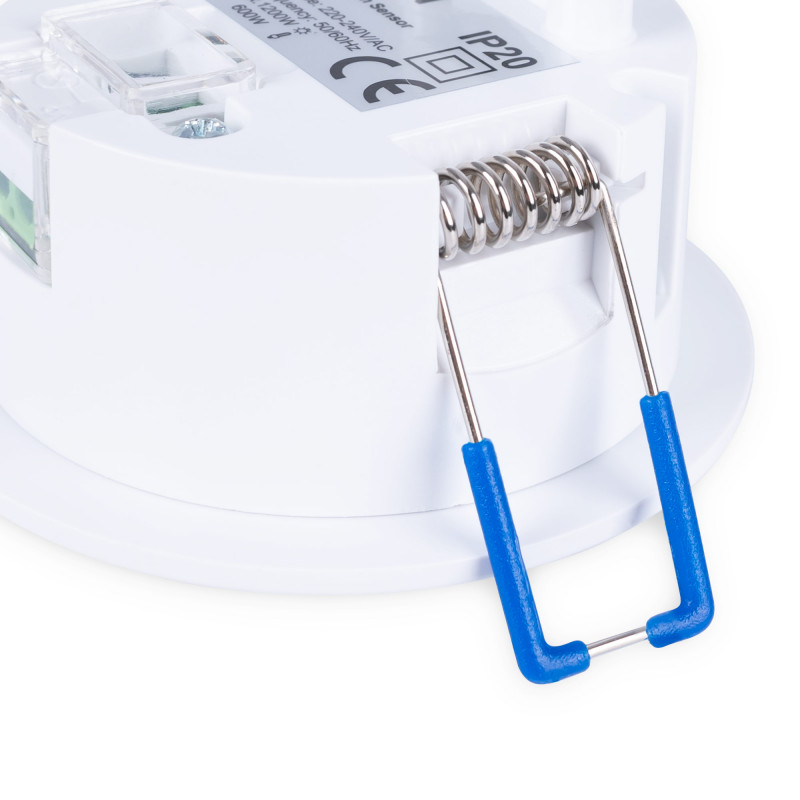

  • Recessed ceiling installation
  • Detection angle: 360º
  • Nominal Load: 600W (LED); 1200W (Incandescent)
  • Dimensions: 75,5 x 46 mm
  • Protection rating: IP20 - Indoor use
  • Detection distance: 8 meters maximum
  • Installation height: 2.2-4m
  • Twilight control: <3-2000lux (dimmable)
  • Timer: 10s-30min
  • Cutting dimensions: Ø60mm

Nominal Voltage (V)
220 - 240 V/AC
IP
IP20
Frequency (Hz)
50 - 60
Detection angle (º)
360
Detection range (m)
0-6
Orientable
No
Material
Plastic
Use Outdoor
No
Temperature range
-20°C ~ +40°C
Frequency of use
Intensive
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Barcelona LED

Questions

P: Question: Good morning, my question is the following: what is the difference between this detector whose reference is ST41 for 9,49€ with another of your catalog whose reference is: S1120 for 7,49€?
In the general characteristics I do not see any difference.
If one is better than the other in some aspect (such as ignition sensitivity) let me know.
Thank you and best regards.
R: Answer: Both are of similar characteristics, we have products from different suppliers.
