Recessed motion sensor 360º IP20
SKU:S1120
€7.49
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com

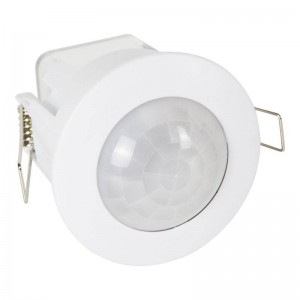

360º recessed motion sensor
It uses a 360º PIR motion sensor capable of sensing the energy radiated by bodies in a range of up to 6 meters. One of the great features of this sensor is that it is able to identify day and night light, thus utilizing the energy of your LED products more effectively.
The flush mount PIR motion sensor
Compatible with most of our LED products and can be adjusted to work only at night or all the time to suit the needs of each place and circumstance.
- VOLTAGE: 230V-AC - 1200W (incandescent); 300W (LED)
- LIGHT SENSITIVITY: <3-2000 LUX
- INSTALLATION HEIGHT: 2.2-4M
- DETECTION ANGLE: 360º
- DIAMETER: 75.50MM
- HEIGHT: 74.50MM
- WEIGHT: 150G
Nominal Voltage (V)
230
IP
IP20
Dimensions (mm) Lxlxh
Ø76x76
Frequency (Hz)
50 - 60
Detection angle (º)
360
Detection range (m)
0-6
Connectivity
PIR
Orientable
No
Weight (g)
150
Material
Plastic
Use Outdoor
No
Temperature range
-20°C ~ +40°C
Frequency of use
Intensive
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Questions
| P: Question: | How many led tubes can be connected to a presence sensor |
|---|
| R: Answer: | Depending on the tubes, the wattages are 1200W (incandescent); 300W (LED). |
|---|
| P: Question: | Hello good mo imiento sensors that put for ceiling work in wall. Thank you |
|---|
| R: Answer: | Yes but it could give some false ignition depending on the place or height. You may be interested in the wall sensors. S3136 or S2180 |
|---|
| P: Question: |
Hello, Good morning, I am waiting for a long time, the motion sensor recessed 360º IP20 Reference:S1120, and the waterproof LED screen compact 120cm 36W 3400lm IP65 Reference:B8410-120BF, it tells me that it will be available soon, but it's been a while and it is still not available. Do you know when it will be available? Please, I am waiting for an answer. Thank you |
|---|
| R: Answer: | For availability, please contact comercial@barcelonaled.com. |
|---|
| P: Question: | Do they light up in 2 strokes? |
|---|
| R: Answer: | Turns on once it detects motion |
|---|
| P: Question: | What is the maximum time it is on? |
|---|
| R: Answer: | This motion sensor will be on for about 10 minutes. |
|---|
| P: Question: | How time is regulated |
|---|
| R: Answer: | The motion sensor has a small device called a switch where the on/off time is regulated. |
|---|
