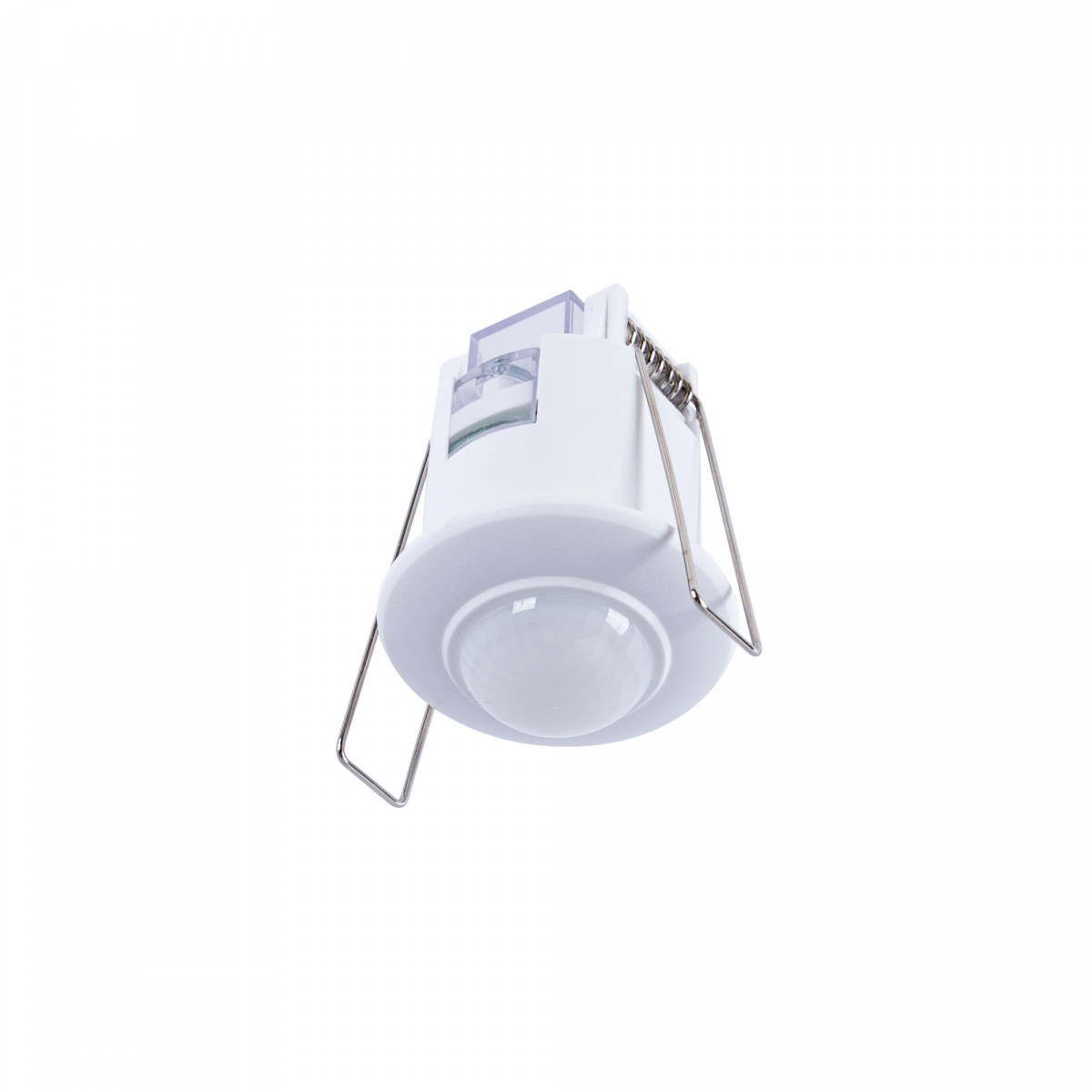

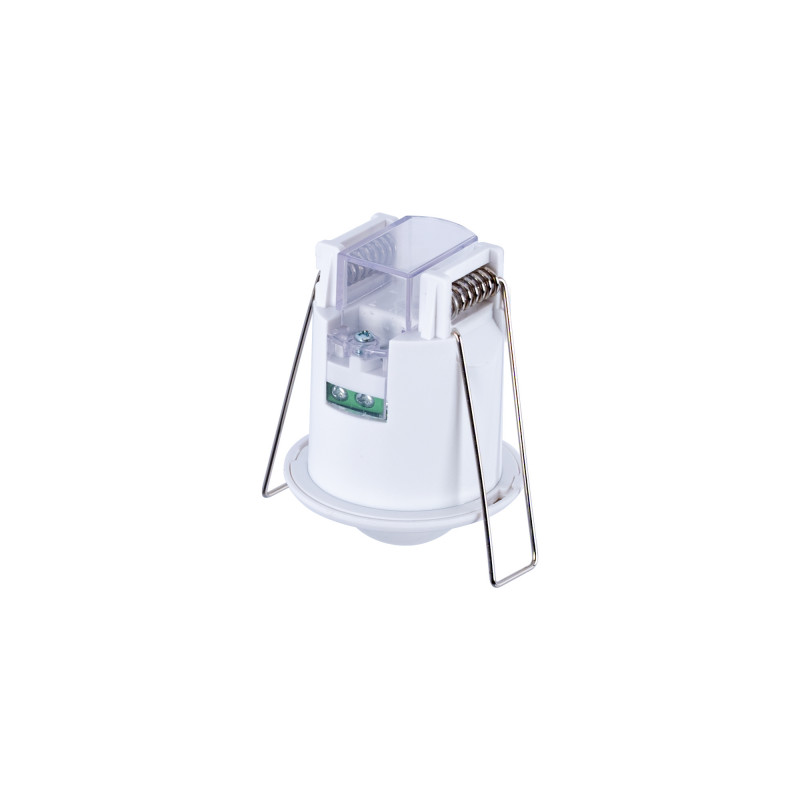

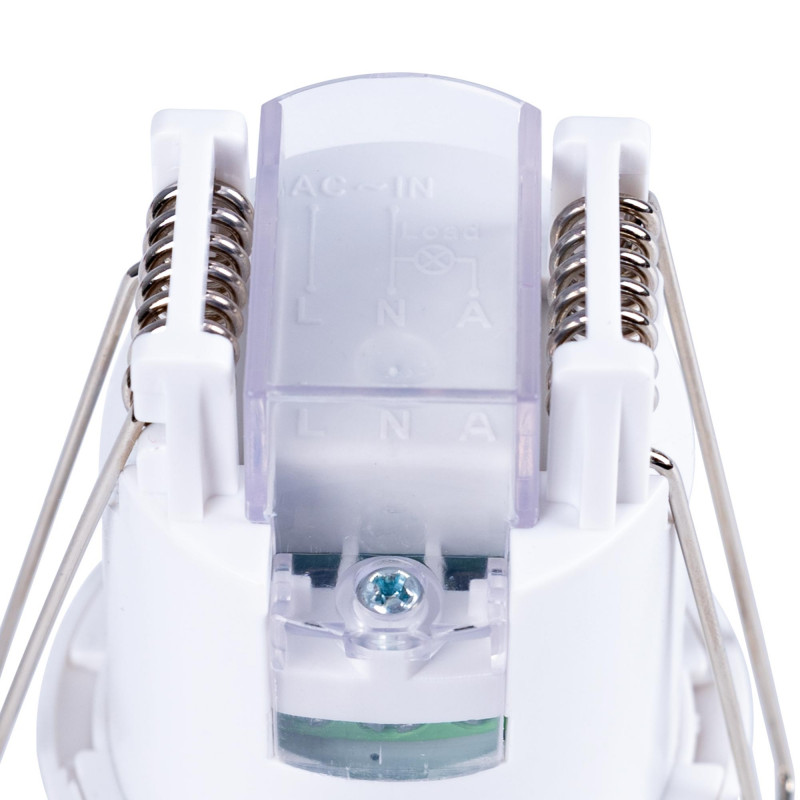

Mini 360º recessed PIR motion sensor - IP20
SKU:SP14A
€10.95
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com
The PIR motion sensor is able to capture infrared emissions from any heat source, without emitting any radiation. It enables energy savings of up to 90% through simple and efficient control of LED luminaires.

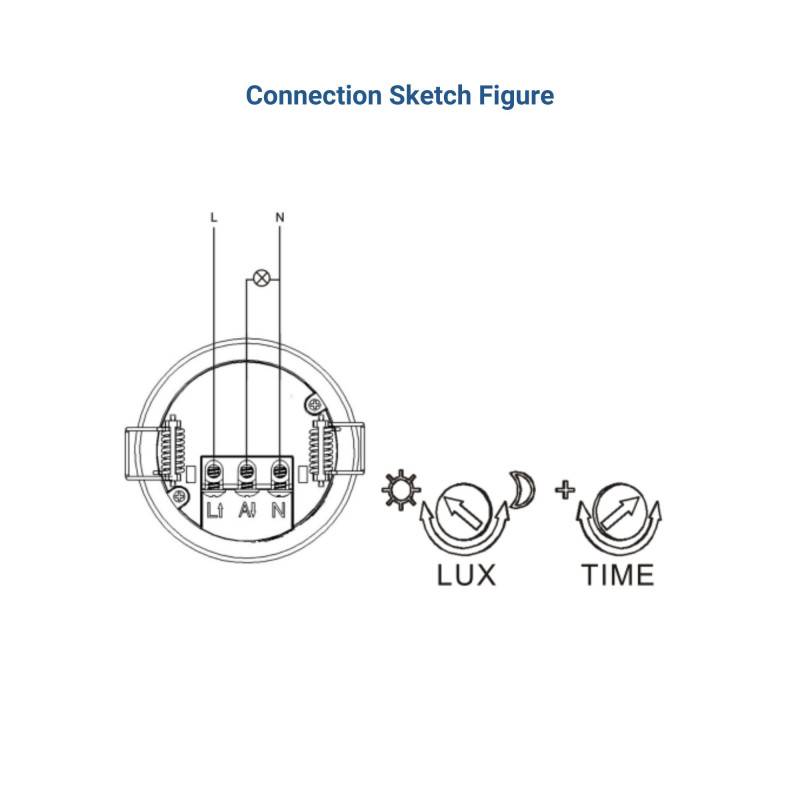

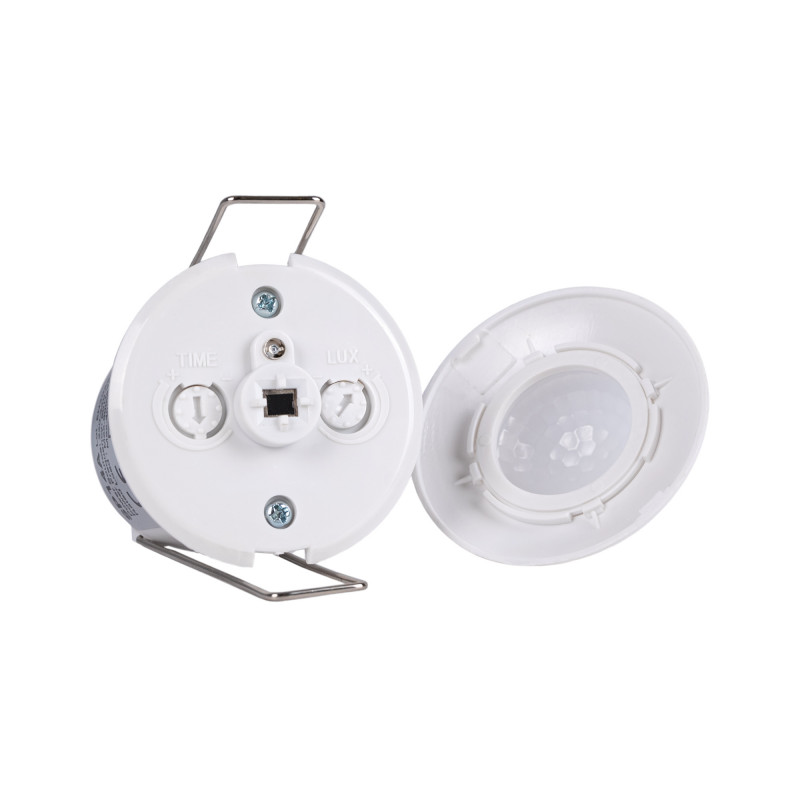

It can operate both day and night by adjusting the light sensitivity. In addition, it's possible to program the standby time, i.e. the time in which the luminaire is switched off once the sensor no longer detects presence.

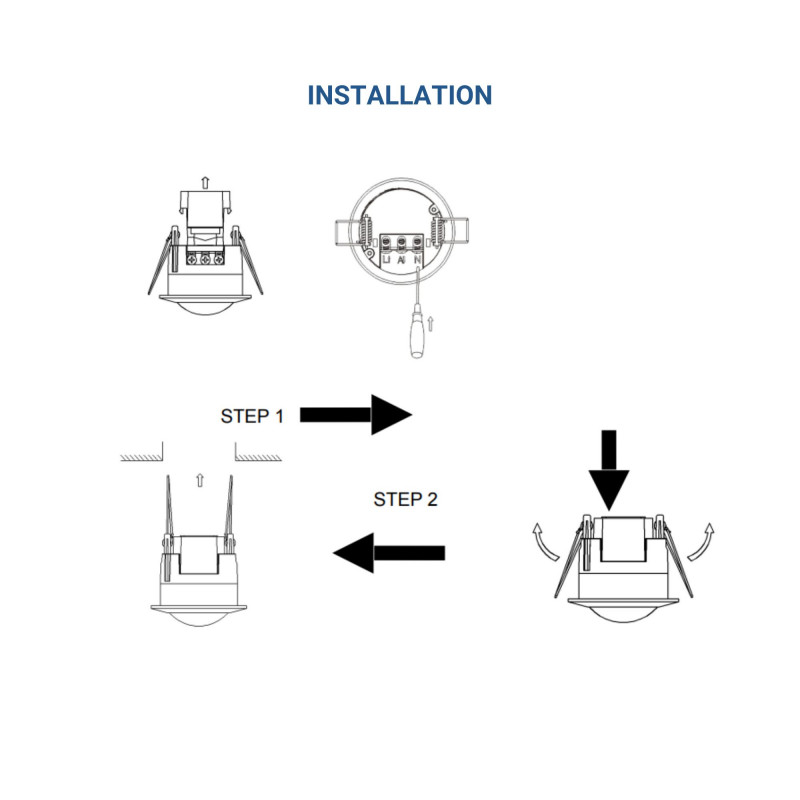

It can be recessed in false ceilings or plasterboard.
It can control up to 150W in the case of LED luminaires and up to 500W in the case of traditional incandescent lamps.
This sensor is compatible with most of our LED products and can be configured to operate only at night or all the time, according to the needs of each place and circumstances. It has an almost instantaneous reaction and can detect bodies through doors, glass and thin walls.
|
Product features:
|
Nominal Voltage (V)
220 - 240 V/AC
Maximum power (W)
400
IP
IP20
Frequency (Hz)
50 - 60
Detection angle (º)
360
Detection range (m)
0-6
Orientable
No
Material
Polycarbonate
Use Outdoor
No
Temperature range
-20°C ~ +40°C
Frequency of use
Intensive
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
