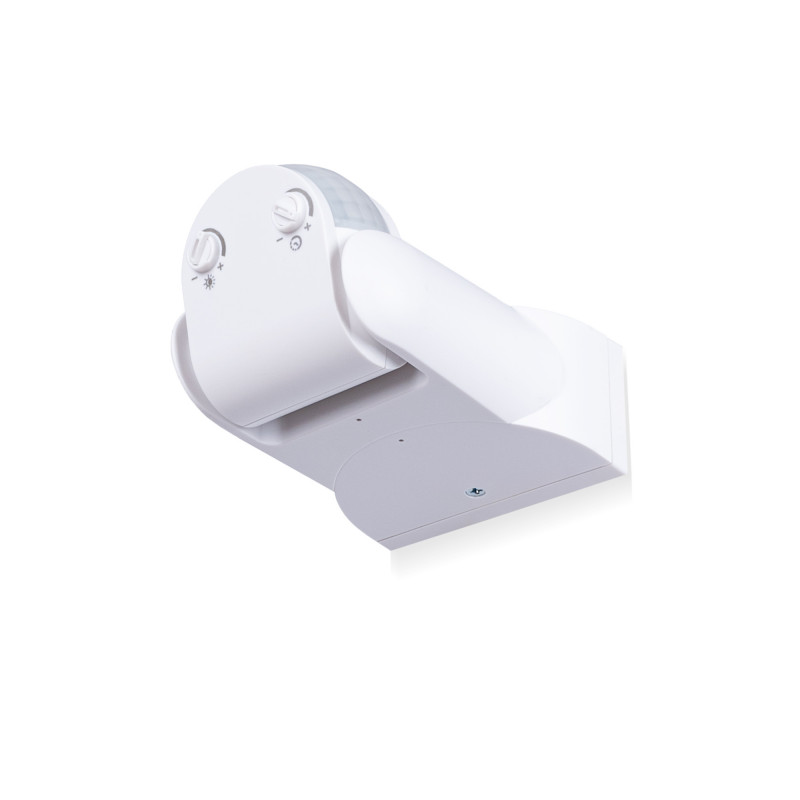

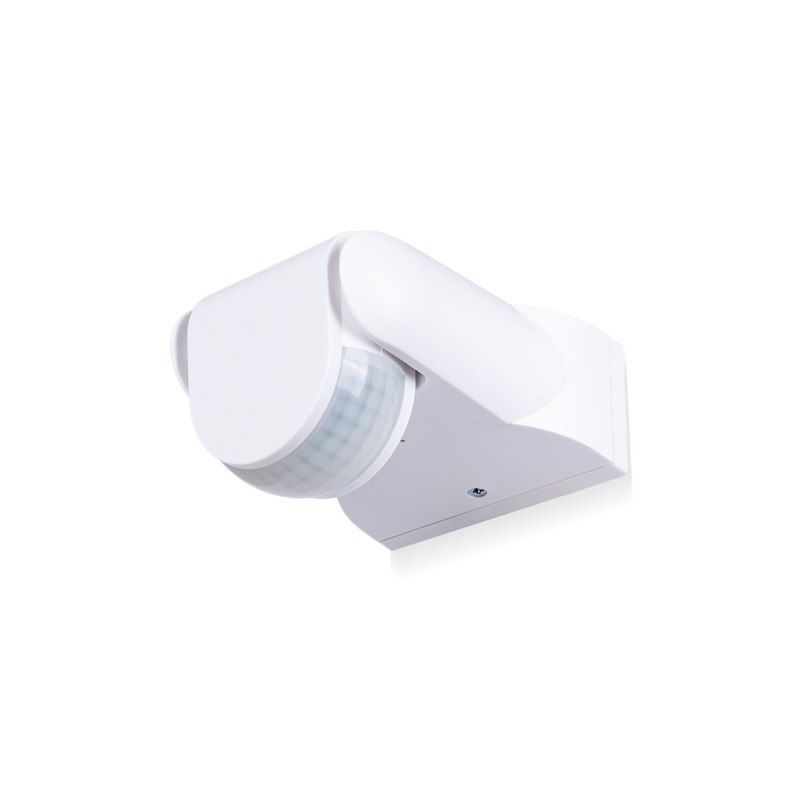

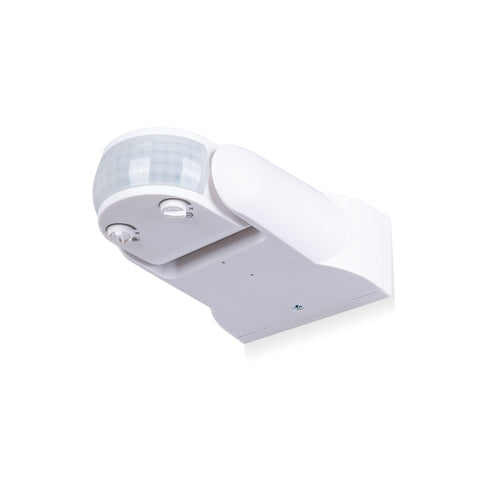

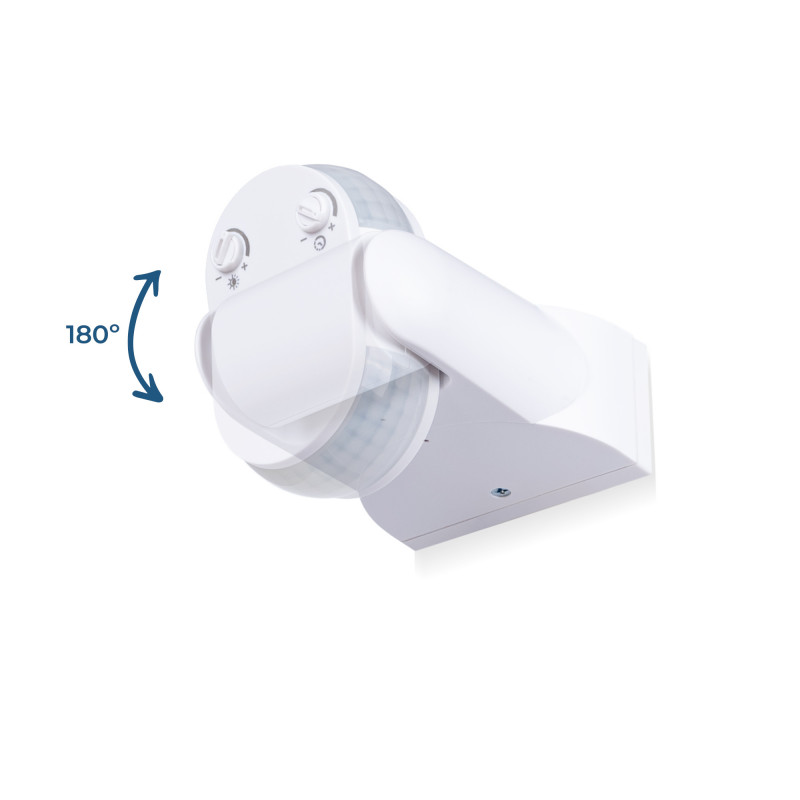

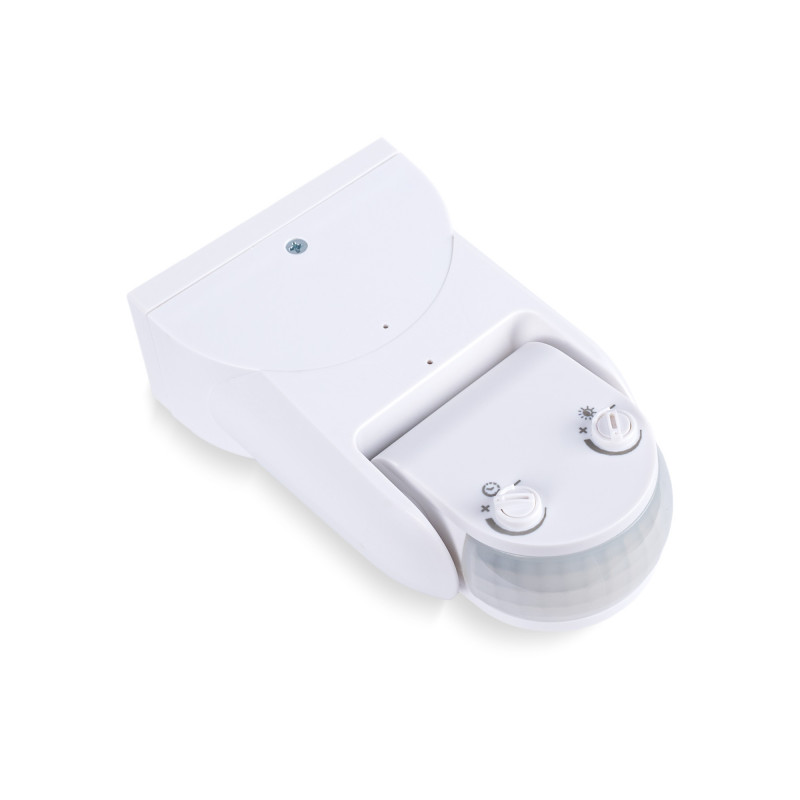

Surface PIR motion sensor 180° - IP65

The PIR motion sensor is capable of detecting the energy radiated by bodies at a distance of up to 12 meters and can be used for both domestic and commercial purposes.

Thanks to its IP65 protection rating, it is resistant to external factors such as rain or dust, making it suitable for outdoor installation.

One of the main features of this sensor is that it can automatically identify day and night light.

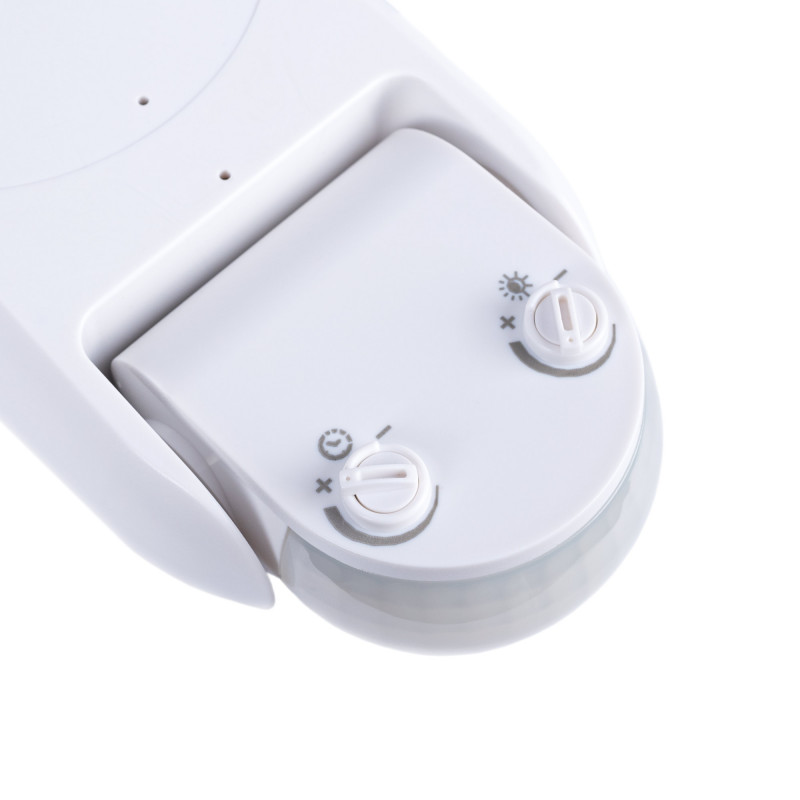

It allows great energy savings, since the sensor turns on the lights only when it detects the presence of people. Then, when it detects that there is no one in its radius of action, with a predefined time between 10 seconds and 15 minutes, it turns them off. It is possible to regulate from the switch-off time to the switch-on sensitivity of the device according to the ambient light (in a range from 3 to 2,000 LUX).

This sensor is compatible with most of our LED products and can be configured to operate only at night or all the time, according to the needs of each place and circumstances. It has an almost instantaneous reaction and can detect bodies through doors, glass and thin walls.

Indoor or outdoor PIR surface sensor installation:

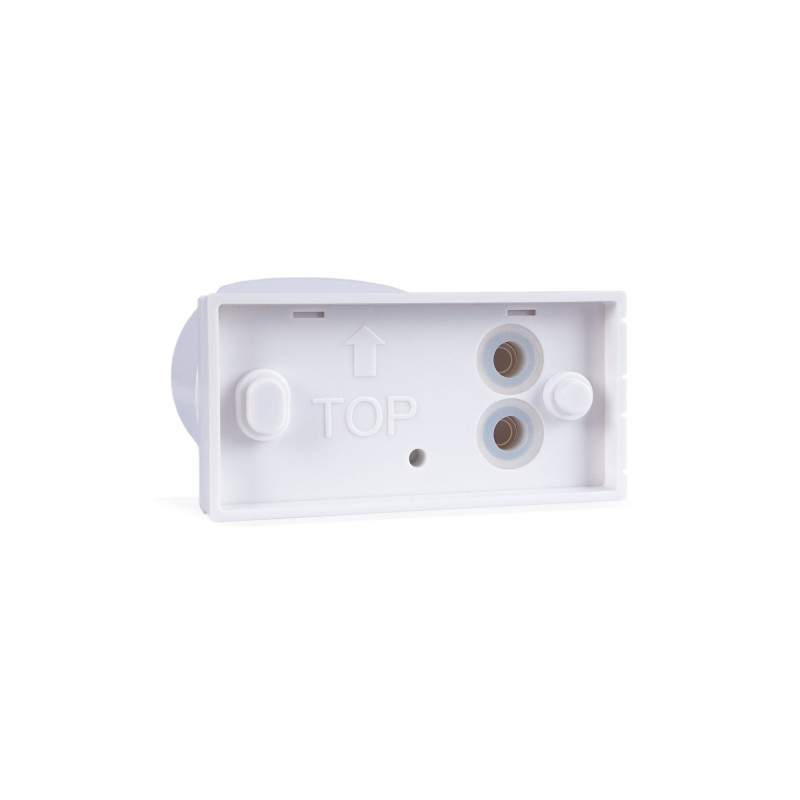

✔ Loosen the screw at the bottom.

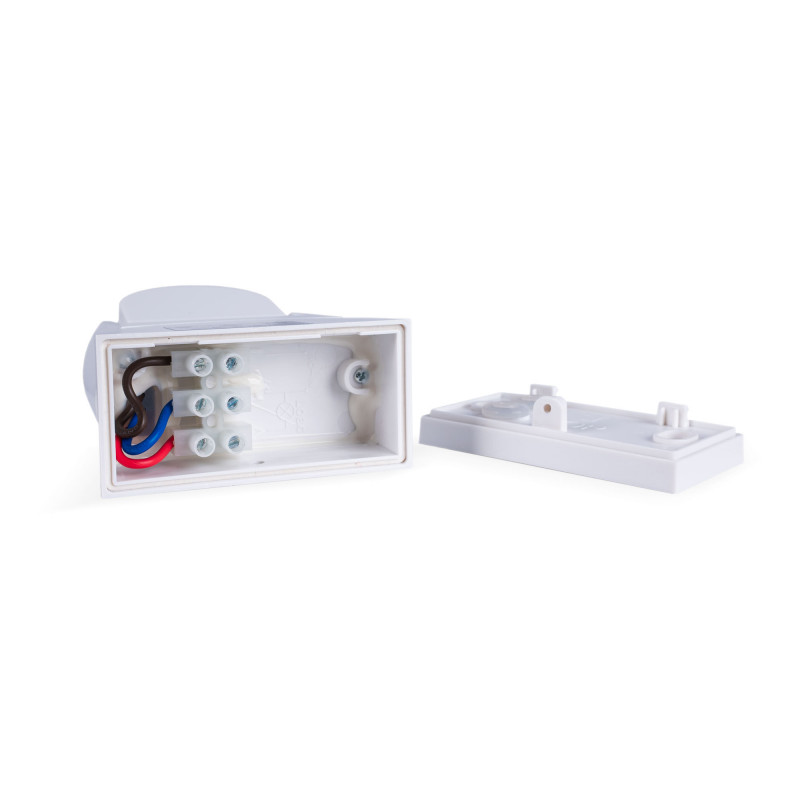

✔ Pass the power cable through the hole with gasket at the bottom. Connect the power cable according to the connection cable diagram.

✔ Fix the sensor to the wall with the screw.

✔ Tighten the screw at the bottom.
