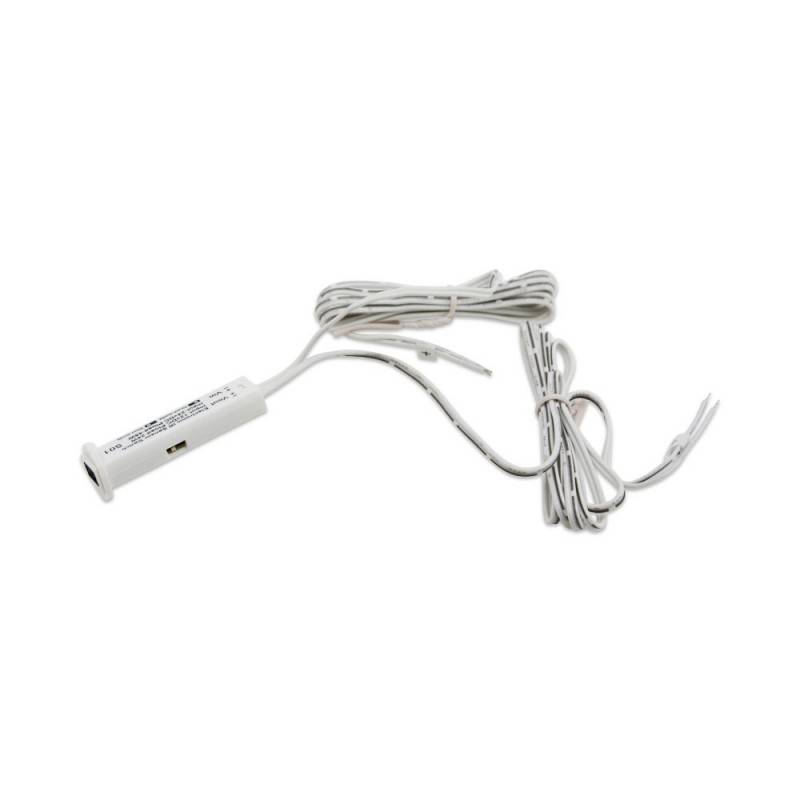

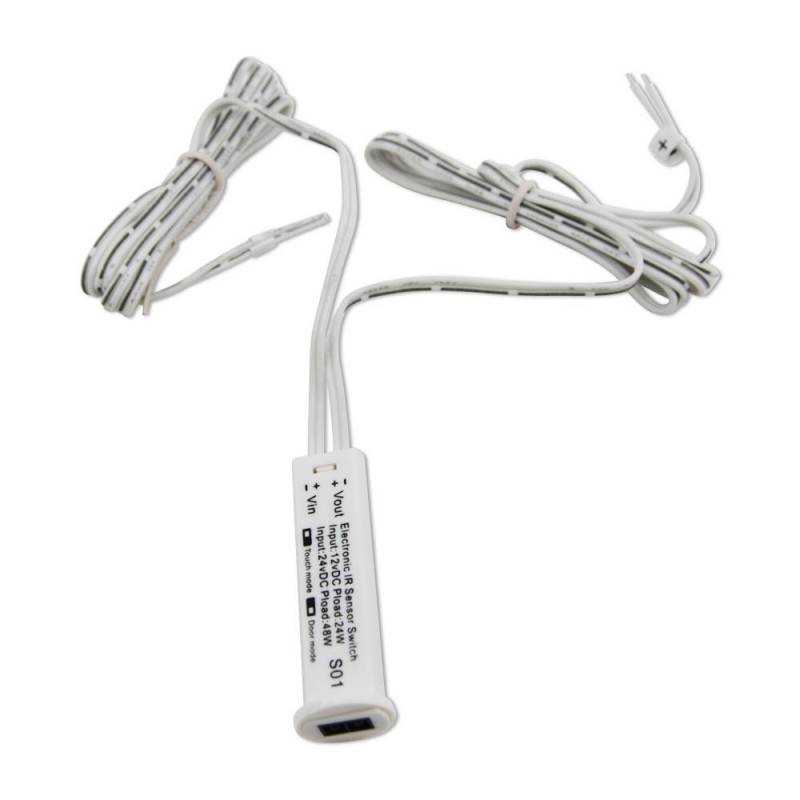

Switch with recessed sensor for cabinets IR 12/24V-DC IP20
SKU:S1200
€9.95
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com
IR sensor off on

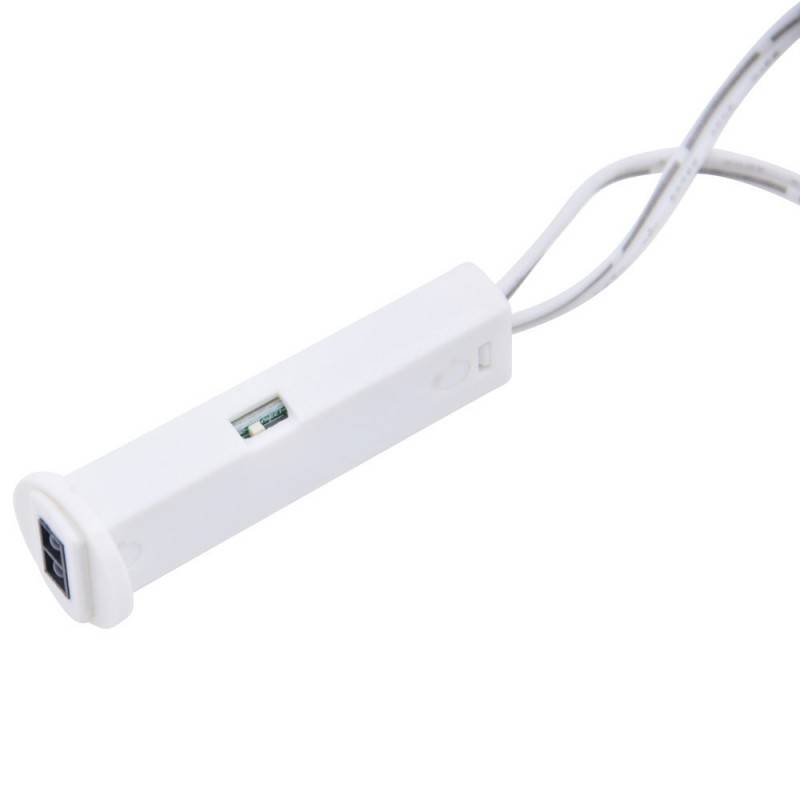

Recessed infrared motion sensor, recommended especially for use in closets or doorways. It is able to turn on when it detects the feedback of a moving object in a range of 5 centimeters.

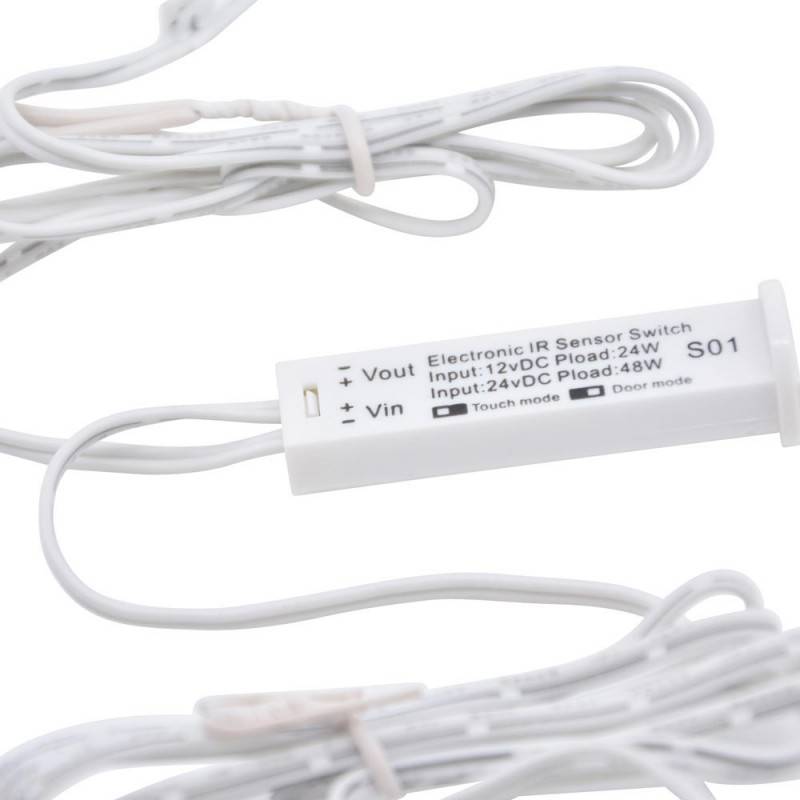

It has two modes of use: door mode (it will detect movements in a range of 5cms to turn on) and touch mode (the detection range is smaller, almost having to touch the sensor to activate it).
This system can be adjusted by means of the button on the left side of the sensor.
Features of the infrared on-off sensor
- Power: 24/48W
- Built-in electronic IRsensor switch.
- Maximumcurrent: 2A
- Detection angle: 100º.
- Detection distance: 4-5cm.
- Height: 17mm.
- Length: 53mm.
- Specially designed for embedding in cabinets.
- It includes trim with dismountable option (both for wall mounting and flush mounting).
Infrared on-off sensor installation instructions
- Respect polarity.
Different uses for the infrared on-off sensor
- 1. To be placed under the cabinet.
- 2. To be placed inside the cabinet.
- 3. To be placed outside the cabinet.
2018-06-02
Nominal Voltage (V)
9.5/30V-DC
Maximum power (W)
24/48
IP
IP20
Dimensions (mm) Lxlxh
Ø17x53
Detection angle (º)
Detection range (m)
4mm-5cm
Connectivity
IR
Orientable
No
Material
Plastic
Use Outdoor
No
Temperature range
-0°C ~ +30°C
Frequency of use
Intensive
Energy efficiency class
F
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
2
Questions
| P: Question: | Hello good afternoon, I require 20 pieces, can you ship internationally to Mexico? Best regards and thank you. |
|---|
| R: Answer: | Yes, contact a sales representative for shipping costs. |
|---|
| P: Question: | Hi, I need the brackets for surface installation, ( S 1200 ) what reference are they ? I can't find them, thank you. |
|---|
| R: Answer: | Surface mounting brackets are not available. |
|---|
| P: Question: |
Good morning. This sensor already has also the transformer to connect to 220v-230V ? or must be purchased separately ? in this case, do you have any available ? |
|---|
| R: Answer: | This sensor model is for LED strips, it is for 12vdc and 24vdc voltages, it is placed between the LED strip and the power supply, it is not connected to 230vac. |
|---|
| P: Question: | Hi, in the case of installing it at the intersection of two cabinet doors, would the lamp turn on and off by opening either door or would it be necessary to open the 2 doors for the lamp to activate. Thank you |
|---|
| R: Answer: | The detection range is 4-5cm if the two doors are in this detection range, the light will not turn on until both doors are opened, as it is always detecting the proximity of an object, in this case one of the doors and it will turn off when any of the two doors are closed. If you want to turn on the light independently, you will have to install two sensors. |
|---|
| P: Question: | When will they be available, thank you |
|---|
| R: Answer: | For IR sensor availability, please contact comercial@barcelonaled.com. |
|---|
| P: Question: |
Hello, I want to illuminate a cabinet with LED. Could you Starting with IR 12/24V-DC IP20 recessed sensor switch for cabinets IP20 Part number:S1200 Could you please tell me which components I would need to purchase? Best regards, |
|---|
| R: Answer: | The customer service department will contact you to assist you with your purchase.
Barcelona LED: Marc| 03/11/2019 |
|---|
