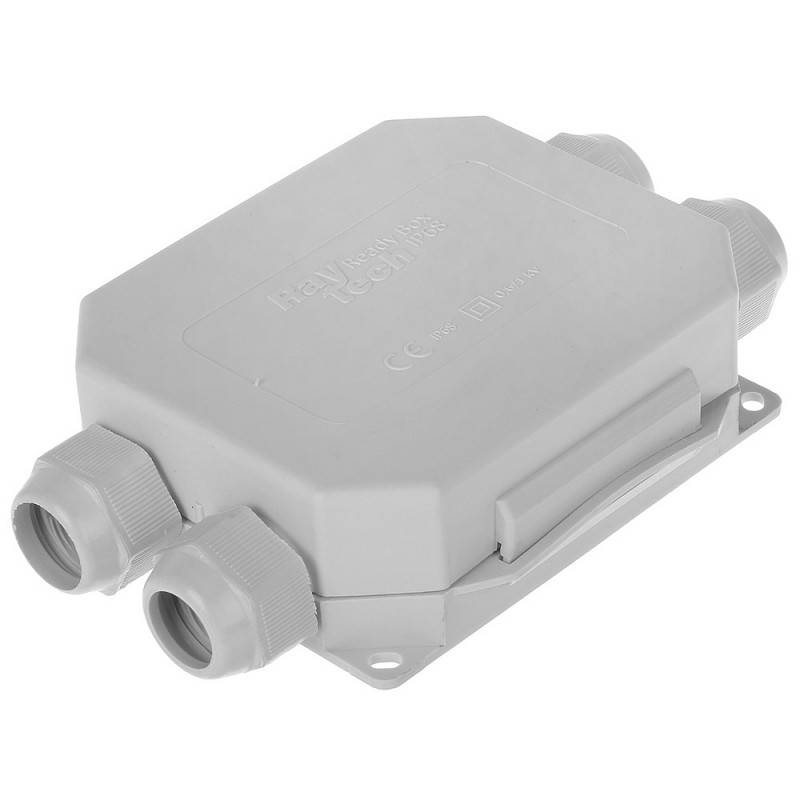

Readybox 120 watertight junction box with integrated IP68 insulating gel with 5 connectors 6MM2

READYBOX IP68 120 WATERPROOF ENCLOSURE WITH INTEGRATED INSULATING GEL AND CONNECTORS

READY BOX IP68 can be installed in the harshest working conditions, protect all types of connectors, screw in flexible tubing thanks to the internal thread of the cable gland accessories or use rigid tubing to pass cables or hoses directly through them.

READY BOX has IMQ IP68 Certification, in addition to EN 50393 Certification,
which consists of subjecting the boxes to an immersion test of about 30 days, with abrupt and continuous temperature changes. After removing the outer sheath of the cable and causing water to seep between the wires, it is possible to verify that thanks to the protection of the Gel the connection is completely isolated.

• Ready to use. Can be installed in any environmental condition.
• Suitable for humid or flooded environments.

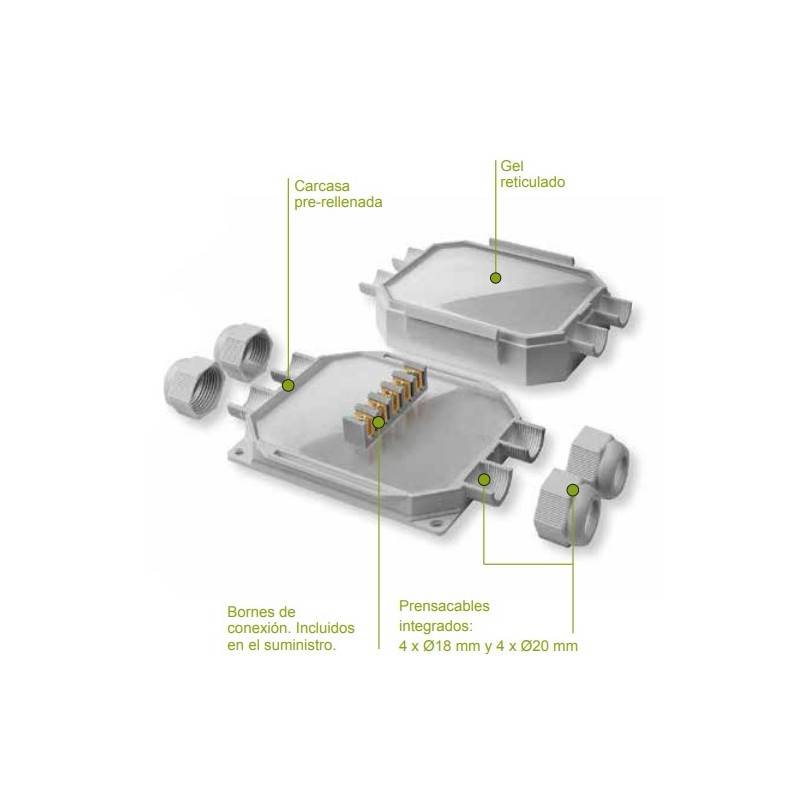

• They incorporate soft insulating gel and sealant that does not expire, classified as non-hazardous by the CLP regulation.
• Quick installation and no waiting time.
• Provided with 4 inlets for cables, hoses or pipes.

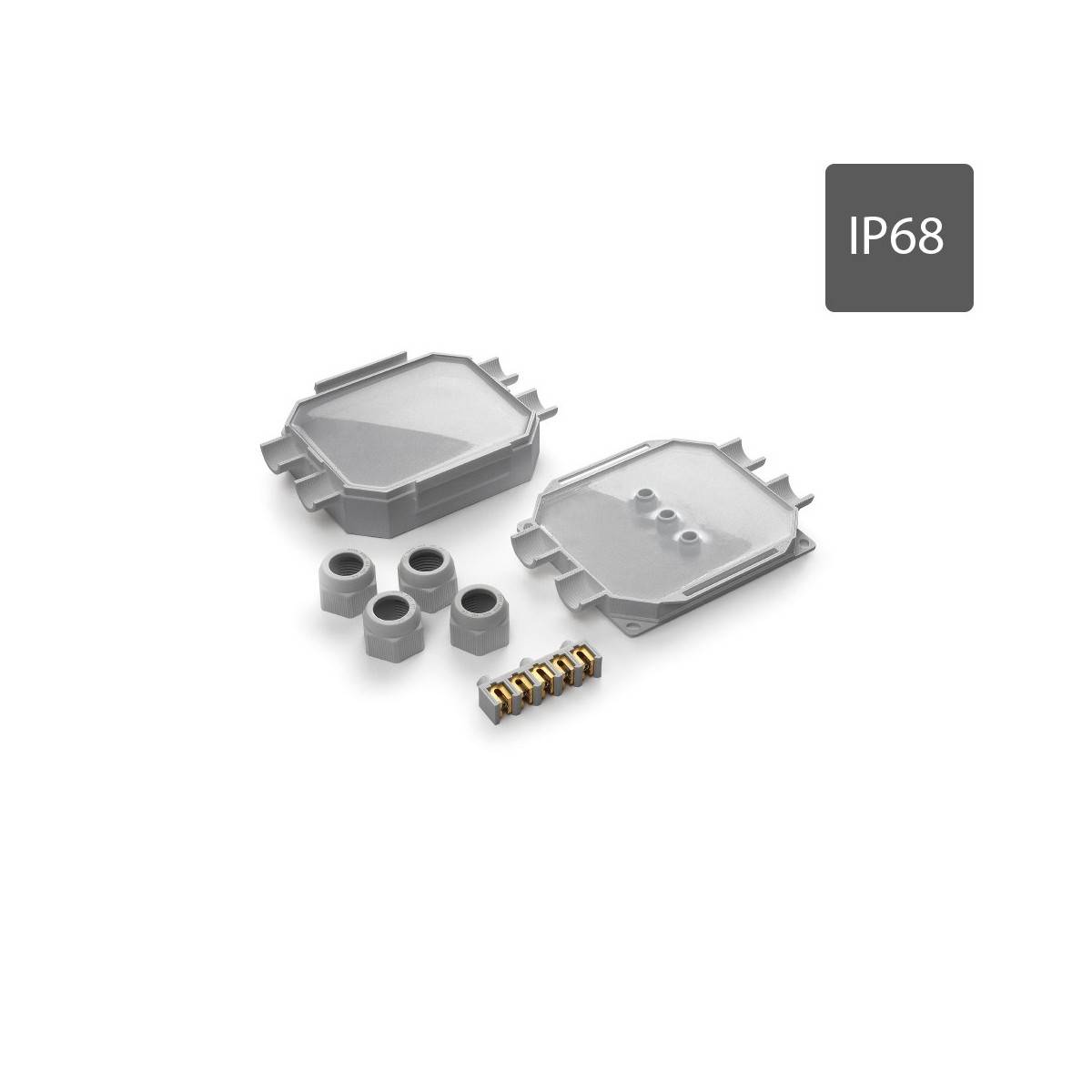

• Includes 5 x 6 mm2 connector block and gland for cables, hoses or tubes up to a maximum of Ø20 mm.
• Outside dimensions 120 x 100 x 50 mm
• Wall mounting system and snap-on lid locking system.
• Re-accessible at any time.
• Halogen-free and UV-resistant.
