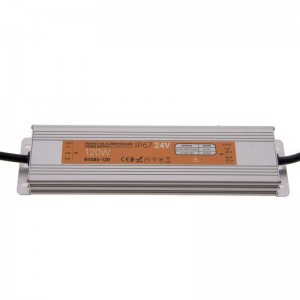

Compact waterproof power supply 24V 120W IP67

SKU:B1585-120
Has superado el límite de unidades
In stock 635 units
Data sheet

Compact IP67waterproof power supply 24VDC 120W 5A output

  • 24VDC
  • 120W
  • 5A
  • 235x60x23mm
  • IP67
Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

SLIM 24V 120W COMPACT WATERTIGHT POWER SUPPLY FOR LED STRIPS

TECHNICAL SPECIFICATIONS:

º Voltage range: 100 ~ 240V
º Frequency range: 50Hz
º Output voltage: 24V DC
º Output amperage: 5A
º Output power: 120W
º Automatic voltage and current protection / Short circuit / high temperature protection
º Automatic reset protection.
º Working Temperature: -10ºC ~ 60ºC
Waterproof rating: IP67
Dimensions : L235 X W60 X H23mm (Aluminum)

2018-08-03
Nominal Voltage (V)
100 - 240 V/AC
Power (W)
120
Lifetime (h)
25000
IP
IP67
Dimensions (mm) Lxlxh
178x60x18
Frequency (Hz)
50 - 60
Power factor (cosφ)
0.4
Output voltage (V)
24V
Weight (g)
340
Material
Aluminium
Use Outdoor
Yes
Temperature range
-20°C ~ +40°C
Frequency of use
Normal
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
5
