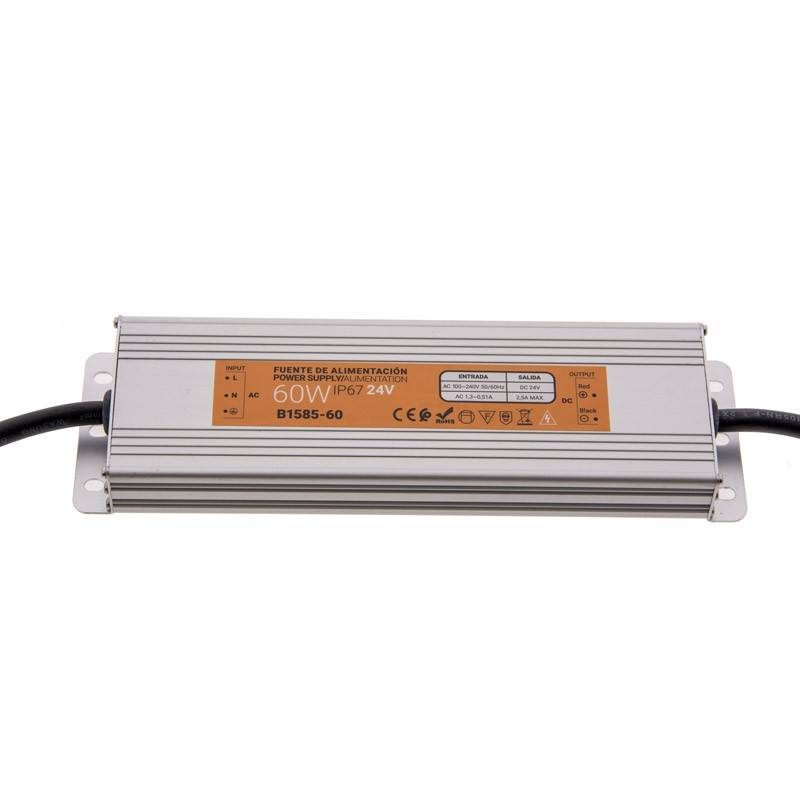

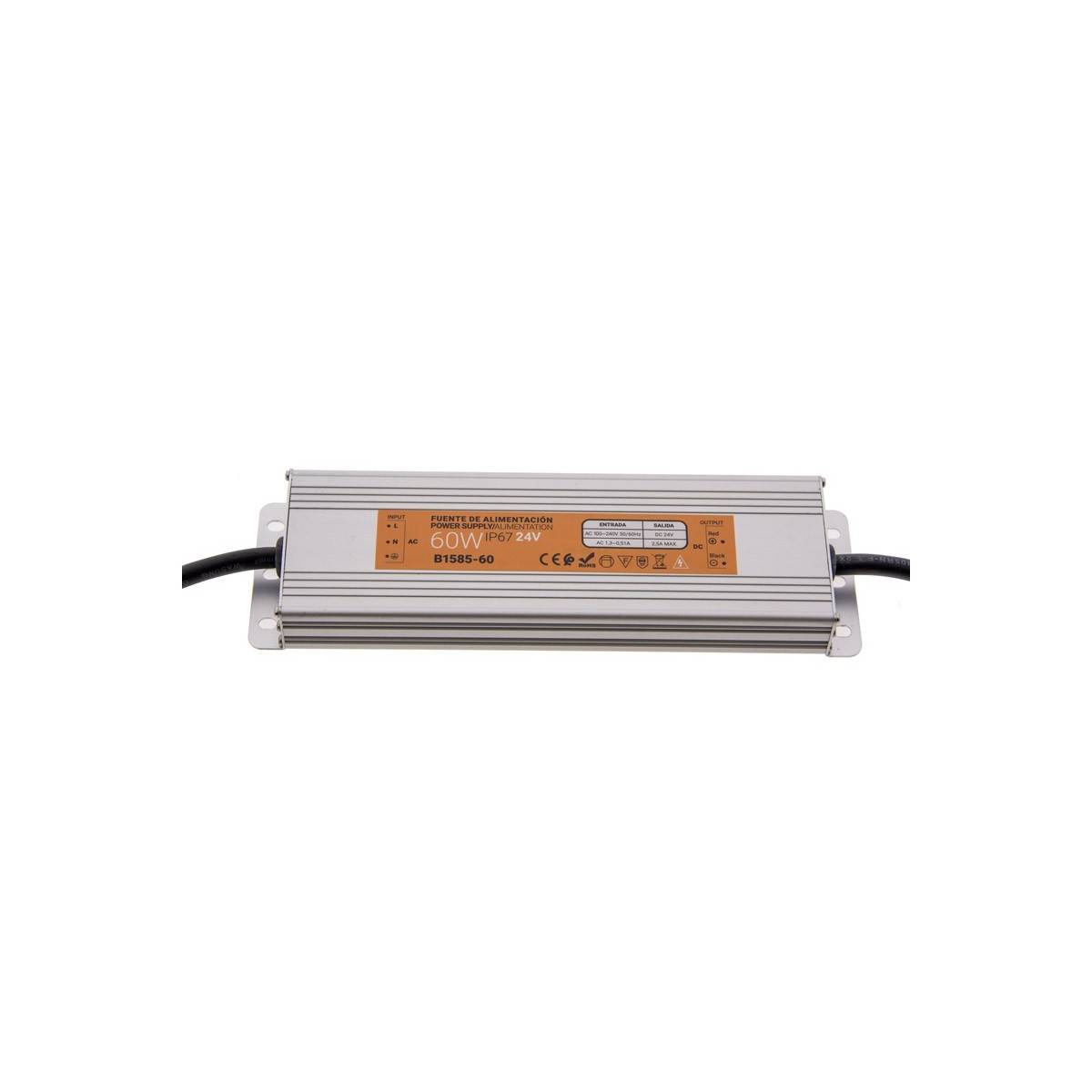

Compact waterproof power supply 24V 60W IP67
SKU:B1585-60
€29.55
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com
SLIM 24V 60W COMPACT WATERPROOF POWER SUPPLY FOR LED STRIPS
TECHNICAL SPECIFICATIONS:
º Voltage range: 100 ~ 240V
º Frequency range: 50Hz
º Output voltage: 24V DC
º Output amperage: 2.5A
º Output power : 60W
º Automatic voltage and current protection / Short circuit / high temperature protection
º Automatic reset protection.
º Working Temperature: -10ºC ~ 60ºC
Waterproof rating: IP67
Dimensions : L205 X W60 X H23mm (Aluminum)
Nominal Voltage (V)
100 - 240 V/AC
Power (W)
60
Lifetime (h)
30000
IP
IP67
Dimensions (mm) Lxlxh
172x60x18
Frequency (Hz)
50 - 60
Power factor (cosφ)
0.4
0.4
0.4
Output voltage (V)
24V
Material
Aluminium
Use Outdoor
Yes
Temperature range
-20°C ~ +40°C
Frequency of use
Normal
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
2.5
Questions
| P: Question: |
Could it be put in an electrical box recessed in the wall? Or would it come out too much? If not. How are they usually hidden? Thanks |
|---|
| R: Answer: | The size of the source is 205x60x23mm, the boxes are usually smaller. |
|---|
