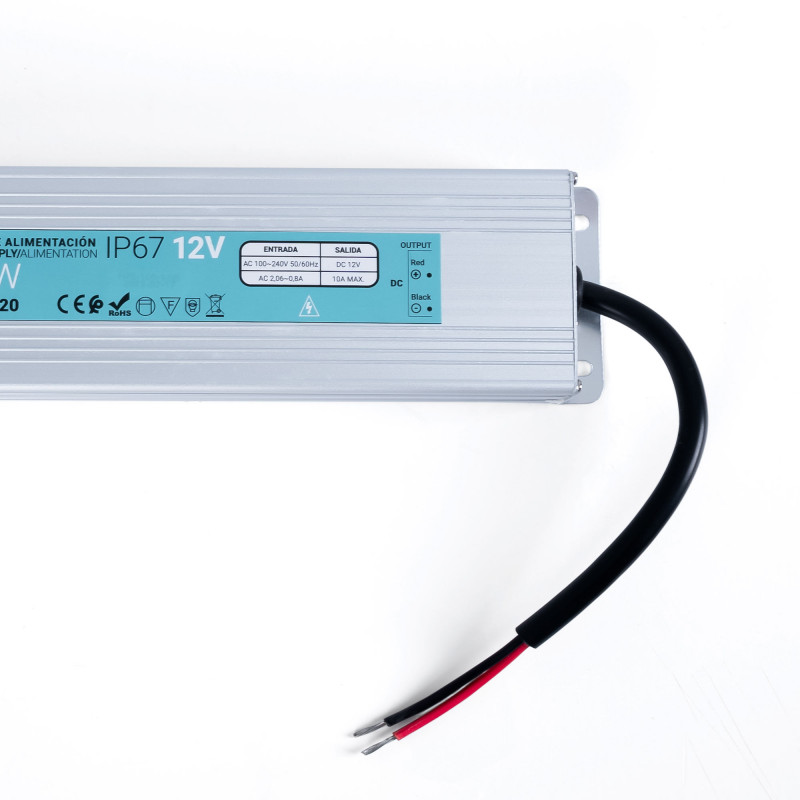

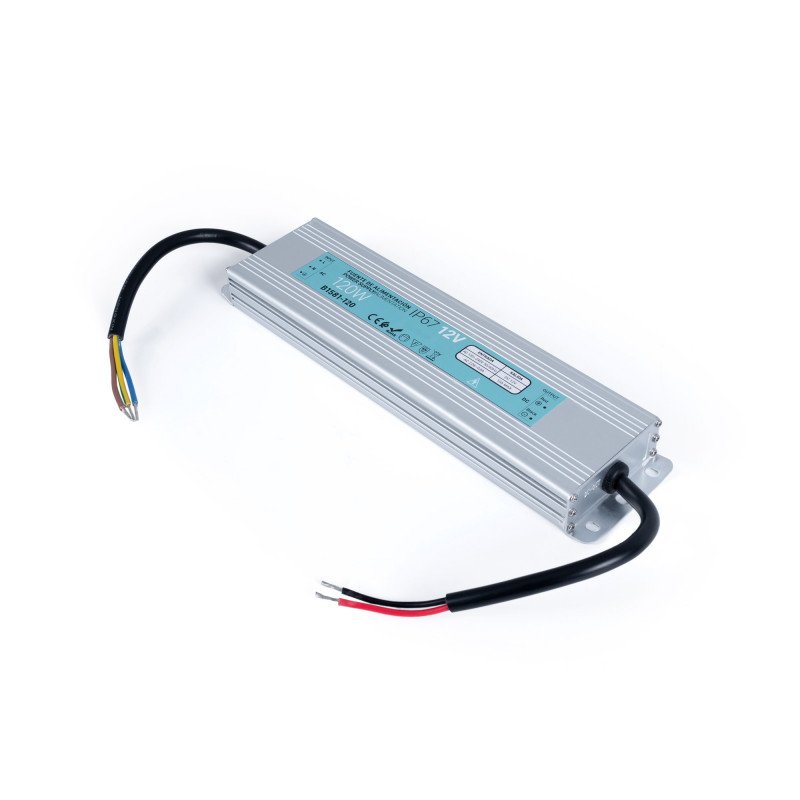

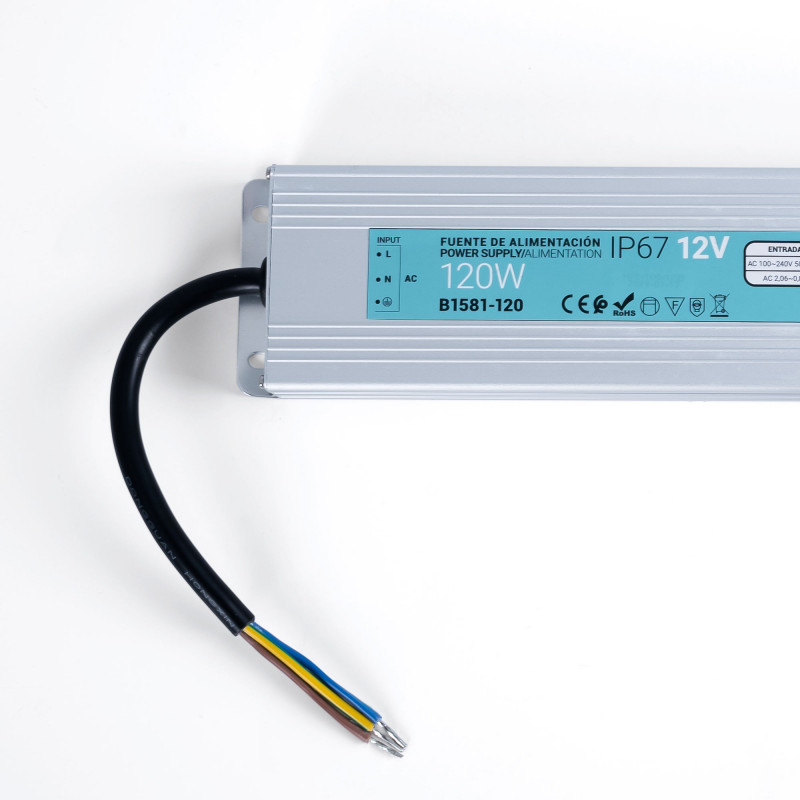

Compact waterproof power supply 12V 120W IP67
SKU:B1581-120
€39.95
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com
SLIM 12V 120W COMPACT WATERPROOF POWER SUPPLY FOR LED STRIPS
TECHNICAL SPECIFICATIONS:
º Voltage range: 100 ~ 240V
º Frequency range: 50Hz
º Current input 2A
º Output voltage: 12V DC
º Output amperage: 10A
º Output power : 120W
º Automatic voltage and current protection / Short circuit / high temperature
º Automatic reset protection.
º Working Temperature: -10ºC ~ 60ºC
Waterproof rating: IP67
Dimensions: L235 X W60 X H23mm (aluminum)
Weight: 344g
2018-08-03
Nominal Voltage (V)
100 - 240 V/AC
Power (W)
120
Lifetime (h)
25000
IP
IP67
Frequency (Hz)
50 - 60
Power factor (cosφ)
0.3
Output voltage (V)
12V
Weight (g)
340
Material
Aluminium
Use Outdoor
Yes
Temperature range
-20°C ~ +40°C
Frequency of use
Normal
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
10
Length
235mm
Width
60mm
Height
23mm
Questions
| P: Question: |
Hello I need to install about 5 m of led strips to backlight a totem that is outdoors. Is this power supply would be enough? And what type of led would I have to buy, thank you. Reference:B1581-120 |
|---|
| R: Answer: | This power supply model is for 12vdc led strips up to 120W, if it is for outdoor use it should be a waterproof strip model ip65, example ref. B1543-5630BF. You may also be interested in seeing 24vdc strips and sources, there are more models. |
|---|
