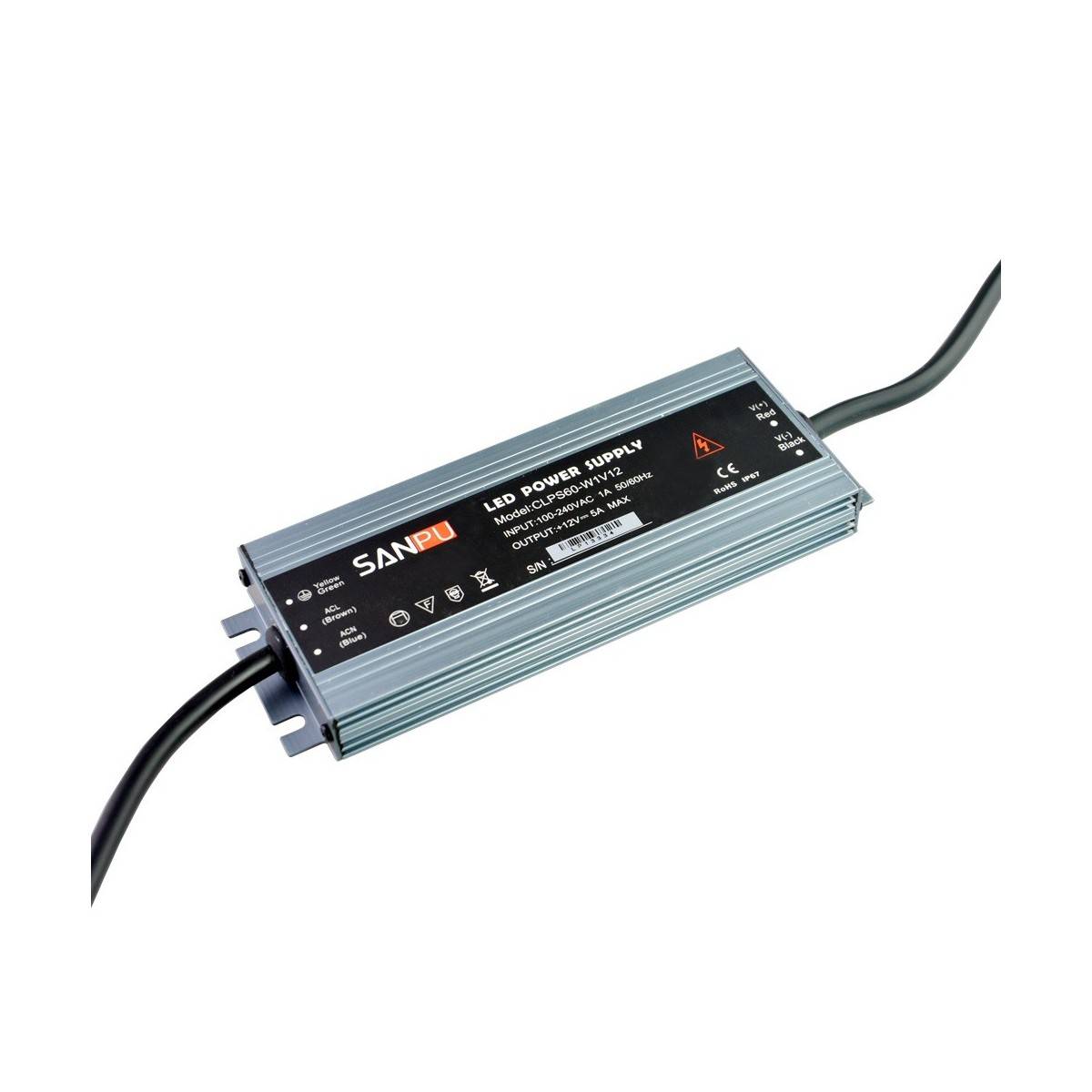

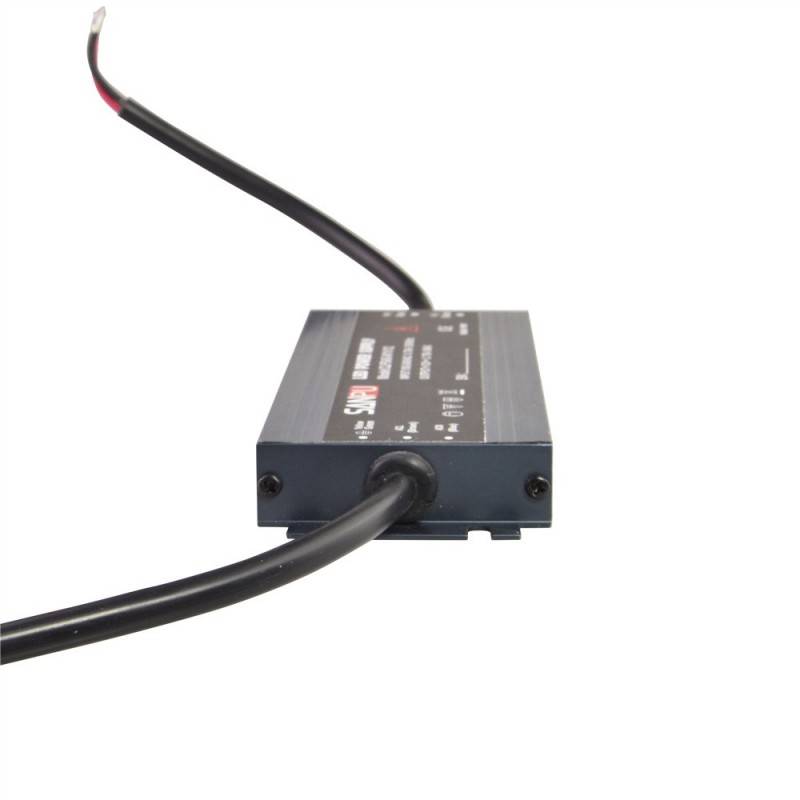

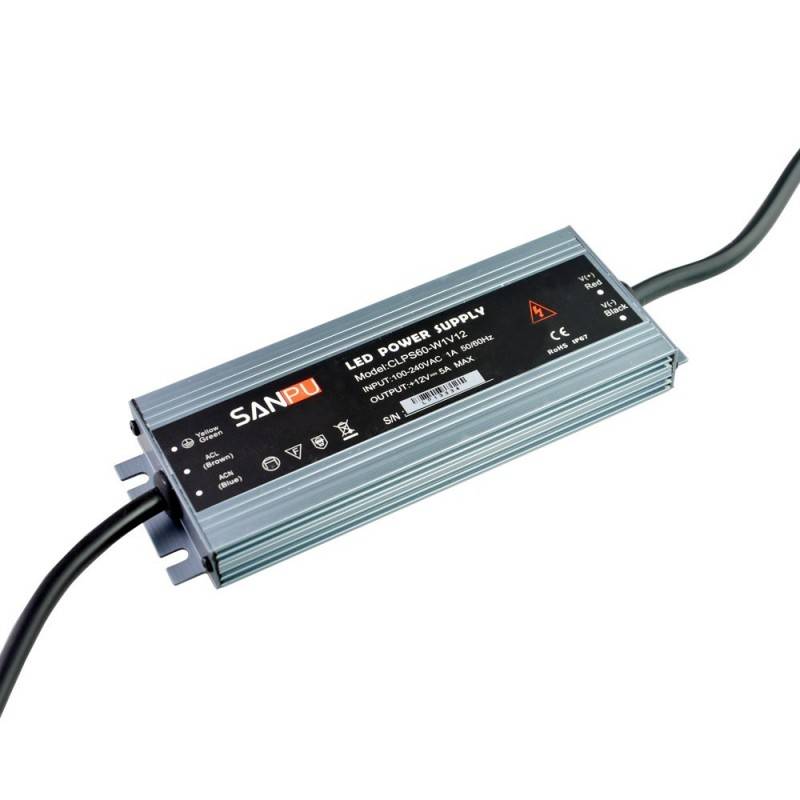

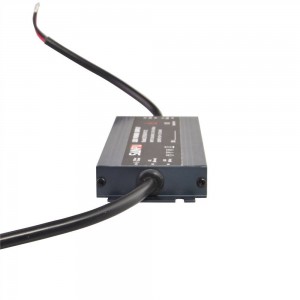

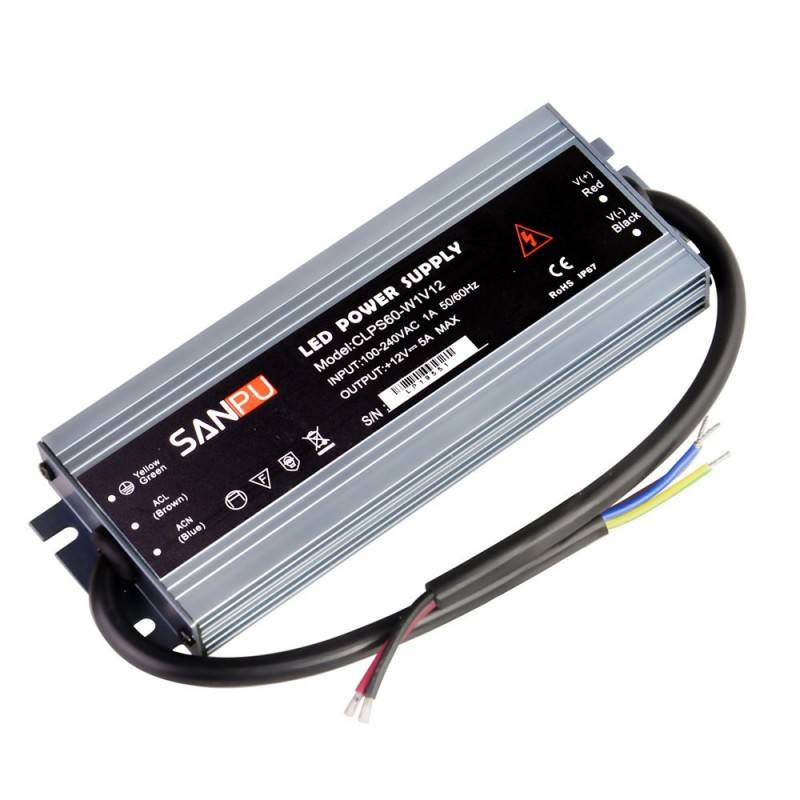

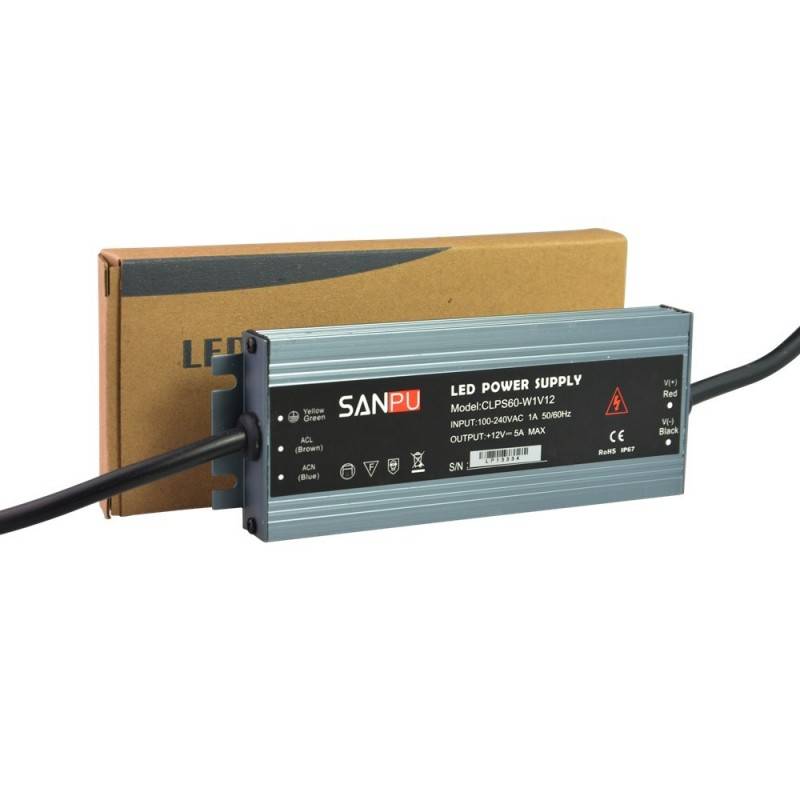

Compact waterproof power supply 12V 60W IP67
SKU:B1581-60
€29.55
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com
WATERPROOF POWER SUPPLY 12V 60W FOR LED STRIPS
TECHNICAL SPECIFICATIONS:
º Voltage range: 170 ~ 250V
º Frequency range: 50Hz
º Input current 0.4A/115V 0.25A/235V
º Output voltage: 12V DC
º Output amperage: 5A
º Output power : 60W
º Automatic voltage and current protection / Short-circuit / high temperature protection
º Automatic reset protection.
Working Temperature: -10ºC ~ 60ºC
Waterproof rating: IP67
Dimensions: L154 X W60 X H18mm (aluminum)
Weight: 333g
2018-08-03
Nominal Voltage (V)
100 - 240 V/AC
Power (W)
60
Lifetime (h)
25000
IP
IP67
Dimensions (mm) Lxlxh
184x60x23
Frequency (Hz)
50 - 60
Power factor (cosφ)
0.3
Output voltage (V)
12V
Weight (g)
330
Material
Aluminium
Use Outdoor
Yes
Temperature range
-20°C ~ +40°C
Frequency of use
Normal
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
5
Questions
| P: Question: | Would it be valid x security for led lights for a swimming pool? |
|---|
| R: Answer: | The PAR56 pool heaters are normally installed with a 12VAC transformer to have isolation between primary mains and secondary 12VAC output. We recommend a professional installer to comply with the correct installation according to regulations. |
|---|
