-30%

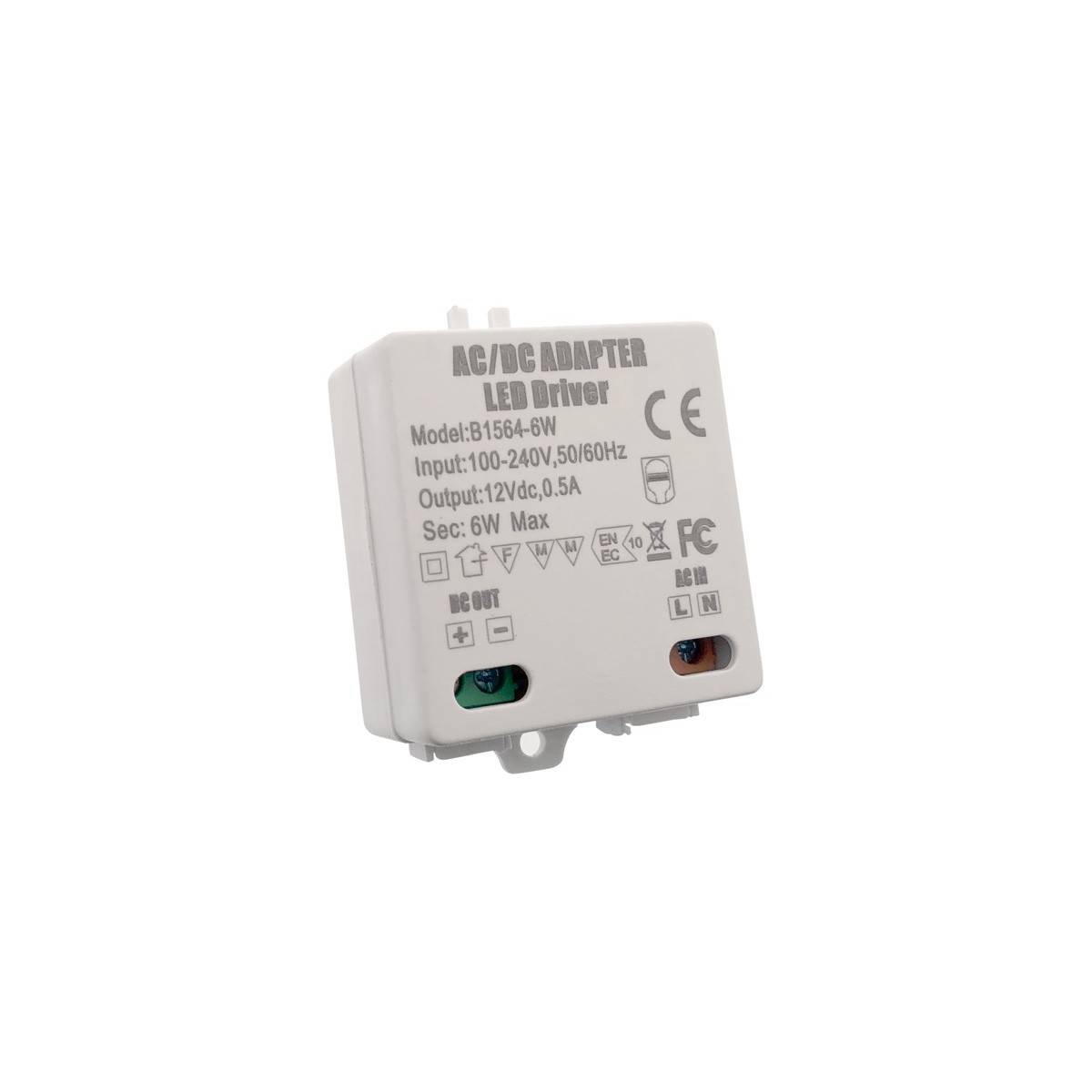

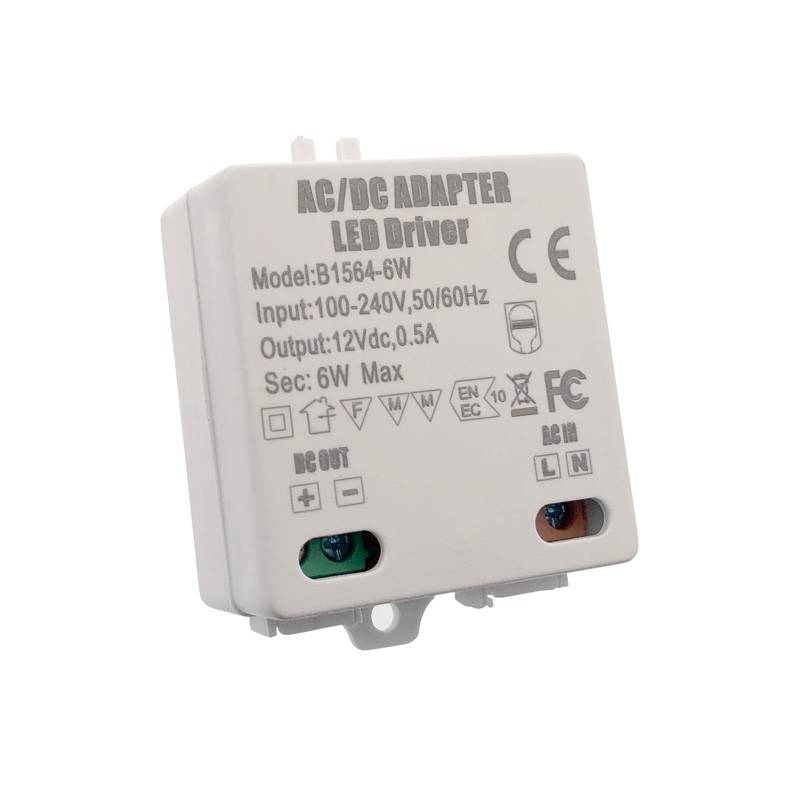

Power supply 12V DC 0.25A 6W 100-240V
SKU:B1564-6W
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com
12V-DC 6W constant voltage transformer driver.
LEDpower supply with a nominal power of 6W. The power system is specially designed for connecting LED strips with 12V voltage. Input voltage 100-240V and an output at 12V-DC 0.5A. The power supplies feature overload and overvoltage protection, high stability and small size.
Applications:
Power supply of LED strips at 12V-DC, as well as any other element with 12V-DC working voltage, as long as it does not exceed the maximum power of the power supply.
Used as a transformer for 12V LED bulbs.
Features of the ultra-thin 6W 12V-DC power supply
- Rated power: 6W.
- Input voltage: 100-240V-AC.
- Input current: 0.5A.
- Power factor: 0.6.
- Output voltage: 12 V-DC.
- IP Protection: IP20.
- Maximum ambient temperature 45ºC.
- Very narrow housing: 16mm.
- Dimensions: 42x42x22mm.
Nominal Voltage (V)
100 - 240 V/AC
Lifetime (h)
25000
IP
IP20
Dimensions (mm) Lxlxh
42x42x22
Frequency (Hz)
50 - 60
Power factor (cosφ)
0.6
Output voltage (V)
12V
Material
Plastic
Use Outdoor
No
Temperature range
-20°C ~ +40°C
Frequency of use
Normal
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
0.5
Questions
| P: Question: | Hello, Is it compatible to replace the transformer of an alogen porthole and put a LED one? |
|---|
| R: Answer: | The halogen dichroic transformers are 12VAC, not DC. You can put LED dichroics with GU10 socket that go directly to 220Vac and remove the old transformers. For example B1633 + 68690400. If you put LED MR16 of 12vdc taking advantage of the halogen socket, this power supply can be useful. |
|---|
