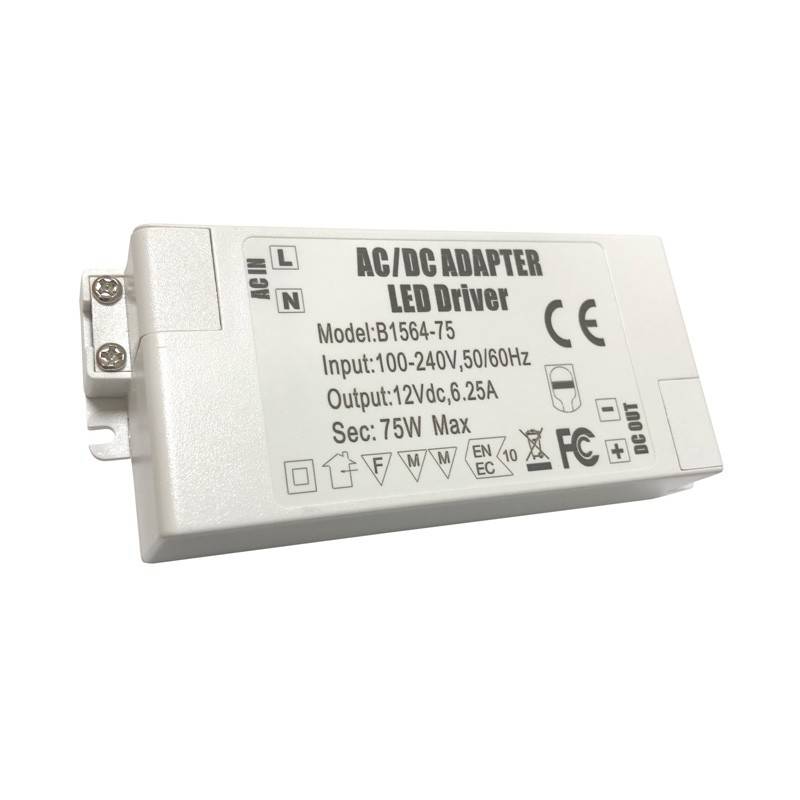

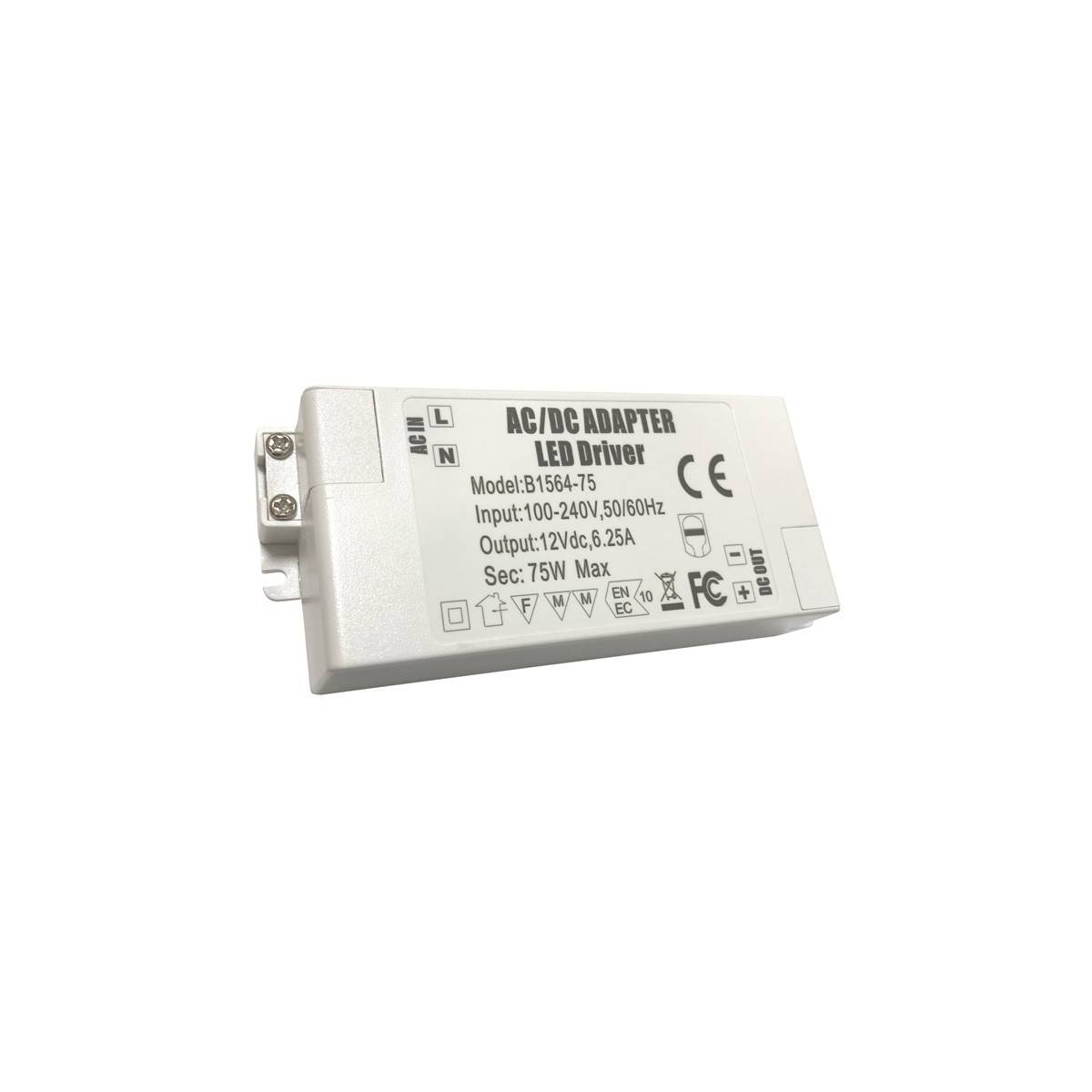

Power supply 12V DC 75W 6.25A 100-240V
SKU:B1564-75W
€19.95
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com
POWER SUPPLY 12V-DC 75W
Power supply with nominal power of 75W. Designed to connect LED strips with 12V voltage. Input voltage of 100-240V and an output of 6.25A at 12V DC. Protects against overheating, overvoltage, short circuits, humidity, dust, etc. The power supplies have overload and overvoltage protection. Compensates the voltage drop between the power supply and the consumption point.
Applications
Suitable for all types of 12V applications in office, commercial, domestic, catering and hospitality, etc.
It feeds 12V-DC LED strips, as well as any other element with 12V-DC working voltage, without exceeding the maximum power of 75W of the power supply.
Characteristics 12V DC power supply
- Rated power: 75W.
- Input voltage: 100-240V-AC.
- Input current: 6.25A.
- Power factor: >0.6.
- Output voltage: 12V-DC.
- IP Protection: IP20.
- Maximum ambient temperature 45ºC.
- Very narrow housing: 23mm.

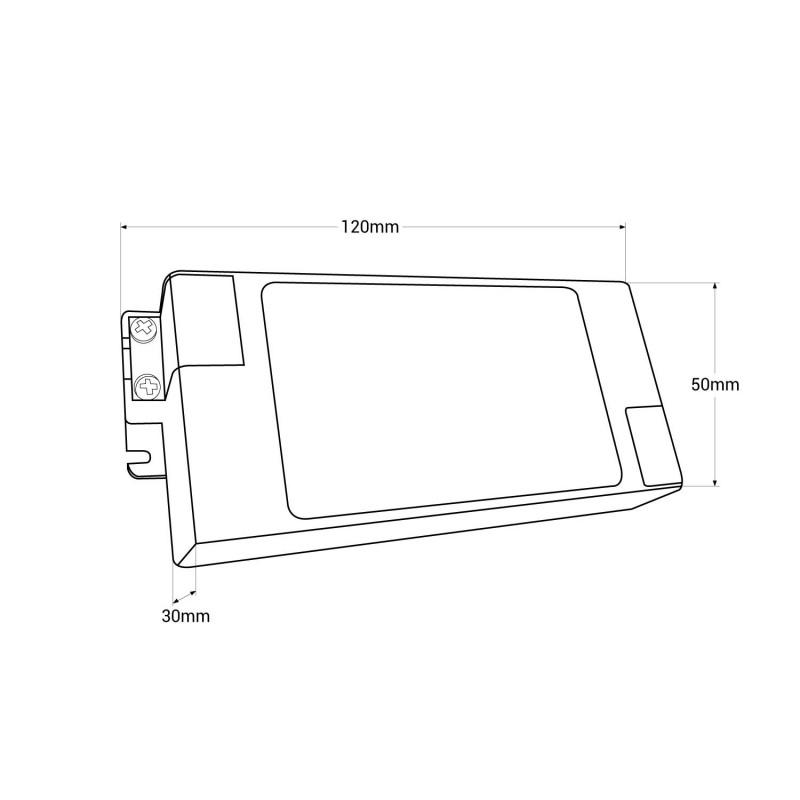

- Dimensions: 120 x 50 x 30mm.
Nominal Voltage (V)
100 - 240 V/AC
Power (W)
75
Lifetime (h)
25000
IP
IP20
Dimensions (mm) Lxlxh
120 x 50 x 30
Frequency (Hz)
50 - 60
Output voltage (V)
12V
Material
Plastic
Use Outdoor
No
Temperature range
-20°C ~ +40°C
Frequency of use
Normal
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
6.25
Questions
| P: Question: | Is it dimmable? I mean does it support connection of an input dimmer? |
|---|
| R: Answer: | No, this model is not dimmable by TRIAC at the input. |
|---|
