Switch-mode power supply 12V 350W
SKU:B1563-350
€49.95
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com
12V 350W Switching Power Supply for LED Strips
1.Output voltage: 12V Direct current
2. Error: ± 1%.
3.Output amperage: 0 ~ 24.5A
4.Wave and noise: 100mp-p
Output power: 350W DC
Efficiency: 81%.
7. Voltage range: 10.8 ~ 13.2V
8. Input range: 85 ~ 180V ~ 132V AC 264V AC 63Hz ~ 47 255 ~ 370V DC
9. Overload protection: 105% ~ 150% (protection type: reduce input power reset: auto-recover)
10. Inlet stability: ± 0.5%
11.Temperature coefficient :0-50c
12. Setup, place, timeout: 100 ms 200 ms 30 ms
13. Working temperature: -10 ~ +60
14. Temperature limits: -20 ~ +85

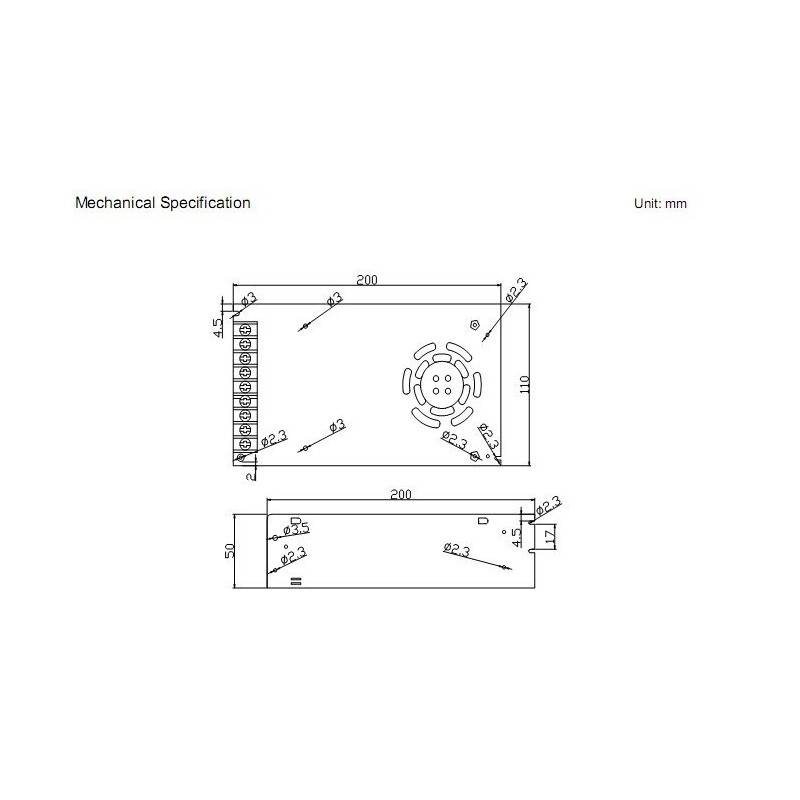

15. Dimensions: 199 * 98 * 38
16. Weight: 0.85kgs
Built-in cooling fan, so it is not recommended for use in very quiet places, as it may generate annoying noise.
2018-07-15
Nominal Voltage (V)
110-230
Power (W)
48
Lifetime (h)
25000
IP
IP20
Dimensions (mm) Lxlxh
199x98x43
Frequency (Hz)
50 - 60
Power factor (cosφ)
0.5
Output voltage (V)
12V
Material
Aluminium
Use Outdoor
No
Temperature range
-20°C ~ +40°C
Frequency of use
Normal
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
29
