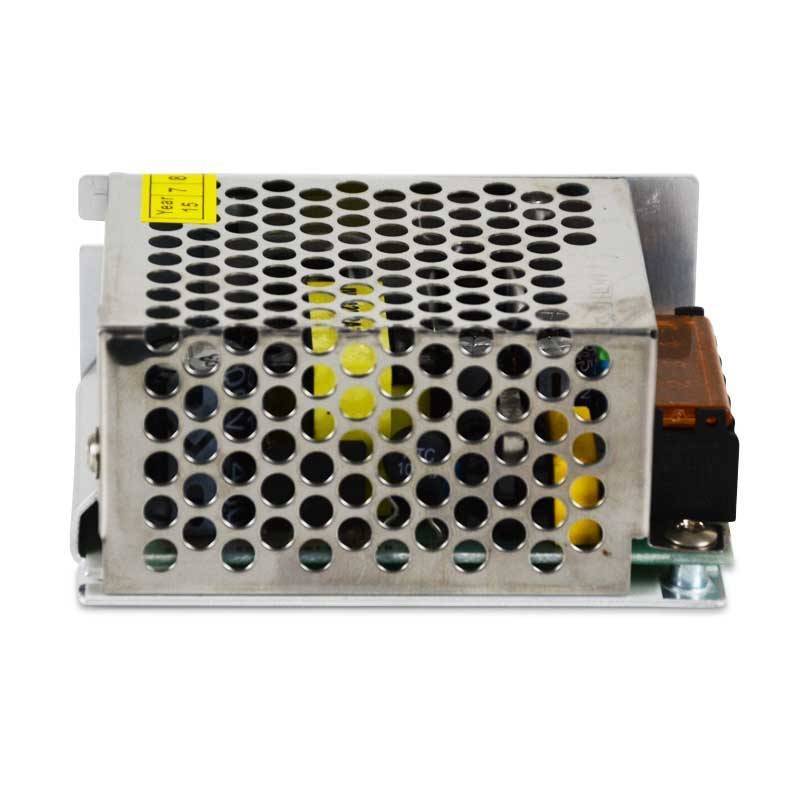

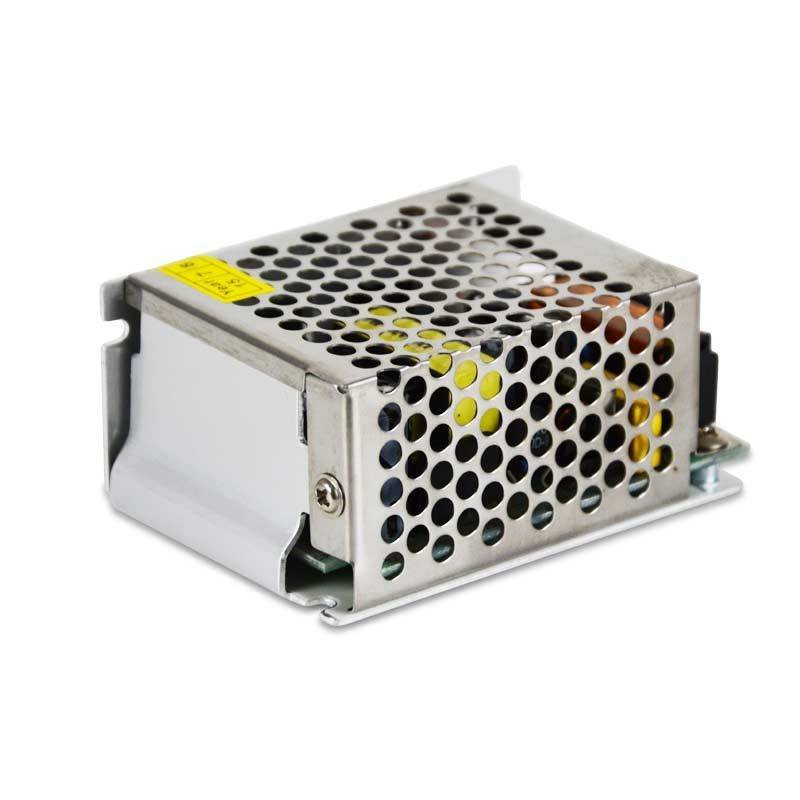

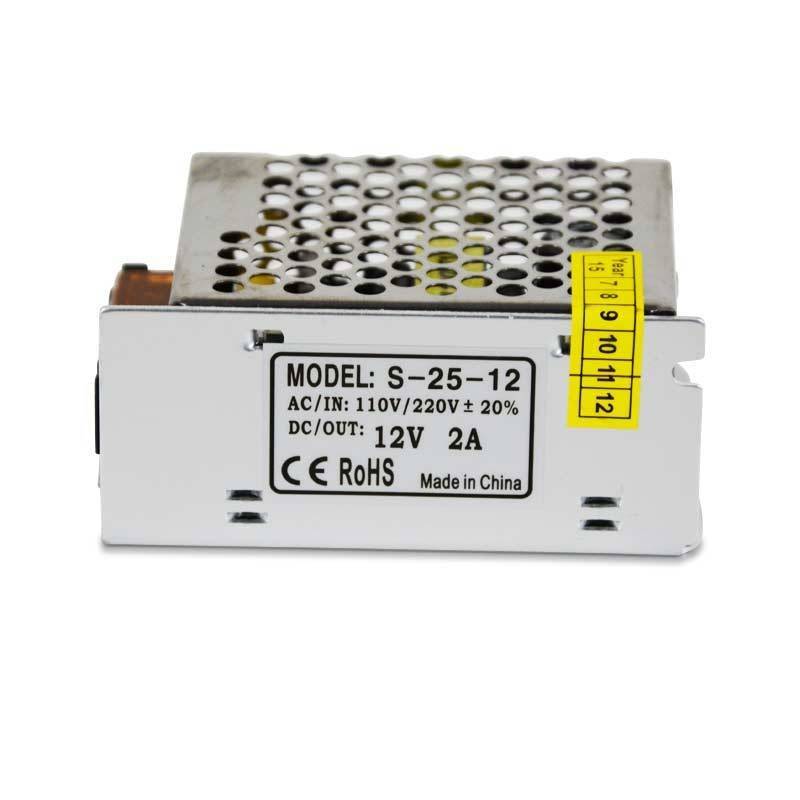

Switching power supply 12V 25W IP20
SKU:B1563-25
€12.45
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com
25W Switching Power Supply with 12V-DC 2A output.
Switching power supply for LED strips, LED neon, floor lights... suitable for use with all types of 12V-DC luminaires with a maximum load of 25W. Input voltage 110V/230V.
For indoor use, IP20 rating.
Nominal Voltage (V)
110-230
Power (W)
25
Lifetime (h)
25000
IP
IP20
Dimensions (mm) Lxlxh
85x58x40
Frequency (Hz)
50 - 60
Power factor (cosφ)
0.5
Output voltage (V)
12V
Material
Aluminium
Use Outdoor
No
Temperature range
-20°C ~ +40°C
Frequency of use
Normal
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
2
Questions
| P: Question: | I bought the led strip B1552-270. Of 24V-DC power 18W IP20 and I want to connect it to 220v, what power supply do I need? |
|---|
| R: Answer: | This power supply model does not, since it is 12Vdc. You need a 24vdc power supply of sufficient power for the meters of strip you are going to use. |
|---|
