Switching power supply 12V 75W
SKU:B1563-75
€20.00
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com

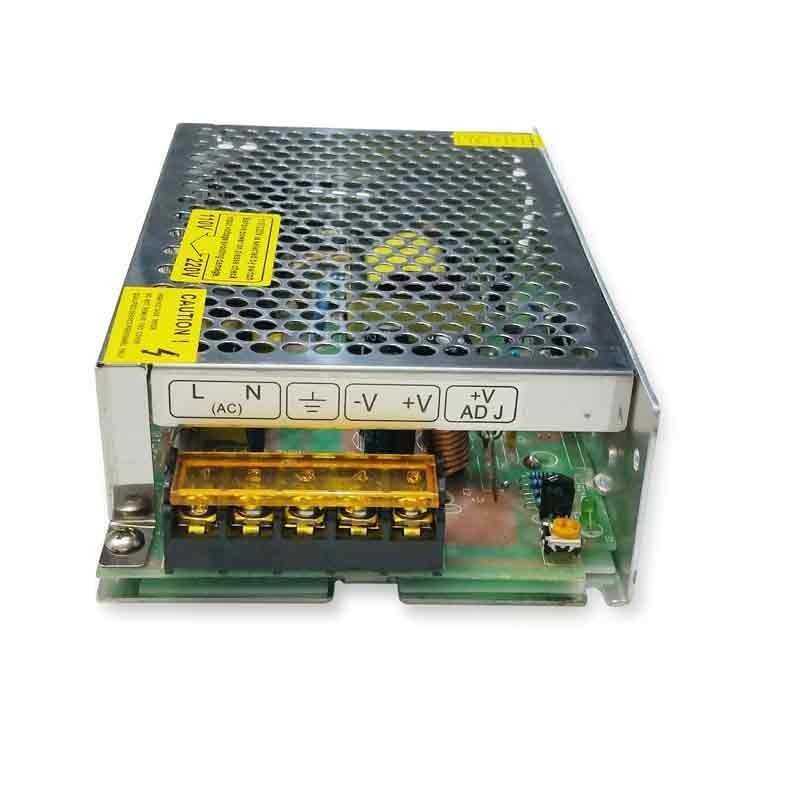

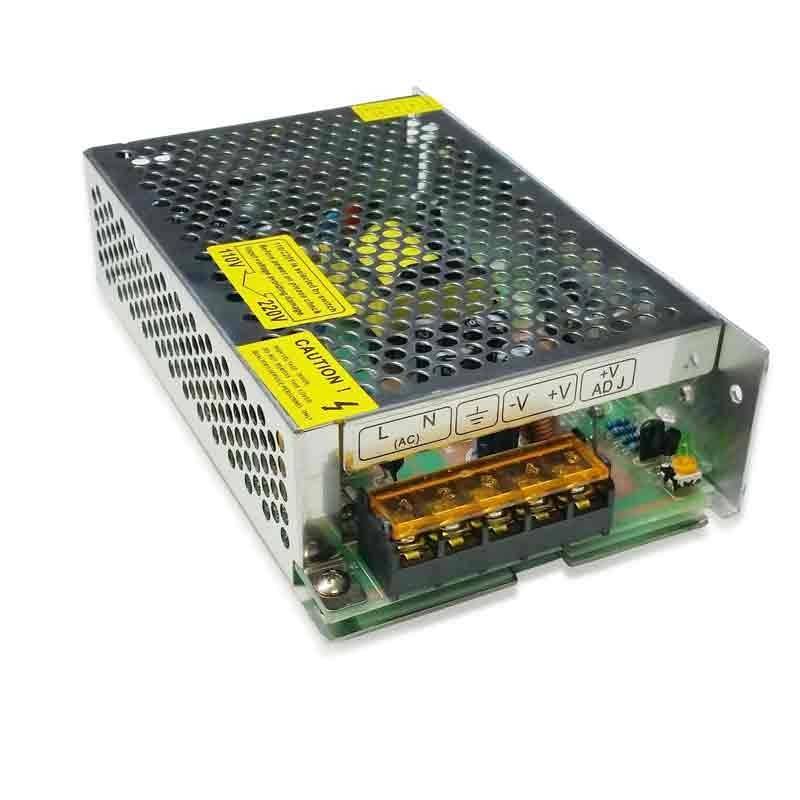

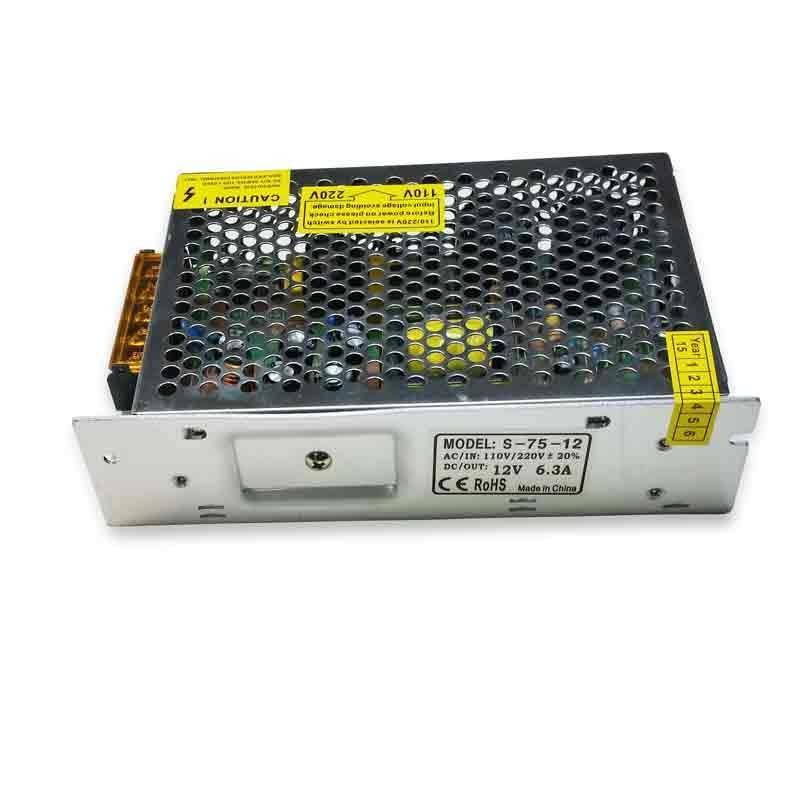

75W 12V switching power supply for LED strips
The 75W switching power supply has a switch to select the input voltage 110-AC or 230V-AC and an output at 12V-DC 5A, the output voltage can be adjusted around ±10% and, compensating the voltage drop between the A.F. and the consumption point, it can move the power supply away from the consumption point. The A.F. are protected against overloads and overvoltages, and their casing is made of perforated sheet metal. This allows cooling by natural air convection. Its external dimensions are 98x42x160mm (W x H x D), with a degree of watertightness of IP20.
6.3 Amperes.
Applications:
- Its main function is to power 12V-DC led strips, as well as any other element with 12V-DC working voltage, as long as it does not exceed the maximum power of the source.
- Suitable for all kinds of uses: domestic, commercial, office, restaurant and hotel business, etc.
Nominal Voltage (V)
110-230
Power (W)
75
Lifetime (h)
25000
IP
IP20
Dimensions (mm) Lxlxh
160x98x42
Frequency (Hz)
50 - 60
Power factor (cosφ)
0.5
Output voltage (V)
12V
Material
Aluminium
Use Outdoor
No
Temperature range
-20°C ~ +40°C
Frequency of use
Normal
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
6.25
