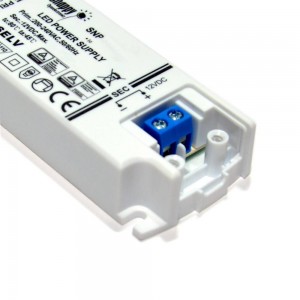

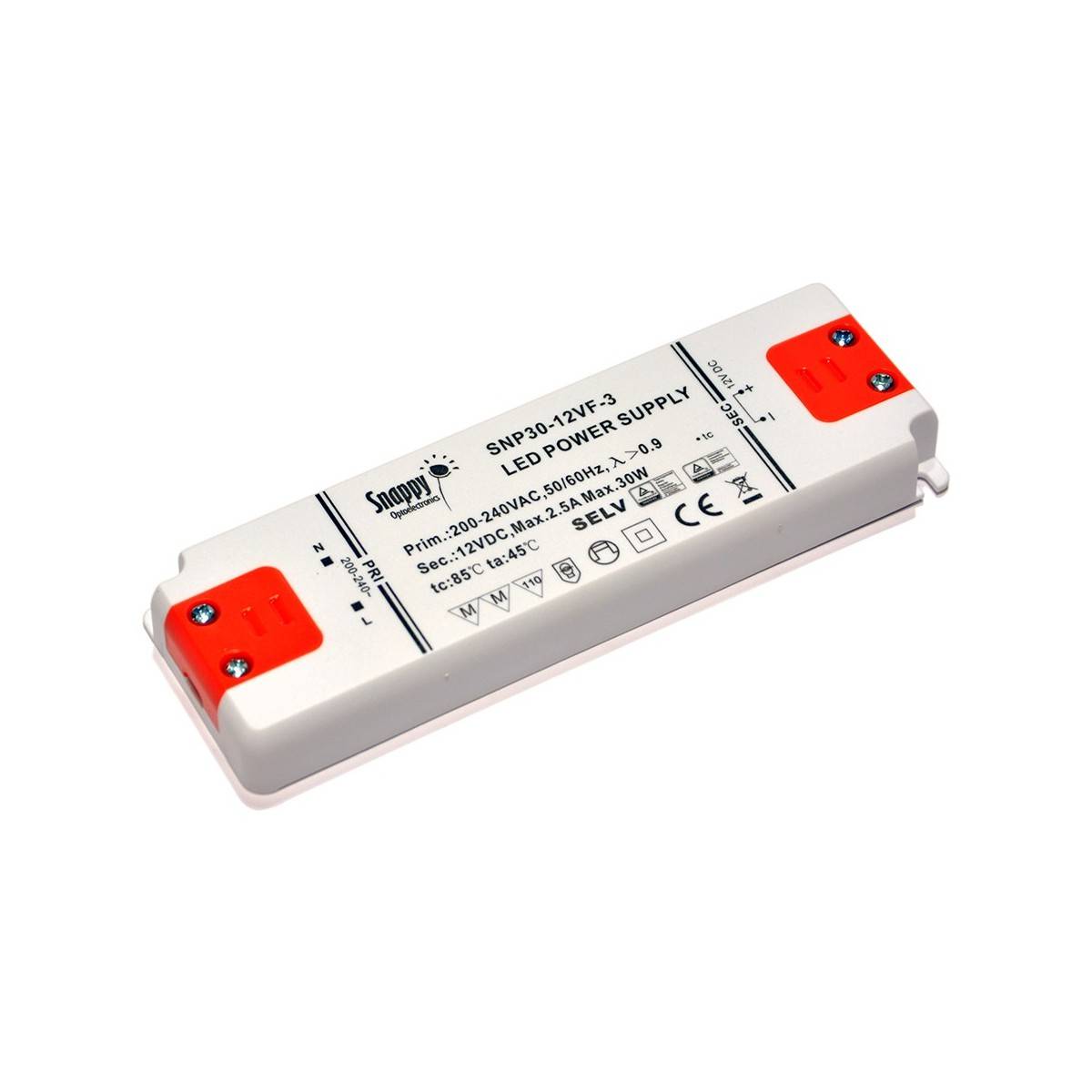

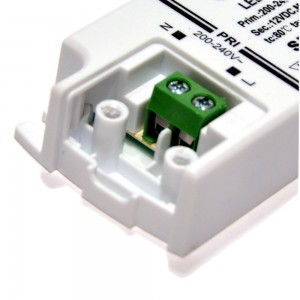

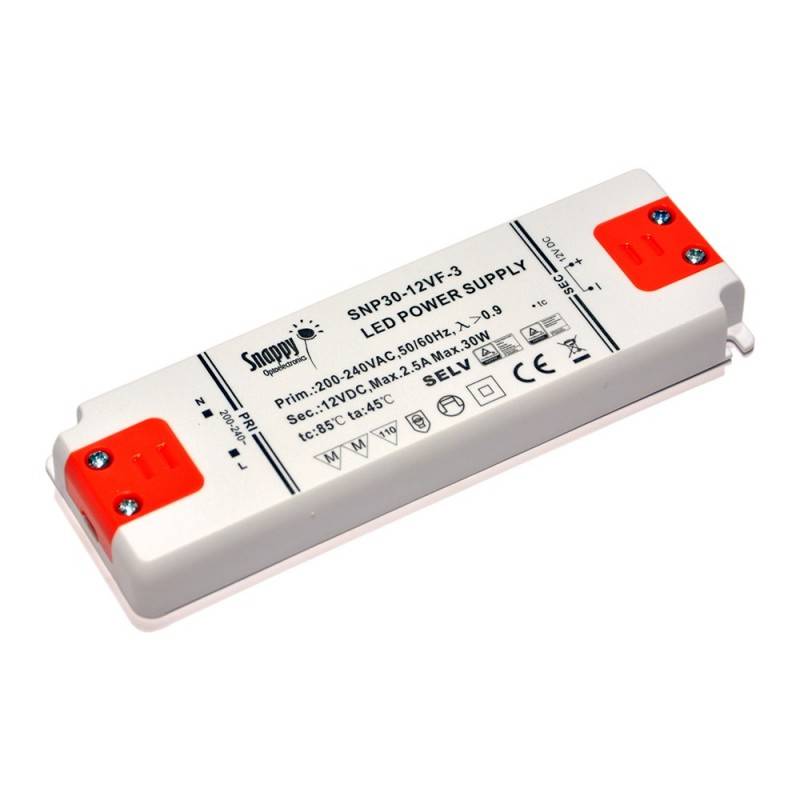

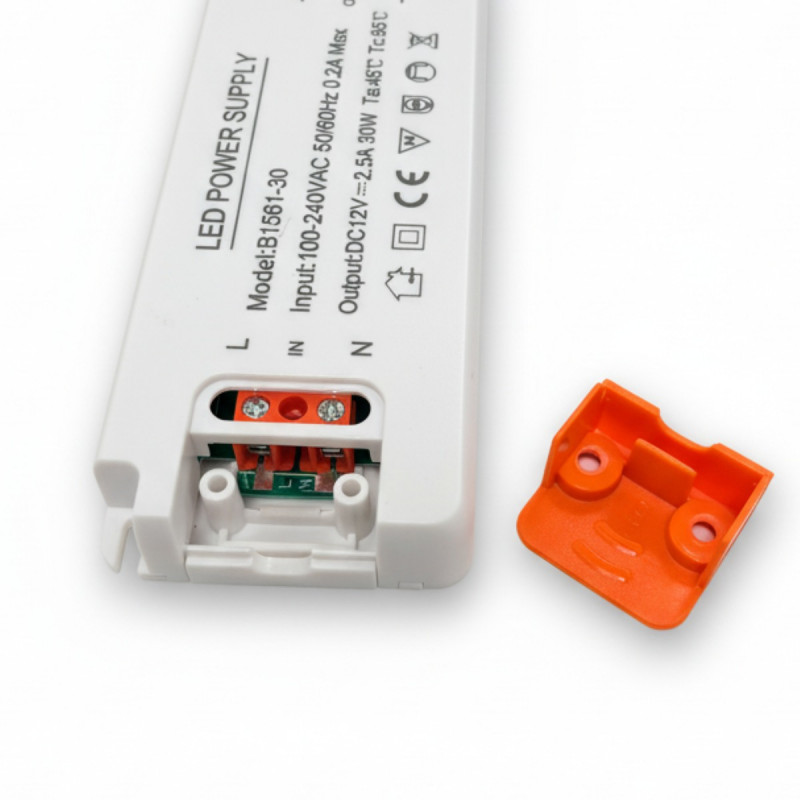

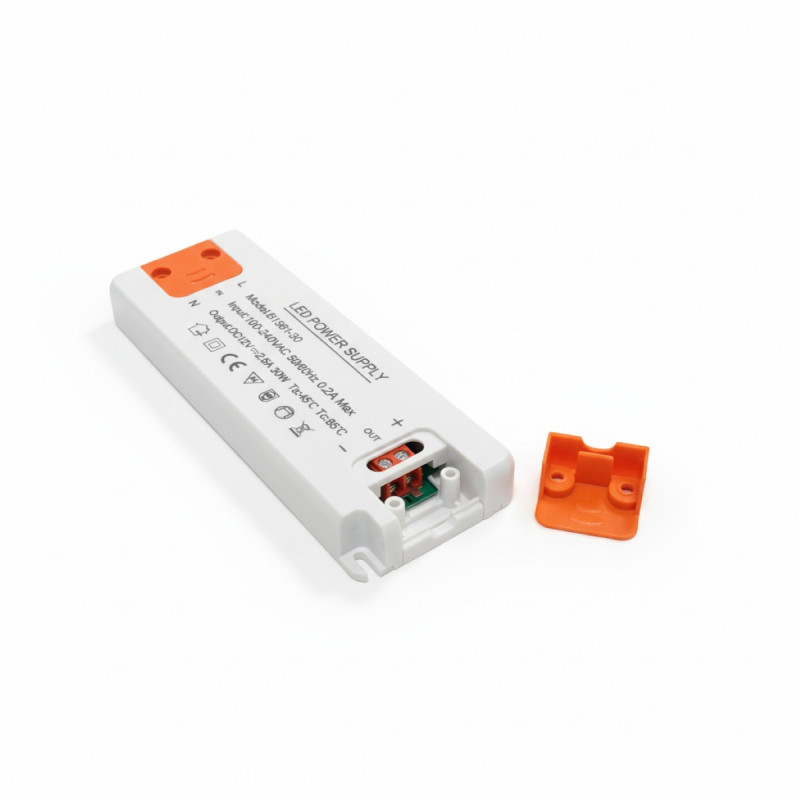

Ultra slim power supply 12V 30W IP20
SKU:B1561-30
€13.99
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com
ULTRA-THIN POWER SUPPLY 30W. 12V-DC 2.5A
LED power supply with a nominal power of 30W, additionally equipped with a power cable, cable with mini AMP connector and a cable for changing the polarity. The power supply system is designed for connecting LED lamps with 12V voltage.
Features of ultra-thin power supply 30W. 12V-DC
- Rated power: 30W.
- Input voltage: 230V. AC
- Input current: <2.5A.
- Output voltage: 12V. DC +/- -0.6 V.
- IP Protection: IP20.
- Maximum ambient temperature 45ºC.

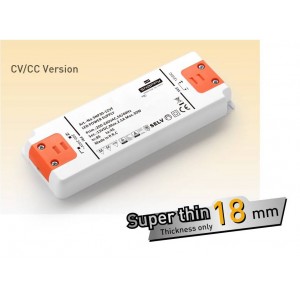

- Very narrow housing: 17mm.
- Length: 156mm.
- Height: 17mm.
- Width: 50mm.
Nominal Voltage (V)
220 - 240 V/AC
Power (W)
30
Lifetime (h)
20000
IP
IP20
Dimensions (mm) Lxlxh
156x50x17
Frequency (Hz)
50 - 60
Power factor (cosφ)
0.5
Output voltage (V)
12V
Material
Plastic
Use Outdoor
No
Temperature range
-20°C ~ +40°C
Frequency of use
Normal
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
2.5
Questions
| P: Question: | Hello, does it work with a 26W 2.2Ah IP68 LED pool light? Part number:B1561-30 |
|---|
| R: Answer: | Yes it would work for PAR56 at 12v, normally the pool PARs work with 12VAC transformer. |
|---|
| P: Question: |
Is this power supply suitable for LED strip with dimming block? That is to say, is it dimmable? Thank you very much! |
|---|
| R: Answer: | No, normally these models are dimmable. The regulation is made between the power supply and the led strip with a specific controller for regulation of led strips. If you need a 12v TRIAC dimmable power supply, maybe this model B4256 can be useful for you. |
|---|
