Compact watertight power supply 24V 300W IP67 12.5A
Compact waterproof power supply 24V 300W IP67

Waterproof slim power supply 300W 24V - 12.5A - IP67

SKU:B1585-300
Has superado el límite de unidades
In stock 227 unidades
Data sheet

300W slim waterproof power supply with high efficiency and long life. It is designed to power LED lamps with a voltage of 24V and a maximum of 12.5A.

It has short-circuit, overload and overvoltage protection.

  • Power 300W
  • Output voltage: 24V
  • Output current: 12.5A
  • IP67
Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

Waterproof Power Supply 300W 24V - 12.5A - IP67

Our 300W waterproof power supply offers high efficiency and compact dimensions, ideal for projects that require reduced space and high performance. With an IP67 degree of protection, it is perfect for outdoor use, resisting humidity and dust.

  • Power: 300W
  • Voltage: 24V
  • Current: 12.5A
  • Protection: IP67 (water and dust resistant).
  • Certifications: RoHS and CE (complies with international electrical safety standards).
  • Applications: Ideal for powering LED luminaires and other 24V devices.

Nominal Voltage (V)
180-250
Power (W)
300
Lifetime (h)
25000
IP
IP67

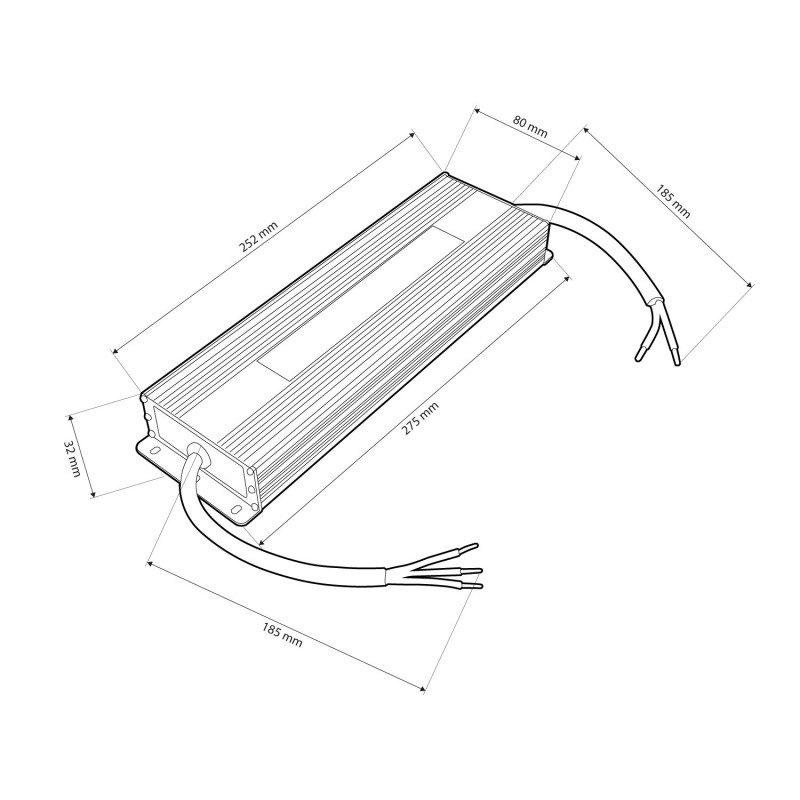

Dimensions (mm) Lxlxh
275x80xx30mm
Frequency (Hz)
50 - 60
Power factor (cosφ)
0.4
Output voltage (V)
24V
Weight (g)
740
Material
Aluminium
Use Outdoor
Yes
Temperature range
-20°C ~ +40°C
Frequency of use
Normal
Energy efficiency class
A+ (2021)
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
12.5
