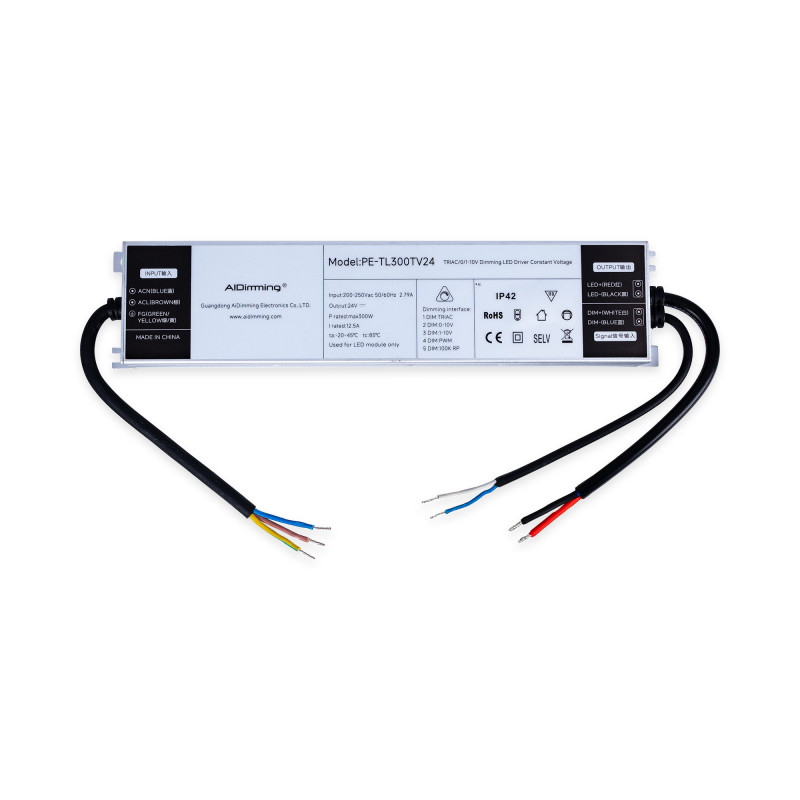

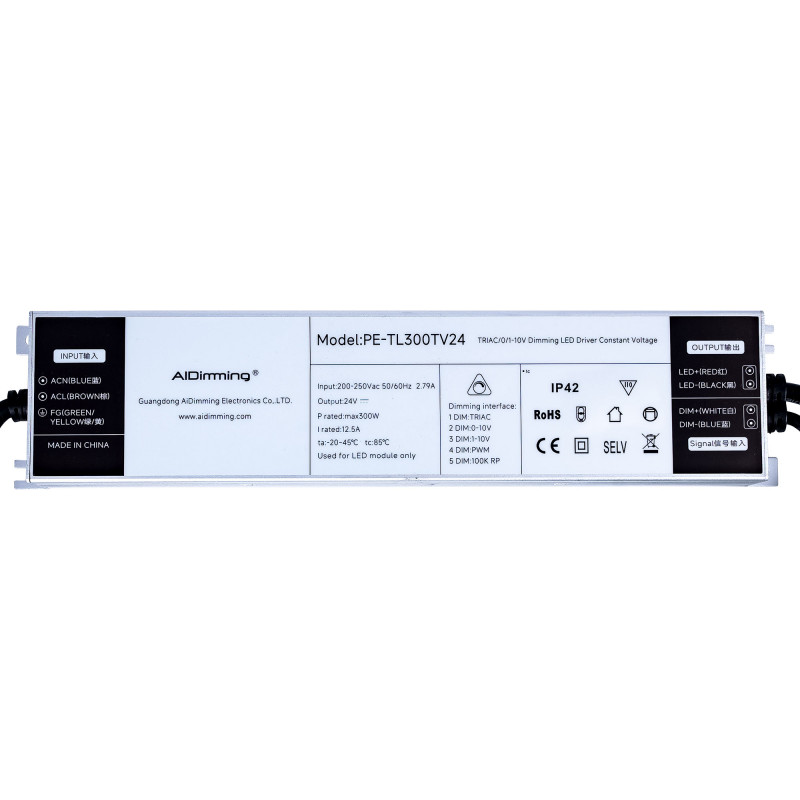

TRIAC/0-10V Dimmable power supply - 200-250V - Output 24V - 12.5A - 300W
TRIAC/0-10V Dimmable power supply - 200-250V - Output 24V - 12.5A - 300W
TRIAC/0-10V Dimmable power supply - 200-250V - Output 24V - 12.5A - 300W

TRIAC/0-10V Dimmable power supply - 200-250V - Output 24V - 12.5A - 300W

SKU:PE-TL300TV24
Has superado el límite de unidades
In stock 265 units
Data sheet

300W TRIAC/0-10V Dimmable power supply, compatible with LED strips and LED luminaires of 24V and maximum 12.5A.

It allows to regulate the luminous intensity by TRIAC and 0-10V, providing great flexibility and efficiency in lighting control.

It has a protection system against overloads, short circuits and overheating.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

The TRIAC / 0-10V 24V 300W power supply is a device designed specifically for LED lighting systems that require optimum intensity control and energy efficiency.

It's manufactured with high quality components for reliability and long service life.

Its NO FLICKER design provides a uniform light regulation, without jumps or flickering. That's why the light emitted by lamps powered by this source reduces visual fatigue and favours intensive work and study.

Product features:

  • Maximum power: 300W
  • Input voltage: 200-250V AC
  • Output current: 12.5A
  • Output voltage: 24V DC
  • IP42
  • TRIAC/0-10V regulation
  • Flicker Free
  • Dimensions: 290 x 63 x 34 mm
Nominal Voltage (V)
200 - 250V AC
Power (W)
300
IP
IP42
Dimensions (mm) Lxlxh
290 x 63 x 34
Dimmable
Yes
Control system
0-10V / 1-10V
TRIAC
Output voltage (V)
24V
Temperature range
-20°C ~ +45°C
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
12.5
