Power Supply Slim 150W 24V 6.25A - GLP

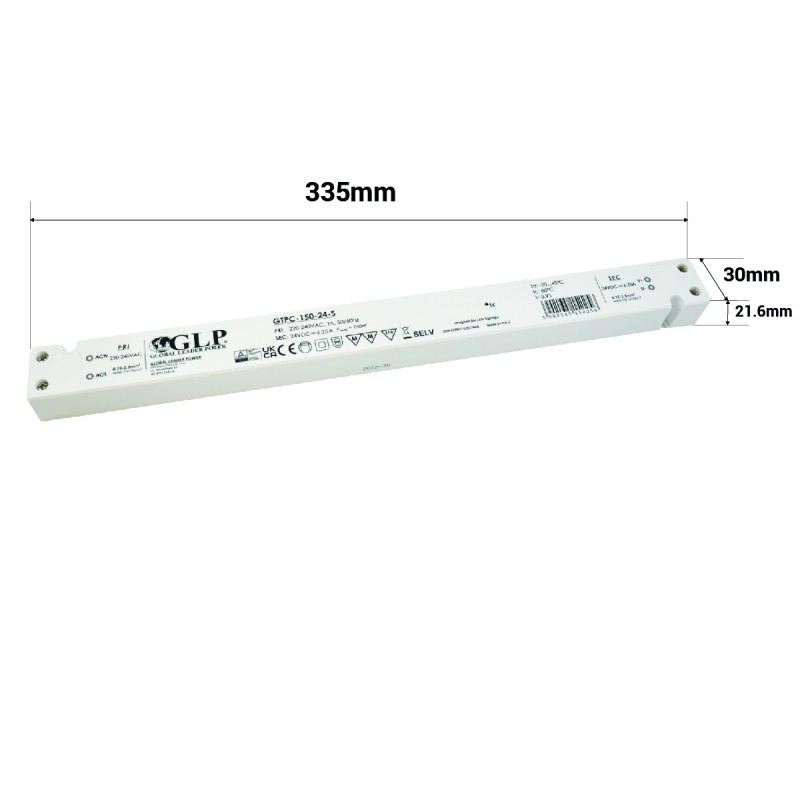

GTPC-150-24-S Dimensions

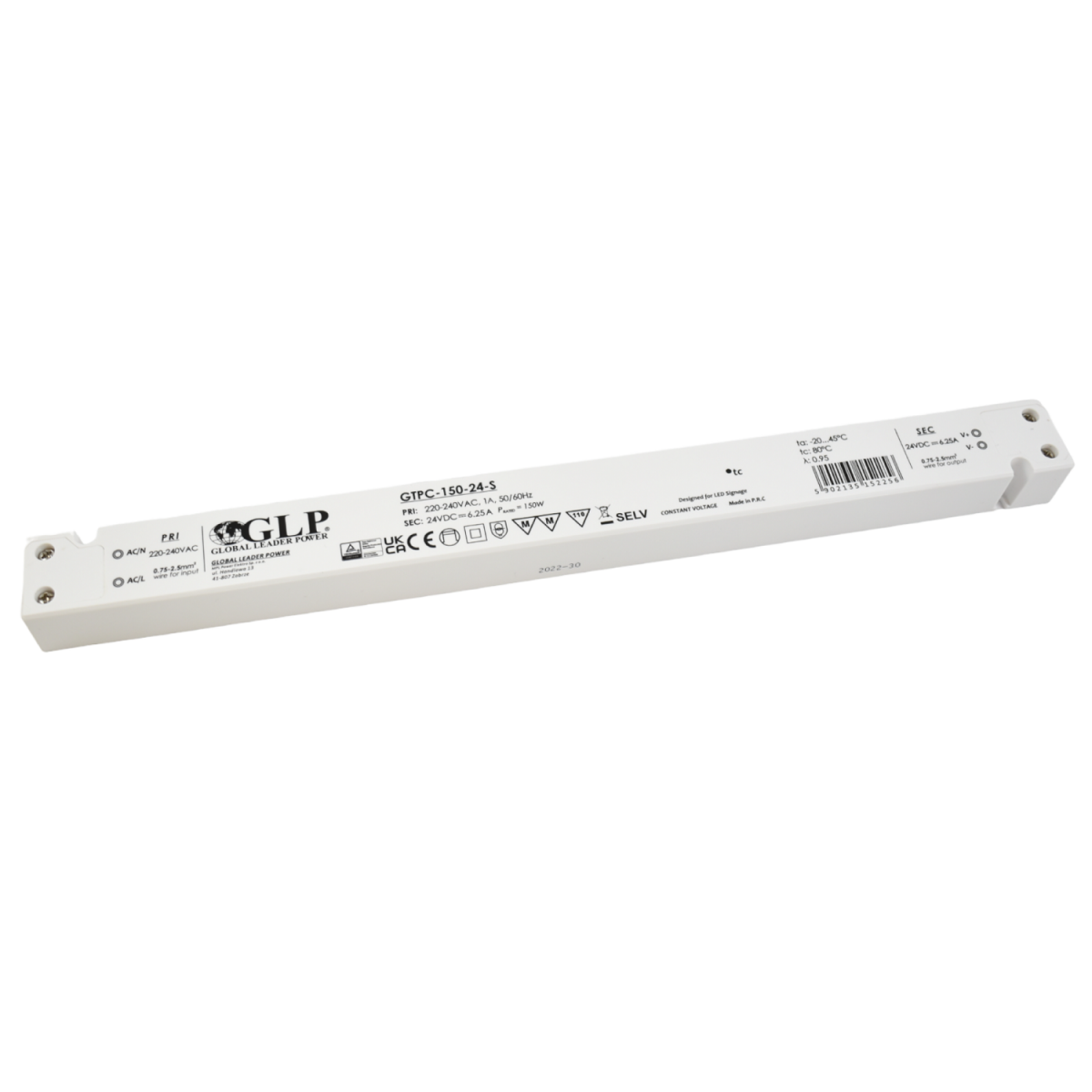

Power Supply Slim 150W 24V 6.25A - GLP

SKU:GTPC-150-24-S
Has superado el límite de unidades
In stock 249 units
Data sheet

GLP 150W 24V 6.25A constant voltagepower supply with a slim and compact design, ideal for space-saving applications.

It has a protection system against overloads, short circuits and overheating. It also incorporates active power factor correction PFC, which translates into high energy efficiency and lower power consumption.

Shipping to Africa available
public
For any shipping requests to Africa, please contact our sales department at:  comercial@barcelonaled.com

The Slim 150W 24V 6.25A - GLP power supply is designed to provide a constant and stable 24 volt power supply with a current capacity of up to 6.25 amps.

It has a slim and compact design, making it especially suitable for applications in tight spaces.

It is an excellent choice for those seeking a reliable and efficient power supply with limited space.

Main product features:

  • Maximum power: 150W
  • Input Voltage: 220-240V-AC
  • Output current: < 6.25A
  • Output voltage: 24V DC
  • IP20: indoor use
  • Dimensions: 335 x 30 x 21.6 mm

Nominal Voltage (V)
220 - 240 V/AC
Maximum power (W)
150
Lifetime (h)
30000
IP
IP40
Frequency (Hz)
50 - 60
Output voltage (V)
24V
Temperature range
-20°C ~ +45°C
Certificates
CE
ROHS
Warranty
According to legal guarantee: 2 years
Maximum intensity (A)
6.25
Barcelona LED
