Switching power supply 5V 350W
SKU:B1586-350
€35.95
Tax included
Shipping to Africa available
For any shipping requests to Africa, please contact our sales department at: comercial@barcelonaled.com

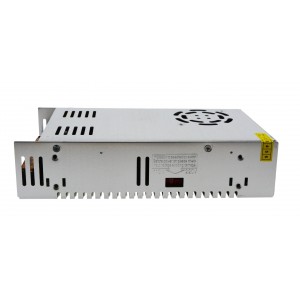

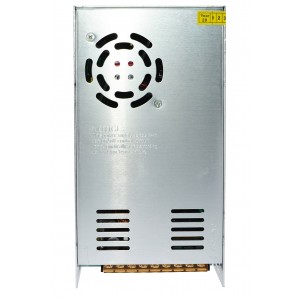

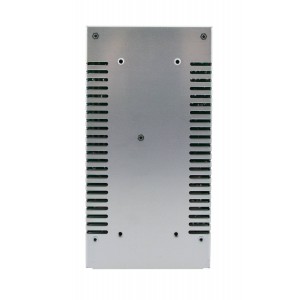

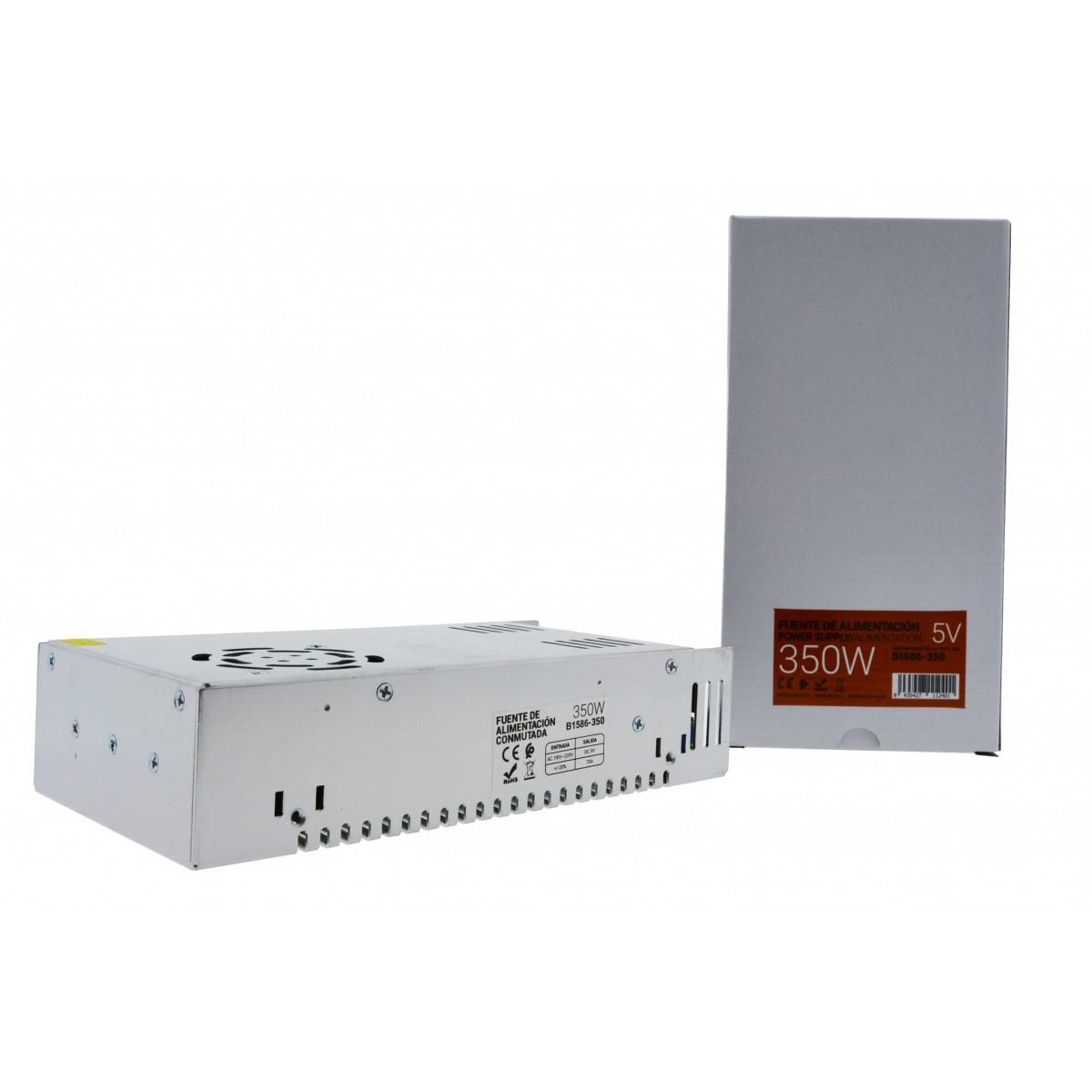

Switching power supply 350W at 5V

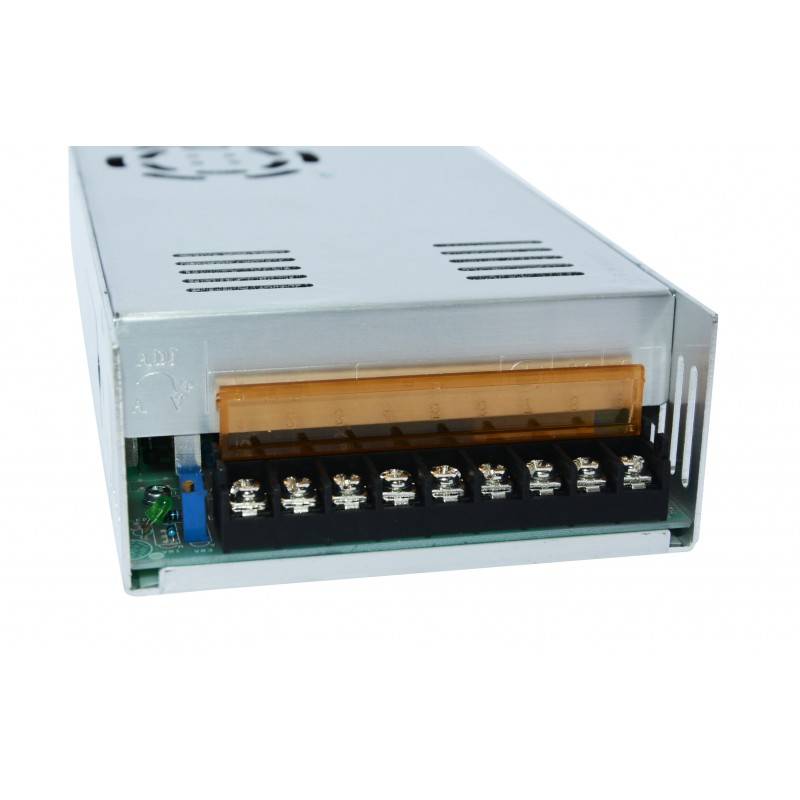

Transformer with 5V output at a maximum current of 70A, with output voltage adjustable between +/-20%. It compensates the voltage drop between the power supply and the power consumption point, allowing the installation source to be installed further away.
The 350W power supply is responsible for converting the alternating voltage input from the domestic mains into a continuous voltage output. Electrical equipment and circuits need power supplies to work.
High quality at a great price 350W switching power supply. Short-circuit, over-voltage and over-current protection. Stability and efficiency of the power supply. Constant voltage output to extend the life of LED strips. Designed with high quality materials, durability and excellent performance. Manufactured with metal housing and ventilated for proper cooling and heat dissipation.
Switching power supplies transform electrical energy by means of transistors into switching, with high efficiency, with compact dimensions.

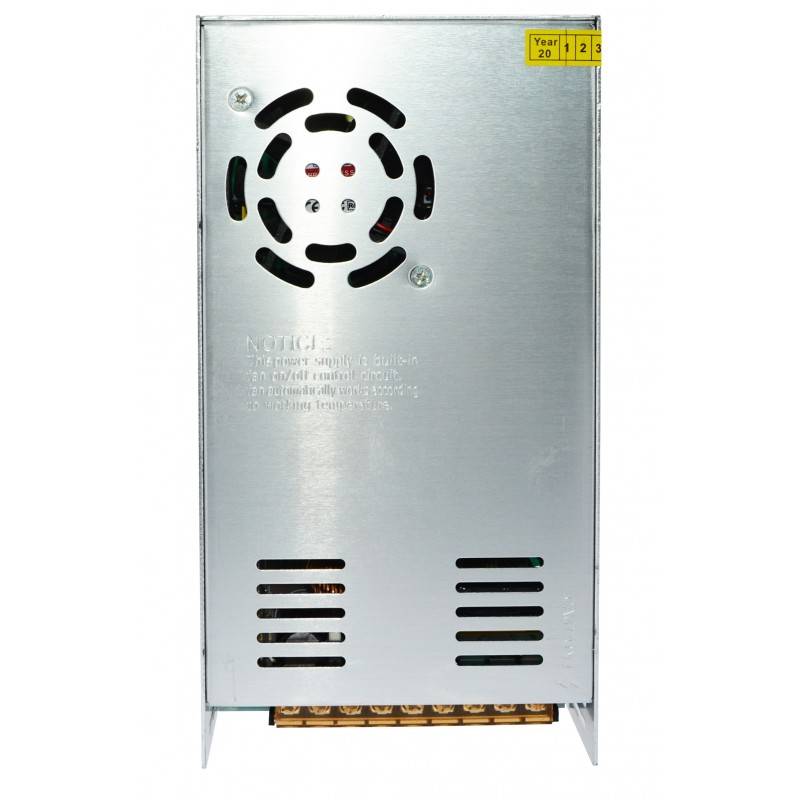

It incorporates a fan for cooling, so it is not recommended for use in very quiet places, as it could generate annoying noises.
Applications of the 5V / 350W power supply:
The 350W power supply allows powering large LED strip circuits, LED modules, LED neon and all those low voltage, 5V/DC LED illuminations, when it does not exceed the maximum power and intensity of the supply.
The purpose of the 350W power supply is the installation of parallel circuits.
Technical specifications:
- Input voltage: 110-220V
- Output voltage: 5VDC
- +/-20%
- Output amperage: 70A
- Output power: 350W
- Temperature coefficient: 0-50ºC
- Working temperature: -10ºC to 60ºC
- Temperature limit: -20ºC / +85ºC
Questions
| P: Question: | Could I turn on this power supply with a switch that the maximum load is 300W? |
|---|
| R: Answer: | If the maximum load of the switch is 300W and you are going to put more than 300W you cannot. |
|---|
| P: Question: | How big is it? |
|---|
| R: Answer: | Dimensions are 213 mm x 110mm x 50mm |
|---|
| P: Question: | How big is the transformer? |
|---|
| R: Answer: | 30cm x 11.5cm |
|---|
| P: Question: | Does this product include protection against overcurrents, short circuits and so on? |
|---|
| R: Answer: | Power supplies have short-circuit and overvoltage protection circuits on the output side where the connected loads or devices are connected. These are protections for sporadic failures, not to maintain a continuous uncorrected system failure. The input protections are passive, the 220vac network input problems must be protected with external systems if the network is not stable. |
|---|
